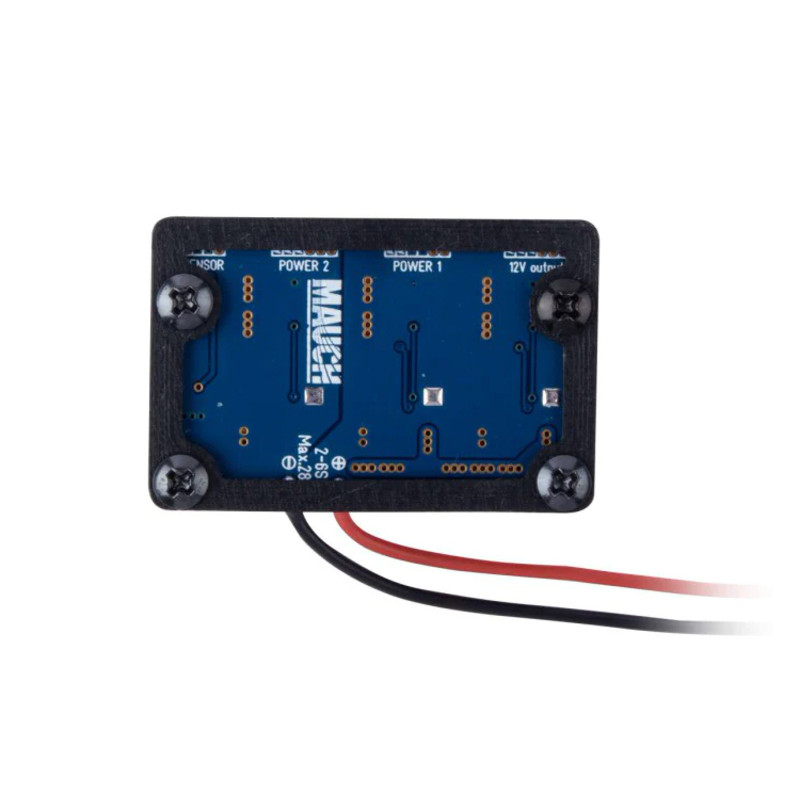

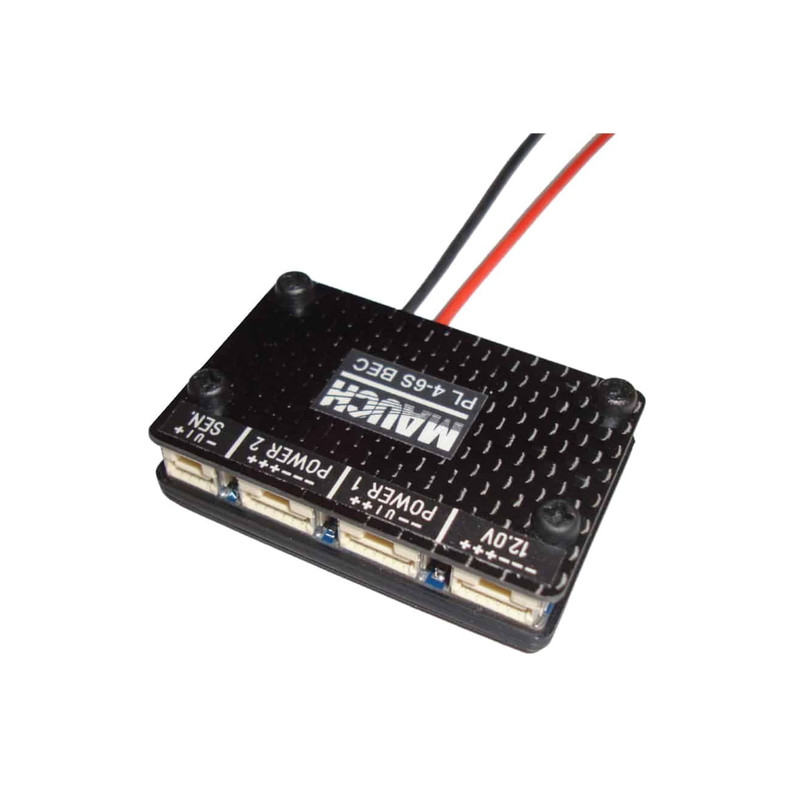

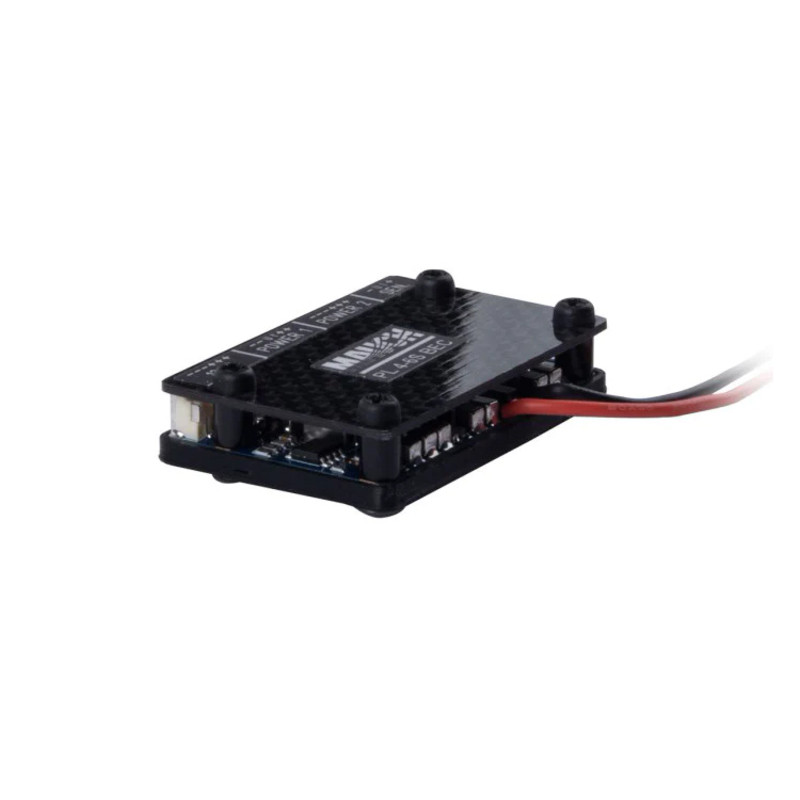

MAUCH PL 4-6S BEC 3x Power Regulator (2x5.3 V; 1x12 V)

MAUCH offers the reliable PL 4-6S BEC 3x power regulator — a versatile solution for UAVs and other electronic systems requiring multiple stabilized voltages. This module is ideal for applications in the Drones & Quadcopters > Stacks (FC+ESC) category, providing stable power for controllers, receivers, servos, and additional devices.

Key Advantages and Features:

• Input Voltage: Compatible with 4S to 6S batteries (16.8 V – 22.2 V) and a wide operating range of 14 – 60 V, making the module flexible for various power systems.
• Three Output Channels: Two stabilized 5.35 V channels (channel A and channel B) and one 12 V channel (channel C) for connecting various components simultaneously.
• Power and Reliability: Rated current of 3 A per channel and peak current of 3 A, allowing it to power both high-power and sensitive electronic devices without interruptions.
• Type: Hybrid design (switching converter combined with linear LDO) to combine efficiency and low output noise.
• Protection: Built-in reverse polarity protection to prevent damage from incorrect power connection.
• Compact Design: Dimensions of 34x52x10 mm and a weight of only 24 g, facilitating integration into space-constrained platforms.
• Ease of Installation: Ergonomic casing and a set of cables for quick connection to sensors and control devices.

Technical Specifications

• Type: Hybrid (switching + linear LDO)
• Input Voltage: 14 – 60 V (recommended operating range 4S–6S: 16.8–22.2 V)
• Output Voltage (channel A): 5.35 V
• Output Voltage (channel B): 5.35 V
• Output Voltage (channel C): 12 V
• Rated Current: 3 A per channel
• Peak Current: 3 A per channel
• Dimensions: 34x52x10 mm
• Weight: 24 g

Package Contents

• Stabilizer – 1 pc
• Casing – 1 pc
• Sensor cable – 1 pc
• Control device connection cable – 1 pc

The MAUCH PL 4-6S BEC 3x Power Regulator (2x5.3 V; 1x12 V) combines compactness, high power, and protection against incorrect connections, making it an excellent choice for upgrading or building reliable unmanned systems. With three stabilized outputs, you can simultaneously power flight controllers, cameras, transmitters, and other peripheral devices, reducing the number of additional converters and optimizing space in the aircraft.
