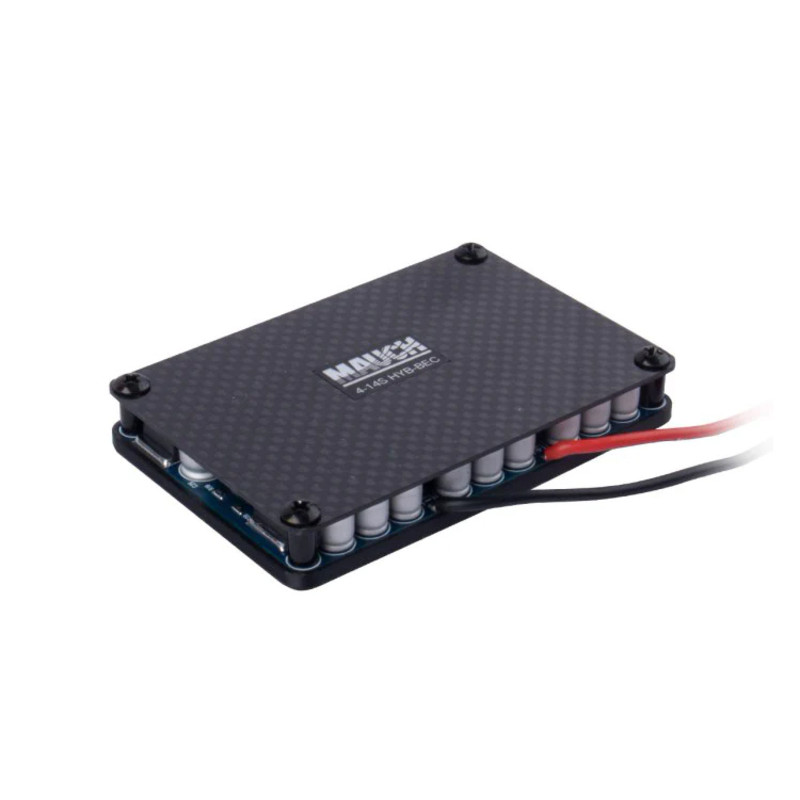

MAUCH PL 4-14S HYB-BEC 4x Power Regulator (2x5.3 V; 1x5 V; 1x12 V)

Brand: MAUCH. Category: Drones & Quadcopters > Stacks (FC+ESC).

The MAUCH PL 4-14S HYB-BEC is a highly reliable hybrid power regulator designed specifically for unmanned aerial vehicles and complex electronic systems that require stable voltage sources at various levels. The module supports input voltage from 4S to 14S (16.8 V — 58.8 V), making it a versatile choice for a wide range of applications; the specifications also indicate an input voltage range of 14–60 V, emphasizing its compatibility with various power sources.

Key Features

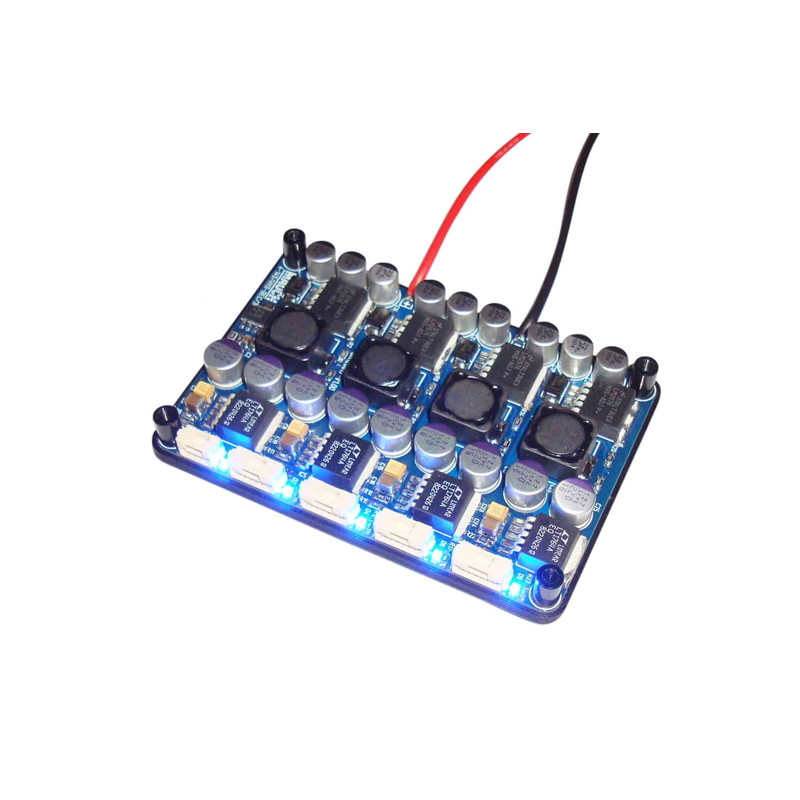

• Hybrid Stabilizer Type: A combination of switching and linear (LDO) regulation ensures minimal voltage drift and clean power for sensitive components.
• Four Output Channels: Two ~5.3 V channels (the description also states 5.35 V for channels A and B), one 5 V channel (channel C), and one 12 V channel (channel D) — allows powering various peripheral devices without additional converters.
• Maximum and Rated Current: Each channel is rated for up to 3 A (rated current: 3 A; peak current: 3 A), ensuring stable operation under significant loads.
• Reverse Polarity Protection: Built-in protection prevents damage from incorrect power connection.
• Compact Size and Easy Installation: Dimensions of 59x87x13 mm and a weight of 72 g allow for easy integration of the module into drone bodies and other structures.

Technical Specifications

• Type: Hybrid (Switching + Linear LDO)
• Output Voltage: 5.35 V (Channel A)
• Output Voltage: 5.35 V (Channel B)
• Output Voltage: 5 V (Channel C)
• Output Voltage: 12 V (Channel D)
• Also stated in description: two 5.3 V channels (similar to 5.35 V in specifications)
• Rated Current: 3 A
• Peak Current: 3 A
• Input Voltage: 4S to 14S (16.8 V — 58.8 V)
• Input Voltage (according to specifications): 14 – 60 V
• Dimensions: 59x87x13 mm
• Weight: 72 g

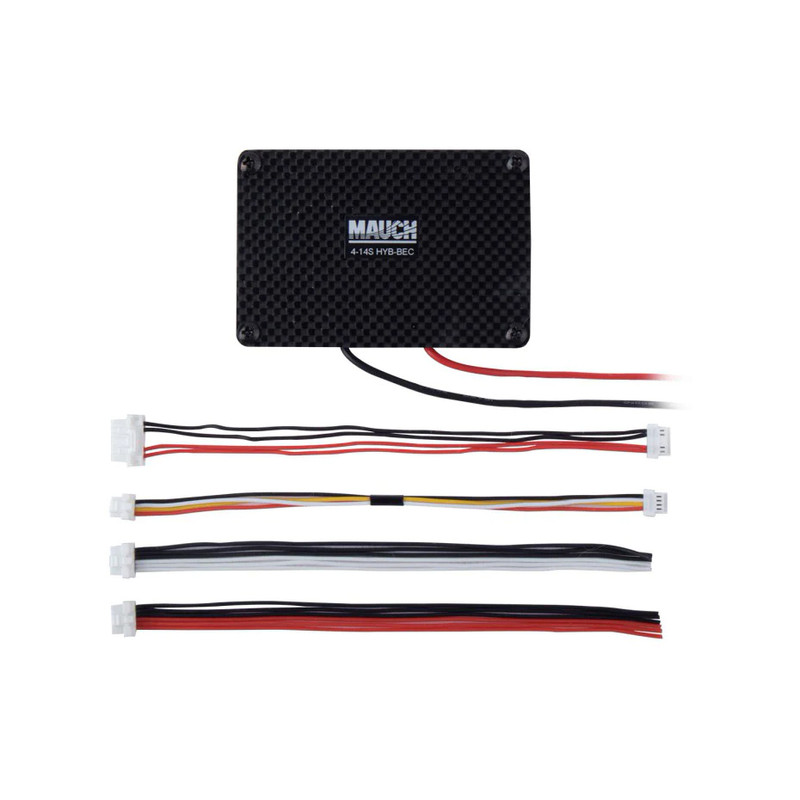

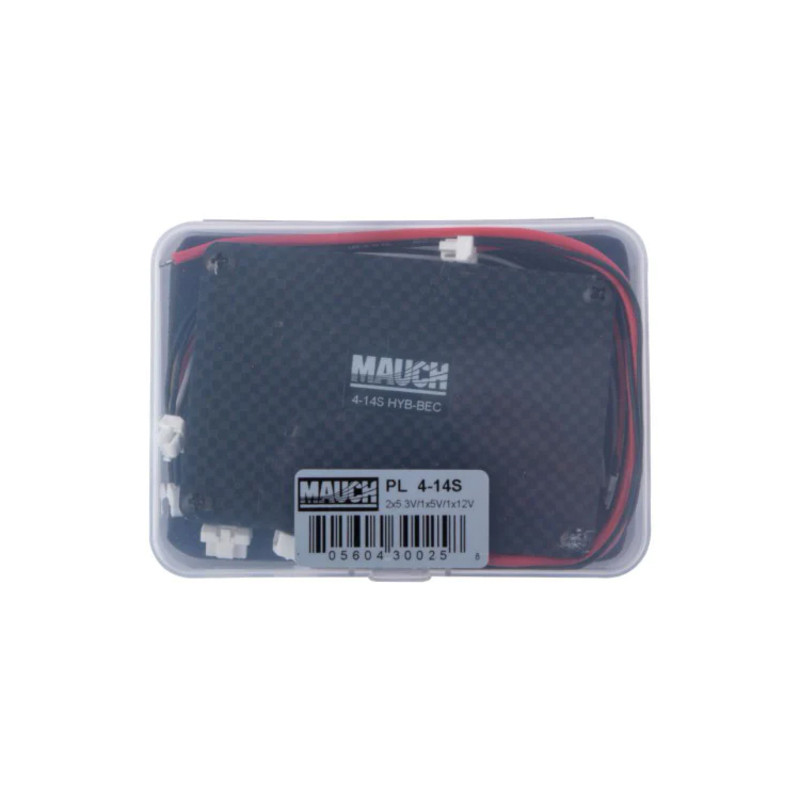

Package Contents

• Stabilizer – 1 pc
• Housing – 1 pc
• Sensor cable – 1 pc
• Cable for connecting to control device – 1 pc
• Molex ClikMate cable (red-black) – for 5.0 V line – 1 pc
• Molex ClikMate cable (white-black) – for 12.0 V line – 1 pc

The MAUCH PL 4-14S HYB-BEC will be an excellent choice for those seeking a reliable and multifunctional power regulator with multiple output lines, high current potential, and reverse polarity protection. Its hybrid architecture combines the energy efficiency of the switching part with the stability of the linear LDO, which is especially important for powering autopilots, controllers, servos, and other electronics in unmanned systems.
