MAUCH PL 4-14S BEC 1x Power Regulator — Reliable Solution for Drones and Professional Systems

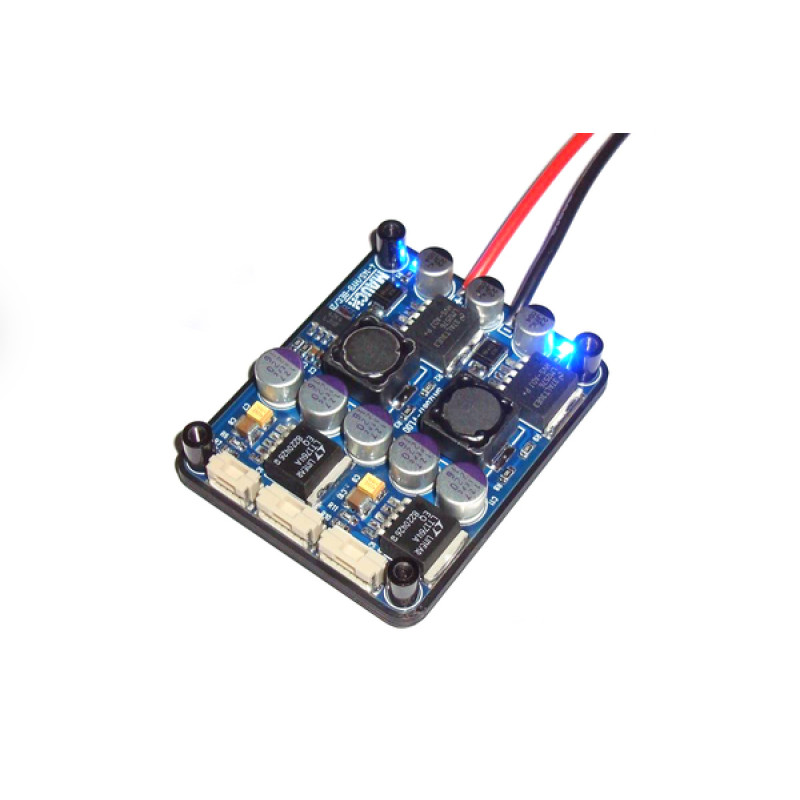

The MAUCH PL 4-14S BEC power regulator from Mauch Electronics is a high-quality hybrid module (switching + linear LDO) designed to provide stable power to sensitive electronic components in drones, automated ground platforms, and other power-intensive applications. The device is designed to operate with 4 to 14S batteries, with a maximum input voltage of up to 60V (12–60 V), making it a versatile solution for professional projects.
Series: Premium-Line 4-14s BEC. The unit provides a stabilized output voltage of 5.3 V (5.30V / 3A -> +/- 0.05V) with a nominal current of 3 A per channel and a peak current of 3 A. An additional LDO output (+5.00V +/- 0.03V) is designed to power PL-xxx series sensor boards and PL- Sensor Hub X2/X8. The output connector is Molex Clik-Mate 4p, and the power indicator is a blue "ON" LED.
| Specifications | Description |
|---|---|
| Manufacturer | Mauch Electronics |
| Type | Hybrid (switching + linear LDO) |
| Product Type | Premium-Line 4-14s BEC with 1 x 5.35V |
| Input | 4-14S LiPo / max. 60V, 12 – 60 V |
| Output Voltage | 5.3 V (stabilized), 5.30V / 3A -> +/- 0.05V |
| Nominal Current | 3 A per channel, peak current 3 A |
| Additional LDO Power | (+5.00V +/- 0.03V) for PL-xxx sensor board and PL- Sensor Hub X2/X8 |

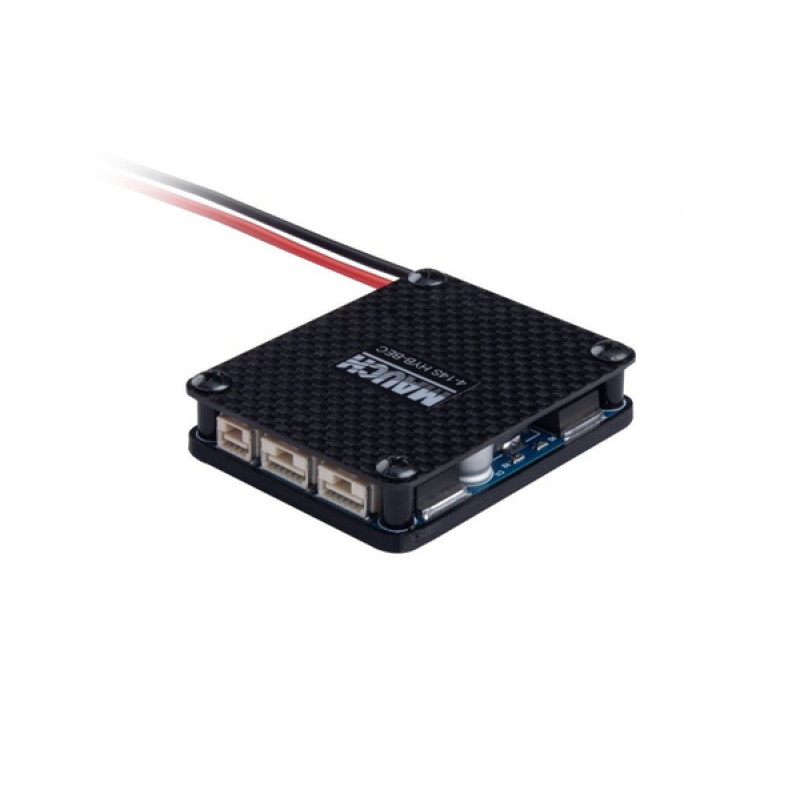

| Output Connector | Molex Clik-Mate 4p |
| Power Indicator | Blue "ON" LED |
| Dimensions | 59x48x13 mm, 59mm x 29mm x 13mm / 26g with housing (without cables) |
| Weight | 41 g |
| Packaging | PP box: 55 x 55 x 20mm |
| Note | BEC is supplied without a cable for connecting to the flight controller |
| Cable Compatibility | 041: DF13-6p -> Pixhawk 1 / APM, 042: Molex Clik-Mate 2.0 – 6p -> Pixhawk 2.1, 043: JST-GH-6p -> Pixhawk 3… etc. |
Advantages and Applications
The MAUCH PL 4-14S BEC combines the advantages of a switching converter for efficient operation at high input voltages and a linear LDO for creating a clean, low-noise output required to power the flight controller, sensors, and other sensitive modules. Thanks to high energy efficiency, precise 5.3V stabilization, and built-in protection against overvoltage, short circuit, and overcurrent, this regulator is ideal for professional solutions where reliability is critical.

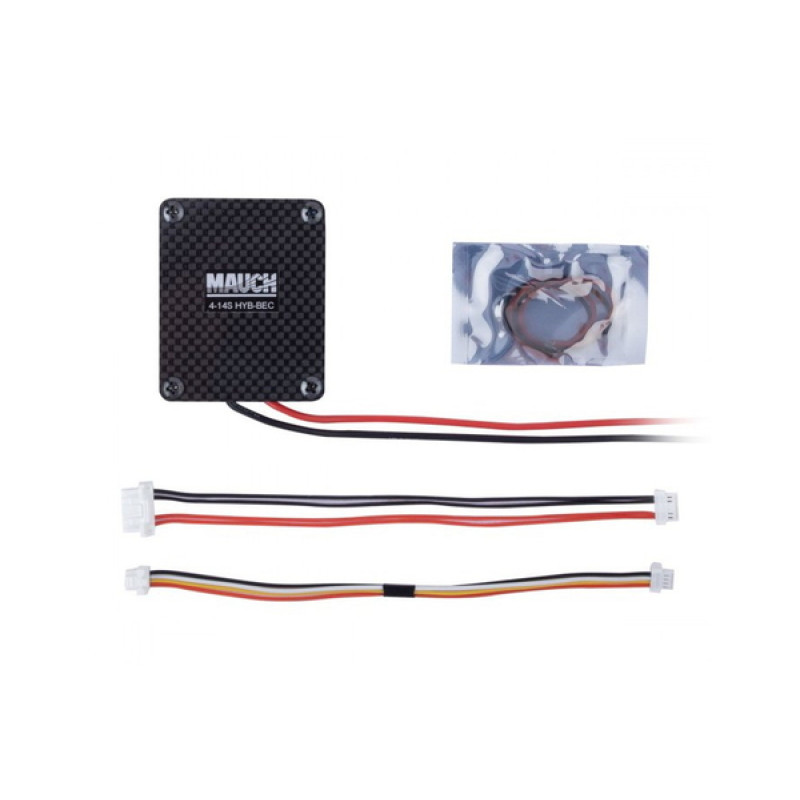

Package Contents:
- 1x PL 4-14S HYB-BEC / 1x 5.3V / 3A
- 1x PL series sensor cable / L=150mm

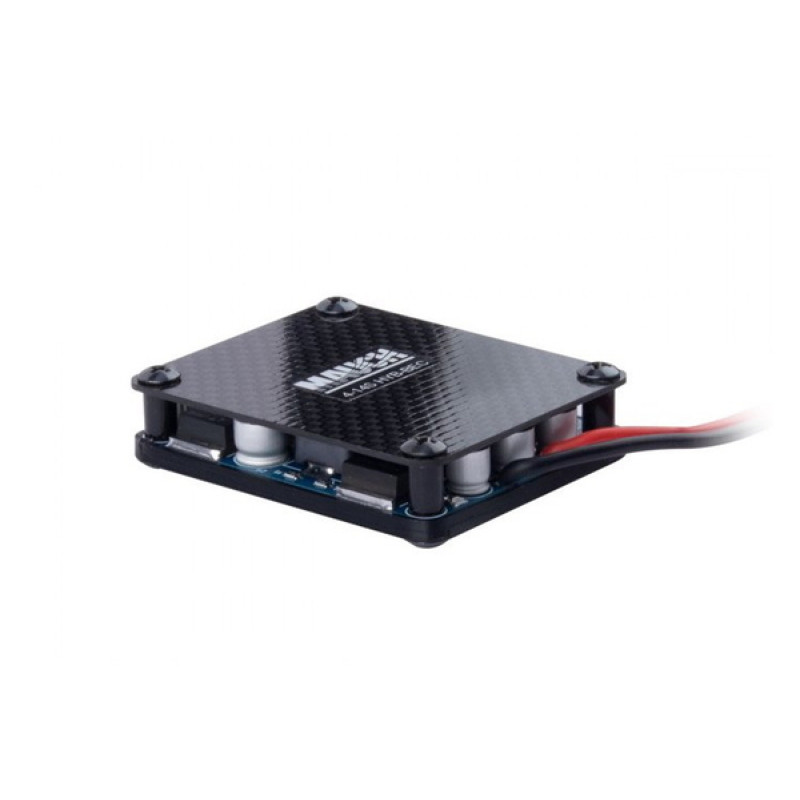

- 1x Housing
Please note: the cable for connecting to the flight controller is not included — you need to choose the appropriate cable considering compatibility (041, 042, 043, and other options). Compact size and low weight allow for convenient integration of the regulator into the drone's body or other platform. PP box packaging ensures safe delivery and storage.
The MAUCH PL 4-14S BEC is an optimal choice for engineers and enthusiasts looking for a reliable power supply with precise output voltage stabilization and an additional 5.00V LDO for powering sensor boards. All technical details, installation recommendations, and compatibility are available in the manufacturer's documentation and on the product page. If necessary, we will help you choose the right cable for your flight controller.
