Product Code: 2594-
In Stock
49 721 грн.
Buy this product in 1 click:
Main specifications
Device type: Trench & Vehicle EW Jammer
Number of jamming channels: 1
Total system power: 50 W
Power per channel: 50 W
Suppression Frequencies: 5.2 GHz
All specifications
We will deliver this product:
Payment
Description

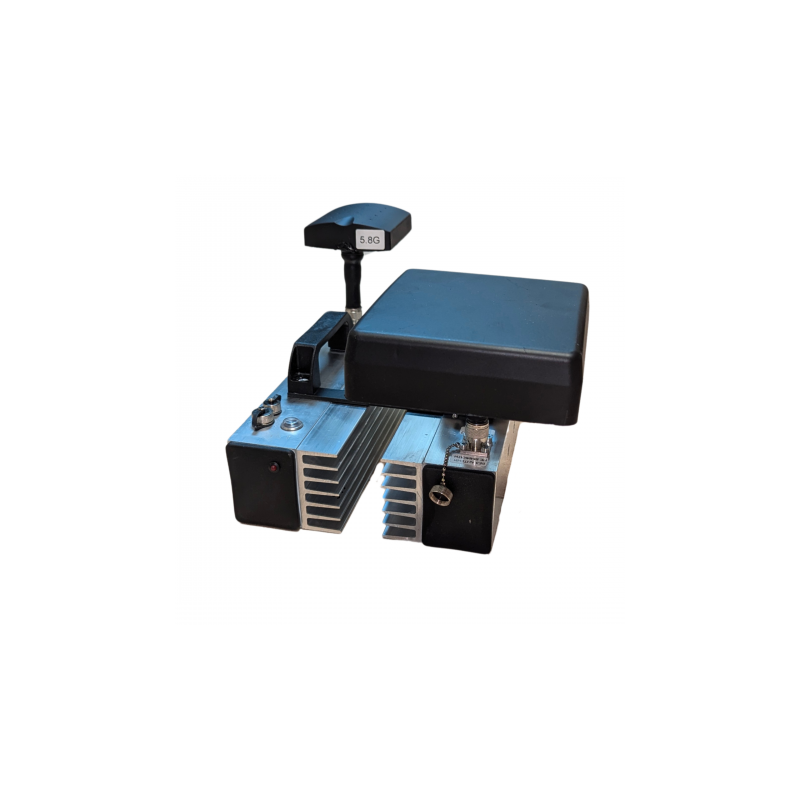

EW Jammer Pysets 5.2 GHz 50W with Integrated Battery and Patch Antenna

Brand: ZAVADA. Product type: EW Jammers (Trench EW Jammers). The Pysets mobile electronic warfare system is designed for effective suppression of UAV control and communication channels in the 5.2 GHz band. The device combines high total power (up to 50W in the key range), autonomy thanks to a built-in battery, and ease of use in field conditions.

Description and Key Advantages

Pysets from ZAVADA is a compact modular system with an integrated battery and proprietary Patch antennas, enabling directional coverage and reliable jamming of target sectors. The design allows for quick module replacement and the addition of extra blocks to enhance maintainability and operational flexibility in the field. The passive cooling system ensures reliable operation without the need for standard fans.

Key Technical Specifications

  • Frequency Range: 5.2 GHz.
  • Module Power: 40–50 W per band, ensuring highly effective suppression.
  • Stated Power: up to 50W in the key range.
  • Suppression Radius: up to 200 m when the drone operator is up to 4 km away — effective perimeter protection against drones.
  • Built-in Battery: 346 Wh for autonomous operation without external power sources.
  • Antennas: proprietary patch antennas for directional target coverage.
  • Modularity: quick module replacement and possibility of configuration expansion.
  • Cooling: reliable passive cooling without fans.

Package Contents

  • EW Jammer Pysets (main unit with integrated modules and Patch antenna).
  • Built-in 346 Wh battery.
  • External buttons: 2 pcs.
  • Remote controls: 2 pcs.

Warranty and Limitations

Warranty Period: 6 months. Mechanical damage and powering on the device without an antenna installed are not covered by warranty. Adherence to operating rules is mandatory to maintain the warranty.

Additional Options and Accessories

Configuration and manufacturing of additional adapters and extensions are possible: antenna extensions, adapters for power from other batteries, car terminal adapters, car cigarette lighter chargers, and other special adapters. Also available: car mount, car charger, fast charger, external battery adapter (for terminals), and ECOFLOW uninterruptible power supply unit.

EW Jammer Pysets — a solution for those who need combined power and autonomy in a compact modular body with an integrated 346 Wh battery and proprietary patch antenna. The device is suitable for field operations, ensuring ease of maintenance and quick module replacement if needed.

Other products in this category here EW Jammers

Other products in this category here Trench EW Jammers

EW Pysets

Specifications
Frequency range 5.2 GHz
Trench EW Jammer
Device type Trench & Vehicle EW Jammer
Number of jamming channels 1
Total system power 50 W
Power per channel 50 W
Suppression Frequencies 5.2 GHz
Antenna type Patch
Effective jamming range up to 200 m
Power source Battery
Cooling type Passive
Mounting Type Trench, Portable
