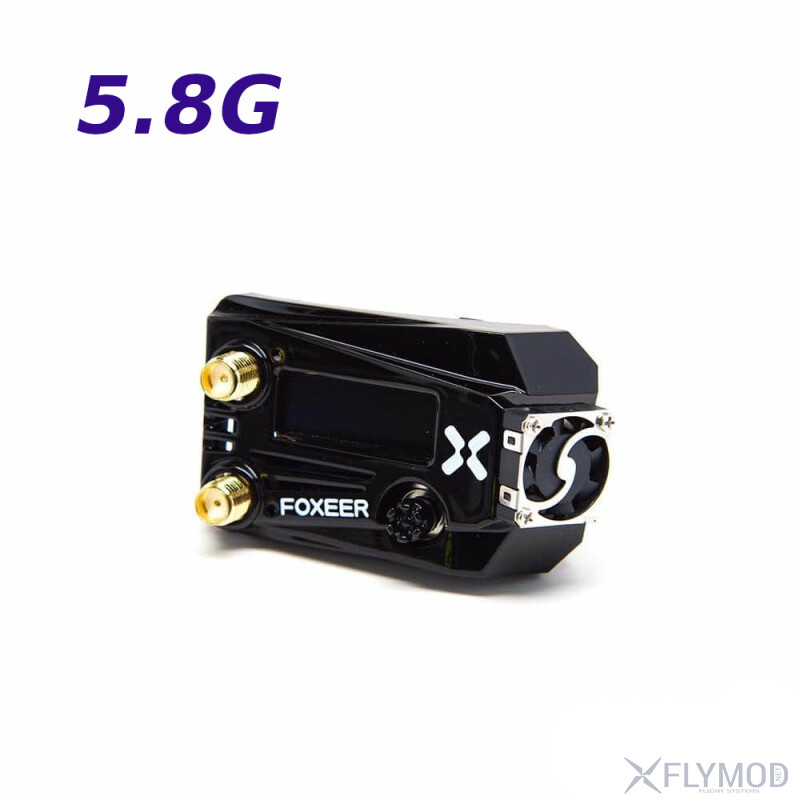

The Foxeer Wildfire Dual Receiver module with 4.9 GHz 80 channels or 5.8 GHz 72 channels version is compatible with all versions of Fat Shark Dominator goggles. Foxeer Wildfire uses the latest RF technologies to improve the FPV channel even when using a multi-patch system. It features anti-rolling shutter technology, which helps avoid image desynchronization by switching to a standard Diversity receiver at low RSSI values. It supports OSD and firmware updates, and is also equipped with an OLED screen.

Foxeer Wildfire video review:

Features

• Sensitive receiver modules used: -98dBm
• OLED screen
• OSD and firmware update support
• 5-way button
• Input voltage 5~16V
• 1504 fan (Taiwan production)
• Foxeer Wildfire 4.9G(5G) version supports band X, also works with 5.8G, but sensitivity may be 1-2 dB lower,
  while the standard 5.8G module does not support 5G (band X).

Specifications

• Brand: Foxeer
• Model: Wildfire
• Compatibility: all versions of Fatshark goggles (V1,V2,V3,HD1,HD2,HD3,SE, HDO, HDO2)
• Frequency, number of channels:
  • 4.9G (80CH)
  • 5.8G (72CH)
• RF sensitivity: -98dBm
• Power consumption: 5V 400mA±10%
• Required power: 5~16V
• Color: option selection
• Weight: 30g

Channel table for Foxeer Wildfire 5.8GHz 72-channel Receiver

Channel table for Foxeer Wildfire 4.9GHz 80-channel Receiver

Package contents

• 1 x Foxeer Wildfire 4.9/5.8GHz 72CH Receiver Module
