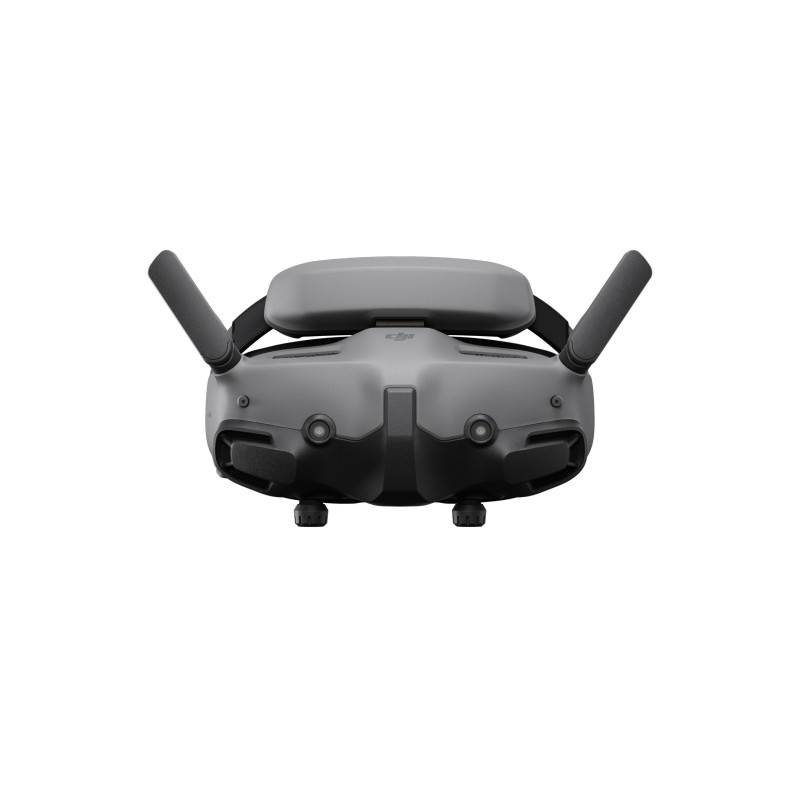

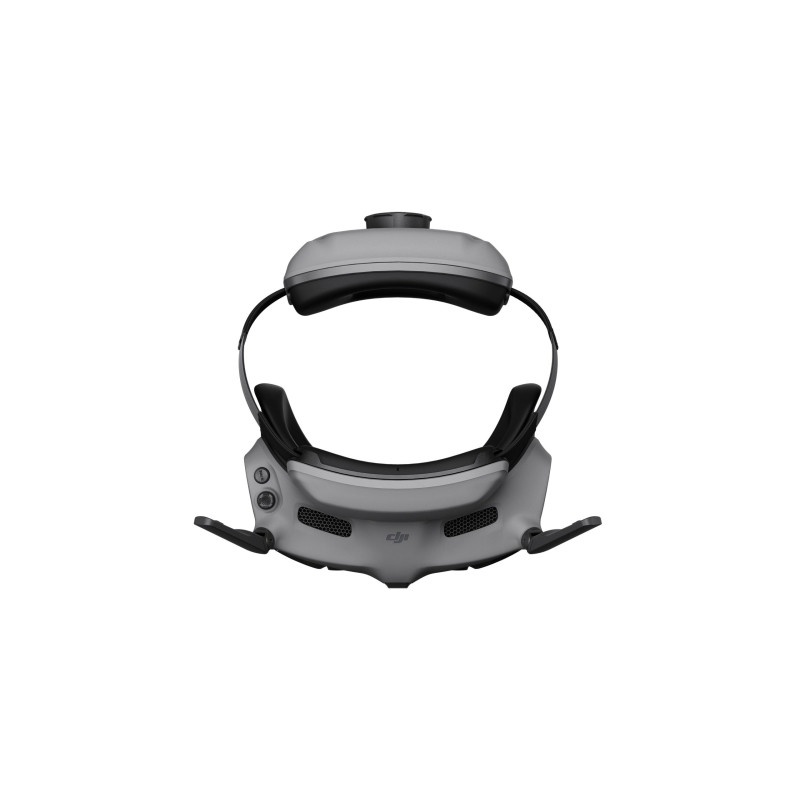

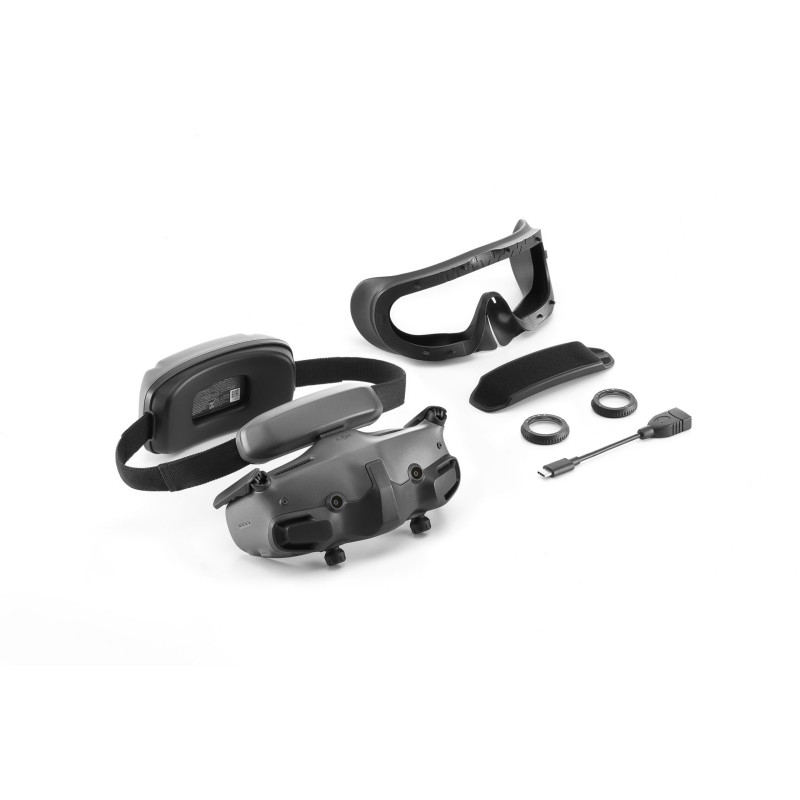

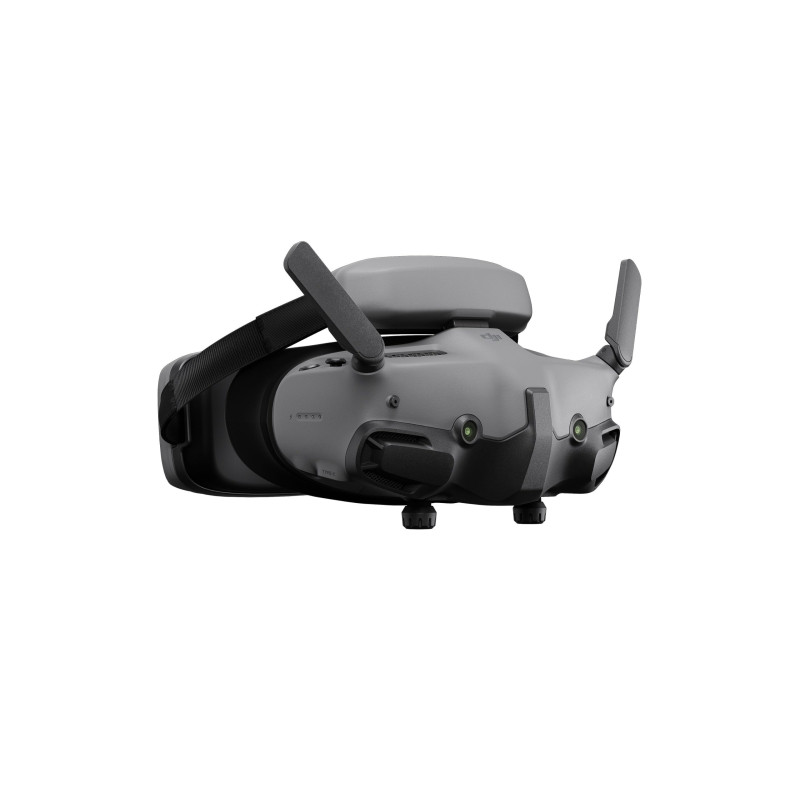

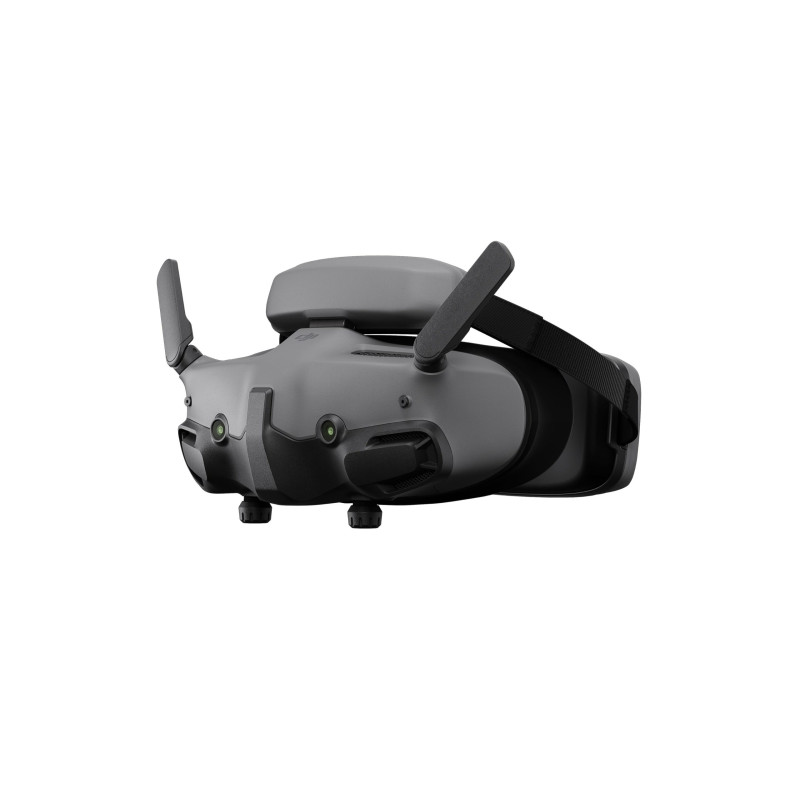

DJI Goggles 3 FPV Goggles

Brand: DJI. Product type: Drones & Quadcopters > FPV Goggles.

DJI Goggles 3 are the new generation of FPV goggles that provide deep immersion in flight and expand your drone control capabilities. The goggles are compatible with DJI Avata 2 and DJI RC Motion 3 devices and allow intuitive body movement control: simply tilt your head or wrist to control the drone. The device supports the innovative Real View PiP function and the advanced DJI O4 video transmission system, ensuring a stable and reliable signal during flight.

Key Features

Real View PiP

The Real View PiP function allows you to instantly switch the display between the interface and a live view of the surroundings by double-tapping the right panel, with flight information displayed in the upper left corner of the screen. This enhances safety and spatial orientation convenience without needing to remove the goggles.

O4 HD Video Transmission

The O4 system features a 2-transmitter, 4-receiver, and 6-antenna design, enhancing interference suppression and connection stability. Transmission latency is approximately 24 ms, the maximum transmission range is up to 13 km, and automatic frequency selection between 2.4 GHz and 5.8 GHz ensures a stable signal in various conditions. The maximum video transmission rate is 60 Mbps, and SyncSmooth technology optimizes image quality for smooth and clear viewing.

Comfort and Ergonomics

Padding, Weight, and Battery

The goggles are equipped with soft foam padding for the forehead, which reduces pressure and prevents light leakage near the nose, ensuring a comfortable fit. The integrated battery in the headband and even weight distribution make the device compact and convenient to use. The goggles weigh approximately 470 g. The integrated battery provides up to 3 hours of operation, allowing for extended flights without frequent recharging.

Anti-fog and Ventilation

The anti-fog function activates an internal fan that quickly accelerates to clear the lenses when temperatures change or humidity increases, ensuring a clear image even in challenging conditions.

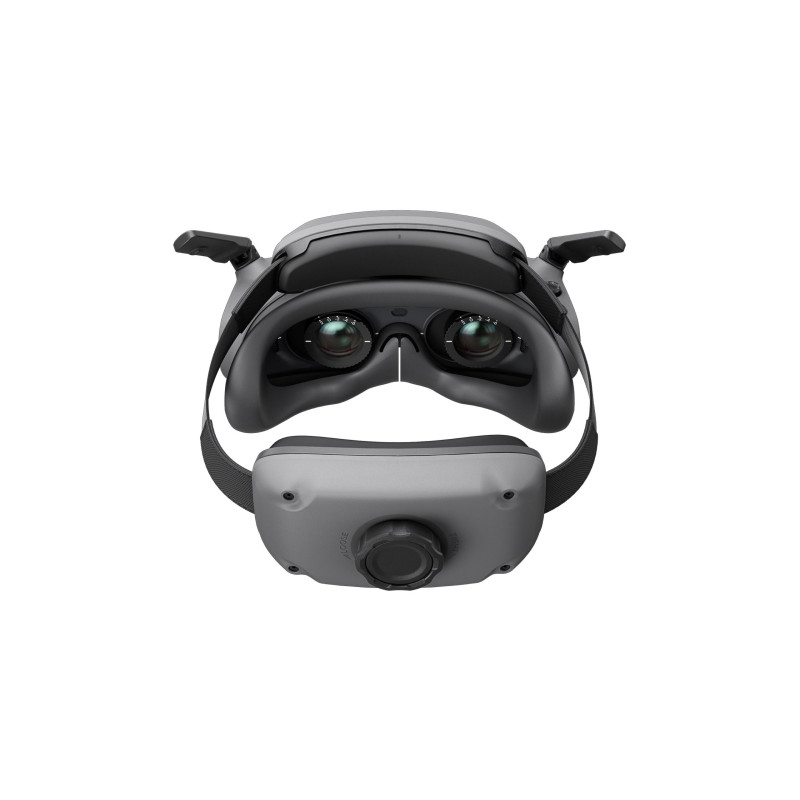

Optics and Eye Safety

The goggles support diopter adjustment in the range of -6.0 D to +2.0 D, allowing instant clarity adjustment without additional glasses. The device is TüV Rheinland Low Blue Light certified, reducing eye strain during prolonged use.

Screen Technical Specifications

• Screen Resolution: 1920×1080
• Screen Material: Micro-OLED
• Max Screen Refresh Rate: 100 Hz
• Max Screen Brightness: 700 nits
• Screen Dynamic Range: 50000:1
• Number of Lenses: 5 pairs for each eye

Smart Functions and Compatibility

When used with the DJI RC Motion 3 controller, it can act as an AR cursor for navigating the on-screen menu of the goggles, simplifying function activation, camera settings, and video transmission parameter changes. The video feed from Avata 2 is displayed in the DJI Fly app interface when Goggles 3 are connected via Wi-Fi to a smartphone within 5 m, facilitating flight demonstrations and training. Importing panoramic and 3D videos to an SD card for direct playback in the goggles is also supported.

Compatibility: DJI Avata 2, DJI RC Motion 3, DJI RC 2, DJI RC-N2, DJI Air 3, DJI Mini 4 Pro.

DJI Goggles 3 combine advanced video transmission technologies, high-quality optics, thoughtful ergonomic design, and intuitive control. These goggles will be a reliable tool for exciting flights, professional filming, and FPV piloting training.
