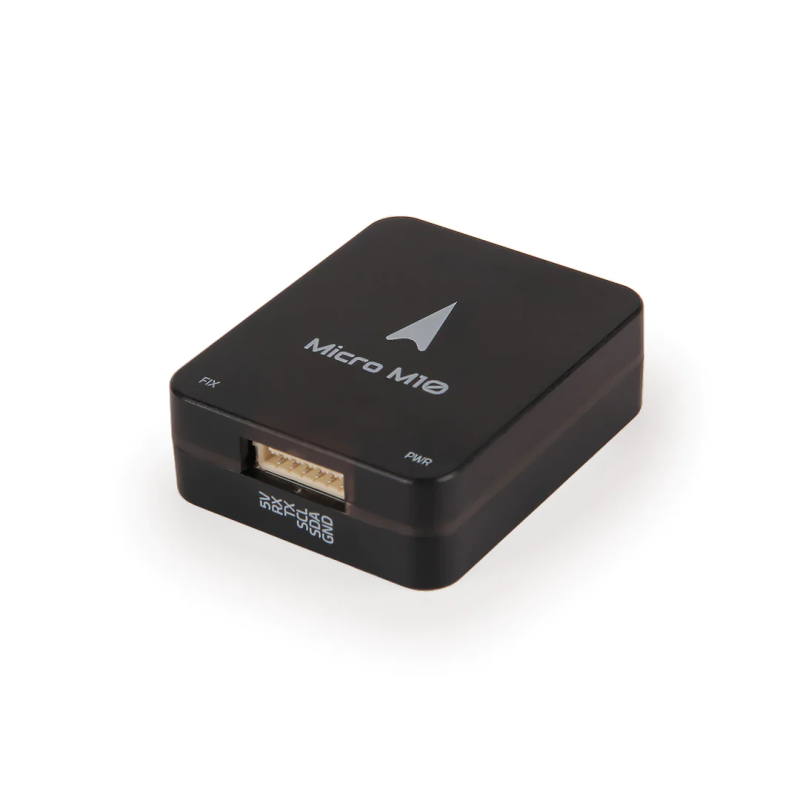

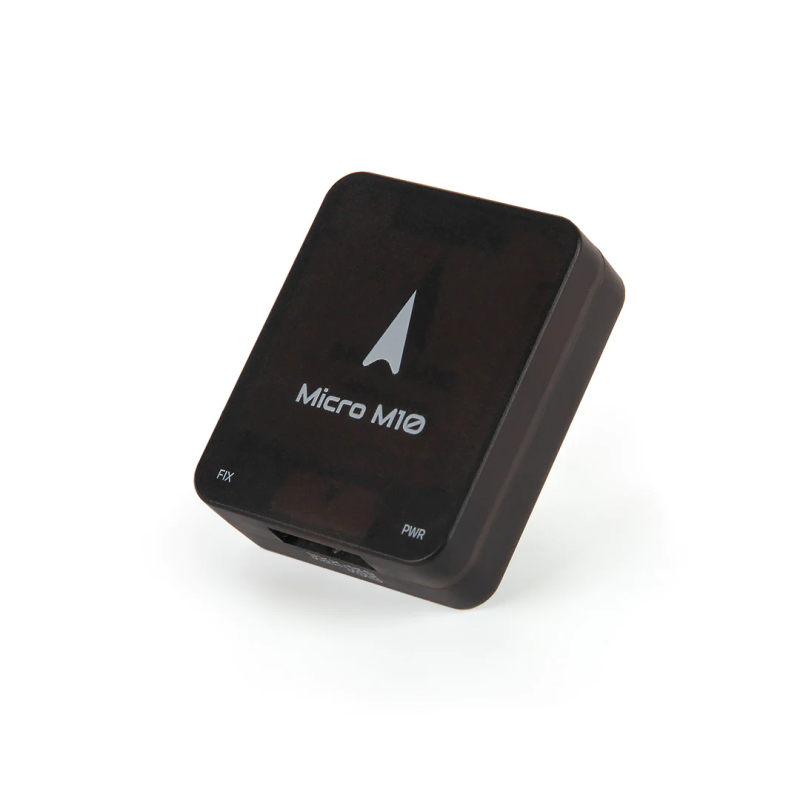

Holybro Micro M10 GPS Navigation Module with Case
The navigation module from Holybro is a compact and precise solution for drones and quadcopters. It is designed for integration into both professional and amateur-level aircraft. Product category: Drones and Quadcopters → Drone Accessories. The module is available in two versions: with case and without case – choose the desired configuration when ordering.

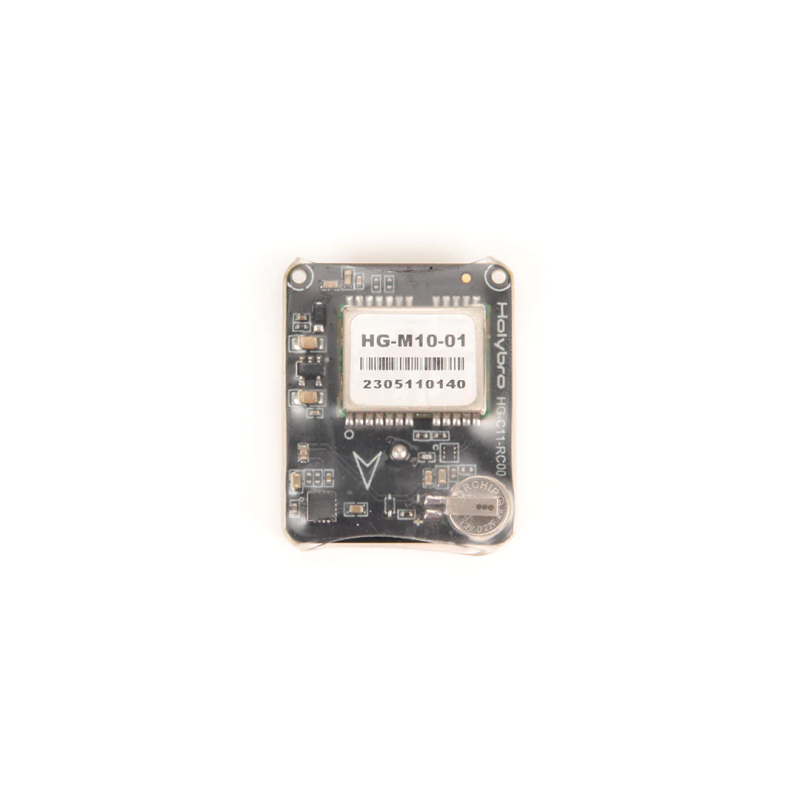

The Micro M10 GPS uses multi-constellation GNSS based on the u-blox M10 receiver, which enables parallel reception and tracking of multiple GNSS systems simultaneously. Thanks to its multi-band radio frequency architecture, the module can work with major global constellations: GPS, Galileo, GLONASS, BeiDou, and also supports QZSS and SBAS augmentation (WAAS, EGNOS, MSAS). The presence of an IST8310 compass enhances orientation stability and navigation accuracy in challenging magnetic environments.

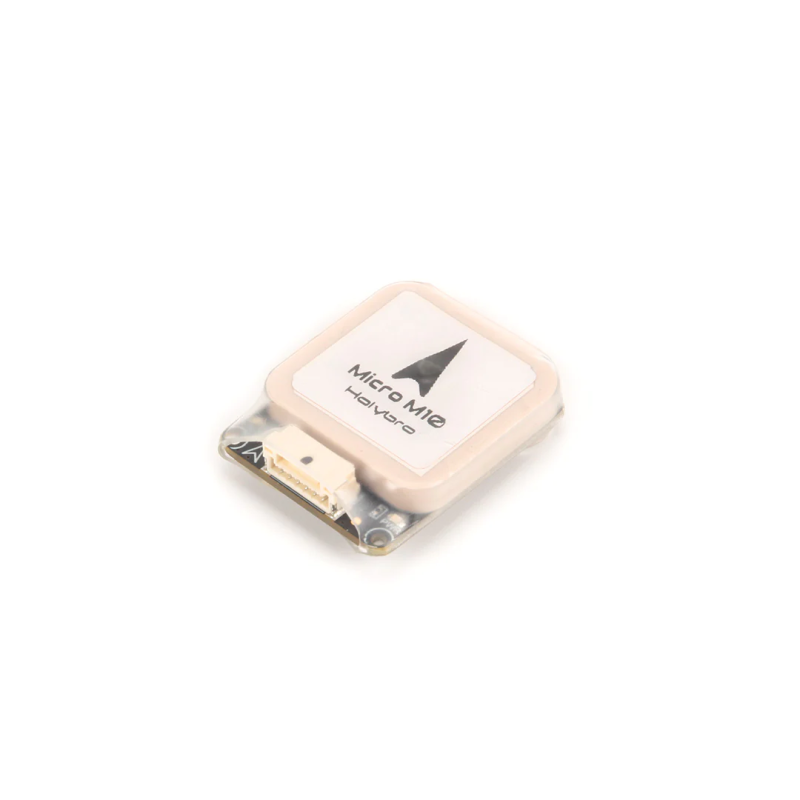

The ceramic patch antenna, measuring 25 x 25 x 4 mm, has a high gain and omnidirectional radiation pattern, providing flexibility during installation. The module is equipped with an active circuit for the patch antenna and a rechargeable backup battery for "warm" starts, while the built-in LNA type MAX2659ELT+ RF amplifier increases reception sensitivity. Supported firmwares: PX4 1.14, ArduPilot 4.3, INAV 5.0.0, Betaflight 4.3.0 or newer.
Key advantages of the module:
- Latest u-blox M10 (10th generation) receiver;
- Fast and accurate positioning due to multi-constellation operation;
- Built-in IST8310 compass for correct orientation;
- Compact form factor and low power consumption.
| Features: | |
| • Latest Ublox 10th generation GNSS • Fast and accurate positioning • IST8310 Compass • Small form factor | |
| Specifications: | |
| Micro M10 GPS | |
| GNSS Receiver | Ublox M10 Receiver |
| Number of Concurrent GNSS | Up to 4 GNSS • BeiDou • Galileo • GLONASS • GPS • QZSS |
| Compass | IST8310 |
| Frequency Band | • GPS L1 • Galileo E1 • GLONASS L1 • BeiDou B1 • SBAS L1 • QZSS L1 |
| Output Protocol | UBX (U-blox) NMEA |
| Nav. Update Rate | Up to 25 Hz (single GNSS), Up to 10 Hz (4 concurrent GNSS) |
| GNSS Augmentation System | SBAS: WAAS, EGNOS, MSAS QZSS: L1S (SLAS) |
| Default Baud Rate | 38400 |
| Input Voltage | 4.7-5.2V |
| Accuracy | 1.5 m |
| Velocity Accuracy | 0.05 m/s |

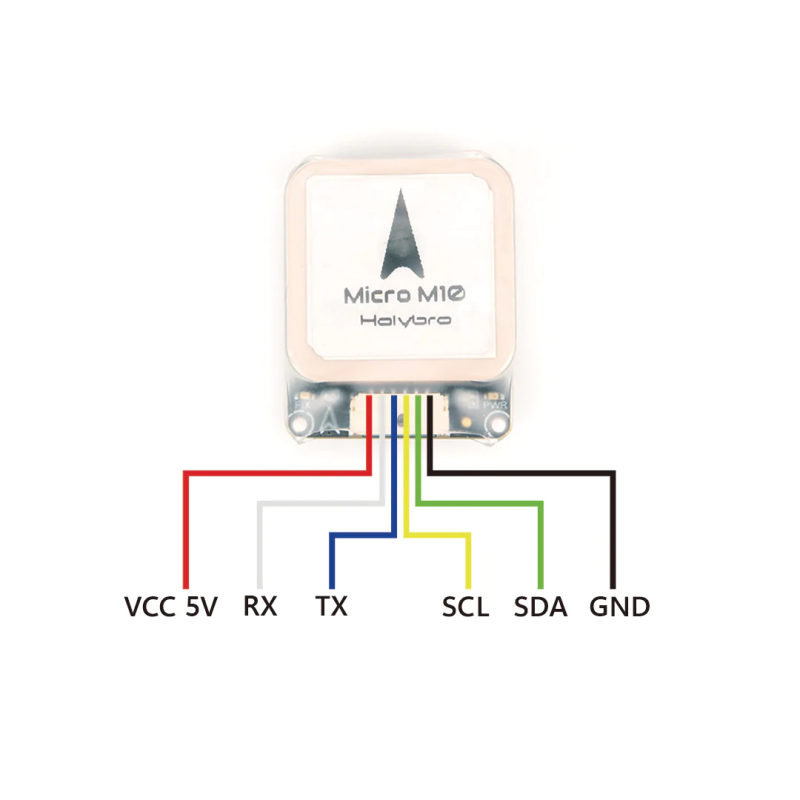

| Port Type | JST-GH-6P |
| Antenna | 25 x 25 x 4 mm Ceramic Patch Antenna |
| Power Consumption | Less than 200 mA at 5 V |
| Operating Temperature | -40~80°C |
| Size | 32 x 26 x 9 mm (without case) 34 x 28 x 11 mm (with case) |
| Weight | 14 g (without case) 16 g (with case) |
| Other Notes | |
| RF Amplifier | LNA MAX2659ELT+ |
| Battery Capacity | Backup battery for "warm" start, 3.3 V low-noise regulator |

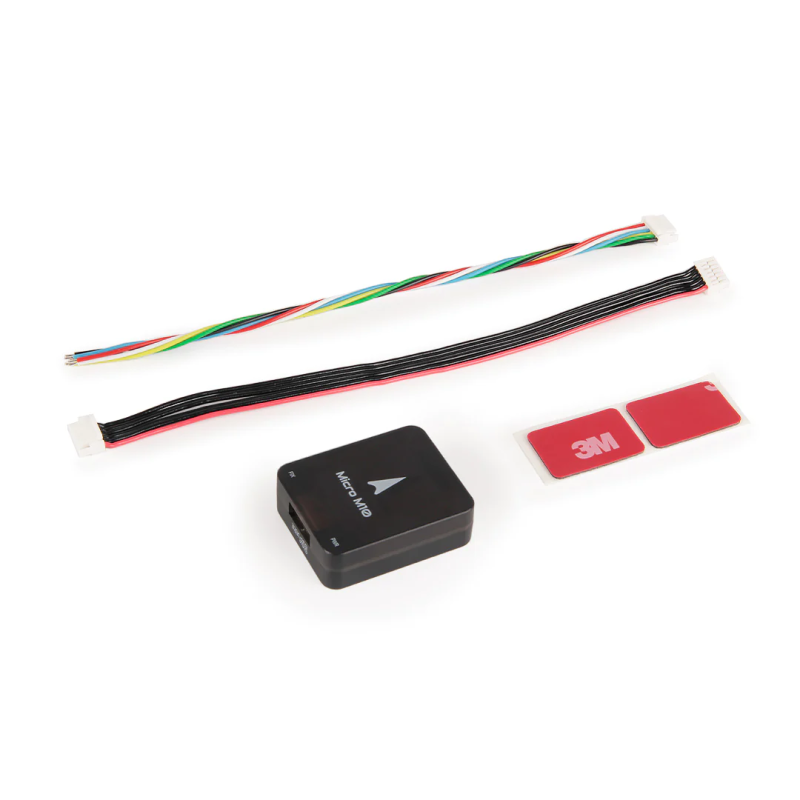

| Package Includes: | |
| – 1x Micro GPS Module – 1x JST GH 6-position connector 15 cm – 1x JST-GH 6-pin colored silicone cable 15 cm | |
The model ensures reliable communication and fast position updates, which is crucial for autopilot systems and high-demand positioning tasks. Thanks to support for modern firmwares and a wide range of protocols, integration with flight controllers is simple and flexible. Its low weight and compact size make the module ideal for FPV drones, mapping platforms, and surveillance systems.
If you need a version with a case for additional protection or a compact platform without a case – choose the appropriate option when placing your order. The technical parameters allow the module to be used in a wide range of temperatures and operating conditions.
Manufacturer information: Holybro. If you need advice on compatibility with a specific flight controller or assistance with firmware setup – please contact our specialists.
