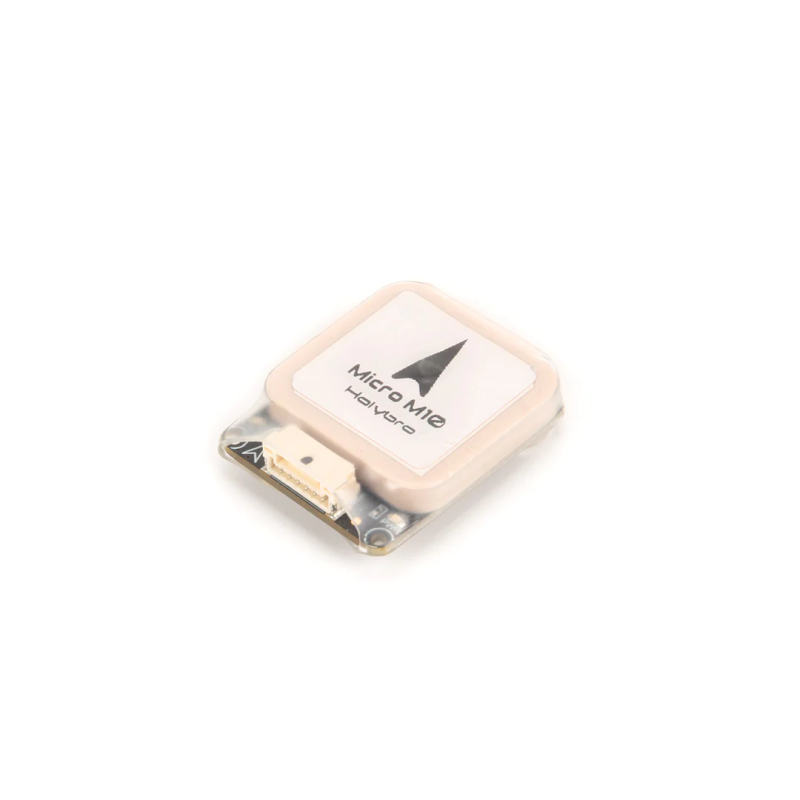

Holybro Micro M10 GPS Navigation Module without Protective Case
Brand: Holybro. The compact and high-precision Micro M10 GPS is designed for use in drones and other UAVs where fast positioning and minimal weight are critical. The module is based on the u-blox M10 receiver and supports multi-constellation GNSS, ensuring stable reception of GPS, Galileo, GLONASS, and BeiDou signals simultaneously, as well as additional systems like QZSS and SBAS.

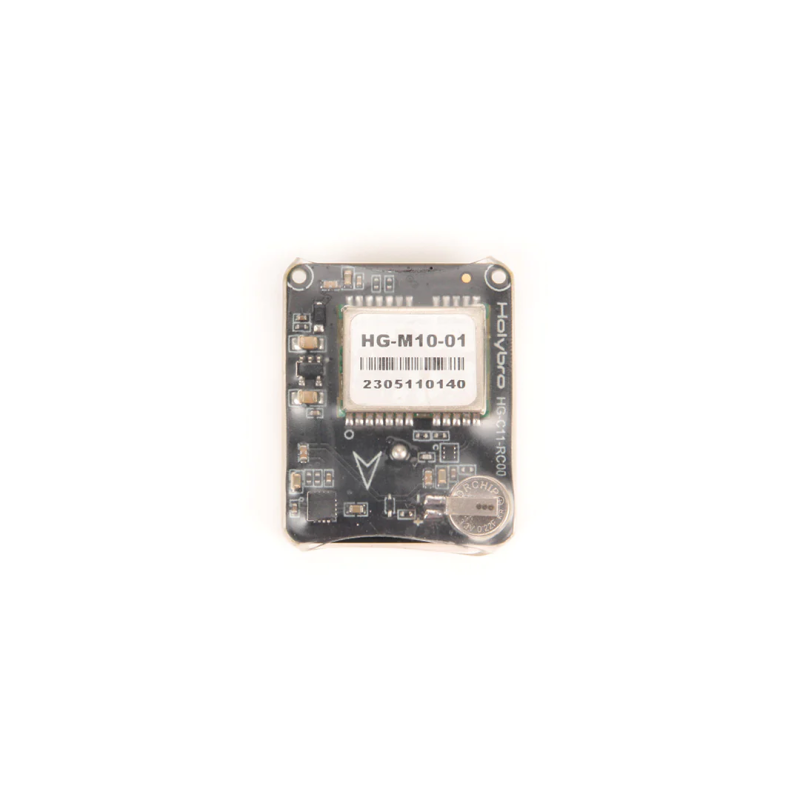

The Micro M10 features a built-in IST8310 compass and a highly sensitive 25 x 25 x 4 mm ceramic patch antenna with an active circuit. The antenna has an omnidirectional radiation pattern, which increases flexibility during device installation. The module includes a rechargeable backup battery for "warm" starts, a built-in LNA (amplifier), and a 3.3V low-noise regulator for stable RF performance.
Firmware support: PX4 1.14, ArduPilot 4.3, INAV 5.0.0, Betaflight 4.3.0, and newer versions. We offer versions with and without a case — choose the one that suits your project.
Key Advantages
- Latest 10th-generation Ublox for reliable positioning.
- Fast and accurate positioning up to 25 Hz for a single GNSS.
- Built-in IST8310 compass for correct platform orientation.
- Small form factor and lightweight, optimal for miniature drones.
Description and Application
The Micro M10 GPS is ideal for autopilot systems, signaling solutions, and other devices where accuracy, data update rate, and compatibility with multiple GNSS are important. By supporting up to 4 simultaneous GNSS, the module ensures stable coverage even in urban environments with interference. It is also compatible with common UBX (U-blox) and NMEA protocols, facilitating integration with existing controllers and software.
| Features: | |
| • Latest 10th-generation Ublox GNSS • Fast and accurate positioning • IST8310 Compass • Small form factor | |
| Specifications: | |
| Micro M10 GPS | |
| GNSS Receiver | Ublox M10 receiver |
| Number of Concurrent GNSS | Up to 4 GNSS • BeiDou • Galileo • GLONASS • GPS • QZSS |
| Compass | IST8310 |
| Frequency Range | • GPS L1 • Galileo E1 • GLONASS L1 • BeiDou B1 • SBAS L1 • QZSS L1 |
| Output Protocol | UBX (U-blox) NMEA |
| Nav. Update Rate | Up to 25 Hz (single GNSS), Up to 10 Hz (4 concurrent GNSS) |
| GNSS Augmentation System | SBAS: WAAS, EGNOS, MSAS QZSS: L1S (SLAS) |
| Default Baud Rate | 38400 |
| Input Voltage | 4.7-5.2V |
| Accuracy | 1.5m |
| Velocity Accuracy | 0.05 m/s |

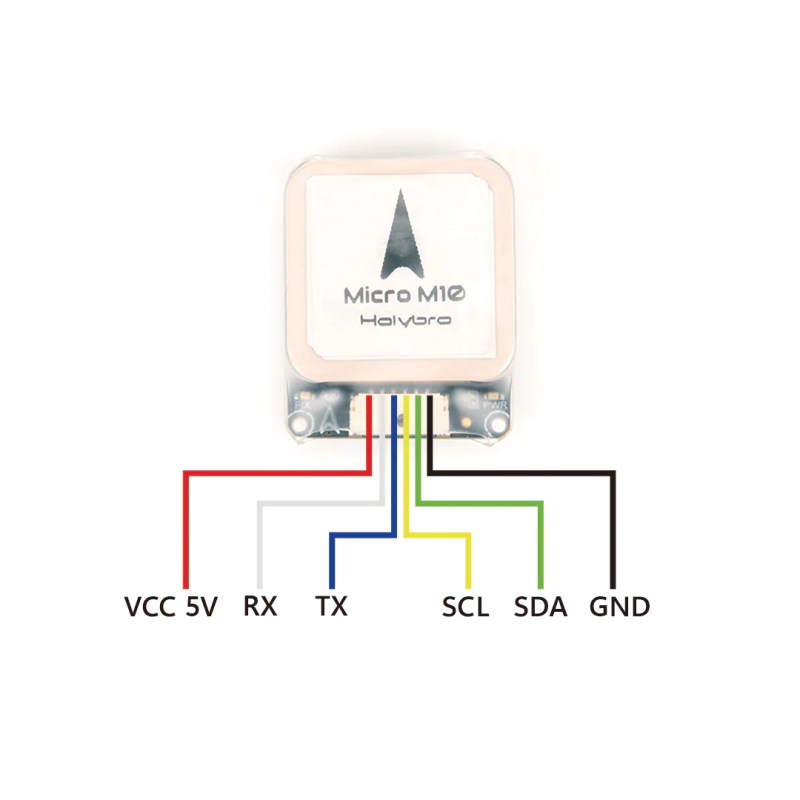

| Port Type | JST-GH-6P |

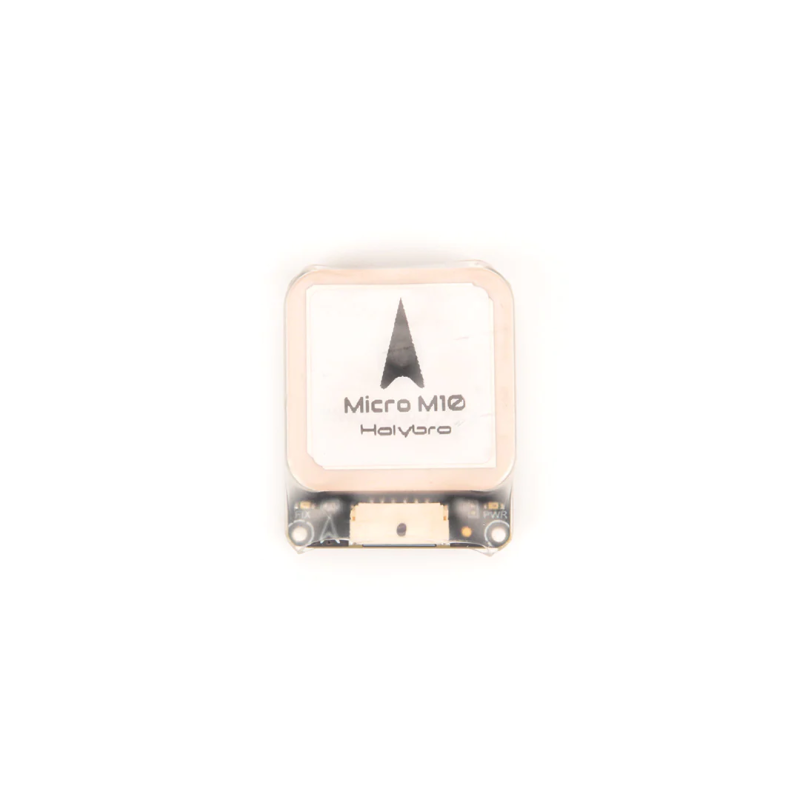

| Antenna | 25 x 25 x 4 mm ceramic patch antenna |
| Power Consumption | Less than 200 mA at 5 V |
| Operating Temperature | -40~80C |
| Size | 32 x 26 x 9 mm (without case) 34 x 28 x 11 mm (with case) |
| Weight | 14 g (without case) 16 g (with case) |
| Other Notes | |
| RF Amplifier | LNA MAX2659ELT+ |
| Rechargeable Backup Capacity | 3.3V Low Noise Regulator |

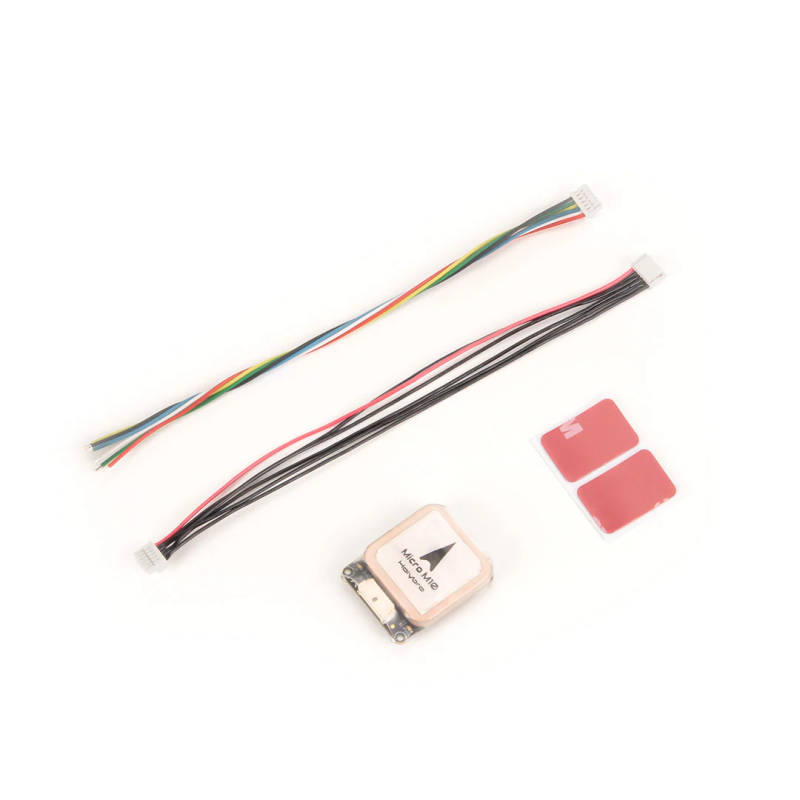

| Package Contents: | |
| – 1x Micro GPS module – 1x JST GH 6-position connector 15 cm – 1x JST-GH 6-pin colored silicone cable 15 cm | |
Compatibility and Integration: The module easily integrates with popular flight controllers and firmwares, supports configuration via UBX and NMEA formats, and has a standard JST-GH-6P interface for connection. Thanks to its small dimensions and low power consumption, the Micro M10 is suitable for lightweight and micro-drones, as well as specialized projects in geolocation and telemetry.
If you are looking for a reliable navigation module from a trusted manufacturer Holybro with a modern GNSS receiver and flexible integration capabilities — the Micro M10 GPS will be an excellent choice.
