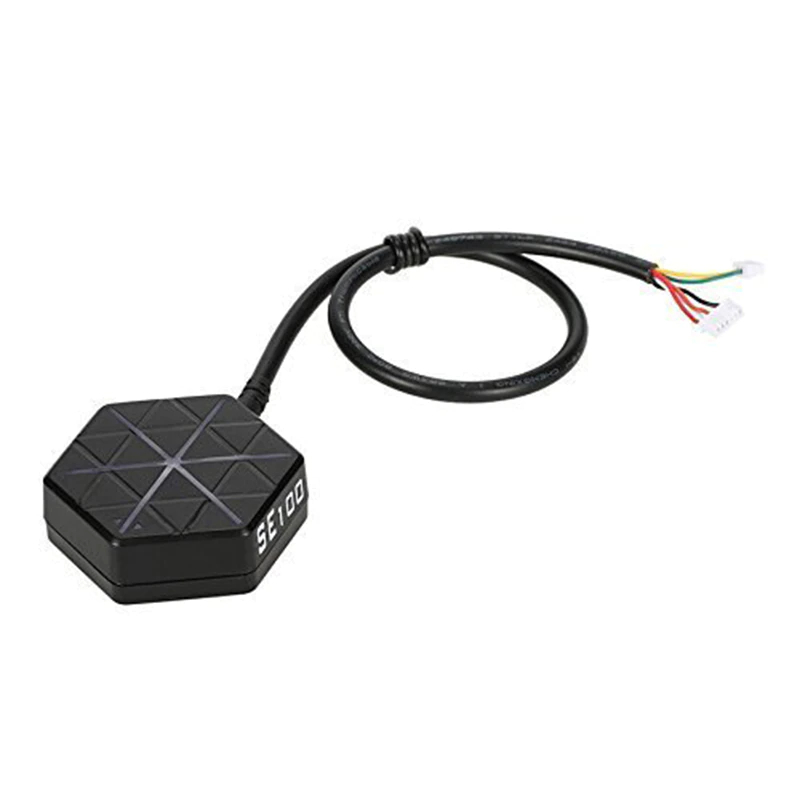

GPS Navigation Module Radiolink M10N SE100

Radiolink SE100 V2 with M10N chip is an updated navigation module designed to enhance the accuracy and reliability of your unmanned aerial vehicle's positioning. Manufacturer: Radiolink. The module supports multi-system GNSS (GPS, GLONASS, Galileo, BeiDou), ensuring stable signal reception in challenging conditions, fast startup, and minimal position acquisition time.

Key Features

• Modern M10N chip: high sensitivity and improved coordinate determination accuracy.
• Multi-system GNSS support: simultaneous use of GPS, GLONASS, Galileo, and BeiDou for enhanced reliability.
• Fast startup: minimal time to connect to satellites.
• Built-in compass (magnetometer): precise direction determination for stable drone control.
• UART and I2C interfaces: easy integration with autopilots and flight controllers.
• LED indicator: status indication and number of connected satellites.
• Compact design: low weight and dimensions, suitable for various platforms.
• Operating temperature range: from -40°C to +85°C.

Advantages of Radiolink SE100 V2 with M10N chip

• High positioning accuracy: achieved through a modern chip and multi-system support.
• Interference resistance: reliable operation in urban areas and locations with complex terrain.
• Easy installation and setup: convenient for professionals and beginners.
• Wide compatibility: support for popular autopilots such as Pixhawk, APM, and other flight controllers.

Technical Parameters

• Velocity accuracy: 0.1 m/s
• Sensitivity:
  • Tracking and navigation: -167 dBm
  • Signal acquisition: -163 dBm
  • Cold start: -151 dBm
  • Hot start: -159 dBm
• Activation time:
  • Cold start: 26 seconds
  • Hot start: 1 second
• Power supply:
  • Voltage: 5 ± 5% VDC
  • Current: 50~55 mA
• Ports:
  • GPS: UART port with 9.6K baud rate
  • Geomagnetic sensor: I2C port

This navigation module is ideal for upgrading drones that require stable and precise positioning, as well as for applications where fast coordinate fixation and spatial orientation are crucial. The Radiolink SE100 V2 combines a modern M10N chip, multi-system GNSS, and convenient interfaces for integration with various platforms, making it an excellent choice for professional solutions and amateur projects.

Product category information: Drones and Quadcopters > Drone Accessories.

Invest in precise navigation and enhance flight efficiency with the Radiolink SE100 V2 GPS module.
