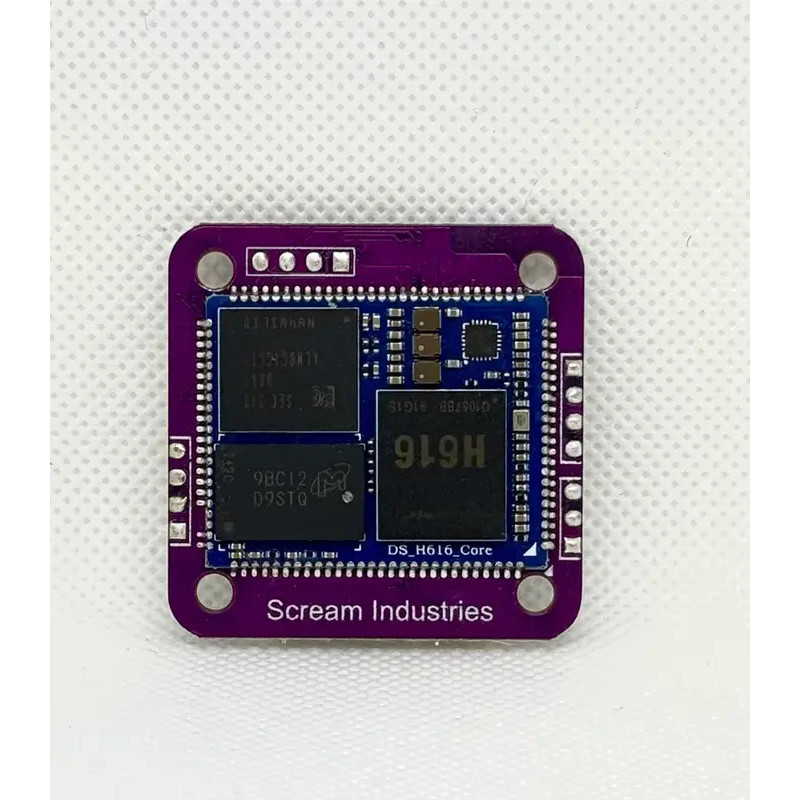

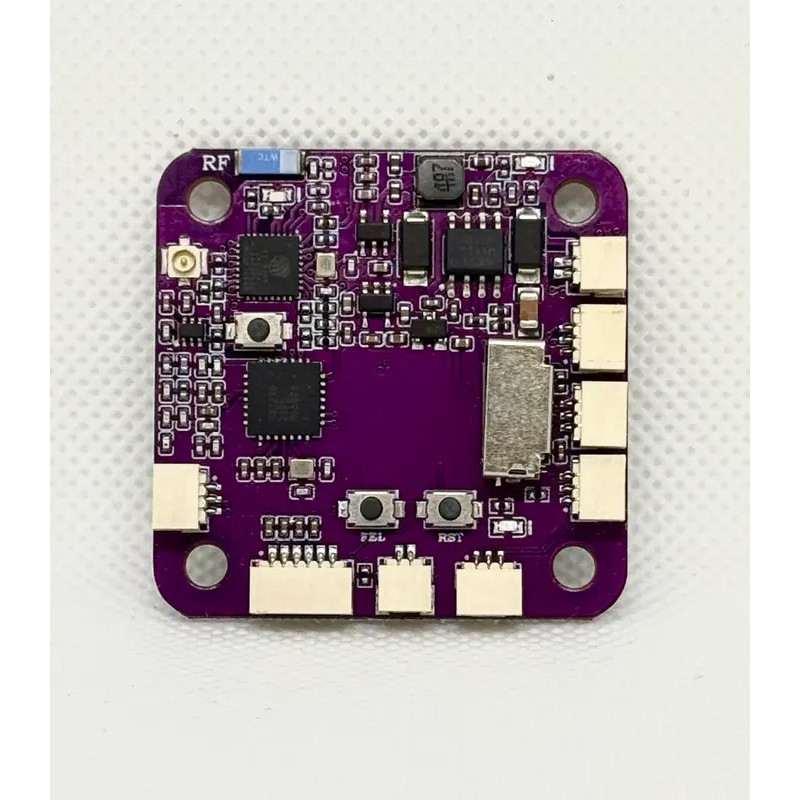

Mini PC H616/618 is a compact control module with WiFi support and a built-in ExpressLRS 915 MHz receiver.

Thanks to the Allwinner H616/H618 processor (Quad-Core ARM Cortex-A53), 512 MB / 1 GB DDR3 RAM, and 8 GB eMMC built-in storage, it is suitable for:

• unmanned systems

• IoT devices

• robotics

• remote control

It operates on a wide power input range of 10–36 V DC, has 2 × USB 2.0, Ethernet, and standard mounting holes 30.5×30.5 mm (FC) for integration into drones and other systems.

In the current version, HDMI is not used.
The device comes with Android firmware. For full functionality, it is necessary to install the recommended software (Linux / custom builds).



Specifications
