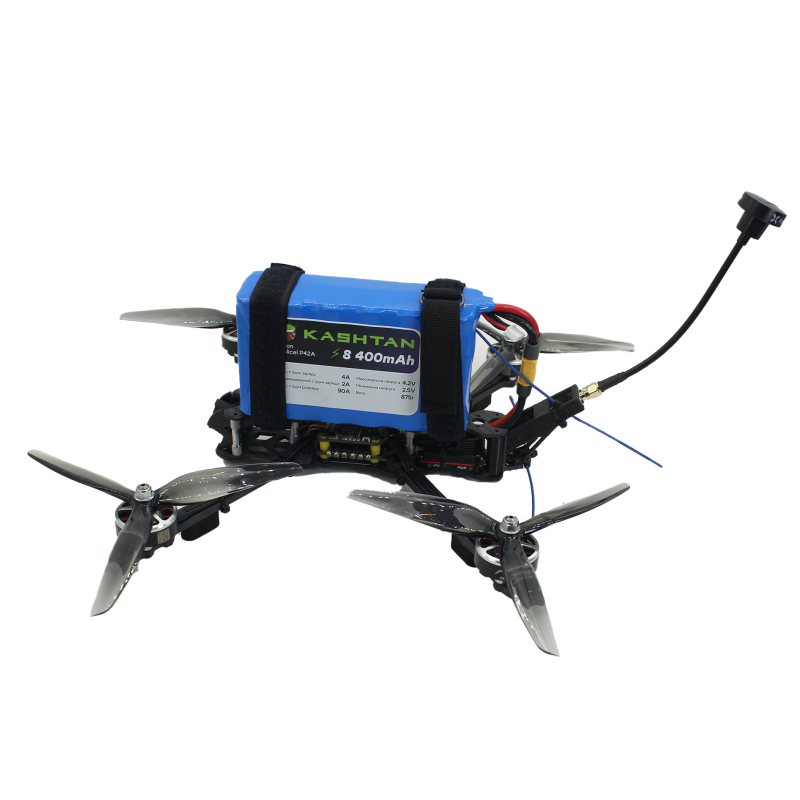

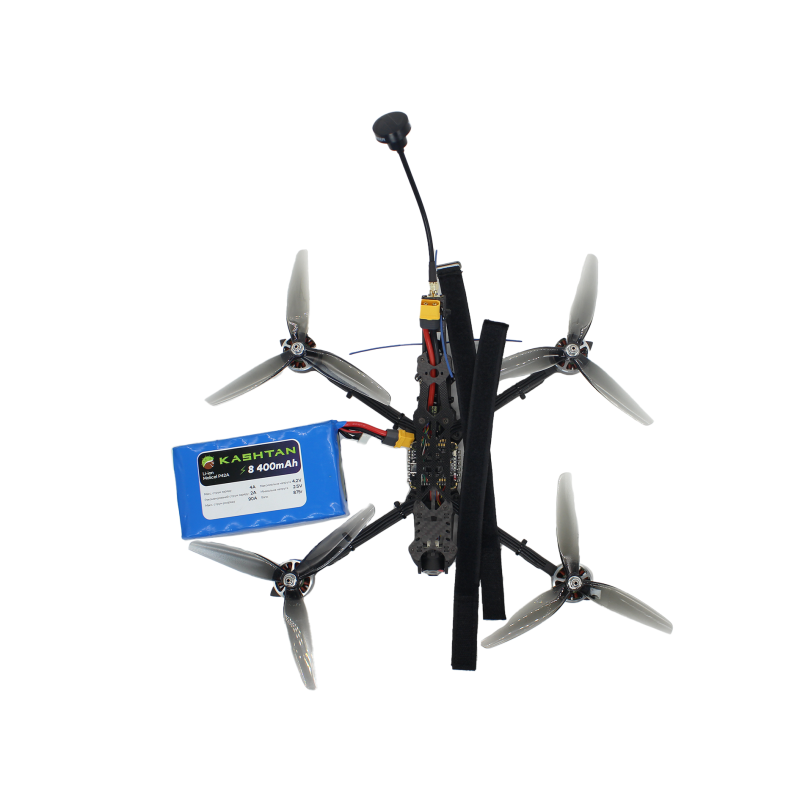

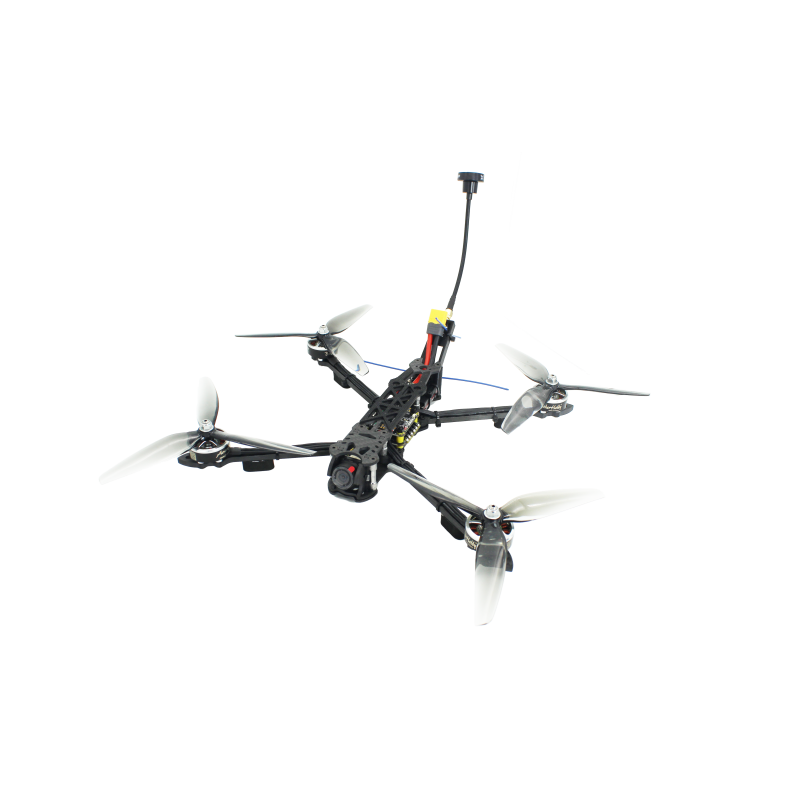

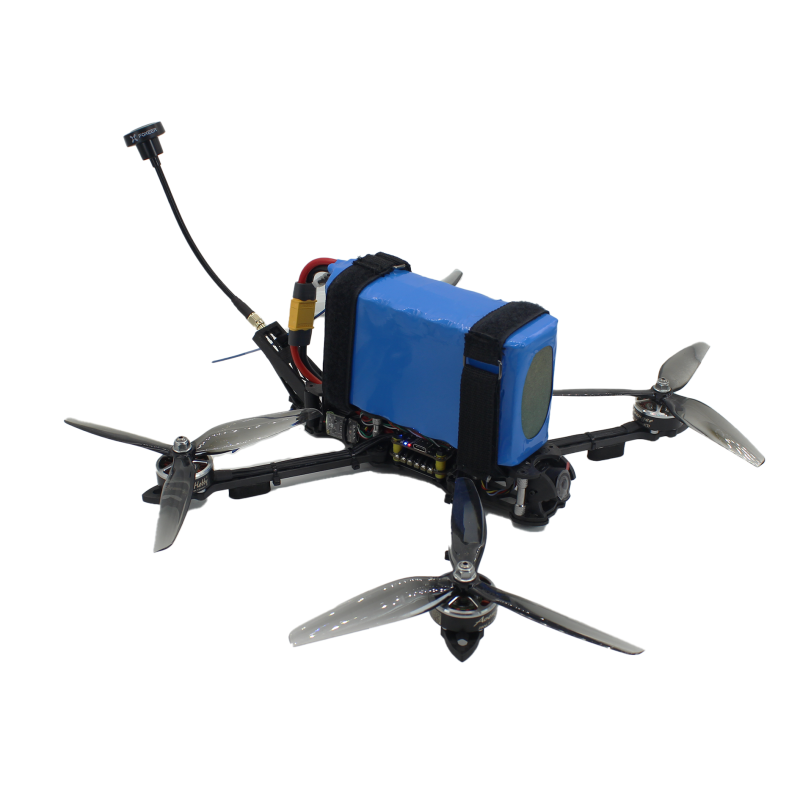

FPV Drone Kit 7" (Variant 4) 1500TVL (Starlight Camera) + KASHTAN 6s2p 8400 mAh Battery — a ready-to-fly solution for FPV flight enthusiasts and professionals from the KASHTAN brand. This kit combines a well-thought-out assembly, proven components, and the possibility of individual configuration to match your flight style.
General Information
Category: Drones & Quadcopters > FPV Drones. Manufacturer: KASHTAN. The kit is tested before shipment; service support and manager consultations for configuration setup are available.
Current Configuration
- Flight Controller: SpeedyBee F405 V3 with ESC 50A, compatible with 3-6s batteries
- Frame: Carbon Mark4 7, length 295 mm
- Radio Receiver: BetaFPV SuperD ELRS Diversity 915 MHz
- Video Transmitter: RUSH TANK Max Solo 5.8G with adjustable power 25/500/1000/2500 mW
- Antenna: FOXEER Pagoda PRO 5.8GHz RHCP SMA, length L150 mm
- Camera: RunCam Phoenix 2 SP (1500TVL, starlight camera) for improved visibility in low light
- Motors: Brotherhobby Avenger 2806.5, 1300 kV
- Propellers: HQProp 7040 (4 pcs) (7X4X3)
Advantages and Features of the Configuration
- Reliable Construction: Carbon frame provides high rigidity and stability during maneuvers.
- High-Quality Video System: The combination of RunCam Phoenix 2 SP camera and RUSH TANK Max Solo video transmitter with up to 2500 mW power guarantees a clear and stable video signal.
- Optimal Control: SpeedyBee F405 V3 with ESC 50A withstands intensive flights and a wide range of 3-6s batteries.
- Ready for Tuning: The configuration can be modified upon manager's request to adapt to your flight style or tasks.
- Tested Before Shipment: Each drone undergoes thorough testing; we provide support and advice on setup.

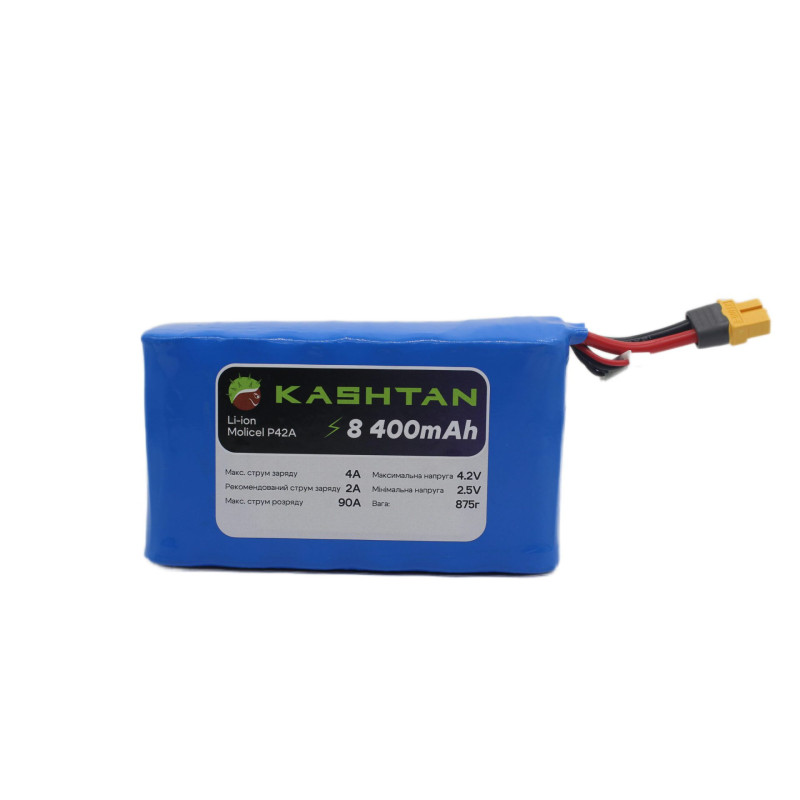

KASHTAN 6s2p 8400 mAh Battery
The battery pack is built on Molicel P42A lithium-ion cells for long and energy-intensive flights. The design includes a 3D-printed frame for increased durability and copper-welded current busbars for improved conductivity and contact reliability.
Battery Technical Specifications
- Capacity: 8400 mAh
- Configuration: 6s2p
- Max Charge Current: 4 A
- Recommended Charge Current: 2 A
- Max Discharge Current: 90 A
- Voltage: 4.2 V (max), 2.5 V (min)
- Weight: 875 g
- Size: 5×14×7.5 cm
- Power Cable: 12 AWG
- Connector: XT60H-F
- Balance Cable: JST-XH 6S
- Features: 3D-printed frame for added strength; copper-welded cells for better conductivity.
What's Included in the Kit
- FPV Drone 7" (Variant 4)
- KASHTAN 6s2p 8400 mAh Battery
- Straps 330 mm
This set is ideal for pilots seeking a balance between power, endurance, and video system quality. Thanks to powerful Brotherhobby Avenger 2806.5 1300 kV motors and HQProp 7040 propeller set, you will get stable lift and maneuverability. The RUSH TANK Max Solo video transmission system in tandem with the FOXEER Pagoda PRO antenna ensures reliable communication and clear video in various operating conditions.
We offer individual adaptation of the configuration to your tasks and guarantee professional consultation before purchase. If needed, a manager can help select other components or settings to optimize your flight.
Product ID: 10929
