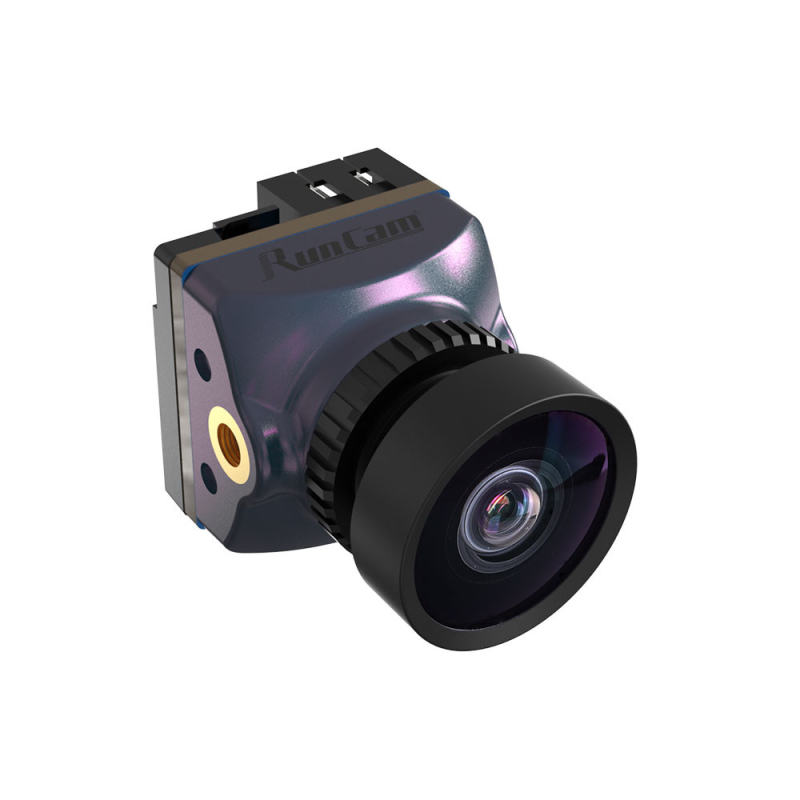

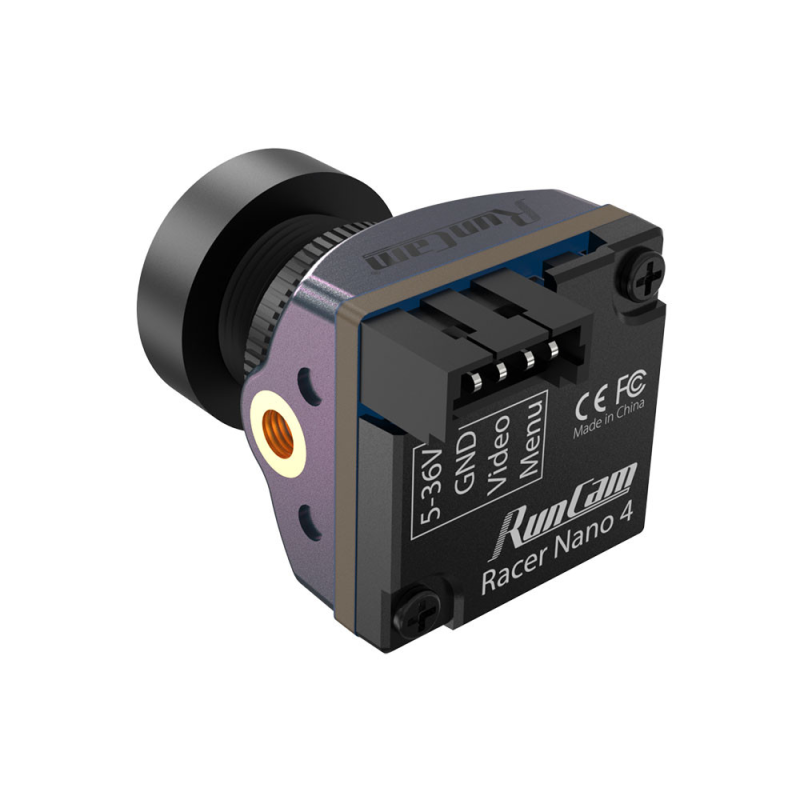

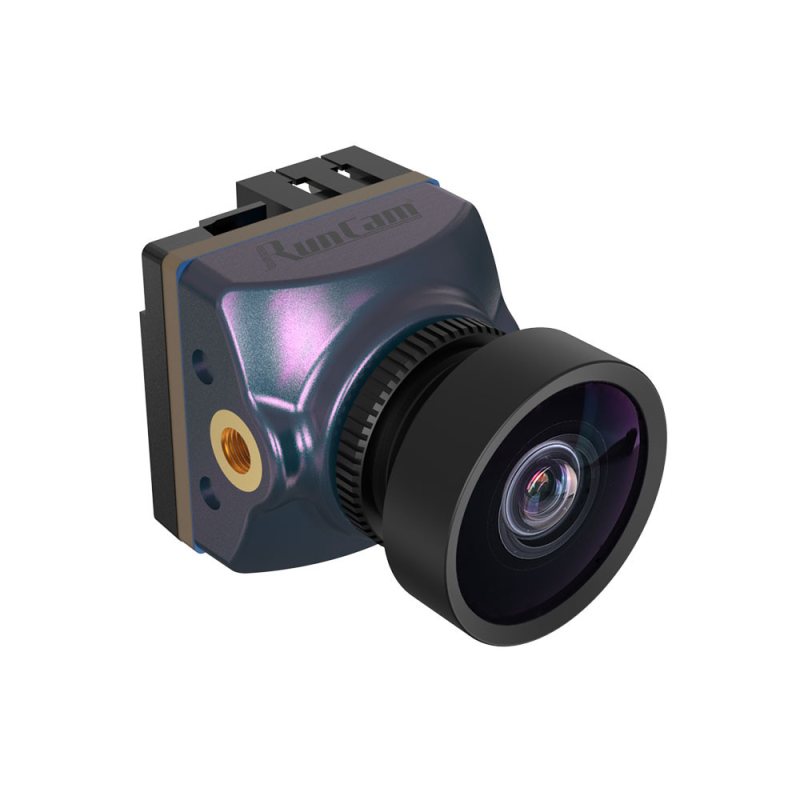

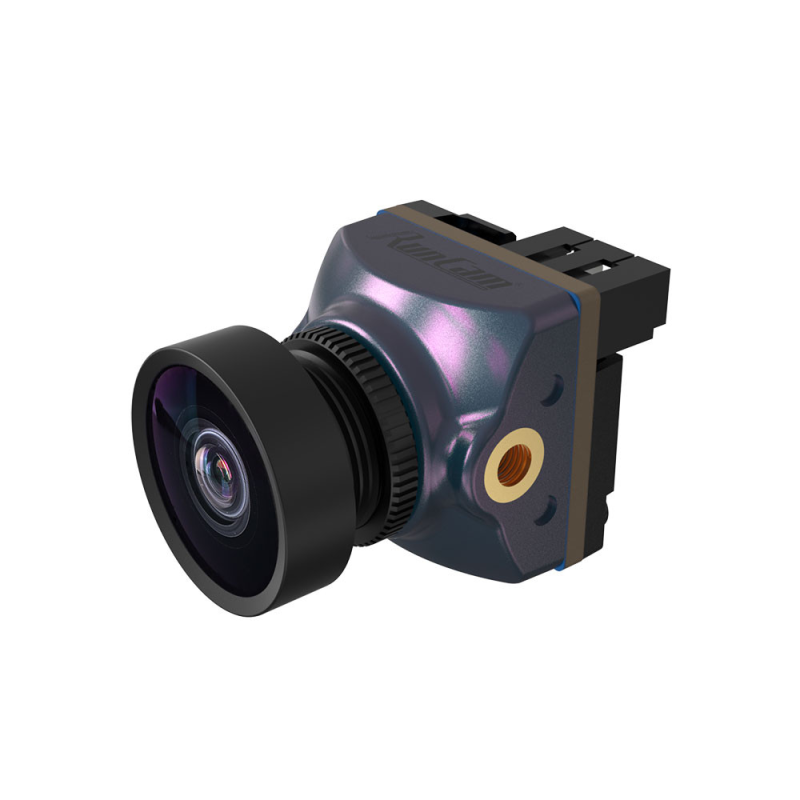

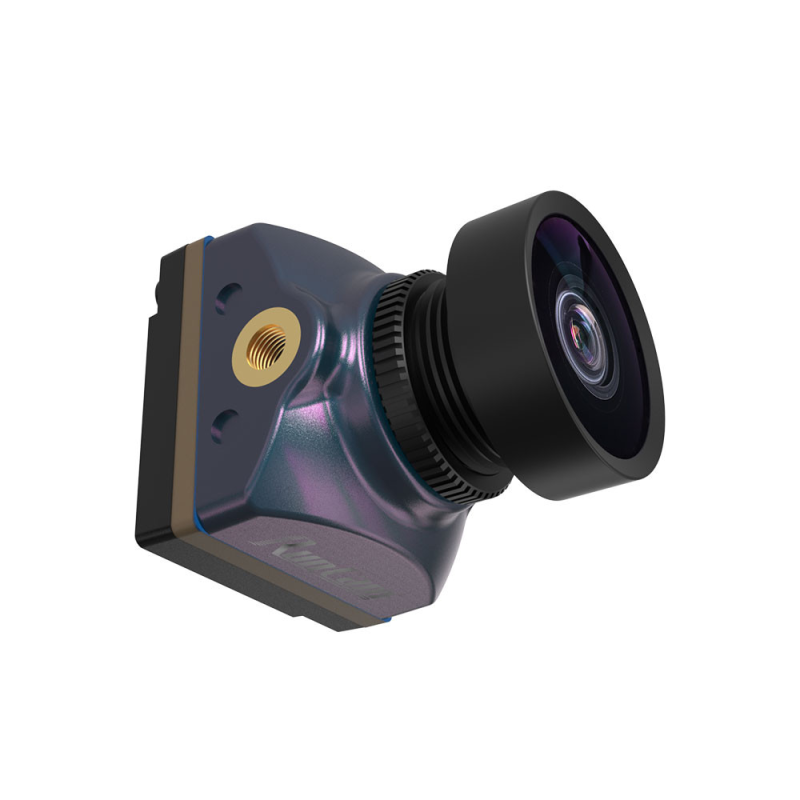

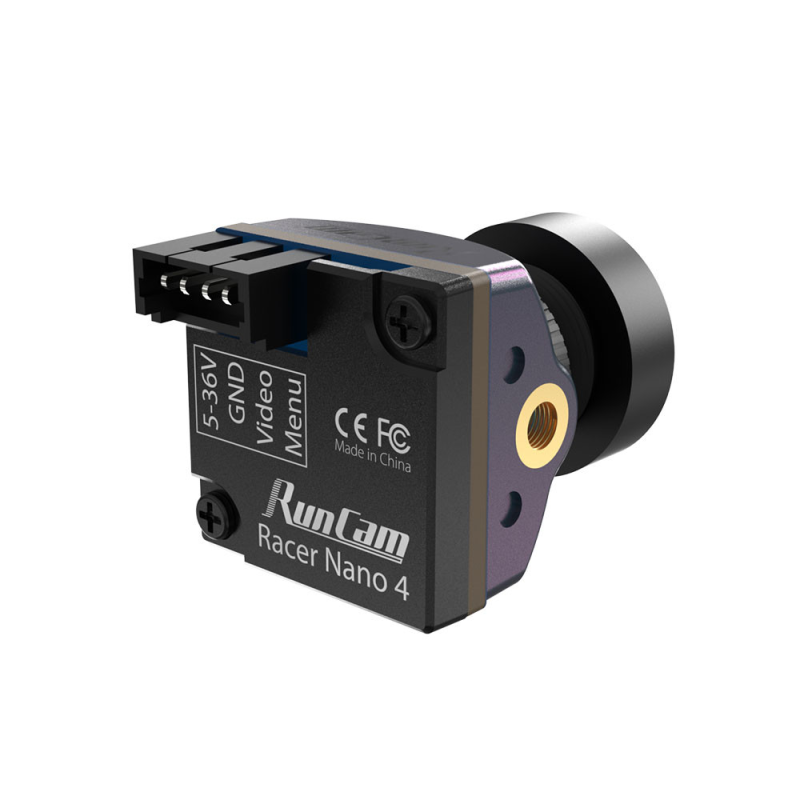

RunCam Racer Nano 4 FPV Camera from RunCam is a compact racing drone camera designed for use in challenging weather conditions and on the track. It combines a waterproof sealed housing, professional LED track lighting, and low weight, making it ideal for competitions and amateur FPV piloting.

Brief Description

The RunCam Racer Nano 4 is positioned as a waterproof racing camera with professional LED lighting that provides high-quality images even in the rain. The camera features a dust-protected design and an additional rear cover that prevents short circuits and provides moderate impact protection for electronic components, increasing the device's durability.

Specifications

• Product Name: RunCam Racer Nano 4
• Manufacturer: RunCam
• Product Type: Drones & Quadcopters > Cameras
• Image Sensor: Super WDR CMOS Sensor
• Horizontal Resolution: 1200TVL
• Lens: FOV D:160° H:125° V:97°
• Screen Format: 4:3 / Widescreen, switchable
• Mirror/Flip: Available
• Signal System: NTSC/PAL
• Shutter: Rolling Shutter
• WDR: Super WDR
• Menu Control: Cable Control
• Power: DC 5-36V; Current: 120mA@5V / 70mA@12V
• Housing Material: ABS
• Net Weight: 4.5g
• Dimensions: 14mm x 14mm x 20mm

Advantages and Applications

The RunCam Racer Nano 4 is distinguished by its very small size and weight, allowing it to be installed on lightweight racing frames without significantly affecting the aircraft's weight. The low-distortion lens with a vertical angle of up to 97° provides a wider and more adaptive field of view, which is useful for high-speed maneuvering on the track. The Super WDR sensor provides better detail in high-contrast lighting conditions, and the ability to switch between NTSC and PAL adds compatibility with various transmitters and monitors.

Durability and Protection

The camera features a sealed, waterproof, and dustproof housing, specifically designed for rainy weather. The added rear cover effectively prevents short circuits and provides moderate impact protection for electronic components, increasing the device's reliability and lifespan. The housing is made of ABS — a durable and lightweight material.

Technical Notes

DC 5-36V power allows the camera to be used with various drone power systems. Current consumption is 120mA at 5V and 70mA at 12V, providing insight into power requirements for battery selection. Menu control is implemented via cable, making settings accessible during flight preparation.

The RunCam Racer Nano 4 will be an excellent choice for FPV pilots looking for a compact, protected, and high-quality camera with a wide field of view for racing and flying in challenging weather conditions.
