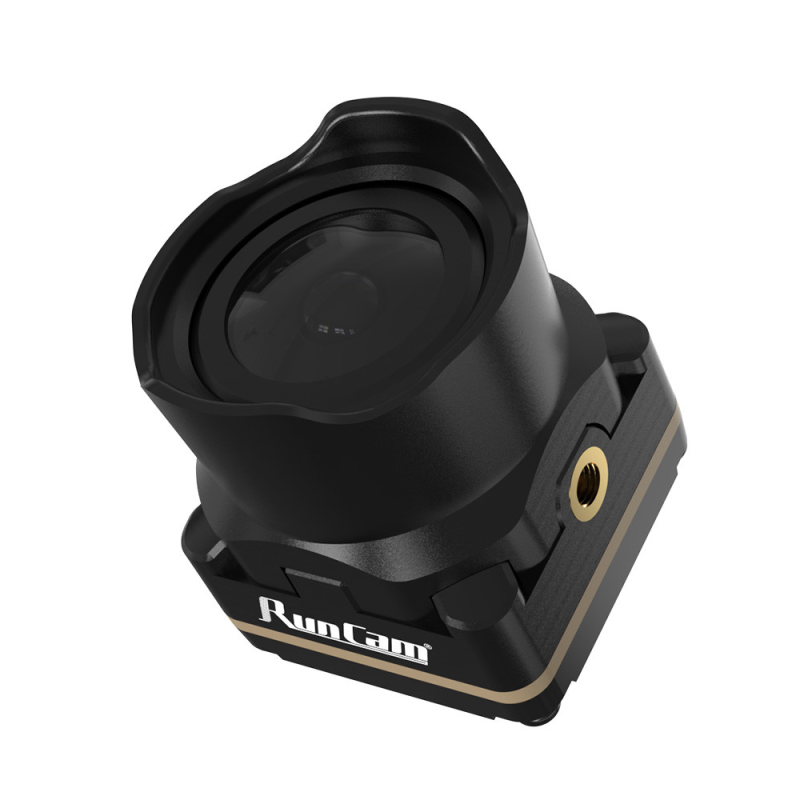

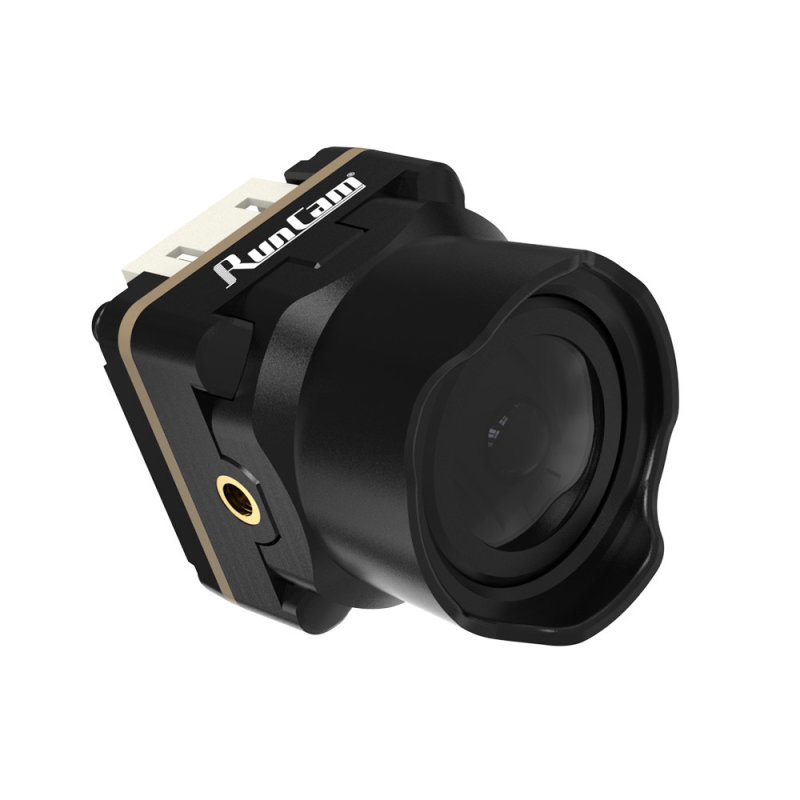

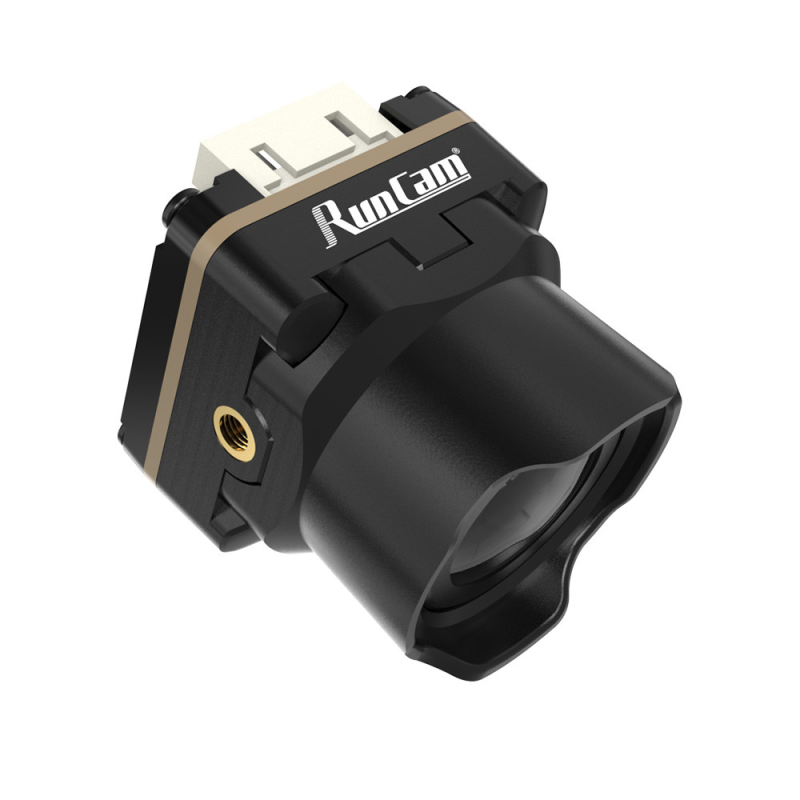

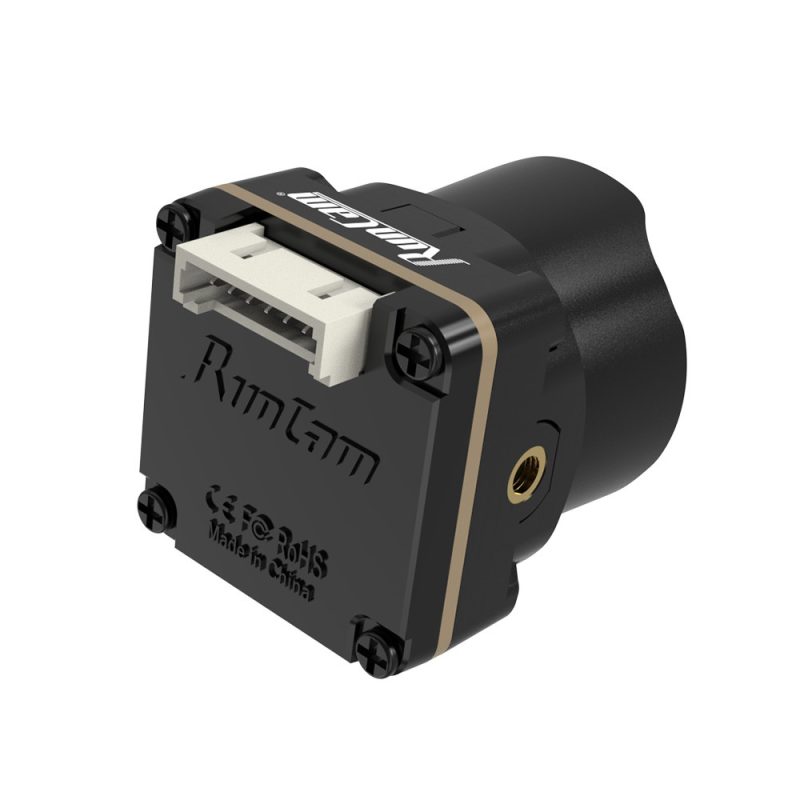

RunCam Phoenix 2 SE v2 Special Edition FPV Camera (with Lens Hood) — an advanced FPV camera from RunCam, designed for freestyle and high-speed flights day and night. The RunCam Phoenix 2 Special Edition model features a 1/2" CMOS sensor and delivers 1000TVL resolution, ensuring a clear and detailed image even in challenging lighting conditions. The device has a fully enclosed housing for protection against dust and short circuits and comes with a replaceable lens hood to prevent glare and mechanical damage to the lens.

Key Features

The camera supports global WDR for excellent light and shadow balance and offers switchable 4:3 and 16:9 formats. With compact dimensions of 19 mm × 19 mm × 22 mm and a low weight of 8.6 g, this model is ideal for pilots who value a balance between weight, protection, and image quality. Power is supplied within a wide DC 5-36V range, making the camera compatible with most FPV systems.

Technical Specifications

• Model: RunCam Phoenix 2 Special Edition
• Sensor: 1/2" CMOS Sensor
• Resolution: 1000TVL
• Lens: FOV D:160° H:124° V:95° @ F 2.4
• Image Format: 4:3 / 16:9 (Switchable)
• Mirror/Flip Function: Yes
• Video System: PAL/NTSC (Switchable)
• Shutter Type: Rolling Shutter
• Sensitivity: 10650 mV/Lux-sec
• WDR: Global WDR
• Day/Night Modes: Color / B&W / EXT / Auto
• Control Menu: Cable
• Power Supply: DC 5-36V
• Current Consumption: 200mA @ 5V, 80mA @ 12V
• Housing Material: ABS
• Weight: 8.6 g
• Dimensions: 19 mm × 19 mm × 22 mm

About the Lens Hood

The Lens Hood for Phoenix 2 / Phoenix SE / WASP is an additional sunshade designed for RunCam Phoenix 2, Phoenix SE, and WASP cameras. The hood reduces glare, increases image contrast, and partially protects the lens from dust and mechanical damage during hard landings.

Purpose and Effective Use Conditions

• 1. Glare and Flare Protection: Prevents direct sunlight from reaching the lens, reducing glare and increasing image contrast; especially useful for FPV flights in sunny weather.
• 2. Improved Visibility in Difficult Conditions: Helps avoid overexposure from artificial lighting or reflections in urban environments.
• 3. Lens Protection: Physically limits dust, dirt, and small particles from reaching the lens; partially prevents mechanical damage during crashes or hard drone landings.
• 4. Preserving Video Quality: Reduces the impact of stray light that can degrade color reproduction and detail.

When to Use

• In sunny or very bright weather to minimize overexposure.In urban environments or among buildings with many reflections from glass and metal surfaces.
• During flights in open areas to improve contrast and visibility.
• To protect the camera lens from dust and impacts.

Package Contents:

• 1x Camera
• 1x Lens Case
• 1x 6pin FPV Silicone Cable
• 1x Manual
• 1x Screw Set

The RunCam Phoenix 2 SE v2 Special Edition camera combines high image quality, a wide DC 5-36V power range, a reliable ABS housing, and a practical replaceable lens hood, making it an excellent choice for FPV flight enthusiasts and professionals.
