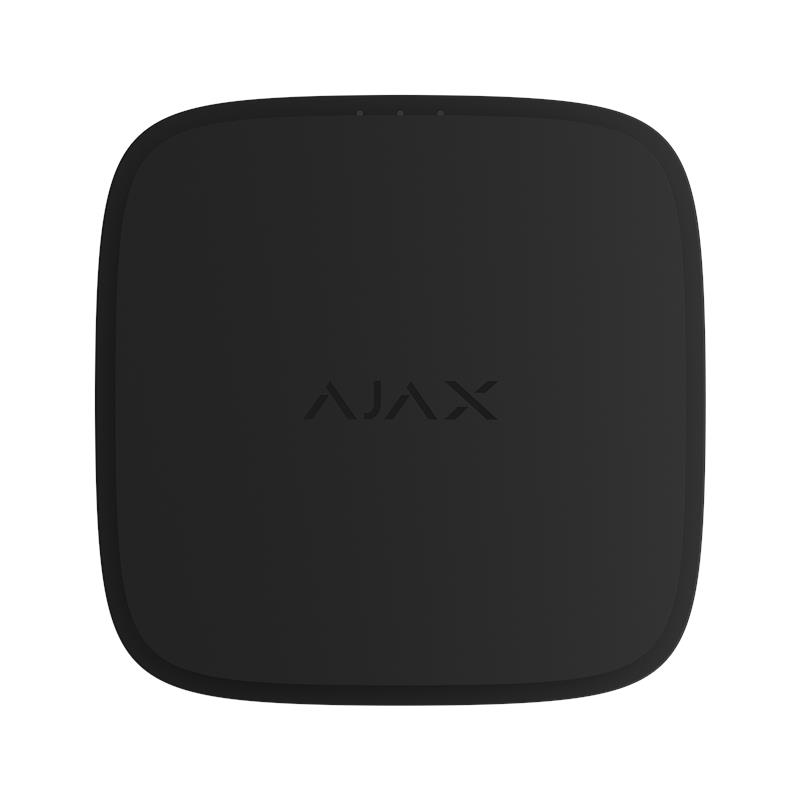

Detailed description of Ajax EN54 FireProtect Smoke Jeweller
Ajax EN54 FireProtect Smoke Jeweller is a certified wireless smoke detector designed for integration into Ajax EN54 fire safety systems. The device is intended for use in commercial, municipal, and infrastructure facilities where rapid fire detection, reliability, and compliance with European standards are required.
The detector is based on a dual-spectrum optical sensor, which allows for accurate detection of smoke at early stages of ignition, effectively filtering out false alarms caused by steam or dust. The sensor uses the proprietary Jeweller radio protocol, which provides two-way encrypted communication with the Fire Hub central panel at a distance of up to 2000 meters in open space.
The device complies with the requirements of EN 54-7 (smoke detection) and EN 54-25 (radio communication) standards, making it suitable for use in certified fire alarm systems within the EU.
The built-in battery provides autonomous operation for up to 5 years without maintenance, and all device status data (charge level, errors, alarms) are displayed in Ajax mobile and desktop applications in real-time.
Installation is performed using the SmartBracket system, which does not require tools. Additional protection against unauthorized dismantling or opening is provided by a tamper sensor, which immediately sends a corresponding notification.
FireProtect Smoke supports the interconnected alarm function — if smoke is detected, all detectors in the system activate their built-in sirens within 20 seconds, allowing for effective evacuation notification without centralized wired connections.
The device operates stably in a wide temperature range, is resistant to high humidity and dust, making it a universal solution for various types of premises.
Technical specifications of Ajax EN54 FireProtect Smoke Jeweller
| Characteristic | Value |
|---|---|
| Device type | Wireless smoke detector EN54-7 |
| Sensor | Dual-spectrum optical sensor (false alarm protection) |
| Radio protocol | Jeweller, two-way encrypted communication |
| Communication range | Up to 2000 m in open space |
| Certification | EN 54-7 (smoke detection), EN 54-25 (radio communication) |
| Power supply | Built-in battery, autonomous operation up to 5 years |
| Mounting | SmartBracket (tool-free) |
| Tamper | Protection against dismantling and casing opening |
| Interconnected alarm | Activation of sirens of all system detectors within 20 seconds |
| Integration | Full integration into Ajax PRO applications (mobile/desktop) |
| Operating temperature | From –10°C to +50°C |
| Humidity | Up to 85% |
| Dimensions | 124 × 124 × 45 mm |
| Color | Black or white |
| Warranty | 2 years |
