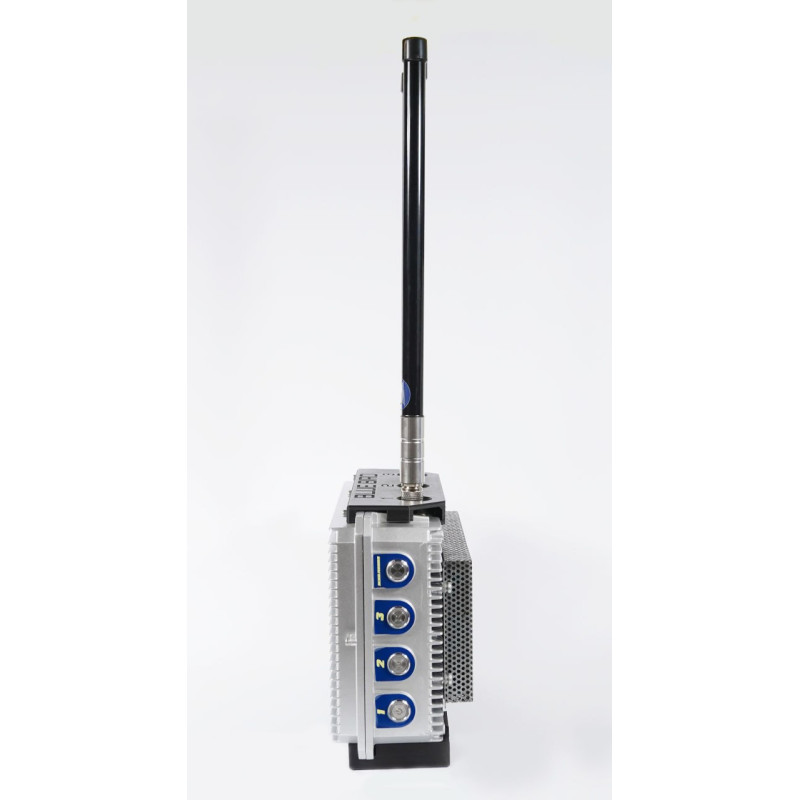

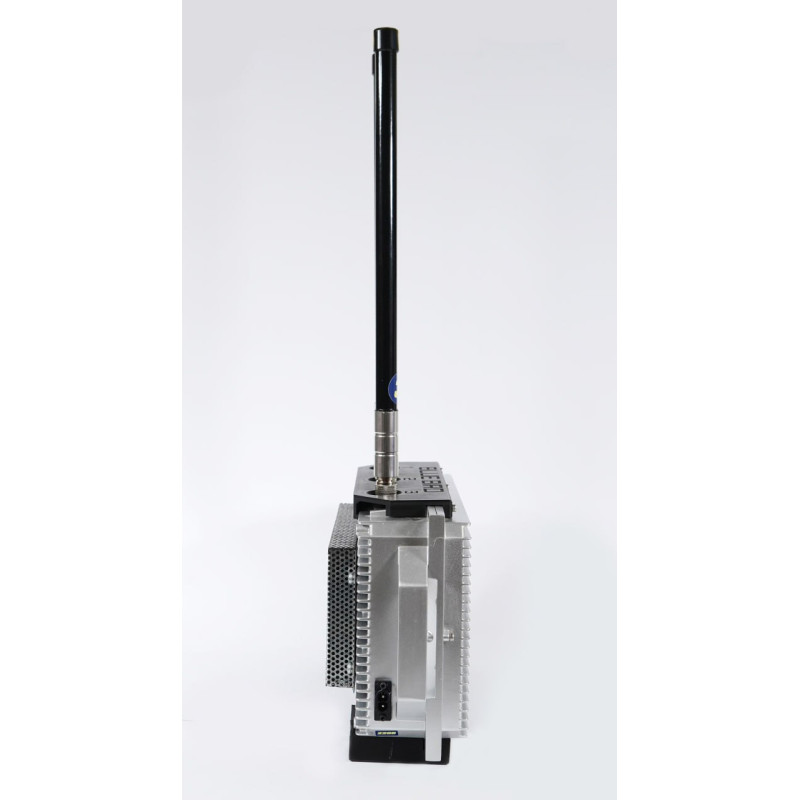

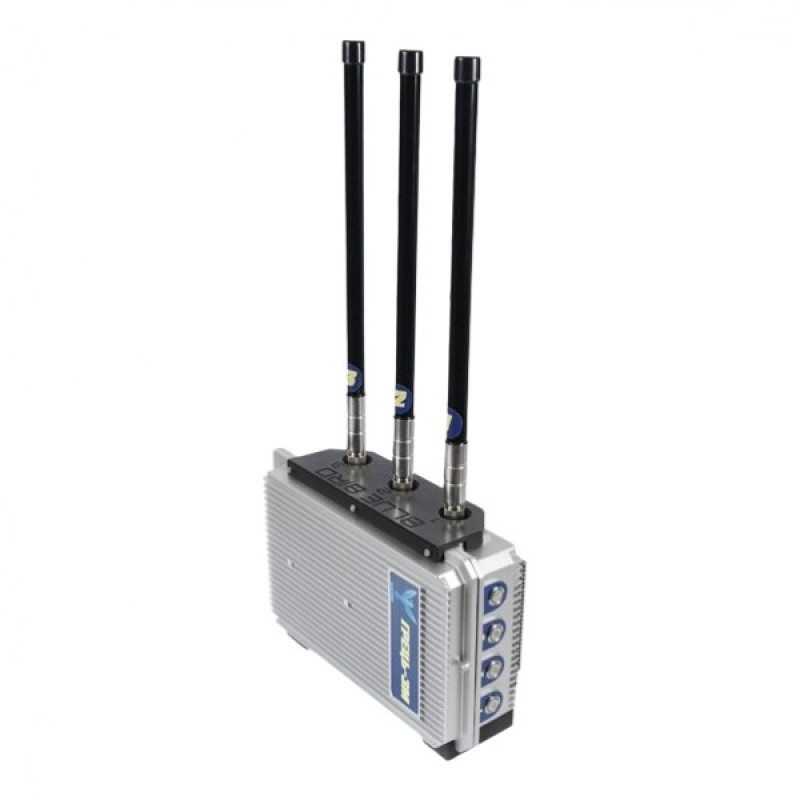

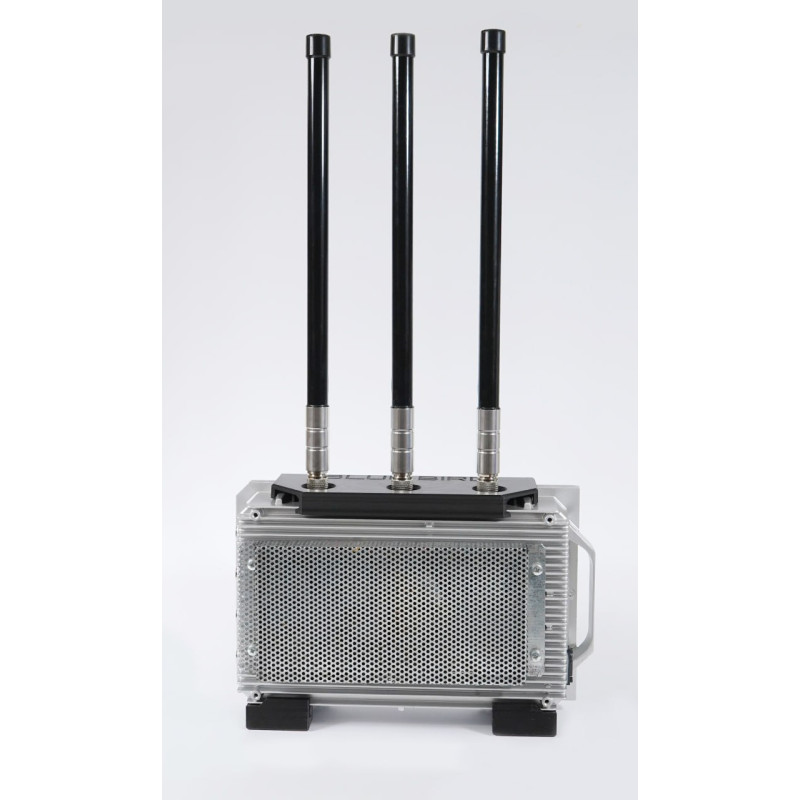

Vehicle EW Jammer "Grets 3M" by BlueBird — Vehicle Protection Against FPV Drones
The Grets 3M vehicle EW jammer from BlueBird is a specialized electronic warfare device optimized for mounting on vehicles. The device is designed to detect and jam FPV drone control channels in the 700-1050 MHz range, making it an effective means of protecting military units, critical infrastructure, and personnel.
The "Grets 3M" design includes three independent jamming bands: 700-820 MHz, 800-920 MHz, and 900-1050 MHz, which can operate simultaneously, covering the most common FPV transmitters and disrupting the drone's control channel. Thanks to this architecture, the device prevents enemy pilot control and reduces the risk of unauthorized flight over the protected area.
The effective jamming range depends on operating conditions, pilot location, and FPV drone frequency, and is approximately 70 m to 400 m. Power is supplied from a 220 V or 28 V network, allowing the EW jammer to be connected to both the vehicle's onboard network and a stationary power supply.
Advantages of the model:
- Device weight — only 6 kg, simplifying transport and installation.
- Compact housing dimensions: 304x184x77 mm.
- Wide operating temperature range: from -30°C to +50°C, for reliable operation in various climatic conditions.
- The housing is made of materials with effective heat dissipation and is equipped with a cooling system to prevent overheating.
- Housing protection rating — IP54, providing protection against dust and water splashes.
Device prices:
Operation from 220 V with quadrifilar antennas — 122000 UAH.
Operation from 220 V with collinear antennas — 117000 UAH.
Technical Specifications
| Parameter Name | Value |
|---|---|
| Frequency Range | 700-1050 MHz |
| Power Supply | 220 V or 28 V |
| Number of Antennas | 3 pcs. |
| Bracket for mounting 3 antennas on a vehicle or stand | 1 pc. |
| Connecting cables for each band | 3 pcs. x 2 m. |
| Housing Size | 304x184x77 mm |
| Total Length when Assembled | 830 mm |
| Antenna Length | 600 mm |
| Total Power | (50+50+50) W |
| Power Consumption | (150+150+150) W |
| Effective Range | from 70 m to 400 m, depending on the distance to the enemy pilot, FPV drone frequency, and other factors |
| EW Jammer Weight without Battery | 6 kg |
"Grets 3M" Vehicle EW Jammer Package Contents
| 1. EW Jammer Device. |
| 2. Three Antennas. |
| 3. 220 V Power Cable. |
| 4. Bracket for mounting 3 antennas on a vehicle or stand. |
| 5. Antenna unit patch extension cable for each band (3 pcs. x 2 m). |
| 6. User Manual: Grets 3M. |
Optional Components
| Parameter Name | Value |
|---|---|
| Springs for antenna mounting on a vehicle | 3 pcs. |
| Remote Control | 1 pc. |
| Additional "Quadrifilar" Antennas | 3 pcs. |
Installation Requirements
- Connection to an external power source: 220 V or 28 V (optional).
- Absence of physical damage to the device, antennas, and power cables.
- Reliable connection of the included antennas.
- Horizontal positioning of the device's antennas.
- Ambient temperature within -30°C to +50°C.
Category: EW Jammers > Vehicle EW Jammers. Manufacturer: BlueBird. Product Name: Vehicle EW Jammer Grets 3M – Vehicle EW Jammer. The device combines compactness, low weight, and three independent jamming bands in the 700-1050 MHz range, making it a reliable tool for special units, security services, and organizations requiring operational protection against unmanned threats.
