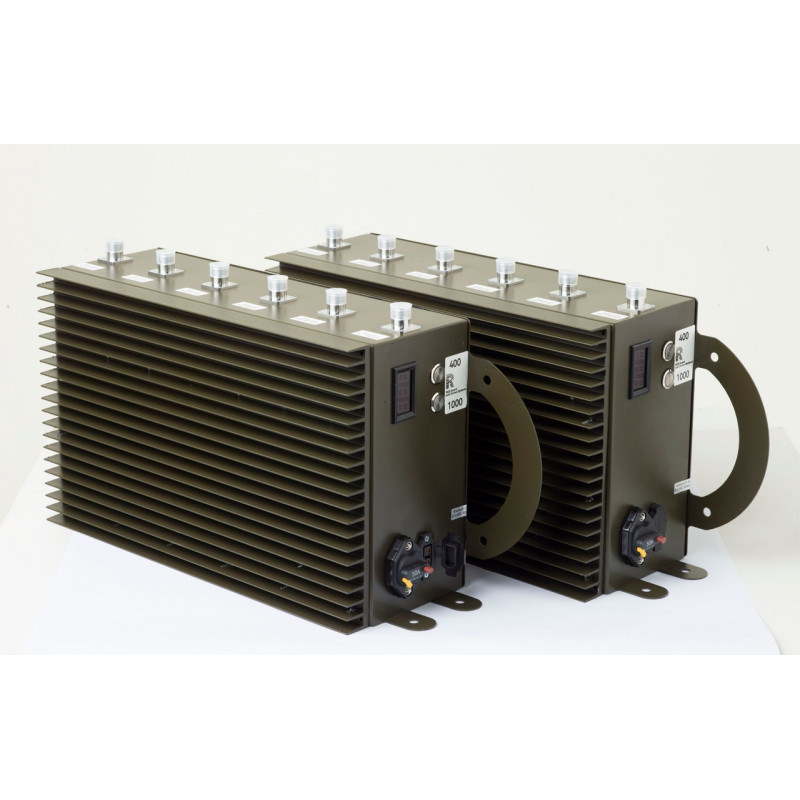

The GUARD 6 EW jammer is the ideal choice for those who want to buy a reliable EW jammer for drone protection.
A powerful electronic warfare jammer for UAV protection. It effectively blocks drones in six frequency bands, ensuring the safety of military units and equipment. An ideal solution for countering modern threats in combat conditions. The operating frequency ranges for radio jamming can be adapted according to the customer's technical specifications during the EW jammer manufacturing stage.
GUARD 6 — a modern solution for electronic warfare.
The GUARD 6 EW jammer is an electronic warfare (EW) device designed for effective drone protection. By operating in six frequency bands, the device neutralizes signals from unmanned aerial vehicles (UAVs) that pose a threat to military units and strategic assets. Its power and reliability make this device an ideal choice for modern combat conditions.
Technical Specifications of GUARD 6 EW Jammer
The GUARD 6 EW jammer operates in frequency ranges from 200 to 1050 MHz. Six modules with a power of 50 W / 100 W each provide a total power of 450 W. Thanks to active cooling, the device demonstrates stable operation even in challenging conditions. Built-in protection mechanisms, such as VSWR protection and an external fuse, ensure safe operation and system longevity. Additional features, such as a carrying handle and antenna holders, make the device mobile and convenient to use.
Key Advantages of GUARD 6 EW Jammer
-
Effective drone protection.
GUARD 6 blocks UAV signals that can be used for reconnaissance or attacks. The six-band jamming system allows neutralizing drones in any conditions.
-
High power and efficiency.
The 450 W power allows the device to operate effectively over a significant distance. This is important for protecting strategic assets and military equipment.
-
Mobility and versatility.
Thanks to its compact design, the device is easy to carry and install. It is an ideal solution for field operations.
-
Innovative technology.
LoRa-based modules ensure high operational efficiency. The sealed enclosure guarantees protection against damage.
Application
GUARD 6 is suitable for protecting strategic assets, guarding ammunition depots, and ensuring the safety of military convoys. It is also effectively used in border areas and at checkpoints. The device's versatility makes it indispensable in various scenarios.
The EW jammer from the Ukrainian manufacturer REB-GUARD combines high power, mobility, and innovative technologies. This device is designed to provide comprehensive protection for military units and equipment. Its technical specifications guarantee continuous task execution and increased effectiveness on the battlefield.
Maximum protection for assets and personnel. Order the GUARD 6 EW jammer to get a modern solution for countering drones. Our specialists will provide consultation and help you choose the best solution for your needs.
GUARD EW jammer — reliable drone protection in any conditions.

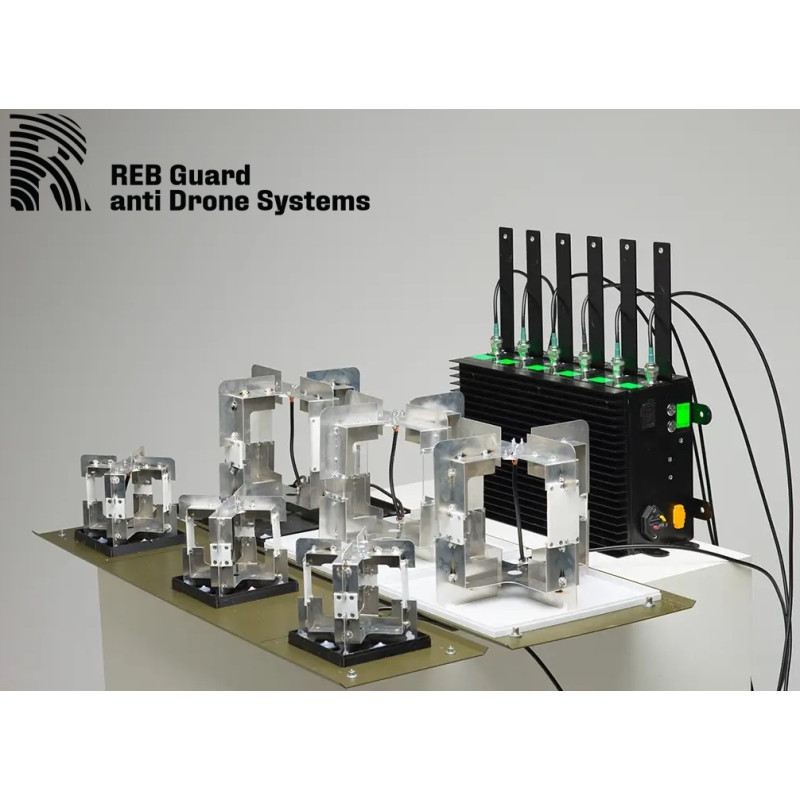

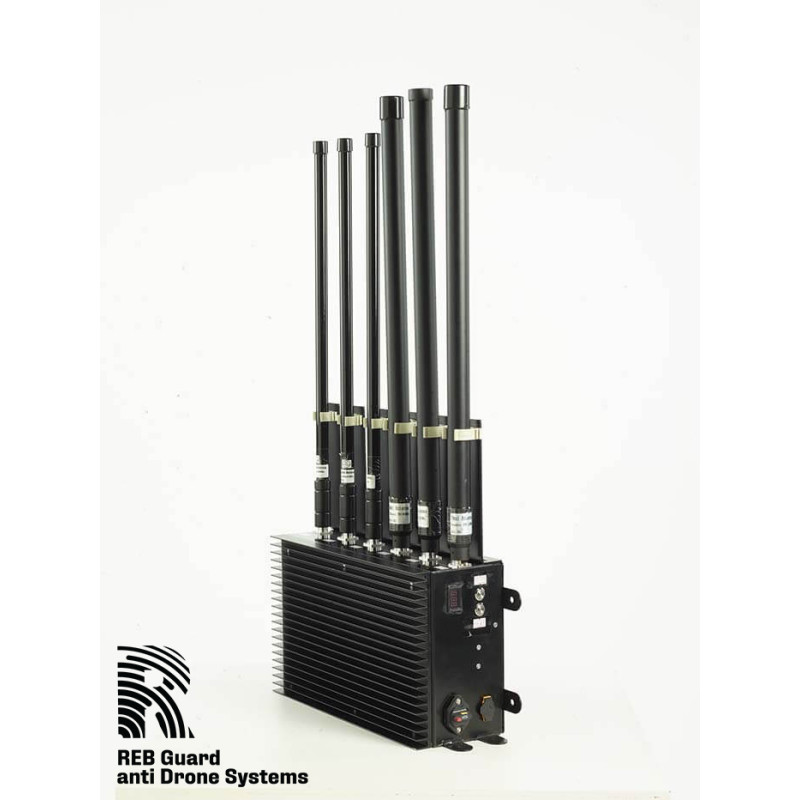

Characteristics of "GUARD_6 EW jammer" complete with quadrifilar antennas or whip antennas (customer's choice):
| No. | Characteristic Name | Units | Value | ||||
|---|---|---|---|---|---|---|---|
| 1. | Operating frequency range for radio jamming | MHz | 200-400, 300-400, 400-700, 830-960, 700-1050 | ||||
| 2. | Radio interference generator modules (quantity, power, ranges) | MHz/W | 6 noise modules with circulator:
| ||||
| 3. | Antennas (optional): | ||||||
| 3.1. | Quadrifilar antenna | Antenna mounted on a solid platform with magnetic attachment | |||||
| 3.1.1 | Quadrifilar antenna frequency bandwidth | MHz | 200 – 400, 400-700, 700-1050 | ||||
| 3.1.2 | VSWR of quadrifilar antenna frequencies | VSWR | 1.4 | ||||
| 3.1.3 | Antenna cable length | m | 1 | ||||
| 3.2. | Whip antenna | ||||||
| 3.2.1 | VSWR of omnidirectional (whip) antenna frequencies | VSWR | 1.5 | ||||
| 3.2.2 | Gain of omnidirectional (whip) antenna | dBi | 5-8 | ||||
| 4. | Output power | W | 450 | ||||
| 5. | Nominal power consumption | W | 900 | ||||
| 6. | Supply voltage | V | 12-24/28/220 | ||||
| 7. | Effective operating distance | m | min. - 100 max. - 300 above itself - 200 | ||||
| 8. | Power supply system (internal/external) | external | |||||
| 9. | Continuous operation time | min | 90 (laboratory tested) | ||||
| 10. | Weight/Dimensions (LxWxH) | ||||||
| 10.1. | Weight of EW jammer / EW jammer with antennas / EW jammer with antennas and battery | kg | 12/22/62 | ||||
| 10.2. | Dimensions of EW jammer | mm | 615×125×270 | 10.3. | Dimensions in packaging | mm | 950×500×400 |
| 10.4. | Battery dimensions | mm | 515×395×185 | ||||
| 10.5. | Antenna dimensions | mm | 905×215×250 | ||||
| 11. | Protection rating | IP | 55 (laboratory tested) | ||||
| 12. | Deployment/stowage time | min | 2 | ||||
| 13. | Cooling | active | |||||
| 14. | Temperature range | °C | -25/+45 (laboratory tested) | ||||
| 15. | Area of application | resistant to use in conditions of rain, wind, snow, heat, frost. (laboratory tested) | |||||
| 16. | Interference type | broadband noise | |||||
| 17. | Crew | 1-2 | |||||
| 18. | Additional EW jammer characteristics |
| |||||
| 19. | Service life | months | 60 | ||||
| 20. | Warranty period | months | 12 | ||||
Composition of the portable electronic warfare jammer "GUARD 6 EW jammer" complete with quadrifilar antennas and battery:
- electronic warfare jammer – 1 pc.;
- set of quadrifilar antennas – 1 set;
- LiFePo4 battery - 1 pc;
- remote control (optional);
- battery connection cable with sealed XT90 type locking connector, nominal voltage 24/28V (3m) – 1 pc;
- 220V AC power cable for connecting battery charger (1m) – 1 pc;
- battery connection cable to vehicle's on-board electrical system with sealed XT60 type locking connector, nominal voltage 12/24V (3m) – 1 pc;
- technical passport – 1 pc;
- operating manual – 1 pc;
- warranty card – 1 pc.
Composition of the portable electronic warfare jammer "GUARD 6 EW jammer" with whip antennas:
- electronic warfare jammer – 1 pc.;
- set of whip antennas – 1 set;
- battery connection cable to vehicle's on-board electrical system with sealed XT90 type locking connector, nominal voltage 12/24V (3m) – 1 pc;
- technical passport – 1 pc;
- operating manual – 1 pc;
- warranty card – 1 pc.
