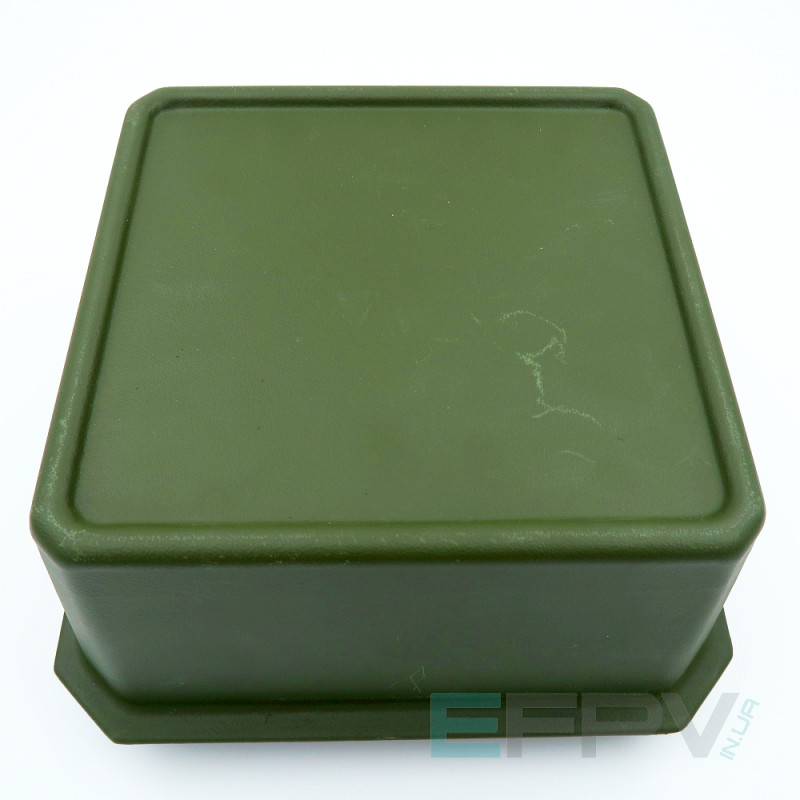

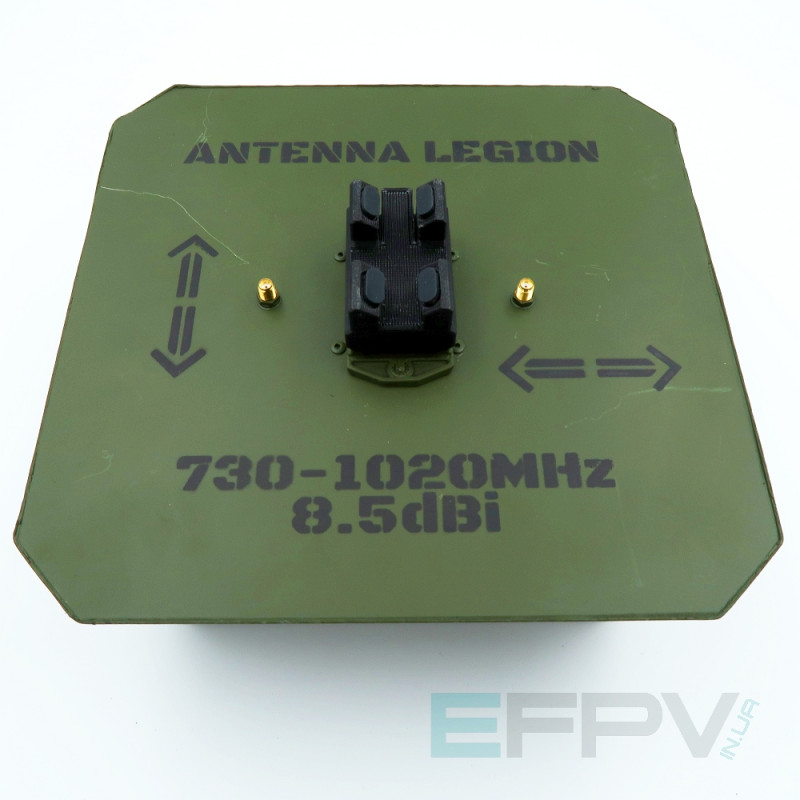

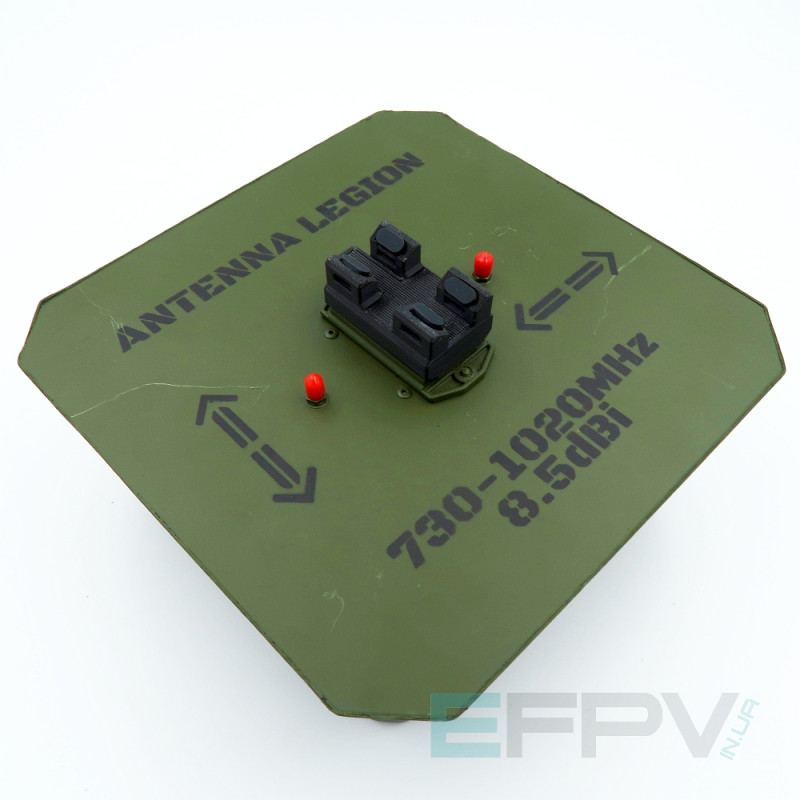

Batwing Antenna (with ABS Cover) 730-1020MHz
The Batwing antenna from the manufacturer is a highly reliable sector antenna with a robust design and enhanced sensitivity, engineered to provide stable communication in challenging operating conditions. Its "wing" shape ensures uniform coverage across a wide sector, making the device suitable for both civilian tasks (mobile hotspots, data transmission, video streams) and professional or tactical applications where reliability is critical.
The antenna's operating frequency range is 730-1020MHz, and its nominal gain is 8.5 dBi, allowing for significant distances and high-quality communication with minimal interference. The beam angle is 60°, providing a wide coverage sector while maintaining signal stability. The body is made of aluminum, and the protective cover is made of ABS plastic, ensuring protection against mechanical impacts and atmospheric factors, thus extending the antenna's service life.
The antenna comes with an SMA-F connector, ensuring easy connection to various equipment without additional adapters. Product dimensions: 258*255*120 mm, weight: 770 g, making it convenient for mounting on stationary poles and mobile platforms.
Advantages and Applications
- High reliability and durability due to aluminum body and ABS cover;
- Wide 60° coverage angle for effective zonal communication;
- 8.5 dBi gain for increased transmission range and reception quality;
- Compatibility with equipment via standard SMA-F connector;
- Compact dimensions (258*255*120 mm) and low weight (770 g) for easy installation;
- Suitable for military units, special services, and critical missions, as well as for civilian networks where communication resilience and stability are important.
The Batwing antenna from is an optimal choice for those who need a reliable solution with high gain and wide sector coverage. It ensures stable operation in the 730-1020MHz frequency range with a 60° beam angle and easily integrates into existing systems thanks to the SMA-F connector. The protected ABS cover and aluminum base make this antenna durable for use in challenging conditions.
Technical Specifications
| Parameter | Value |
|---|---|
| Frequency Range | 730-1020MHz |
| Beam Angle | 60° |
| Connector | SMA-F |
| Material | aluminum |
| Gain | 8.5 dBi |
| Size | 258*255*120 mm |
| Weight | 770 g |
| Manufacturer | |
| Type | Antennas > Batwing Antenna |
Buying the Batwing antenna from in our online store means getting a reliable communication element that guarantees stable operation in field and stationary conditions. When choosing, pay attention to the compatibility of the SMA-F connector with your equipment and the installation conditions, as proper antenna placement will ensure optimal coverage and maximum communication range.
