LG INR21700-M58T 5570mAh Battery — Overview and Technical Data

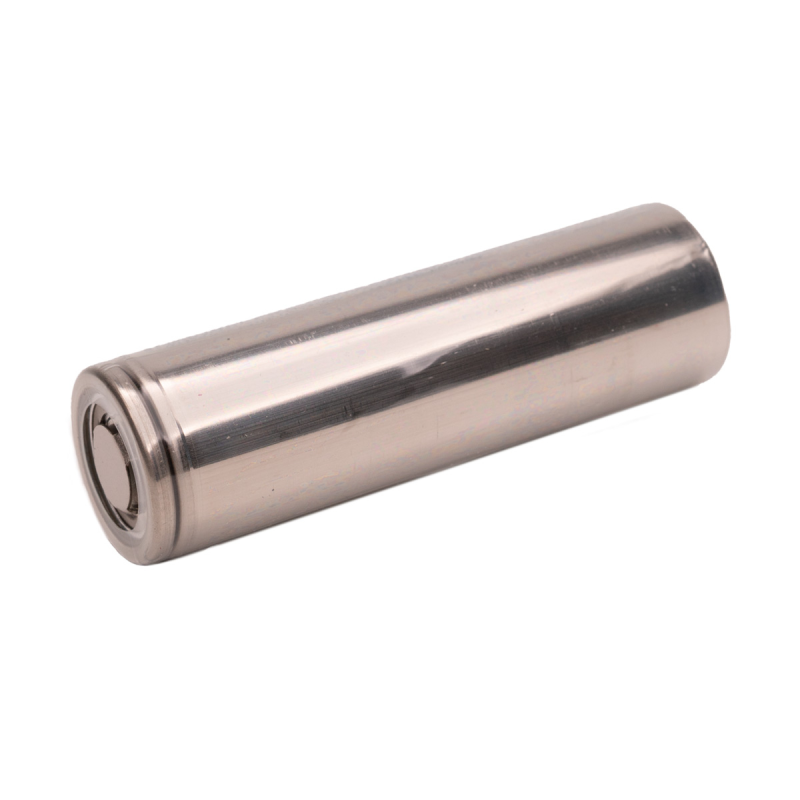

Introducing the LG brand lithium-ion battery, model INR21700-M58T with a typical capacity of 5570 mAh (minimum capacity — 5520 mAh). This is a 21700 format cell with a nominal voltage of 3.6V (within 3.6–3.7 V), combining high energy density and compact dimensions. The battery is suitable for portable devices, low to medium power tools, as well as for remote-controlled models and drones, where high capacity is important within limited dimensions.

Key Features

• Brand: LG
• Model: INR21700-M58T
• Battery Type: Li-Ion (Lithium-ion)
• Capacity:
  • Minimum Capacity: 5520 mAh
  • Typical Capacity: 5570 mAh
• Battery Size: 21700
• Nominal Voltage: 3.6V (between 3.6 and 3.7 V)
• Maximum Discharge Current: 12.5 A
• Top Pole: Flat Top
• Protection: without built-in circuit protection
• Physical Parameters:
  • Height: 71 mm
  • Diameter: 21.3 mm
  • Weight: 73.2 g

Charging Parameters

• Charge Cycle Termination Voltage: 4.20 V ± 0.05 V
• Minimum Discharge Voltage: 2.5 V

Adhering to the specified charge and discharge parameters ensures a long cell life and reduces the risks of degradation or damage. It is recommended to use compatible chargers with voltage and current control and not to exceed the recommended final voltage.

Safety Recommendations

• Lithium-ion batteries can be dangerous if used incorrectly — follow the instructions.
• Avoid short-circuiting the terminals; this can lead to fire or explosion.
• Do not insert the battery into a device or charger with incorrectly connected terminals.
• Keep away from water, high temperatures, and mechanical damage.
• Store out of reach of children.
• Do not use modified or damaged chargers.
• Do not leave the battery in the charger for more than 12 hours.
• Dispose of in accordance with local legislation.

Please note that the absence of built-in protection means the need to use external protection boards (PCM/PCB) or controllers with appropriate protective functions in your device. Before installation, check compatibility in terms of dimensions and electrical parameters: height 71 mm, diameter 21.3 mm, weight 73.2 g. Product type: Drones and Quadcopters > Drone Batteries. Product name: LG INR21700-M58T 5570mAh Battery - 12.5A - Clear Wrap.

This cell is ideal for applications where maximum capacity in a compact size is a priority: long power supply for active electronic modules, autonomous systems, as well as hobby applications in modeling and drones. If you need a battery with built-in protection, choose a model with protection or install external protection boards.
