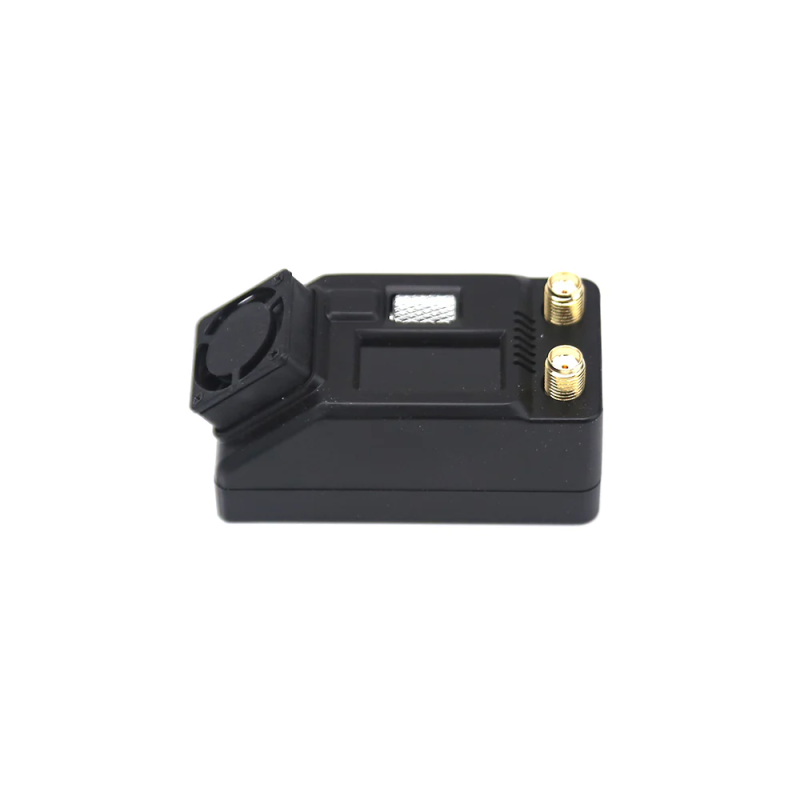

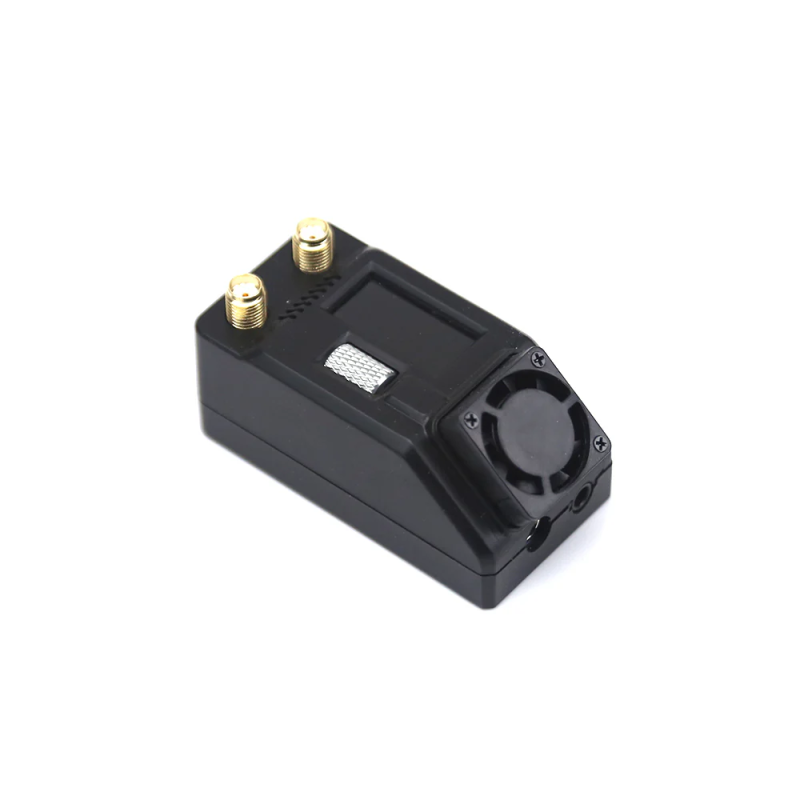

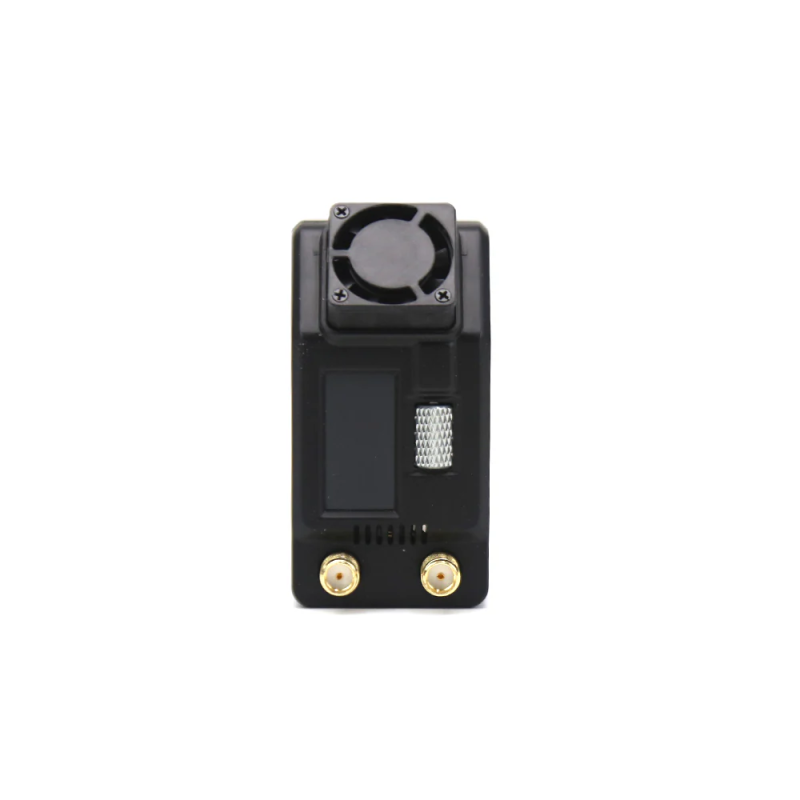

Skyzone SteadyView X 5.0GHz Video Receiver (with X Band support)
Skyzone SteadyView X 5.0GHz — an updated receiver from the SteadyView series (V3.3 version), which combines two video signals into one to minimize tearing and distortion, providing a clearer and more stable image even in challenging flight conditions. This module is designed for FPV pilots who require reliable video communication in both mobile goggle solutions and stationary ground stations.
Description and Key Features
- IPS screen for high-definition and contrast display.
- Control wheel ensures quick and convenient receiver parameter adjustment.
- Ground station kit allows connecting SteadyView X to a monitor or FPV goggles with an AV IN port.
- 3 mixing modes and 1 signal splitting mode for flexible video stream processing.
- Integrated ELRS VRX Backpack enables receiver synchronization with the transmitter via Lua scripts for easy setup and control.
- Frequency support: 5.8G and X Band (5G). Note: 5.8G sensitivity may be 1–2 dB lower compared to X Band.
- The included patch antenna is tuned to RHCP, and an omnidirectional antenna is also included.
- High receiver sensitivity: -98dBm ± 1dBm.
- Wide input voltage range: 2~6S LiPo.
- USB-C for firmware updates and device power.
- 3.5 mm output for video and audio connections.
- Weight: 250 g.
- Package size: 15 x 15 x 8 cm.

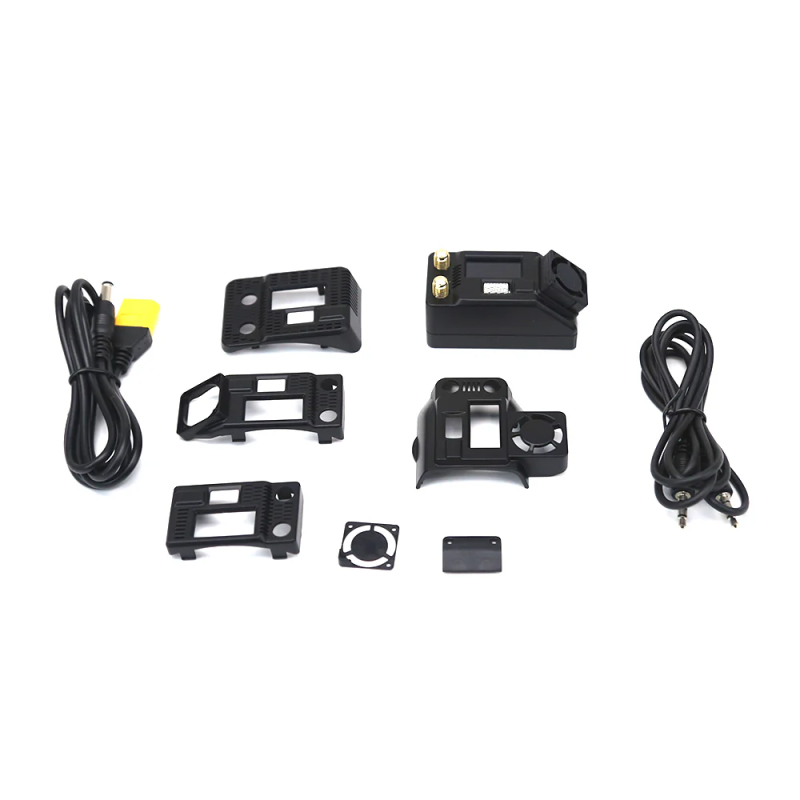

Package Contents
- SteadyView X receiver module.

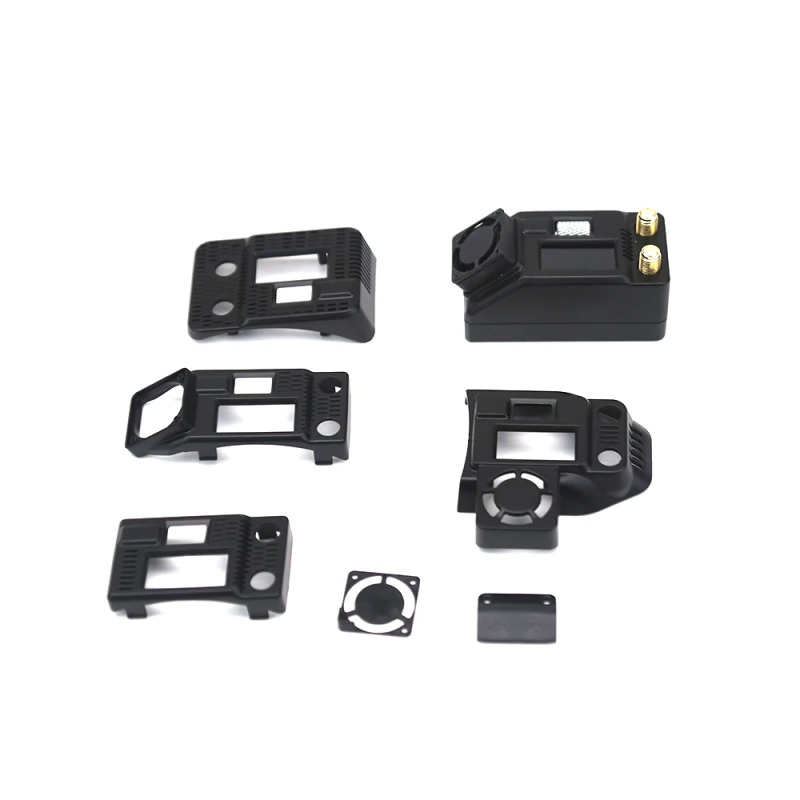

- Module cover for SKY04, EV300O, COBRA, Fatshark goggles.
- Ground station kit.
- XT60-Barrel connector power cable.
- 3.5 mm video output cable.One patch antenna (RHCP) and one omnidirectional antenna.
Frequency Bands and Channels
| Band/CH | CH1 | CH2 | CH3 | CH4 | CH5 | CH6 | CH7 | CH8 |
|---|---|---|---|---|---|---|---|---|
| A (RaceBand) | 5865 Mhz | 5845 Mhz | 5825 Mhz | 5805 Mhz | 5785 Mhz | 5765 Mhz | 5745 Mhz | 5725 Mhz |
| B (Band B) | 5733 Mhz | 5752 Mhz | 5771 Mhz | 5790 Mhz | 5809 Mhz | 5828 Mhz | 5847 Mhz | 5866 Mhz |
| E (Band E) | 5705 Mhz | 5685 Mhz | 5665 Mhz | 5645 Mhz | 5885 Mhz | 5905 Mhz | 5925 Mhz | 5945 Mhz |
| F (Fatshark) | 5740 Mhz | 5760 Mhz | 5780 Mhz | 5800 Mhz | 5820 Mhz | 5840 Mhz | 5860 Mhz | 5880 Mhz |
| R (Band R) | 5658 Mhz | 5695 Mhz | 5732 Mhz | 5769 Mhz | 5806 Mhz | 5843 Mhz | 5880 Mhz | 5917 Mhz |
| L (Low Band) | 5362 Mhz | 5399 Mhz | 5436 Mhz | 5473 Mhz | 5510 Mhz | 5547 Mhz | 5584 Mhz | 5621 Mhz | X (X Band) | 4990 Mhz | 5020 Mhz | 5050 Mhz | 5080 Mhz | 5110 Mhz | 5140 Mhz | 5170 Mhz | 5200 Mhz |
The Skyzone SteadyView X receiver is ideal for those who want to improve video link stability, reduce artifacts and signal interruptions. The ELRS VRX Backpack simplifies integration with the transmitter, USB-C makes firmware updates and power convenient, and the wide input power range makes the device compatible with most LiPo batteries from 2S to 6S. Thanks to the 3.5 mm output, it can be easily connected to various goggles or external monitors. Manufacturer: Skyzone. Product category: Drones & Quadcopters > Drone Components > Drone Parts > Transmitters.
