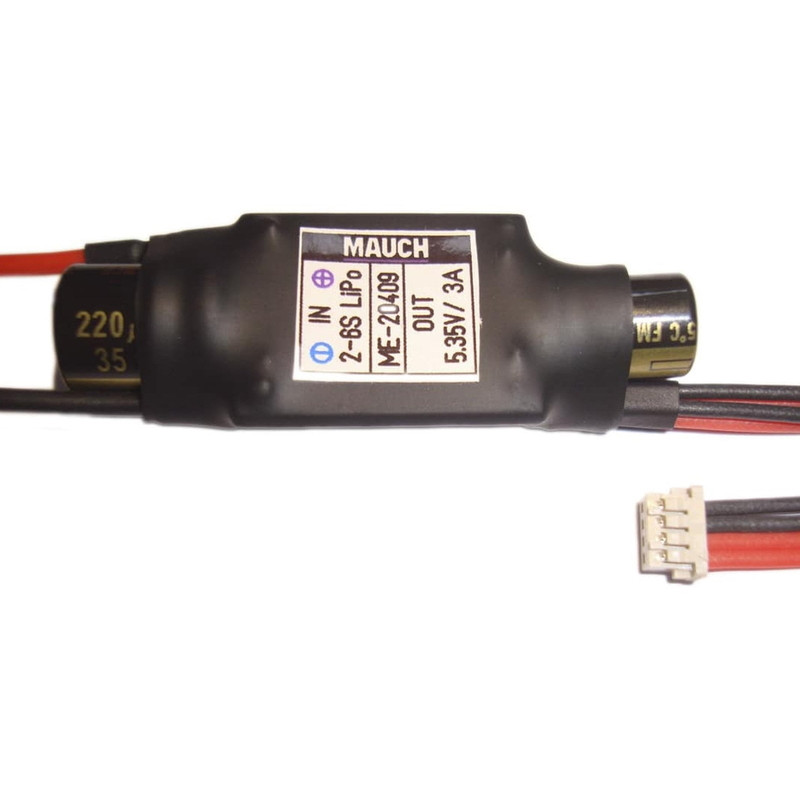

MAUCH HS082 2-6S BEC DF-13-4P Power Regulator (5.35V 3A) — a high-quality voltage stabilizer from MAUCH, designed for reliable power supply to UAV electronics and other compact systems. This module combines compact dimensions (47 x 18 x 11 mm) and low weight (8 g) with broad functionality, making it an excellent choice for professional and amateur projects in the Drones and Quadcopters > Stacks (FC+ESC) category.

Advantages

• Wide input voltage range: operates from 2S (7.4 V) to 6S (22.2 V) sources, suitable for most aircraft batteries.
• Universal input range: technical data specifies 6–26 V, emphasizing flexibility of application in various power schemes.
• Stable 5.35 V output voltage: optimal for powering cameras, receivers, and video transmitters.
• Maximum and peak current 3 A: ensures stable operation under medium and high loads.
• DF-13-4P connector: reliable connection to the drone's main system.
• Reverse polarity protection: enhances safety during equipment installation and operation.

Technical Specifications

• Type: Hybrid (switching + linear LDO).
• Output voltage: 5.35 V.
• Rated current: 3 A.
• Peak current: 3 A.
• Input voltage range: 6–26 V (description also states compatibility with 2S–6S batteries: 7.4–22.2 V).
• Dimensions: 47 x 18 x 11 mm.
• Weight: 8 g.
• Connector: DF-13-4P.

Package Contents

• MAUCH HS082 Voltage Stabilizer — 1 pc.
• Housing — 1 pc.
• Sensor Cable — 1 pc.

Application and Recommendations

The MAUCH HS082 is ideal for installation in aircraft, multicopters, and other unmanned platforms where stable power supply for peripheral modules is required: FPV cameras, video transmitters, receivers, and other electronic components. Thanks to its hybrid circuit (switching part for efficiency and LDO for clean output voltage), this regulator combines low heat generation and minimal interference for sensitive equipment.

Manufacturer: MAUCH. Product Type: Drones and Quadcopters > Stacks (FC+ESC).
