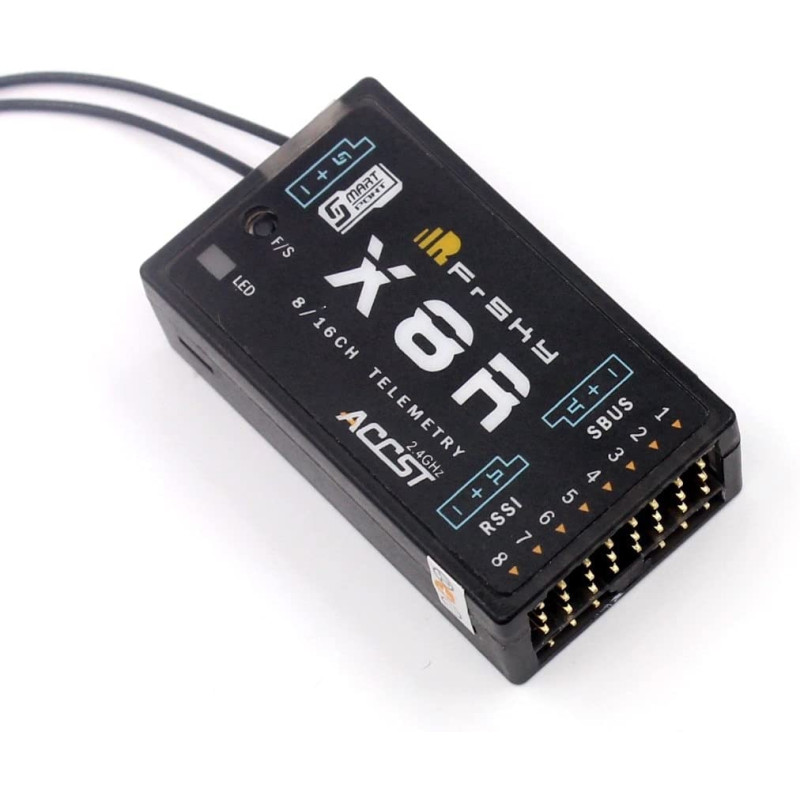

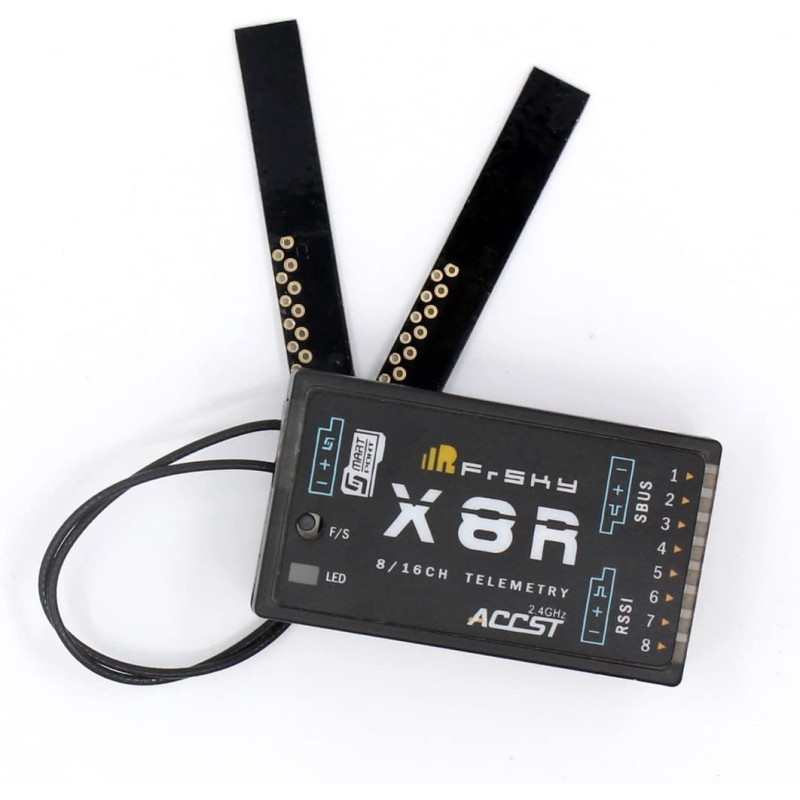

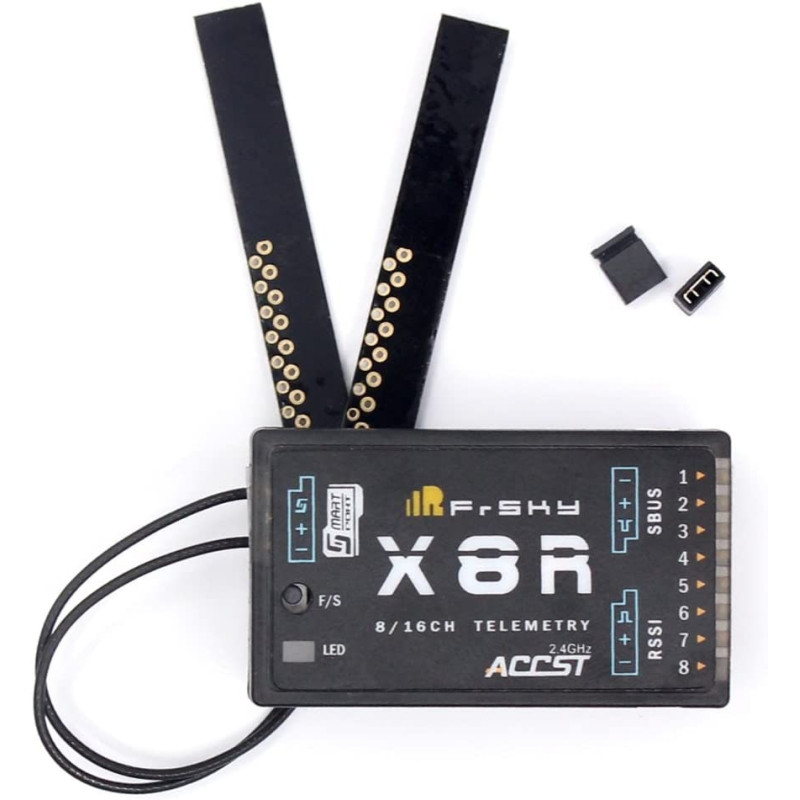

FrSky X8R Receiver

FrSky X8R Receiver — a compact and reliable 16-channel radio receiver from FrSky, designed for drones and quadcopters that require extended telemetry and stable communication. The model combines modern interfaces, small dimensions, and low weight, making it an ideal choice for both enthusiasts and professionals.

The X8R supports 8 standard PWM outputs or up to 16 channels via the S.BUS output, while maintaining compact dimensions compared to previous 8-channel receivers. The receiver is equipped with a new Smart Port, which allows connecting modern serial digital sensors, and is also backward compatible with older analog sensors. If necessary, the X8R can be combined with another similar receiver to scale the control system.

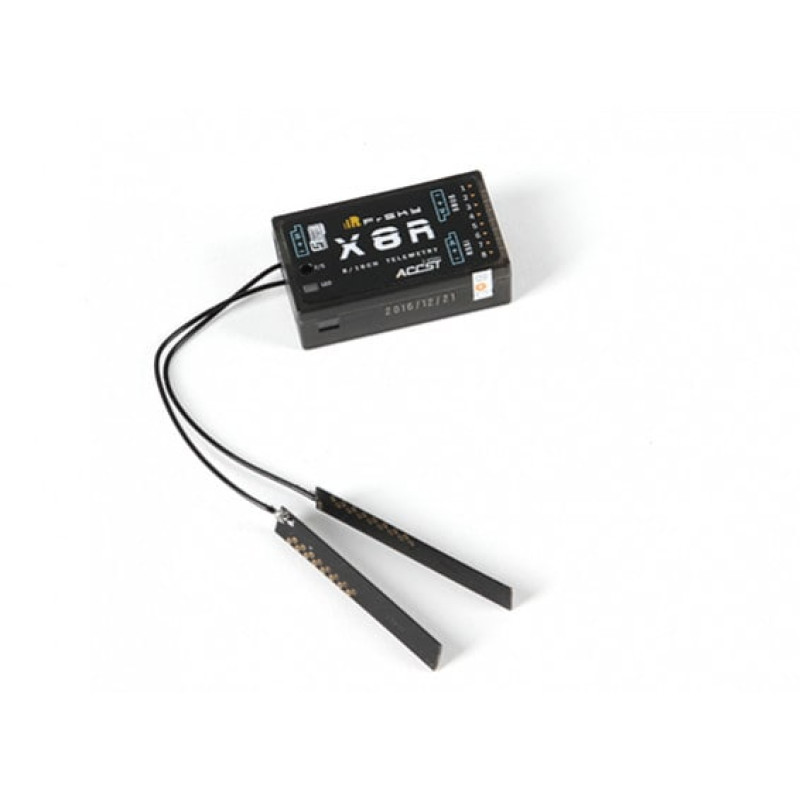

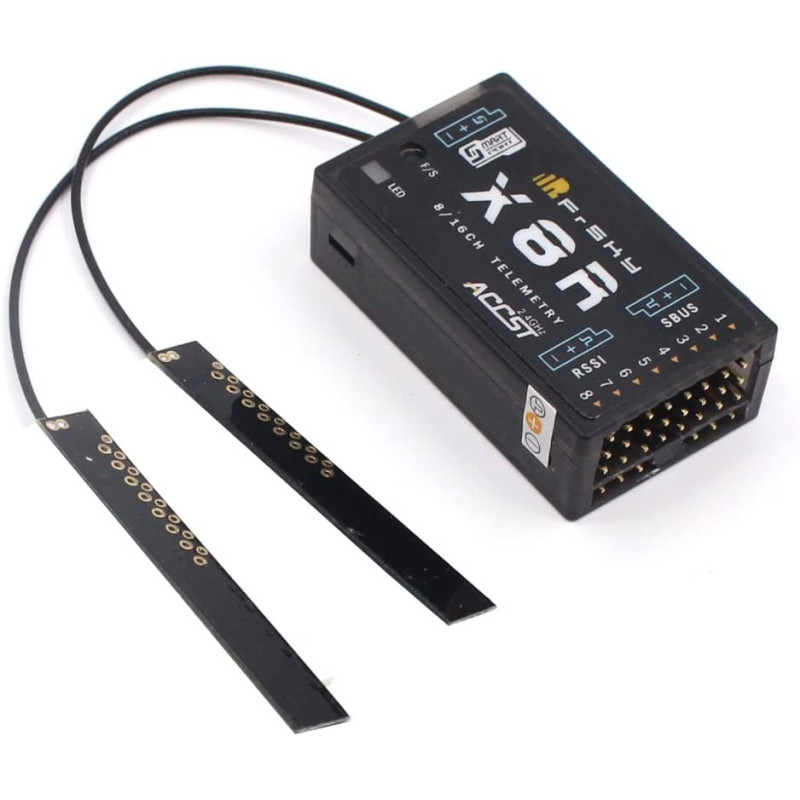

The new X8 protocol is compatible with the D8 protocol: in D8 mode, the receiver works with DHT, DJT, DFT, and DHT-U transmitter modules; in this mode, 8 channels are available, but Smart Port and digital sensor support are retained. The antenna is implemented using printed circuit board (PCB) mounting, which provides an approximately 20% increase in range compared to older antenna types. The X8R receiver firmware can be updated to support new features and compatibility with surrounding equipment.

Specifications

• Dimensions: 46.5 x 27 x 14.4 mm
• Weight: 16.8 g
• Operating voltage: 4 – 10 V
• Current consumption: 100 mA at 5 V power supply
• Reception range: up to 1.5 km
• RSSI signal output: analog output 0 – 3.3 V
• Firmware update capability
• Latency: when using only 8 channels (either S.BUS or analog) — 9 ms; with all 16 channels — 18 ms
• Telemetry disable option (receiver becomes passive)

Additional information: Product ID in catalog: 11773. Manufacturer: FrSky. Category: Drones and Quadcopters > Drone Components > Drone Spare Parts > Receivers. The FrSky X8R receiver is ideal for models where high communication reliability, extended telemetry, and the ability to scale the control system are important. Thanks to its compact dimensions and low weight, it easily integrates into most devices, and firmware update support and Smart Port make it a future-oriented choice for enthusiast pilots and professionals.

The X8R provides flexibility in configuring outputs and operating modes: use S.BUS for connecting a large number of channels, or classic PWM outputs for simple configurations. In D8 mode, compatibility with popular transmitters and modules ensures easy integration into existing systems. Increased range due to the PCB antenna and firmware update capability guarantee long-term relevance of the equipment.

Integrate the FrSky X8R into your project if you need a stable receiver with extended telemetry, support for modern sensors via Smart Port, the ability to combine with other receivers, and easy software updates.
