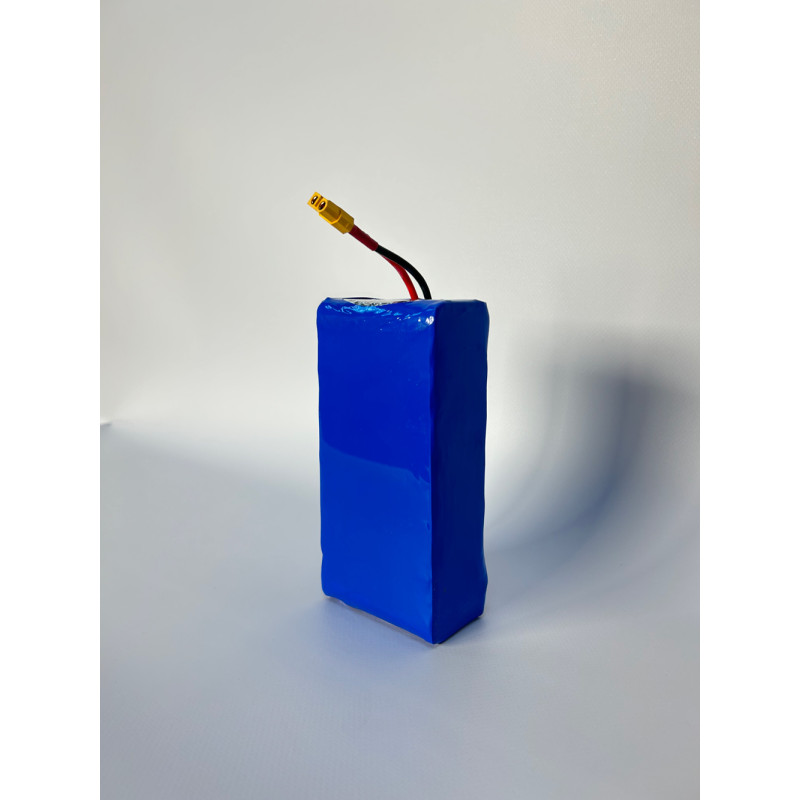

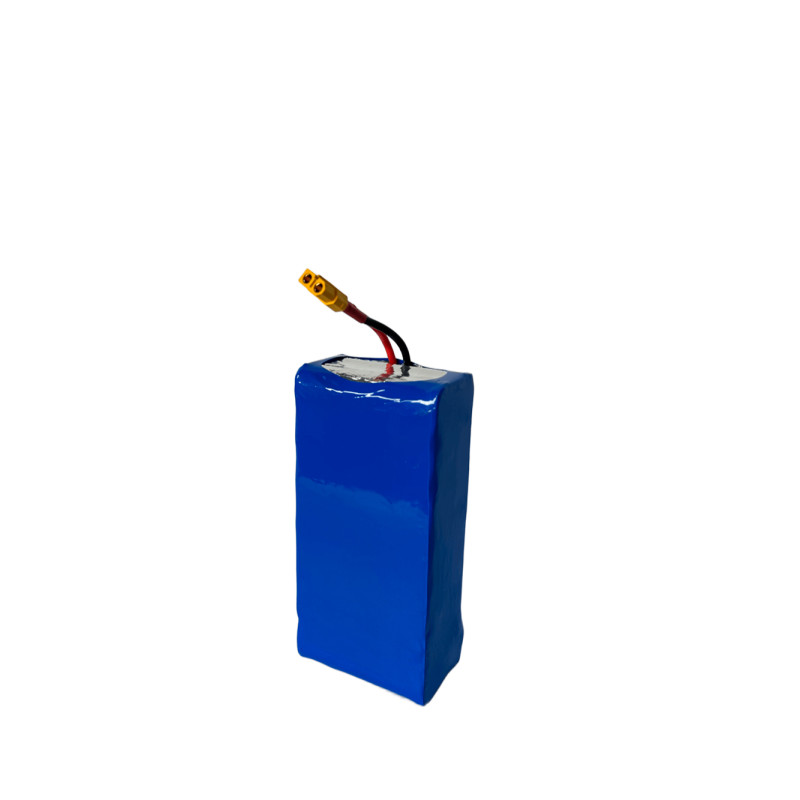

Wartex 7S 10Ah Portable Battery for EW Systems

The professional Wartex 7S 10Ah (10 A·h) portable battery is a specialized portable power source designed for reliable operation of electronic warfare (EW) systems in field and semi-stationary conditions. The battery has a nominal voltage of 29.4 V and a 7S configuration, ensuring a stable power supply for equipment with increased power requirements. Compact dimensions of 170x80x50 mm and a weight of approximately 1 kg make it convenient for transport and quick replacement during operations.

Technical Specifications:

• Capacity: 10 Ah / 280 Wh.
• Voltage: 29.4 Volts.
• Configuration: 7S.
• Max Charging Current: 20 A (at 29.4 V).
• Max Discharging Current: 30 A.
• Cell Type: 21700 Li-ion.
• Interface: XT-60.
• Weight: approximately 1 kg.
• Dimensions: 170x80x50 mm.

The Wartex 7S battery is designed to power EW systems with a maximum consumption of up to 300 Watts, making it an optimal choice for autonomous power supply of high-energy-consumption devices. Thanks to the use of 21700 Li-ion battery cells, high energy density, long nominal and peak discharge currents, and a long charge-discharge cycle life are achieved.

A 29.4V 5A charger for 220V mains is included. This ensures fast and safe battery recharging both in the field with a generator or 220V mains, and in stationary conditions. The maximum charging current of 20 A allows for rapid energy replenishment strategies when manufacturer recommendations are followed.

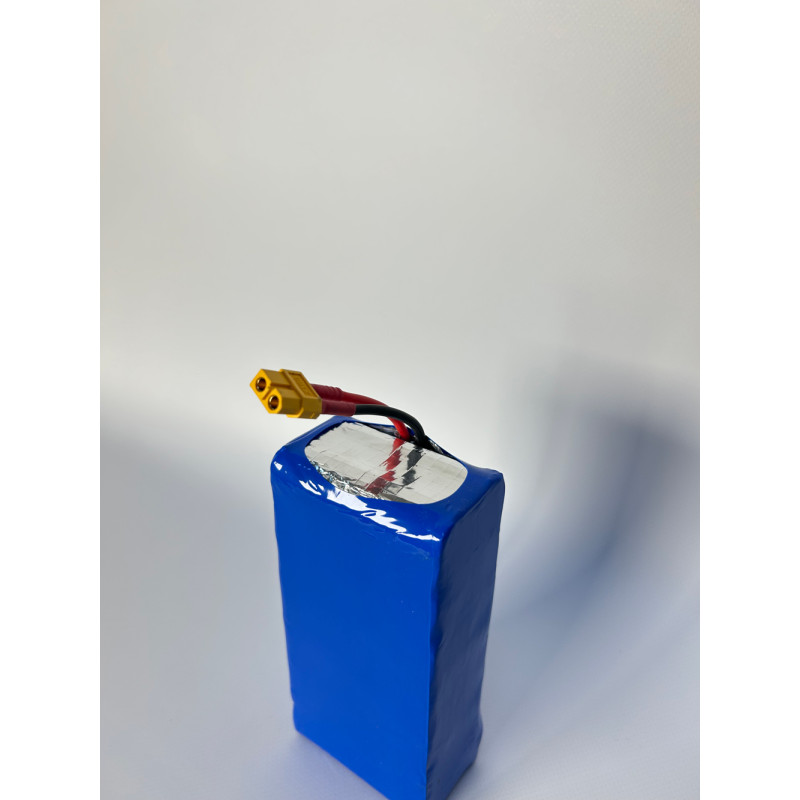

The XT-60 interface provides a reliable electrical connection to EW devices and allows for easy integration of the battery into existing power supply systems and backup units. The battery is suitable for standalone use, as well as for assembling battery packs or connecting to inverters and voltage stabilizers that require a stable voltage of approximately 29.4 V.

Advantages of the Wartex 7S 10Ah model: reliable 21700 Li-ion cell type, balanced capacity and power, high peak discharge currents, convenient XT-60 interface, optimal dimensions of 170x80x50 mm and weight of about 1 kg for comfortable carrying and installation. Manufacturer: Wartex. Product category: EW > EW Components > Charging Stations.

It is recommended to use Wartex 7S 10Ah with equipment that requires stable power at ~29.4 V and consumption up to 300 W. Adhering to operating and charging rules extends battery life and ensures safe operation of EW devices.
