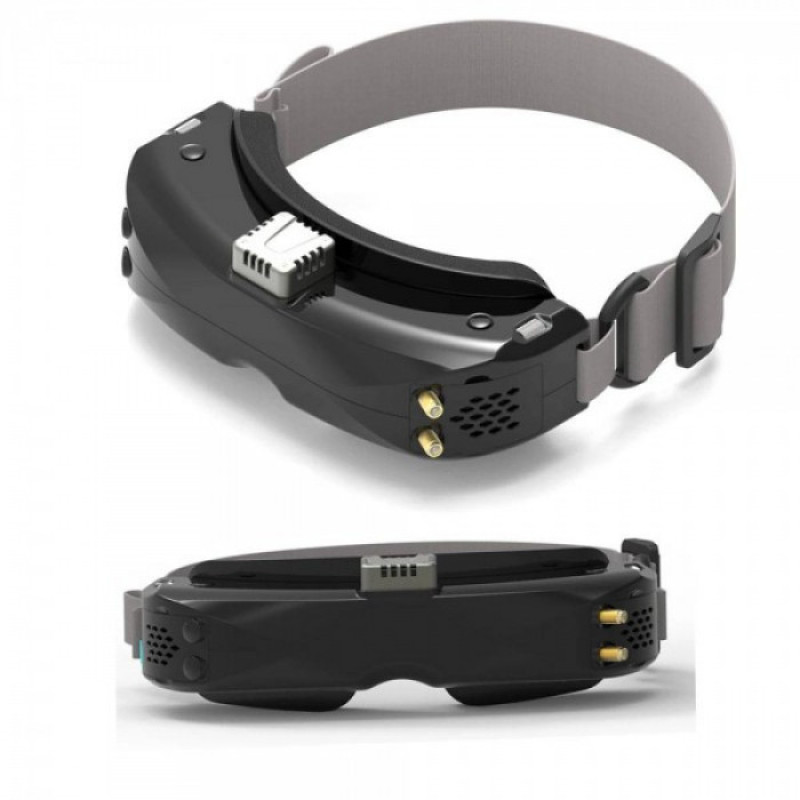

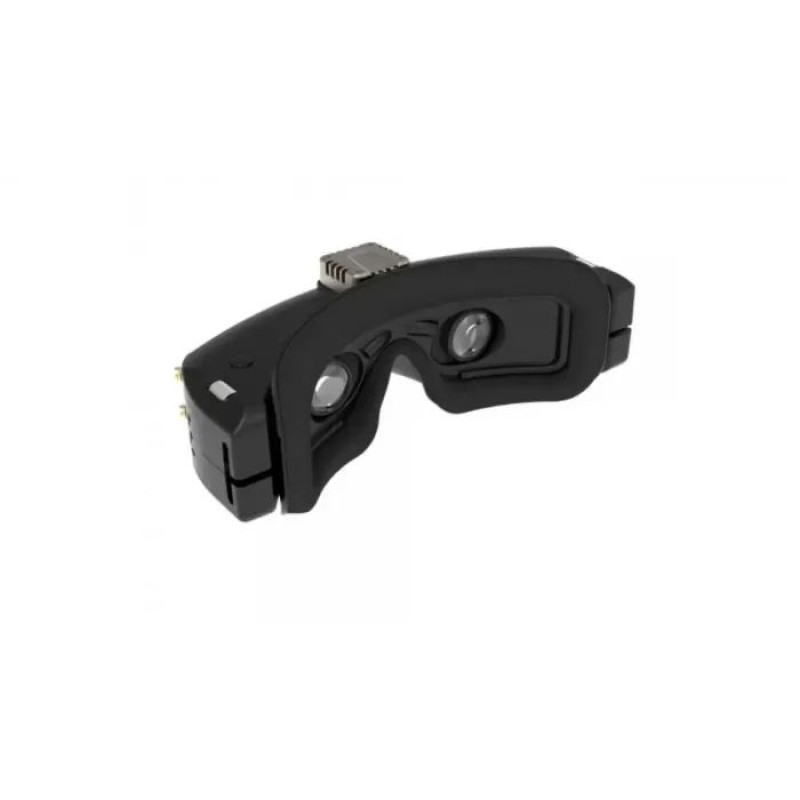

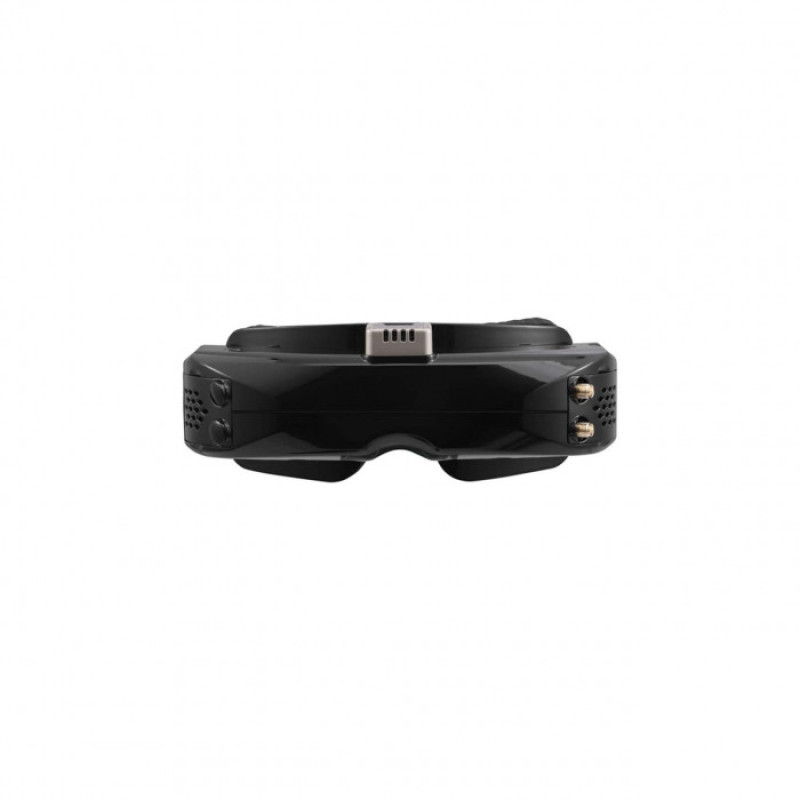

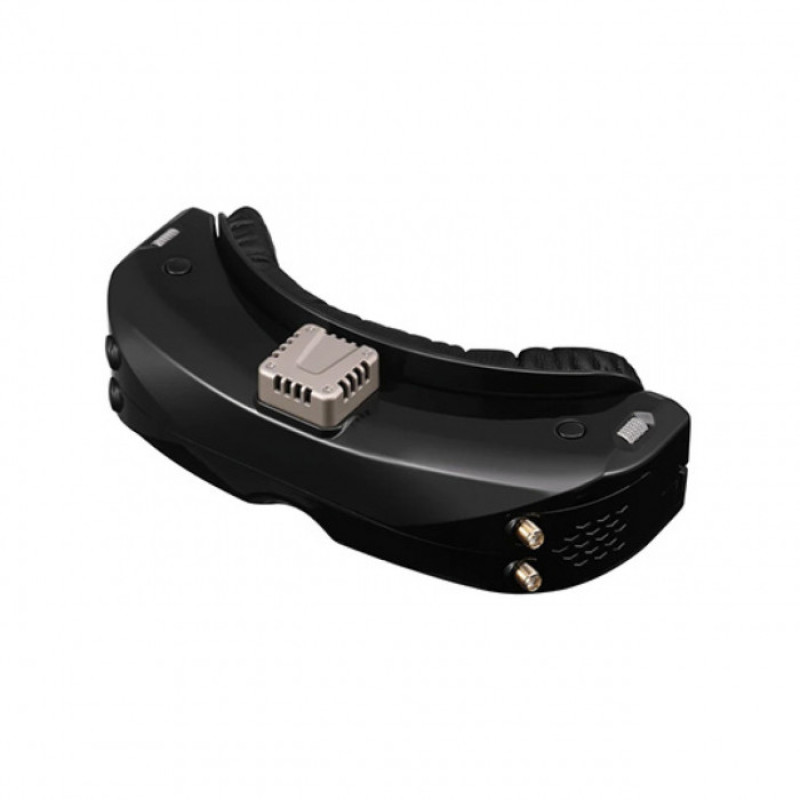

FPV Goggles Skyzone SKY04O V2 — Overview and Key Features

The Skyzone SKY04O V2 FPV goggles are a professional solution for drone pilots who value image quality, reliable signal reception, and ergonomics. The model is equipped with OLED screens that provide high contrast and image clarity. Different versions offer the following resolutions: SKY04X version — 1280 x 960, SKY04X PRO version — 1920 x 1080. The diagonal field of view is 46° for SKY04X and 52° for SKY04X PRO, creating maximum immersion during flight.

Comfort and Vision Adjustment: The goggles feature an adjustable focal length from -6 to +6, allowing pilots with different vision to comfortably use the device. The interpupillary distance (IPD) is adjustable within the range of 58–71 mm for precise user customization.

Built-in Video Receiver and Reception Technologies: The integrated RapidMix SteadyView receiver operates on 5.8G with 48 channels and supports Diversity and RapidMix modes, ensuring a stable and clear signal even in challenging conditions with interference. Antenna connector: SMA jack.

Video Recording (DVR): The updated DVR supports H264 format with an MOV container at a 6Mbps bitrate. The DVR in the basic model provides 60 fps, while the PRO version allows recording up to 100 fps at 720P, ensuring smooth recordings and convenient material for flight analysis.

Power and Energy Independence: Power sources: DC 6.5–25.2V (supports 2S to 6S LiPo batteries) or USB 5V. Power consumption is 720mA at 12V. This flexibility makes the goggles versatile in flight conditions.

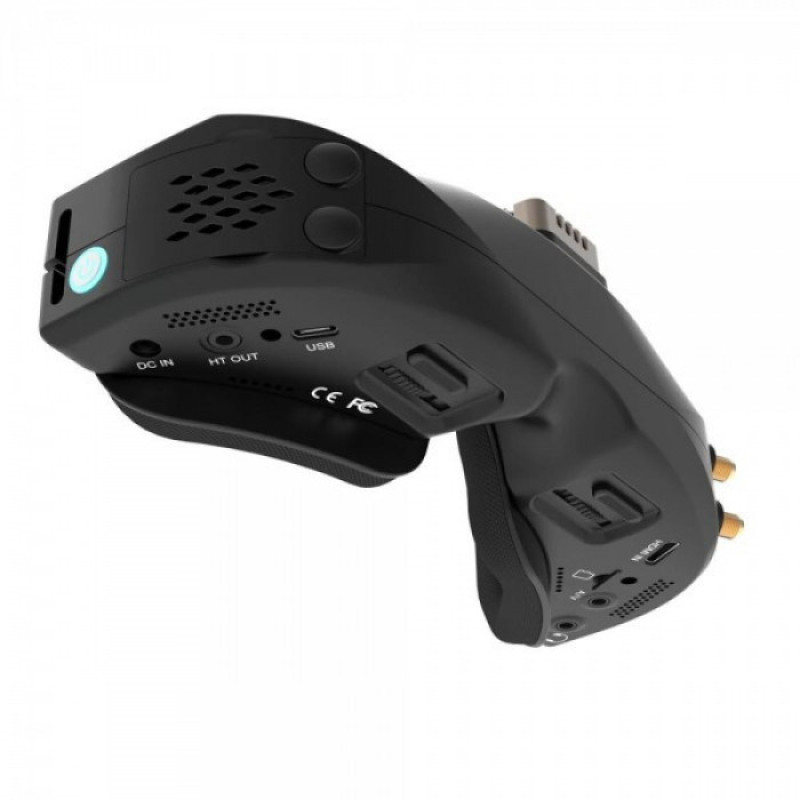

Interfaces and Compatibility: The set of interfaces includes USB-C, DC IN, HT OUT, A/V, HDMI IN, and a 3.5 mm jack. Supports SD cards up to 128Gb. The device has a menu in 10 languages and a built-in Head Tracker (3-axis accelerometer and 3-axis gyroscope) for integration with compatible control systems.

Dimensions and Weight: The goggles measure 185 x 75 x 67 mm and weigh 267 g, allowing for prolonged comfortable use without excessive fatigue.

Technical Specifications Table

Package Contents

The kit includes:

• 1 x FPV Goggles Skyzone SKY04X V2
• 2 x 5.8GHz 2dBi Linear Antennas
• 1 x Head Strap
• 1 x Power Cable with XT60 Connector
• 2 x Faceplates
• 1 x Soft Spacers
• 1 x Head Tracker Cable
• 1 x AV Cable
• 1 x USB-C Cable
• 1 x Storage Case
• 1 x User Manual

The Skyzone SKY04O V2 goggles are ideal for both amateurs and experienced pilots: an intuitive menu, extensive display customization options, universal interfaces, and support for various power sources make this model a versatile choice for FPV flights and high-quality video recording. Manufacturer: Skyzone. Product Category: Drones & Quadcopters > Drone Components > FPV Goggles.
