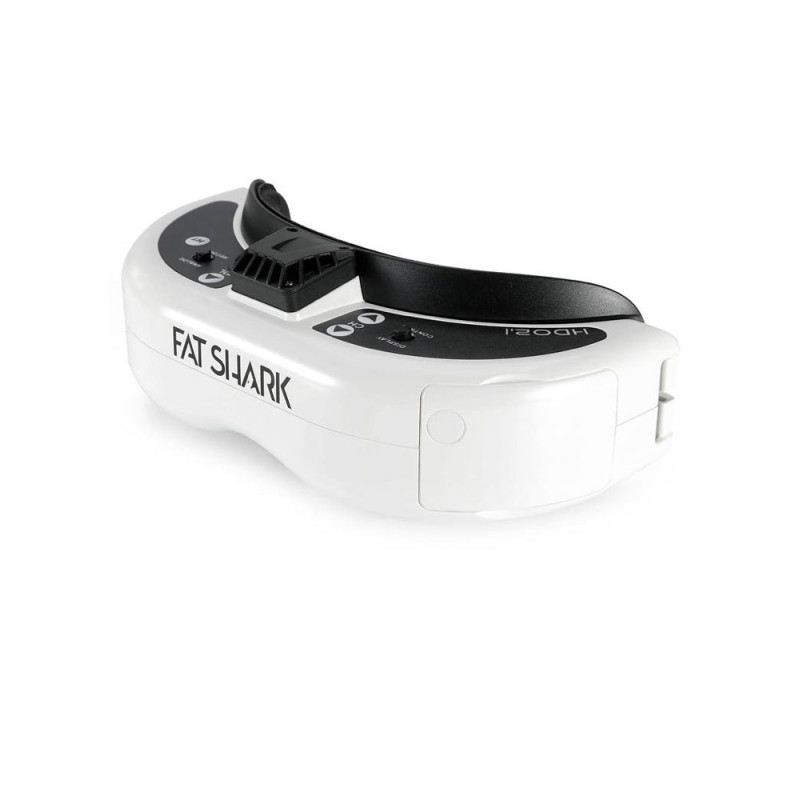

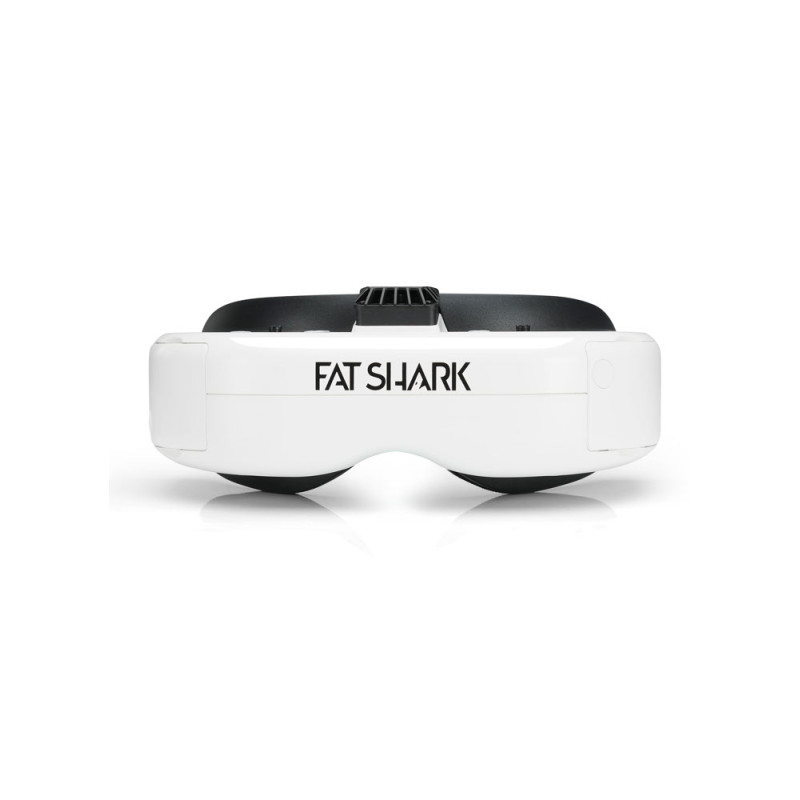

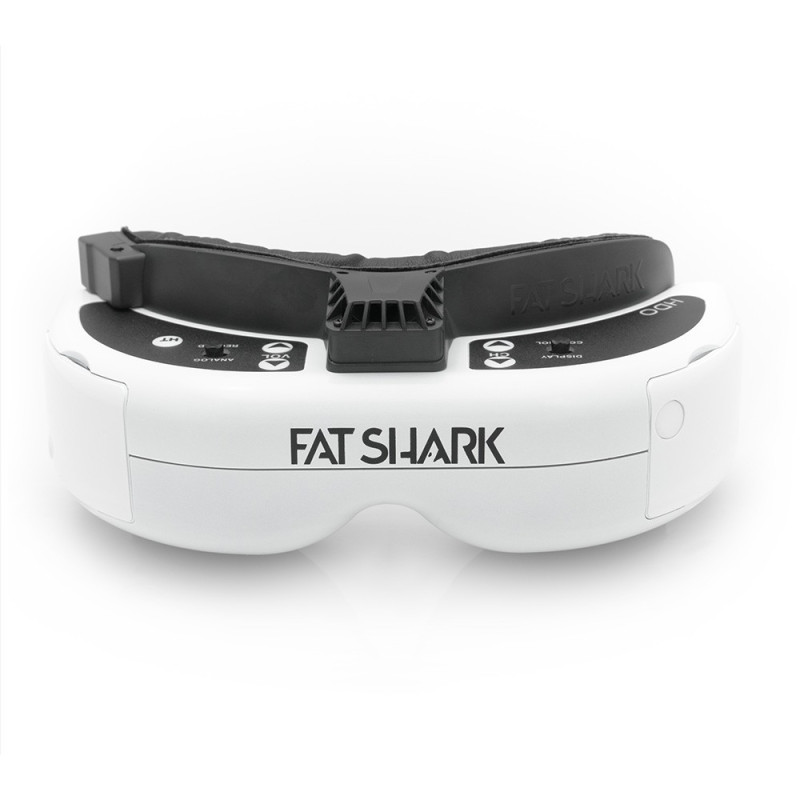

FPV Goggles FatShark Dominator HDO2

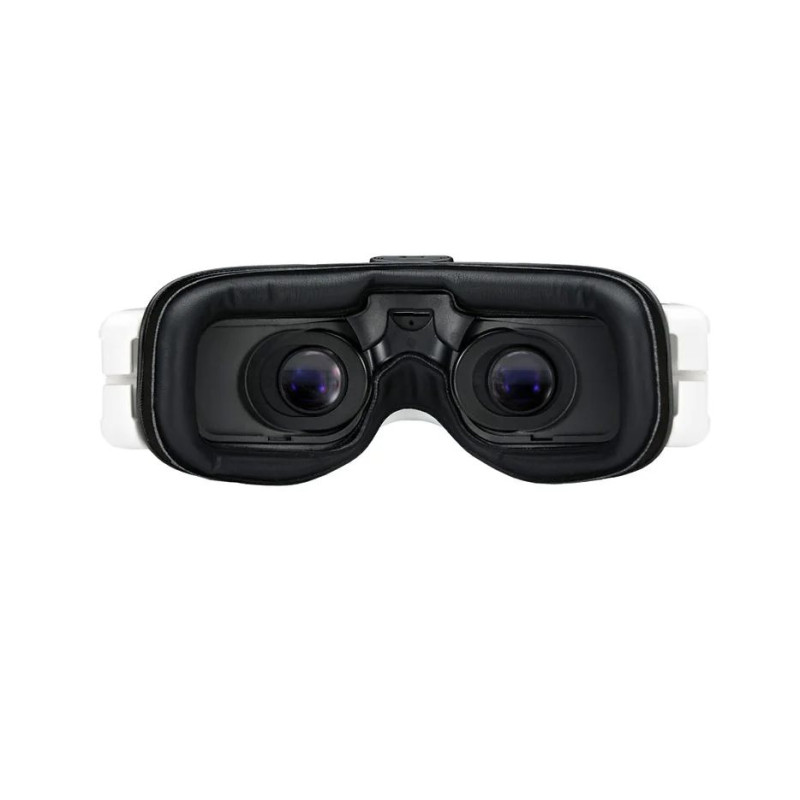

The FPV Goggles FatShark Dominator HDO2 are a professional solution for drone enthusiasts and pilots who value image quality and reliability. Manufacturer: China. This model combines two high-quality 0.5” OLED displays with a resolution of 1280 x 960, providing a bright, high-contrast, and clear image during FPV flights. A wide 46-degree field of view, adjustable interpupillary distance (IPD) from 54 to 74 mm, and focus adjustment from +2 to -6 diopters make the goggles comfortable for various face types while allowing vision correction without additional lenses.
The FatShark Dominator HDO2 supports various display modes: NTSC/PAL with auto-selection, AV Mode 4:3, AV Mode 16:9, and HDMI Mode 16:9. To enhance signal stability, modern antennas such as Rapidfire or Fusion can be connected, ensuring a clearer picture and fewer interferences. The built-in HD DVR allows recording flights to a microSD card up to 32 GB in AVI format with MJPG compression at a recording speed of up to 6 Mbps and 30 fps, as well as playing back files without additional codecs. Software updates are performed via an SD card.
Features and Controls

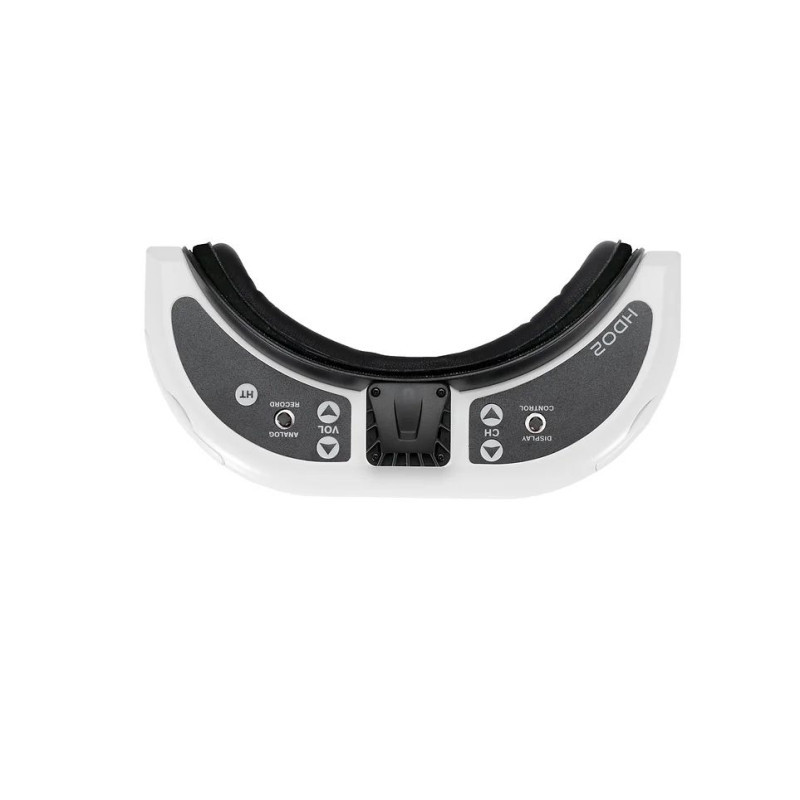

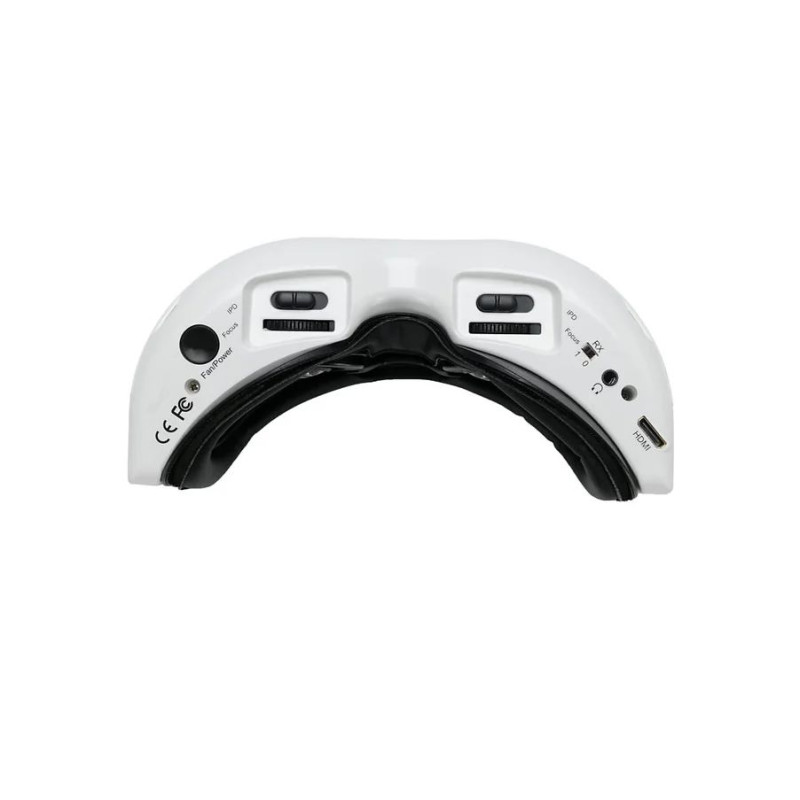

The goggles feature stereo sound, a 3.5mm headphone jack, and a set of convenient controls: channel selection, volume adjustment, display mode selection, display control, DVR control, power button, and fan control. Power is supplied in the range of 7–13 V (2S–3S), supporting power from 18650 batteries and USB charging, providing flexibility during flights. Power consumption: 320 mA at 7.5 V without an RX module and 770 mA at 7.5 V in Rapid mode.
| Specifications | Value |
|---|---|
| Type | OLED |
| Field of View (FOV) | 46 degrees |
| Interpupillary Distance (IPD) | 54 – 74 mm (adjustable) |
| Focus | +2 to -6 diopters (adjustable) |
| Displays | Two 0.5” OLED |
| Resolution | 1280 X 960 |
| Format Support | NTSC/PAL (auto-select), AV Mode 4:3, AV Mode 16:9, HDMI Mode 16:9 |
| Audio | Stereo sound |
| User Controls | Channel control, volume control, mode selection, display control, DVR control, power button / fan control |
| Power Supply | 7 – 13 V (2S – 3S) input voltage |
| Power Consumption | 320 mA at 7.5 V (without RX module), 770 mA at 7.5 V (Rapid) |
| DVR | MicroSD support up to 32 GB, 6 Mbps recording (MJPG, 30 fps, AVI), playback without codecs |
| SD Card Updatable | Yes |
| Battery | 7.4 V, 1.8 A, 18650 battery case (optional) |
| Interface | 3.5 mm AV in/out port, power connector, 3.5 mm 3p headphone jack, MicroSD, modular RF connector, internal HT 3-pin connector, power button |
| Mechanical Characteristics | ergonomic headset with adjustable headband, dimensions 169.2 x 80 x 45.5 mm, weight 206.8 g |
Advantages
- High-quality OLED displays and high resolution for a clear image.
- Wide 46° field of view and adjustable IPD and focus for comfort for various pilots.
- Support for modern antennas (Rapidfire/Fusion) to improve signal reception.
- Built-in DVR for recording flights and SD card update capability.
- Flexible power from 18650 batteries or USB, compact size, and low weight.

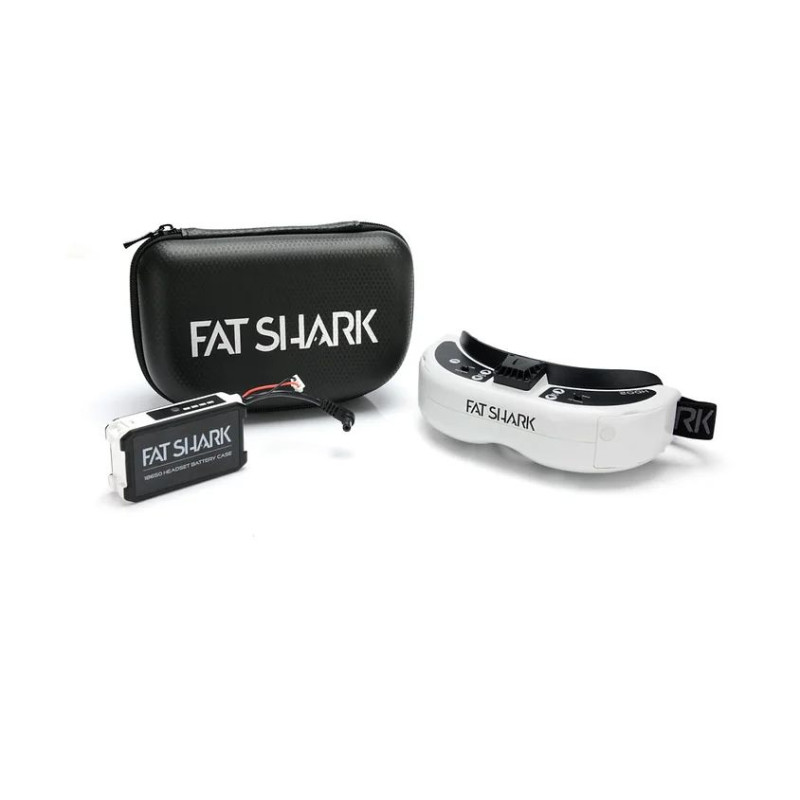

Package Contents:
- 1 x FPV Goggles Fat Shark Dominator HDO 2
- 1 x Carrying Case
- 1 x 7.4V 1865 Battery Accessory
- 1 x Lens Cleaning Cloth
The FPV Goggles FatShark Dominator HDO2 are ideal for racing and freestyle flights, content recording, and pilot training. The ergonomic design, wide range of interfaces, and powerful customization options make this model an excellent choice for professionals and amateurs seeking maximum image quality and reliability during flights.
