FPV Goggles BDI Digital Adapter V2

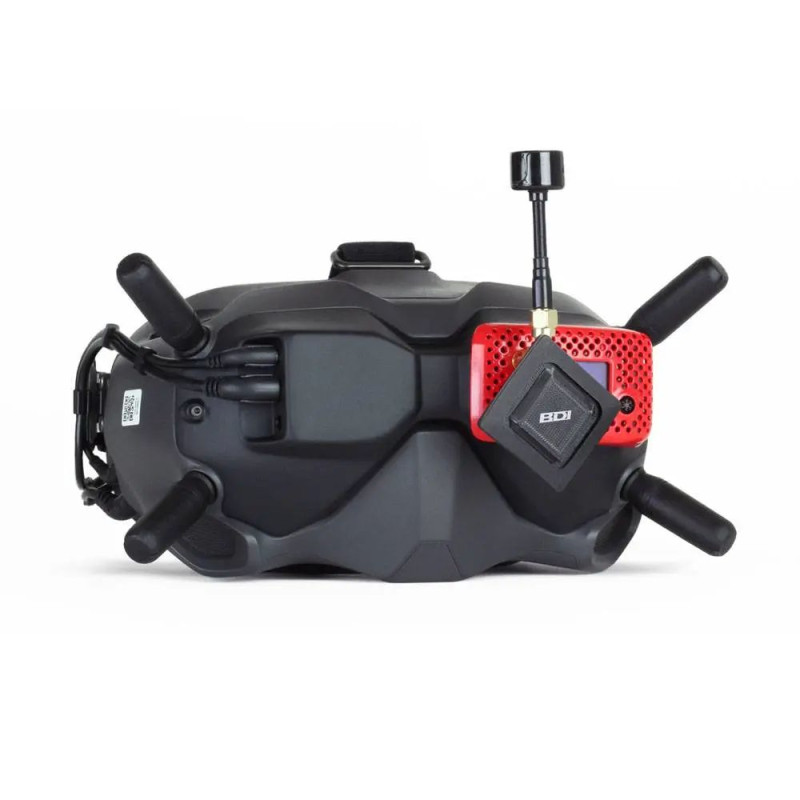

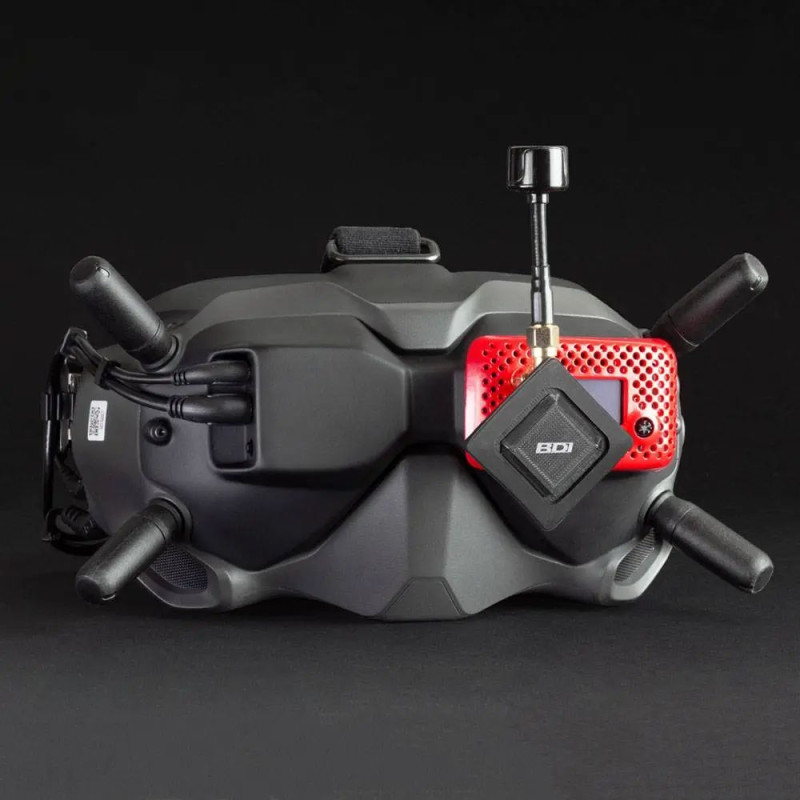

Brand: BDI. The FPV Goggles BDI Digital Adapter V2 is a compact and convenient adapter that allows you to receive an analog video signal in DJI Digital HD FPV goggles. This accessory is designed for pilots who want to combine digital DJI goggles with their analog video modules on quadcopters and other drone models, while maintaining high image quality and reliable connection.
Description and Compatibility
The adapter is compatible with a wide range of analog modules, including TBS Fusion, Foxeer Wildfire, Rapid Fire, True DX, Eachine Pro58, and other compatible solutions. Thanks to its plug-and-play design, installation takes only a few minutes and does not require special tools or additional knowledge. The device provides a stable analog video signal in digital DJI goggles, convenient power options for connected modules, and basic control functions, making it an excellent choice for both beginners and experienced FPV pilots.
Advantages
- Quick connection and ease of use — plug-and-play.
- Wide compatibility with popular analog video modules.
- Compact size and light weight — convenient to take with you for flights.
- Reliable connectors and a set of cables for various connection scenarios.
Technical Specifications
| Characteristics | Value |
|---|---|
| Dimensions | 158 x 74 x 40 mm (6.25 x 3 x 1.6 inches) |
| Weight | 34 g |
| Packaged Weight | 110 g |
| Ports | |
| – DC Input | 5.5 mm x 2.1 mm, 7.4-26 V (2-6s) |
| – Video/Audio Output | 4-pole 3.5 mm |
| – RF Module Receiver Connector | 9-pin |
| Button | Tactile power button with short delay |
| Cables | |
| – DC Splitter | 5.5 x 2.1 mm, dual |
| – Video Cable | 4-pole gold-plated 3.5 mm |
| – Video/Audio Cable Splitter | Dual 4-pole 3.5 mm female |
| Maximum Input Voltage | 28 V DC |
| Minimum Input Voltage | 7.4 V DC |
| Nominal Output Voltage | 5 V DC |
| Maximum Module Power Current | 1.0 A |
| Nominal Continuous Power | 5 W |
| Material / Color | Matte black, injection molded (ABS) |
Power and Connection
The BDI Digital Adapter V2 supports a wide input voltage range from 7.4 V to 28 V DC (7.4–26 V recommended for standard use with most 2–6S batteries). The output voltage is a stable 5 V DC for powering the connected module with a maximum current of up to 1.0 A. Standard cables are provided for connection: a dual power splitter, a gold-plated 4-pole 3.5 mm video cable, and a dual video/audio splitter (female). The RF module receiver connector is 9-pin, ensuring compatibility with many popular modules and ease of integration into existing equipment configurations.

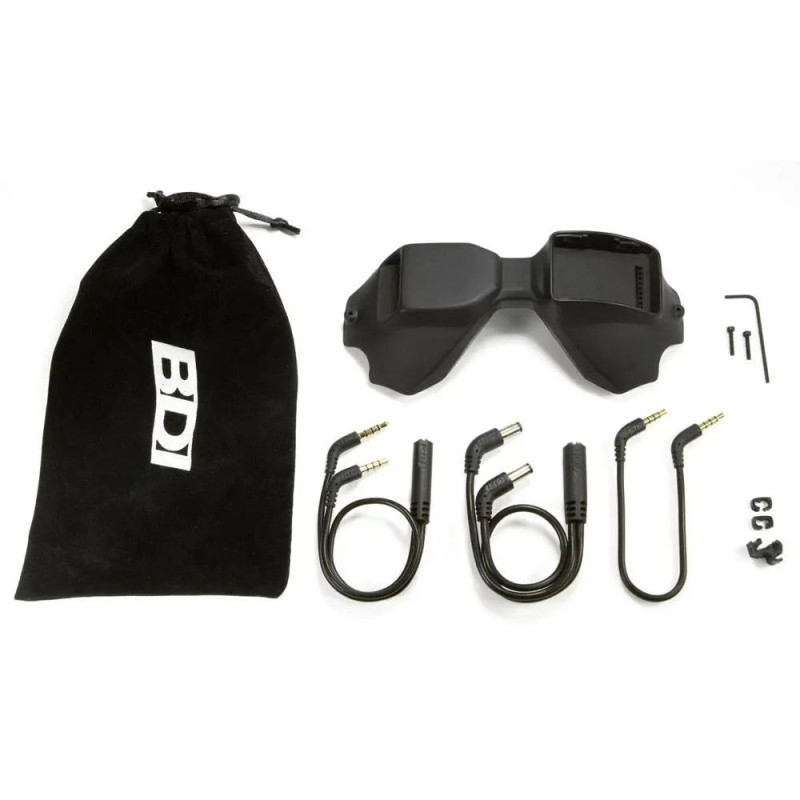

Package Contents
Package Contents:
- 1 × Digidapter V2 faceplate
- 1 × analog video cable
- 1 × analog video/audio splitter for audio output
- 1 × dual DC/DC male to single female DC connector
- 1 × hex key
- 2 × 12 mm hex head bolts
- 1 × cable strain relief clip
- 2 × cable clips
The BDI Digital Adapter V2 is a practical and reliable accessory for owners of DJI Digital HD FPV goggles who want to expand the functionality of their goggles and gain access to analog video signal sources. Whether you are participating in FPV competitions, training at the range, or simply enjoying your flight, this adapter will provide a stable connection, necessary cables, and secure power for your modules, while maintaining compactness and ease of transport.
