Tacchela X2 Folding Stretcher
Tacchela X2 Folding Stretcher — a professional tactical solution for evacuating the wounded and delivering cargo in field conditions. The wheeled stretcher is designed for rapid movement of the wounded from positions to the evacuation point, ensuring a horizontal patient position with secure strap fixation. The fabric covering the frame acts as a shock absorber and dampens vibrations during movement.

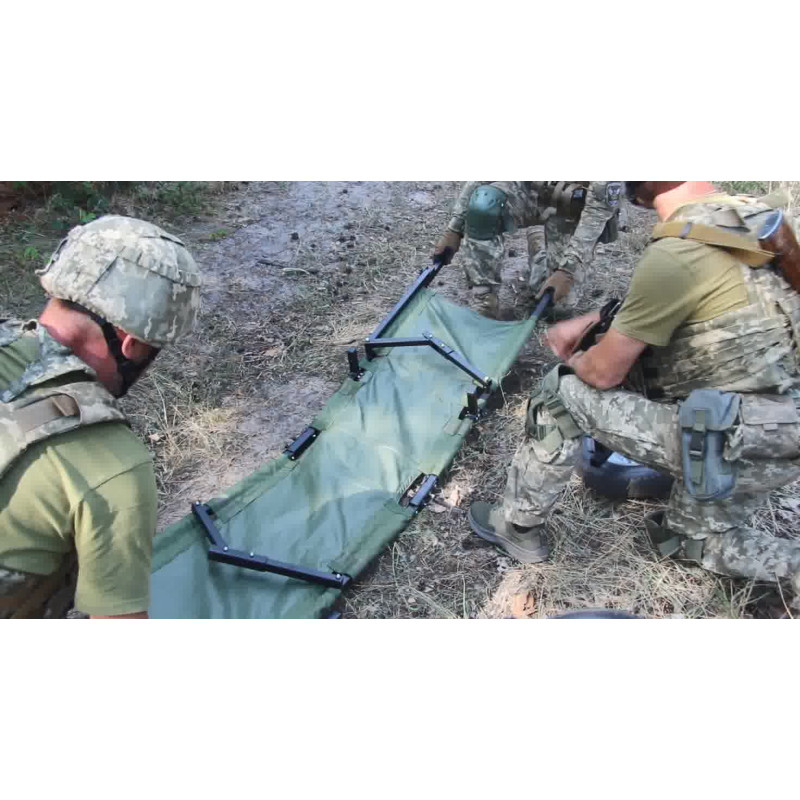

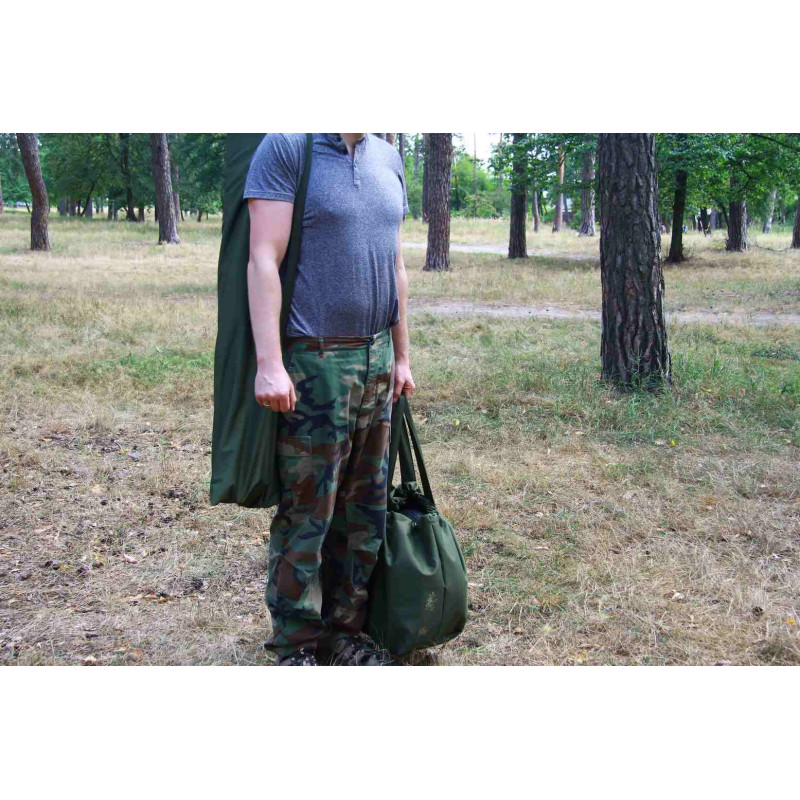

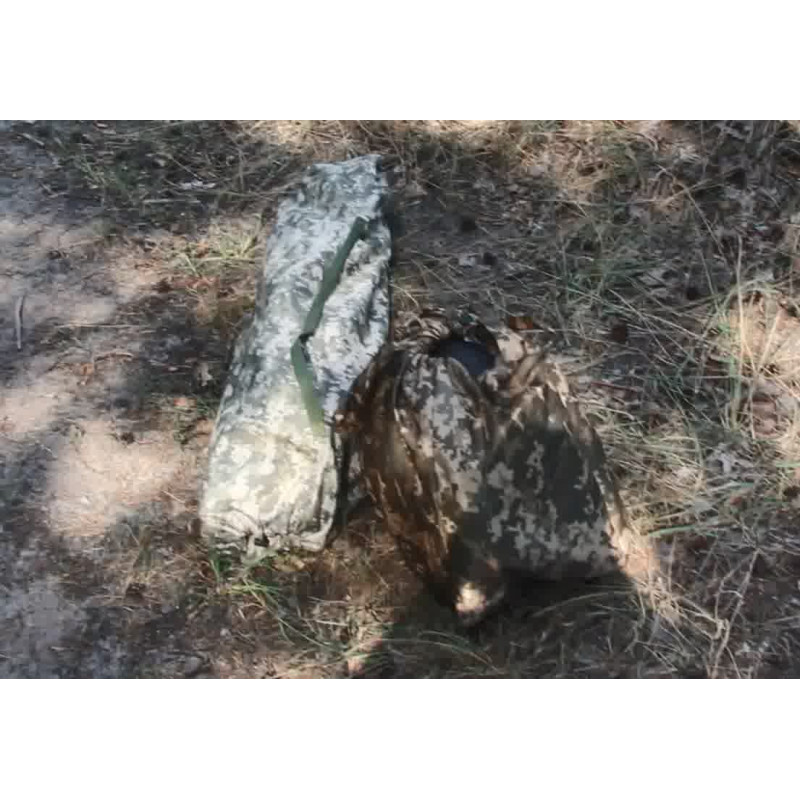

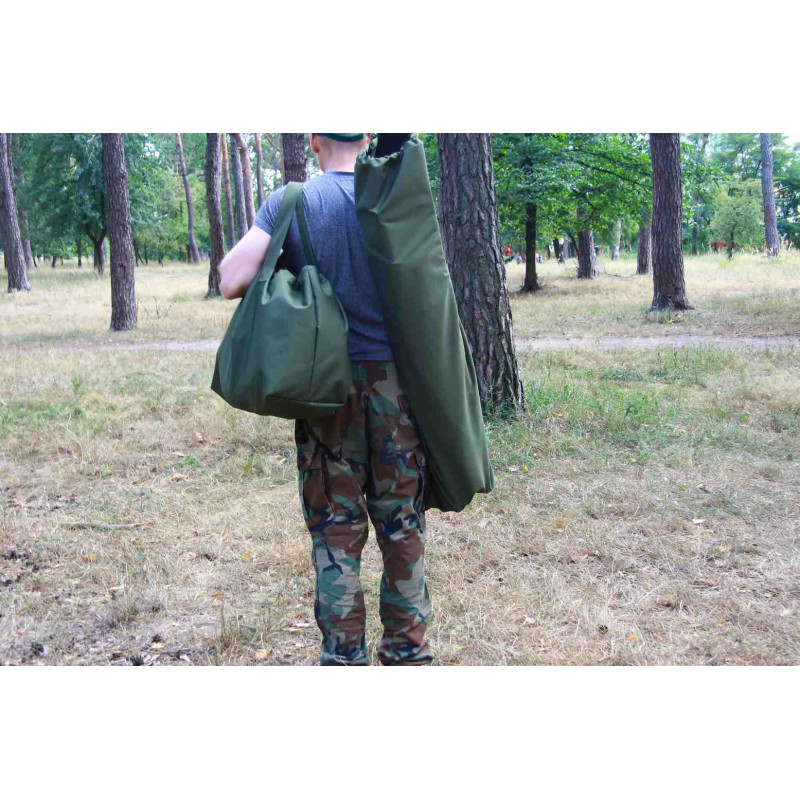

Quick Deployment and Compact Storage. The stretcher deploys in two minutes, fits into a cover when folded, and the wheels are stored in a separate bag for carrying on the shoulder or by hand. This makes the equipment easy to transport to the drop-off point and quickly put into operation.

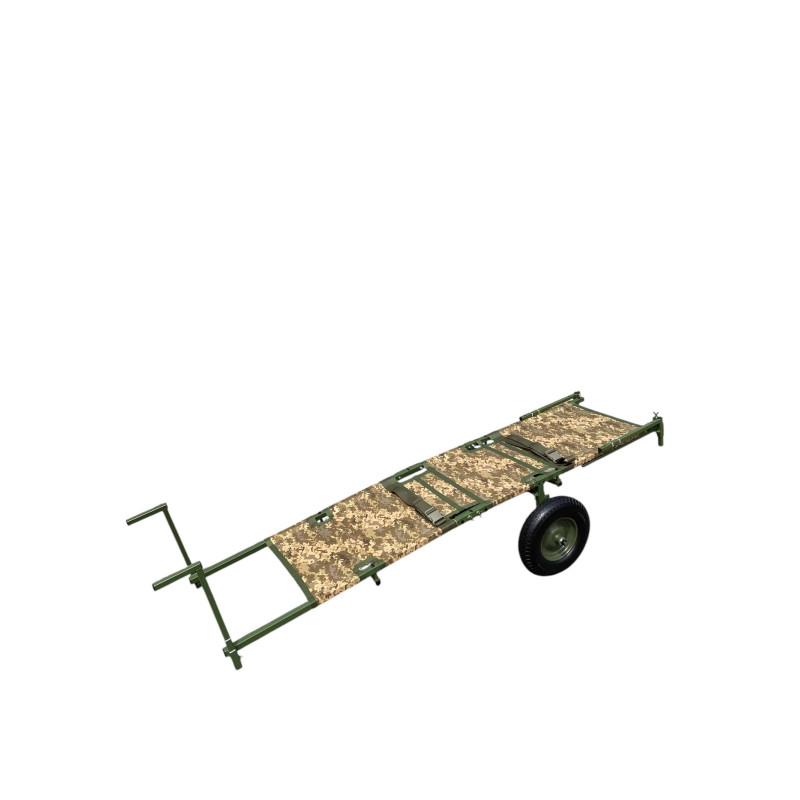

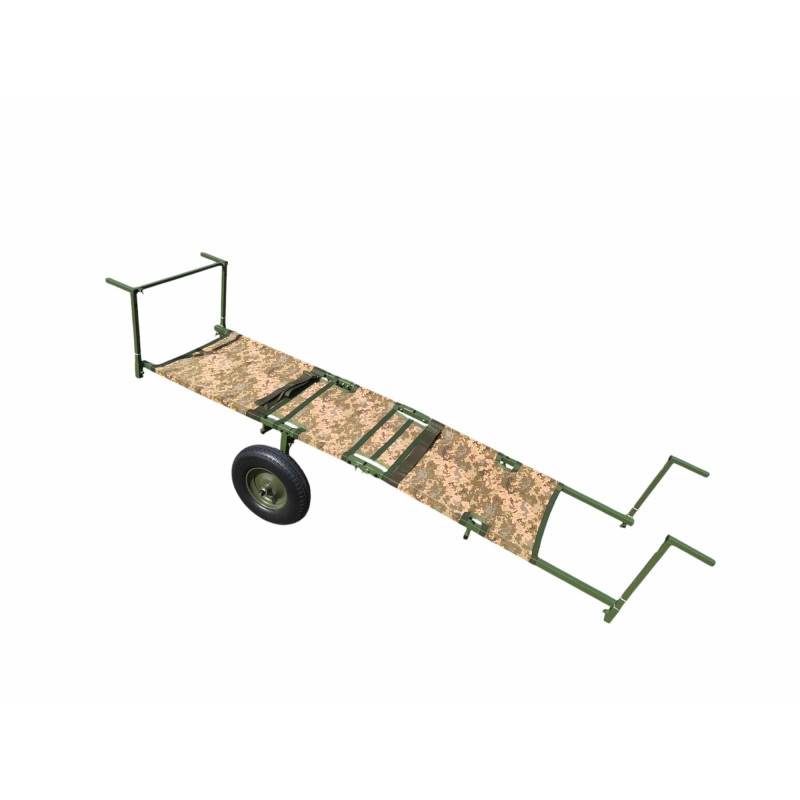

Wheeled Base and Mobility. The high ground clearance of the wheeled base (46 cm) and puncture-proof polyurethane wheels ensure effective operation on various terrains, including plowed fields and forest plantations. The wheeled base has a ground clearance of 46 cm and a height above ground of 50 cm. The wheels are tubeless and puncture-proof, increasing reliability in field conditions.
Reduced Burden for Carriers. Thanks to the balanced wheeled base, a weight of up to 100 kg feels like approximately 15 kg, and a special quick-release strap allows the entire weight to be transferred to the shoulders, freeing the hands. The stretcher can be carried by one person, which reduces human resource expenditure during evacuation and preserves the unit's combat readiness.
Versatility of Use. The stretcher is guaranteed to withstand 140 kg of dynamic load, so it can also be used to deliver ammunition and supplies from the drop-off point to the position. Handles on both sides allow the stretcher to be carried over a crater or log, and also allow an accompanying person to push the stretcher, assisting the lead carrier. The black frame color combined with water-repellent olive/khaki fabric makes the stretcher inconspicuous on the terrain.
Usage Algorithm (example)
- In its folded state, the stretcher is delivered to the drop-off point; in two minutes, the stretcher is equipped, ammunition/supplies are loaded onto it, and delivered to the position.
- The stretcher is stored in an equipped state; if a wounded person needs to be delivered, it is ready for use, and after evacuation, it is used to transport ammunition and supplies back.
Specifications
| Parameter | Value |
|---|---|
| Brand | Tacchela (Ukraine) |
| Unfolded size (cm) | 230 x 55 x 42 |
| Folded size (cm) | 115 x 20 x 10 |
| Frame and wheeled base material | steel |
| Frame weight | 14.6 kg |
| Wheeled base weight | 7.9 kg |
| Wheeled base ground clearance | 46 cm |
| Height above ground | 50 cm |
| Payload capacity | 140 kg |
| Wheels | polyurethane, tubeless, puncture-proof |
| Fabric | dense, waterproof, 100% polyester (1000 den), olive/khaki color |

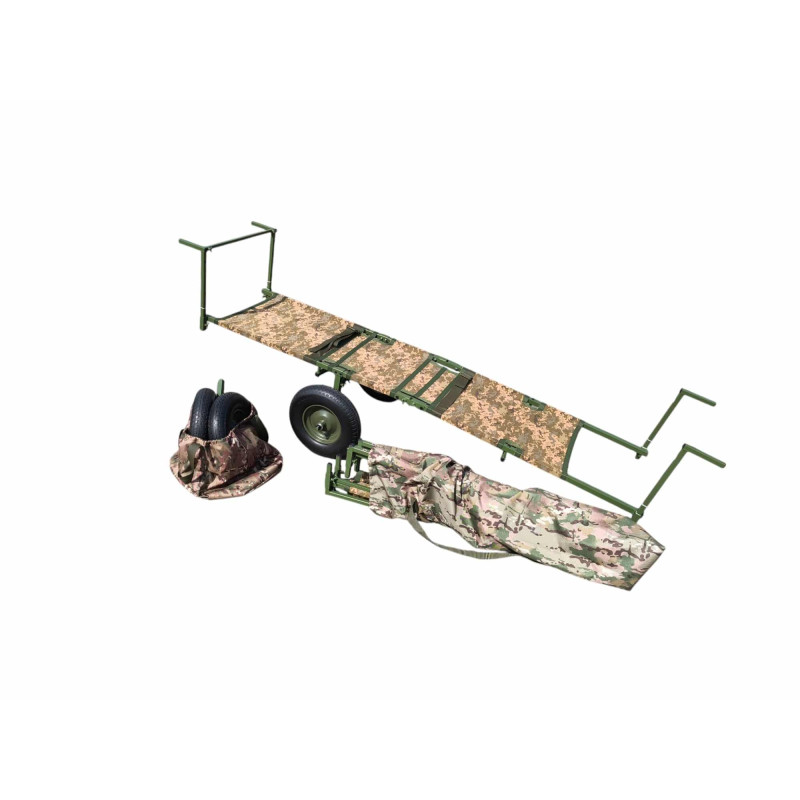

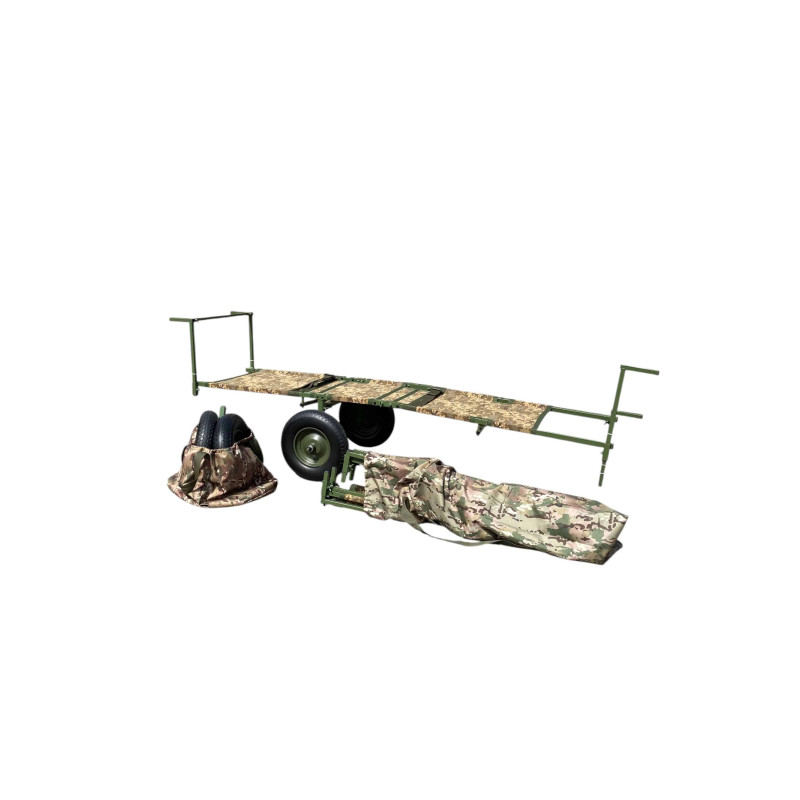

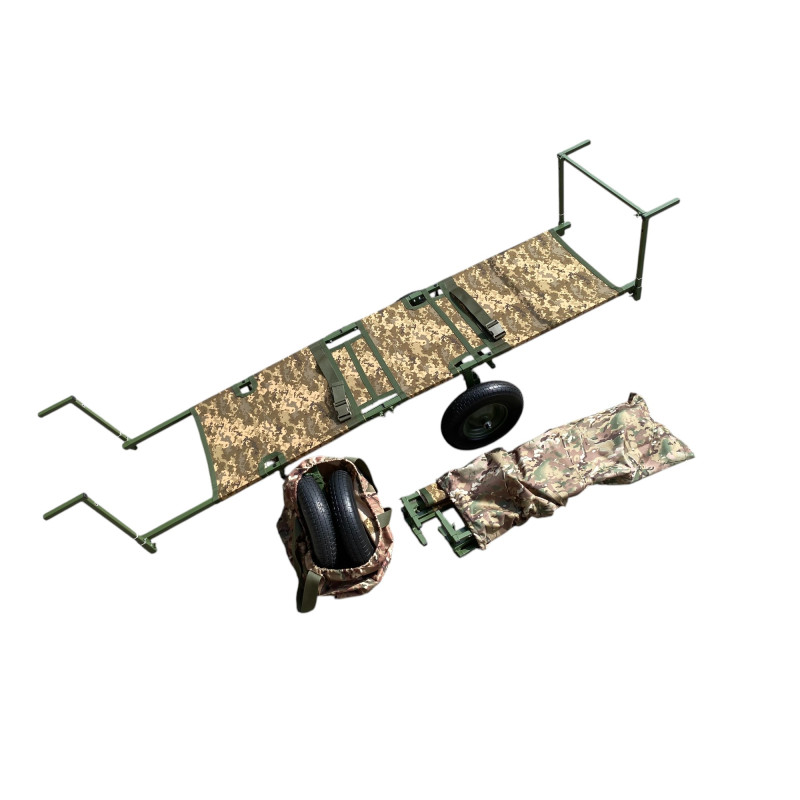

| Package contents | Stretcher, wheeled base, cover, and bag |
Tacchela system stretchers are portable, durable, and have positive feedback from military personnel who have used them in harsh field conditions. They provide rapid evacuation of the wounded, the ability to transport cargo, and convenient storage and transportation. Tactical units holding positions at the front line, as well as assault groups, will appreciate the speed of deployment and the reliability of the design.
