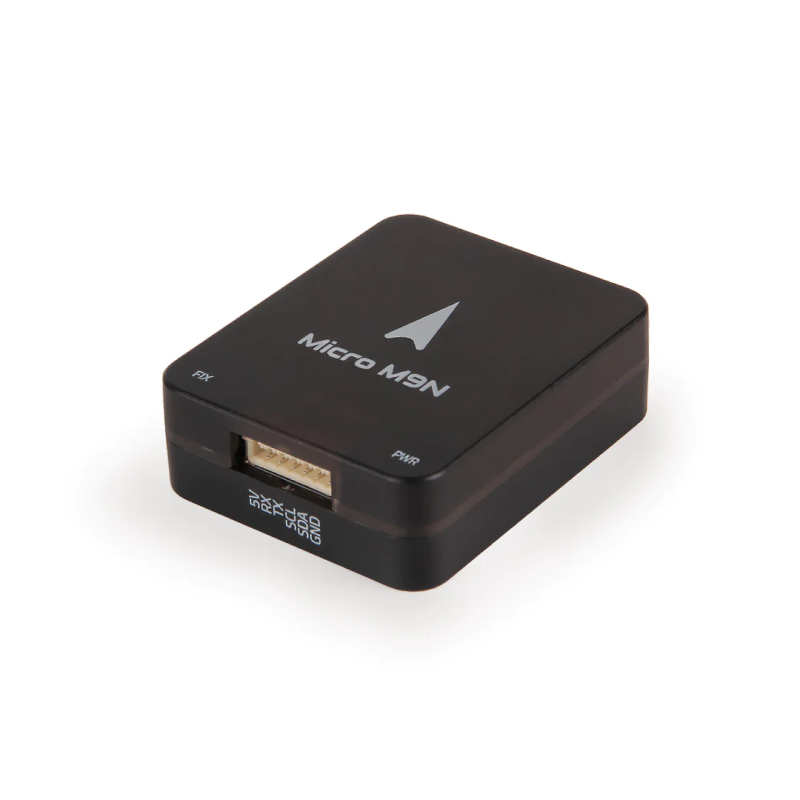

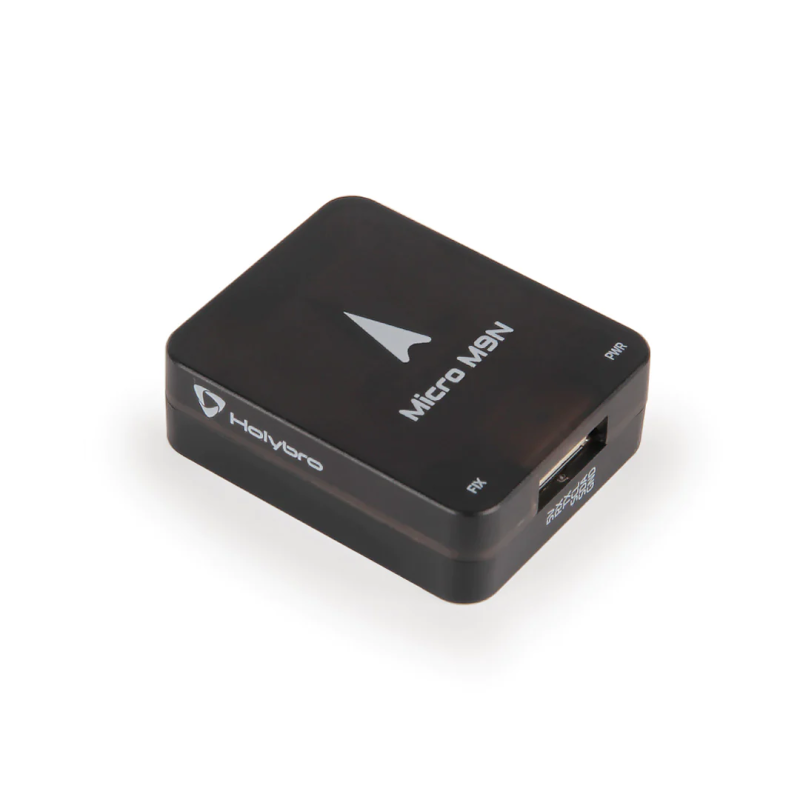

Holybro Micro M9N GPS With Case Navigation Module

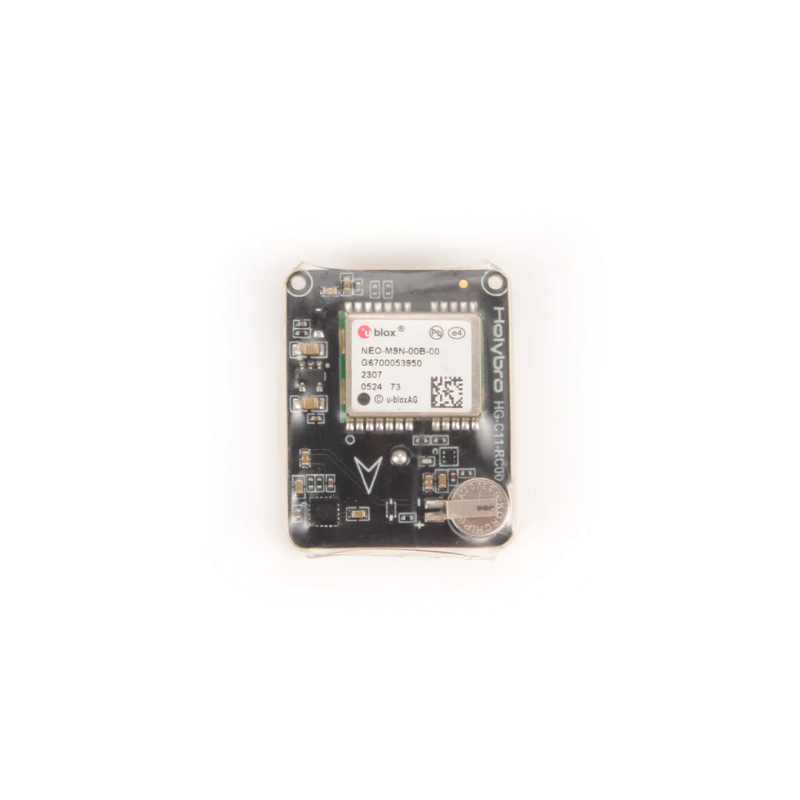

Manufacturer: Holybro. The Micro M9N navigation module is a compact and professional solution for drones, robotics, and other systems requiring fast and accurate GNSS positioning. The module combines a powerful Ublox M9N receiver and an IST8310 digital compass, ensuring high accuracy, reliability, and seamless integration into navigation projects.

Key Advantages

• 1. GNSS and Compass: The Ublox M9N receiver provides precise positioning; equipped with an IST8310 digital compass for determining device orientation.
• 2. Compass Installation: Ability to install the compass remotely from interference sources (metal structures, magnetic fields) — critical for unmanned aerial vehicles and other platforms.
• 3. Antenna and Rechargeable Battery: Active circuitry for the ceramic patch antenna enhances GNSS reception quality; a backup rechargeable battery preserves settings for a warm start and reduces satellite acquisition time.

Features

Features: Ublox M9N GNSS receiver; fast and accurate positioning; IST8310 compass; small form factor.

Technical Specifications

Model: Micro M9N GPS.

GNSS Receiver: Ublox M9N.

Number of Concurrent GNSS: Up to 4 GNSS: BeiDou, Galileo, GLONASS, GPS, QZSS.

Frequency Range: GPS L1; Galileo E1; GLONASS L1; BeiDou B1; SBAS L1; QZSS L1.

Compass: IST8310.

Output Protocols: UBX (U-blox), NMEA.

Navigation Update Rate (Nav. Frequency): Up to 25 Hz.

GNSS Augmentation Systems: EGNOS, GAGAN, MSAS, and WAAS supported. QZSS: L1S.

Default Baud Rate: 38400.

Input Voltage: 4.7-5.2 V.

Velocity Accuracy: 0.05 m/s.

Port Type: JST-GH-6P.

Antenna: 25 x 25 x 4 mm ceramic patch antenna with active amplification circuit.

Power Consumption: Less than 200 mA at 5 V.

Operating Temperature: -40~80°C.

Size: 32 x 26 x 9 mm.

Weight: 14 g.

Other Notes: LNA MAX2659ELT+ RF amplifier.

Battery Capacity: Farah.

Regulator: Low-noise 3.3 V regulator.

Package Contents

• – 1x Micro GPS Module *1
• – 1x JST GH 6-position connector 15 cm
• – 1x JST-GH 6-pin colored silicone cable 15 cm

The Holybro Micro M9N GPS With Case Navigation Module is an optimal choice for those who need a compact, energy-efficient, and functional GNSS solution with a high position update rate and broad satellite system compatibility. Thanks to support for multiple satellite systems, an IST8310 digital compass, an active ceramic patch antenna, and a backup battery, the module quickly resumes operation after interruptions and ensures stable navigation in challenging environmental conditions.

Ideal for integration into unmanned aerial vehicles, autonomous ground platforms, and other solutions where positioning accuracy, fast cold/warm start, and the ability to remotely install the compass to reduce electromagnetic interference are critical.
