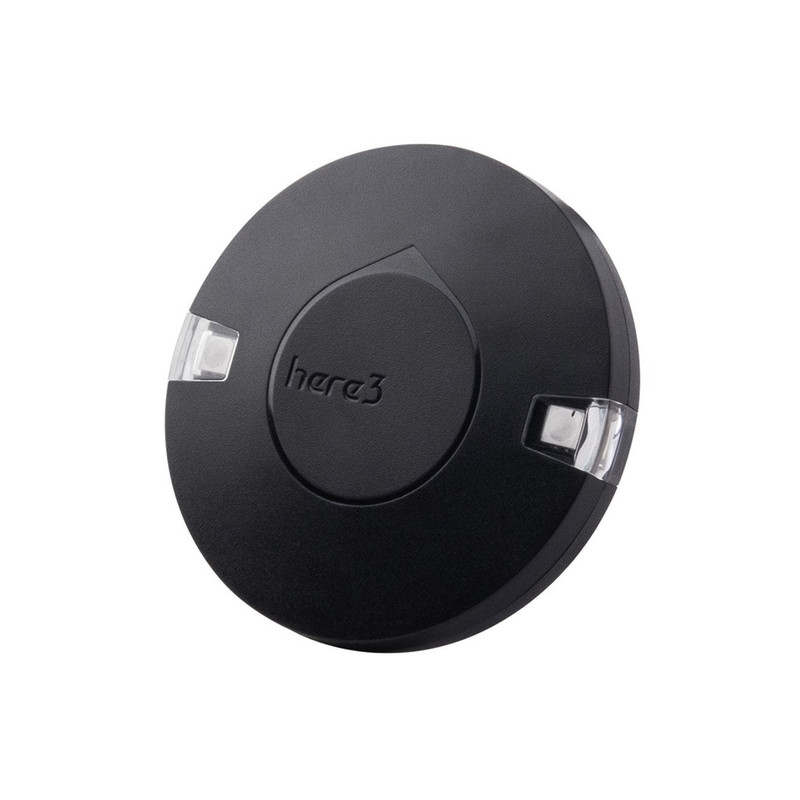

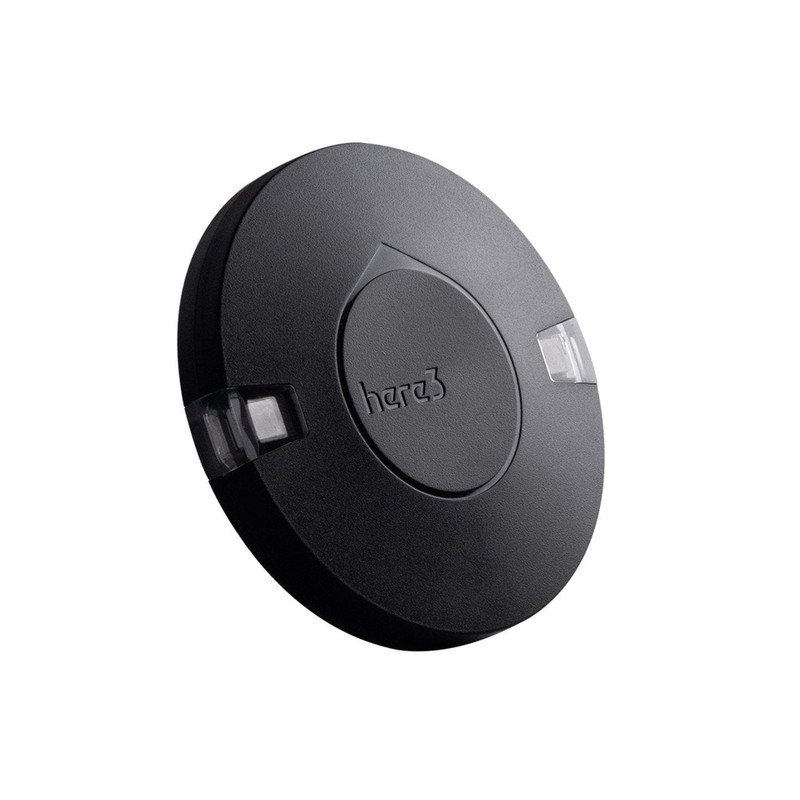

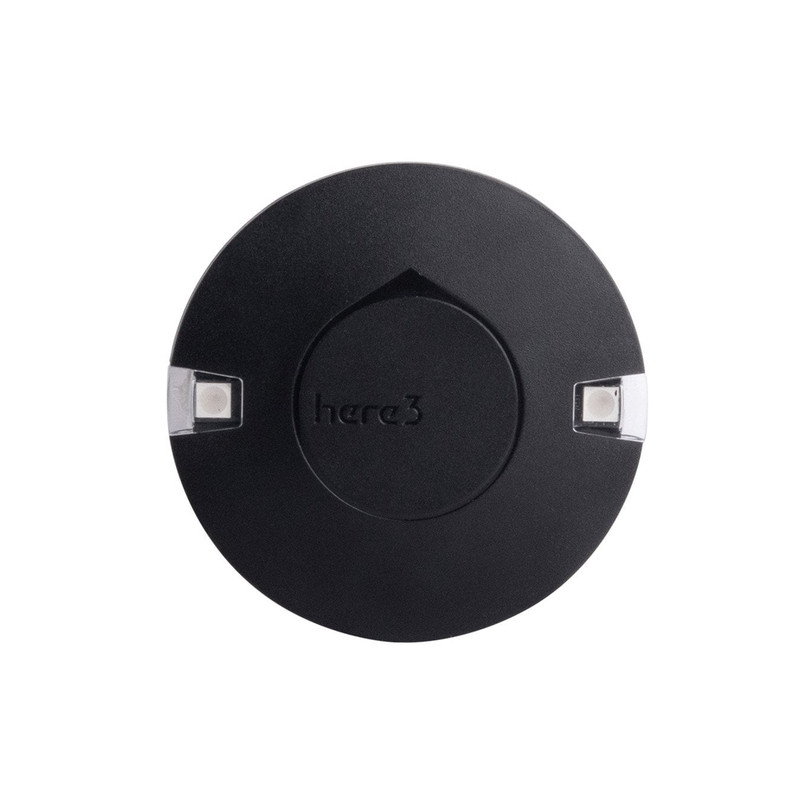

HEX Here 3+ CAN GNSS Navigation Module with iStand
Description: The HEX Here3+ CAN GNSS navigation module with iStand is a modern GPS receiver from HEX, designed for precise positioning of unmanned aerial vehicles. The Here3+ module is the third version in the Here series, equipped with a new U-blox M8P receiver, enhanced functionality, and extensive programming capabilities. The device can be used as an onboard module in the HEX HERE+ RTK system and provides centimeter-level positioning accuracy thanks to RTK support.
Key Advantages
- Centimeter-level positioning accuracy (RTK)
- High coordinate refresh rate for stable navigation
- Ability to use one correction station for multiple drones
- Ability to switch transmission mode between CAN and I2C using an internal toggle switch
- Open architecture, compatible with OpenSource drone projects
- New design with improved visibility of signal LEDs
- Improved dust- and water-repellent casing
- CAN protocol ensures high data transfer speed
- Supports firmware updates and compatibility with ground control stations
- Easy updates via mission planner
- Built-in full set of inertial sensors: compass, gyroscope, and accelerometer
Technical Specifications
| Parameter | Value |
|---|---|
| Supported Navigation Systems | GPS, GLONASS, BeiDou |
| Navigation Sensitivity | -167 dBm |
| Receiver Type | U-blox M8P (GPS L1C/A, GLONASS L1OF, BeiDou B1I) |
| Permissible Error | 3DFIX: 2.5 m / RTK: 0.025 m |
| Protocols and Interfaces | CAN; I2C |
| Connector | JST-GH |
| Hot/Cold Start Time | 1 s / 26 s |
| Accelerometer | Yes (built-in) |
| Barometer | Yes |
| Firmware Updatable | Yes |
| Works with Additional Software | Yes |
| RTK System Compatibility | Yes (HEX HERE+) |
| Dimensions | 76×76×16 mm |
| Weight | 51.8 g |
Hardware Platform and Sensors: The module is equipped with a powerful STM32H757 processor, ensuring high-speed processing of navigation data and increased operational reliability. Built-in sensors include an industrial-grade RM3100 compass, two new ICM42688 MEMS accelerometer chips, a gyroscope, and a barometer. The main navigation processor runs on the ChibiOS real-time operating system, making the architecture open and convenient for developers with specific navigation system requirements.
Purpose and Compatibility: Here3+ is built on the CAN protocol and is not compatible with classic interfaces without an appropriate adapter; however, it is possible to switch to I2C using an internal switch. The module is protected from dust and splashes and has an improved design for field use. It supports future firmware updates, integration with ground control stations, and operation with mission planners.

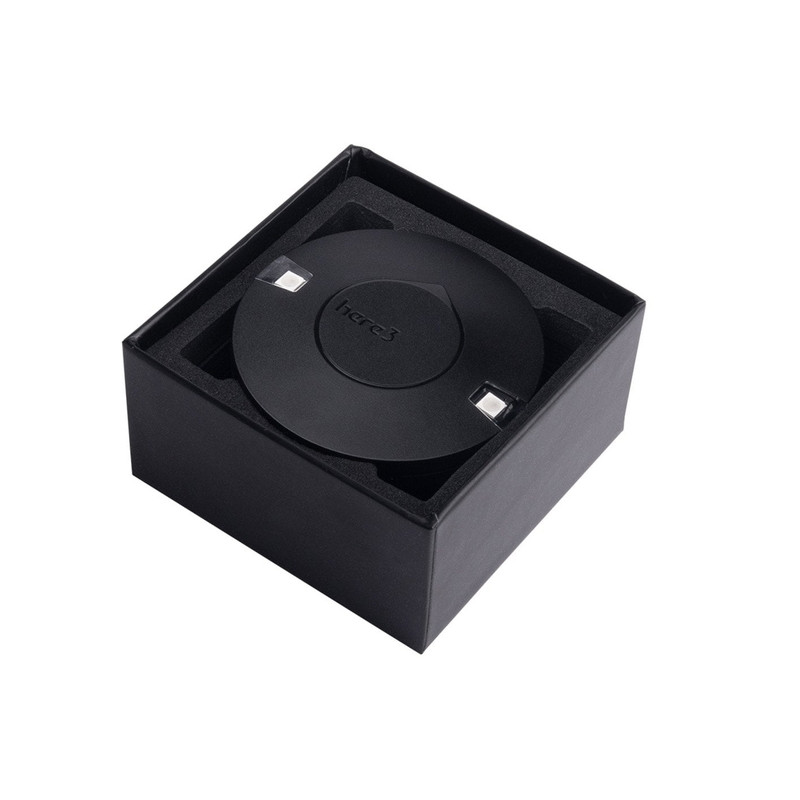

Package Contents
- GPS Receiver — 1 pc.
- Hex Key — 1 pc.
- Double-sided Damping Sticker — 1 pc.

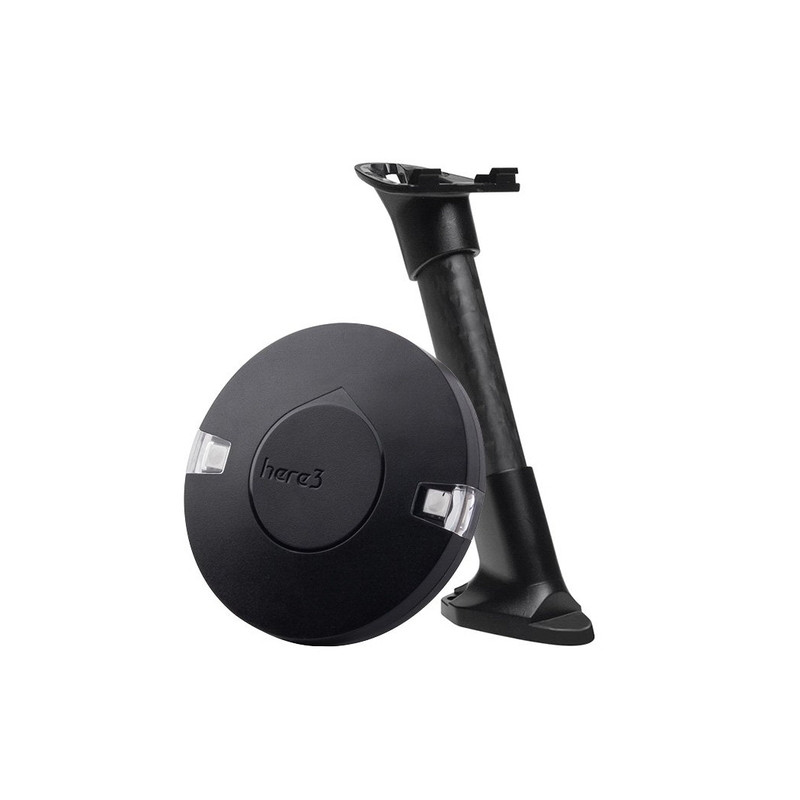

- Stand (iStand) — 1 pc.
Manufacturer: HEX. Product Category: Drones and Quadcopters > Drone Accessories. If you need a reliable module for precise RTK positioning on your UAVs or integration into a ground control system, the HEX Here3+ CAN GNSS with iStand will be a professional solution with extensive customization and update capabilities.
