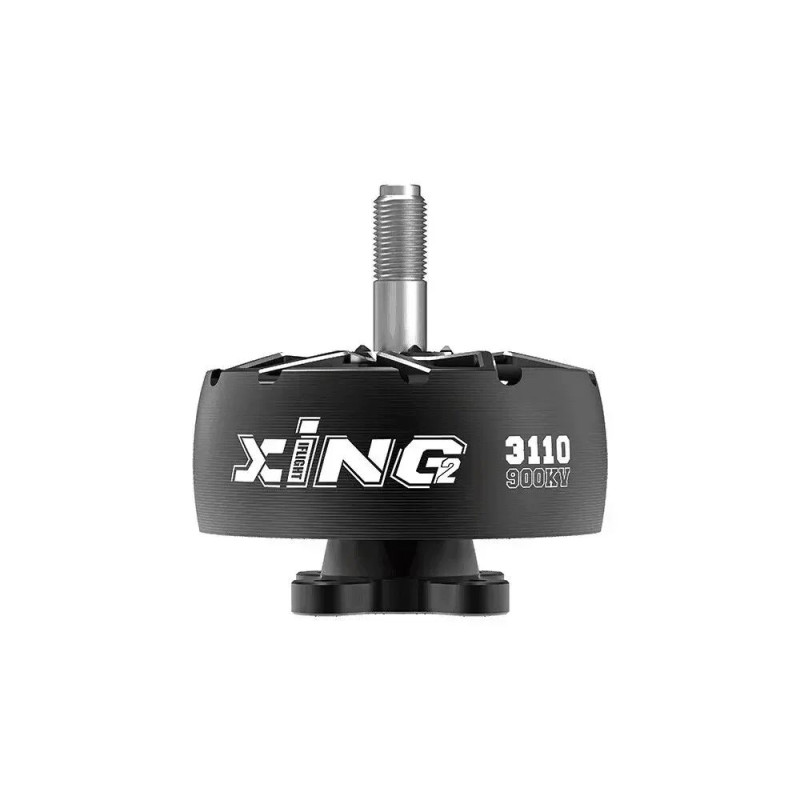

Flash Hobby 3110 900KV Motor
Brand: Flash Hobby. The XING2 3110 900KV brushless motor is designed for quadcopters, airplanes, and helicopters, especially for FPV and racing drones, where high power, reliability, and stable operation under load are crucial.
Brief Description
The Flash Hobby 3110 900KV motor is a high-efficiency electric motor with a KV of 900 (customizable KV possible), providing high rotational speed and excellent energy efficiency. Its thoughtful design and quality materials help increase flight time and reduce power consumption under load.
Key Features and Benefits
- KV Value: 900KV (or customized KV) — optimal for 9–10 inch propellers.
- Number of Poles: 10 poles and 12N14P / 14P12N configuration are mentioned, indicating a multi-pole design for high torque.
- Materials and Quality: CNC 6061-T6 aluminum casing, resistant to high loads.
- Winding Wire: High-temperature copper wire, ensuring stable operation at high RPMs.
- Magnets: 52H grade for stable operation and high performance.
- Bearings: High-speed imported NSK (5x11x5 mm) for durability.
- Rotor: Precisely balanced to minimize vibrations.
Technical Specifications
| Characteristics | Value |
|---|---|
| Weight | 85 g (including cables) |
| Motor Size | 37.1 x 27 mm |
| Shaft Diameter | 5.0 mm |
| Motor Mount | 19×19 mm (M3×4) |
| Configuration | 12N14P |
| Motor Cable | 16#AWG, 300 mm |
| KV Value | 900KV or customized KV |
| Recommended Propeller | 9~10 inches |
| Motor Features | |
| Magnet | 52H grade |
| Rotor | Precisely balanced |
| Design | High-torque 14P12N |
| Casing | CNC 6061-T6 Aluminum |
| Bearing | High-speed imported NSK-5x11x5 mm |
| Wire | High-temperature resistant copper |
| A3110KV 900KV Specifications | |
| Max Thrust | 3600 g |
| Voltage | 25V (6S) |
| Recommended ESC | 50A~60A |
| Max Power | 1410 W |
| Recommended Propellers | HQ9050-3R, GF1050-3R |
Thanks to its parameters, the motor is ideal for demanding racing applications: high torque and 6S operation allow for significant thrust and dynamics. Recommended propellers, such as HQ9050-3R or GF1050-3R, ensure optimal performance, and a 50–60A ESC handles peak loads.
Application
- Quadcopter and FPV drones — optimal choice for racing and aggressive maneuvering.
- Airplanes and helicopters — suitable for models requiring stable thrust and prolonged operation.
Package Contents
XING2 3110 brushless motor — 1 pc
M3x10 screw — 4 pcs
M5 flange nut — 1 pc
Product Category: Drones and Quadcopters > Drone Components > Drone Spare Parts > Motors
The model, technical specifications, and completeness correspond to the manufacturer's description from Flash Hobby and make this motor an excellent choice for those seeking a powerful, reliable, and technologically advanced propulsion system for their aircraft.
