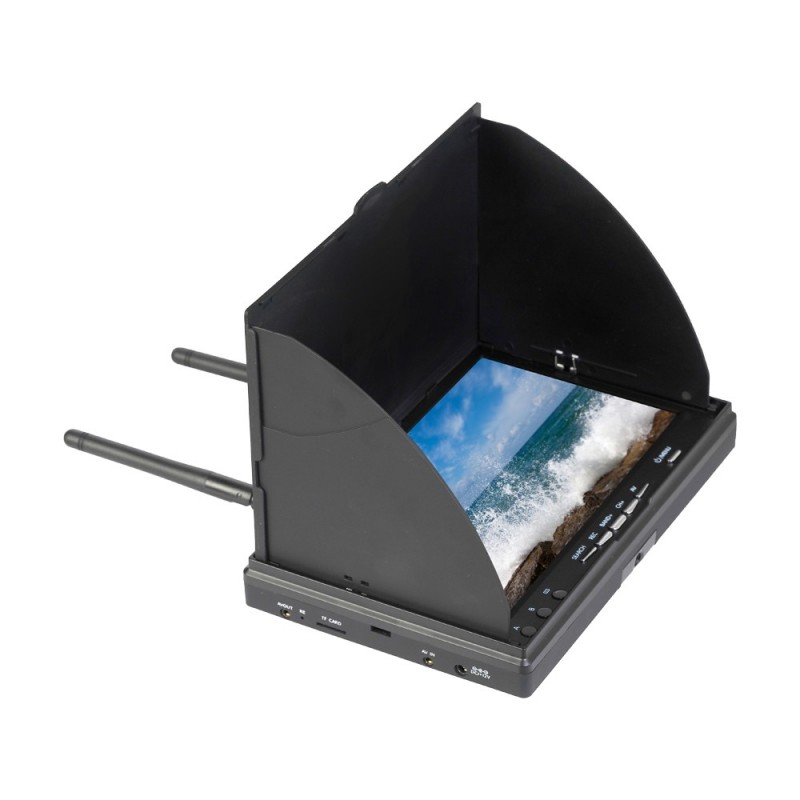

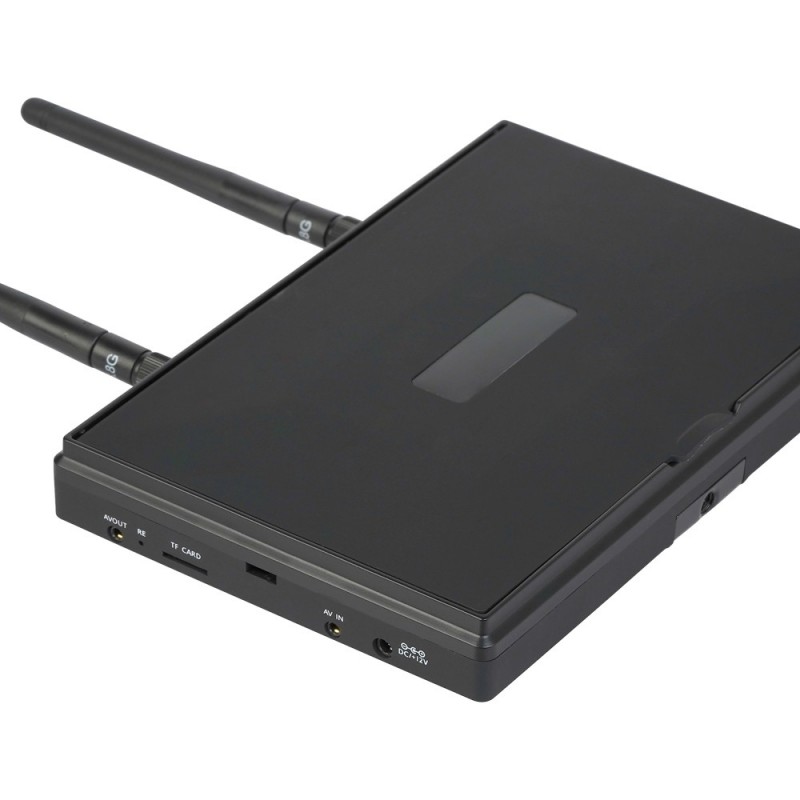

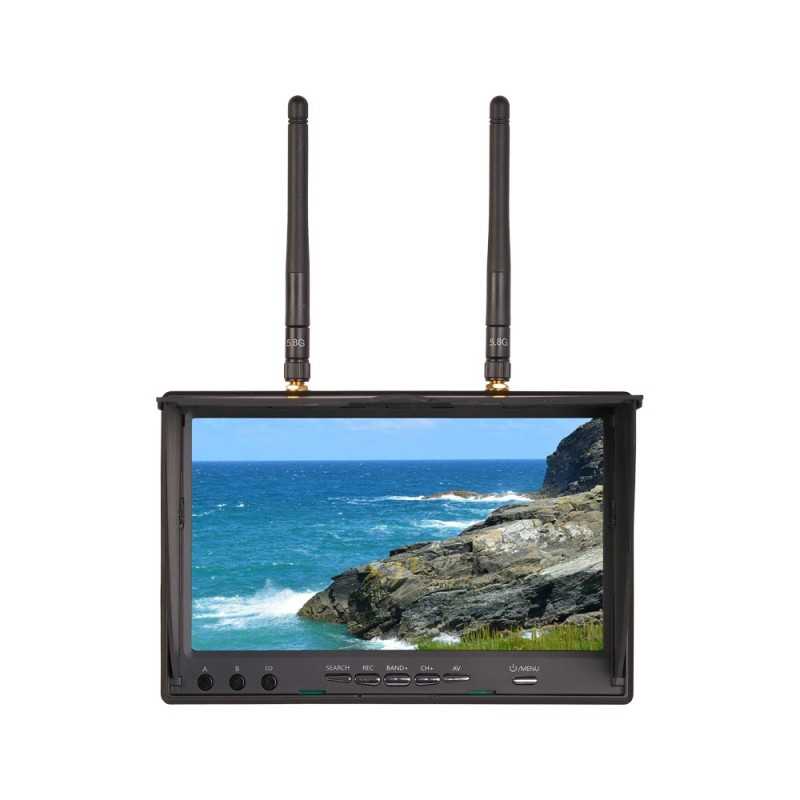

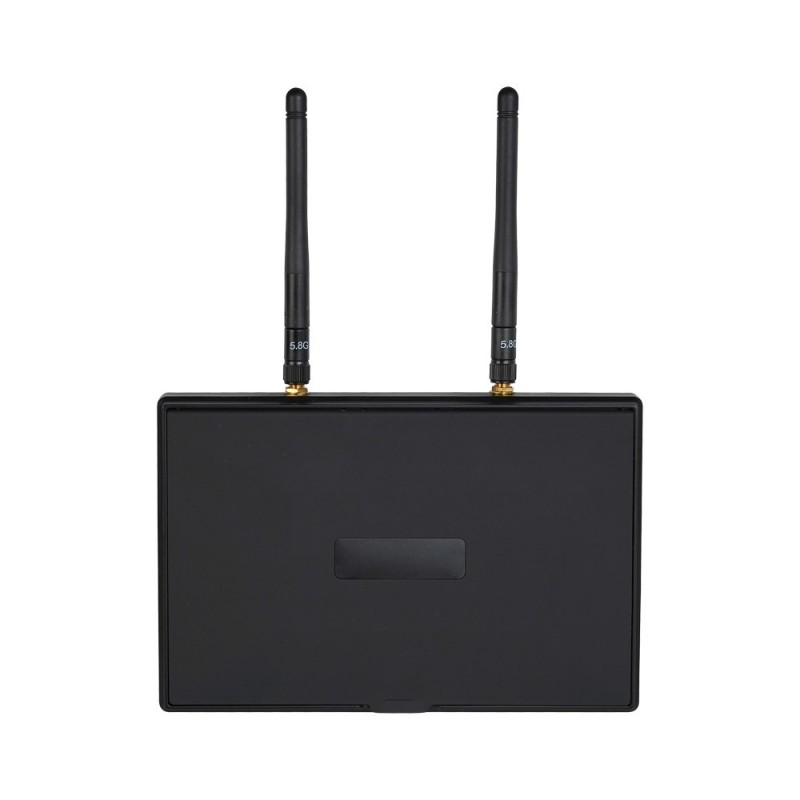

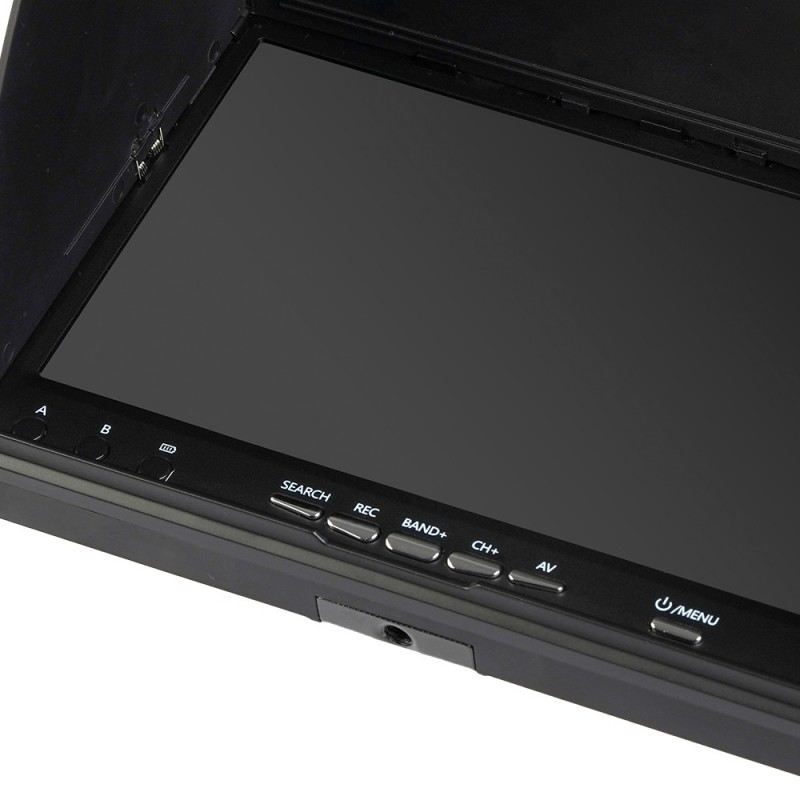

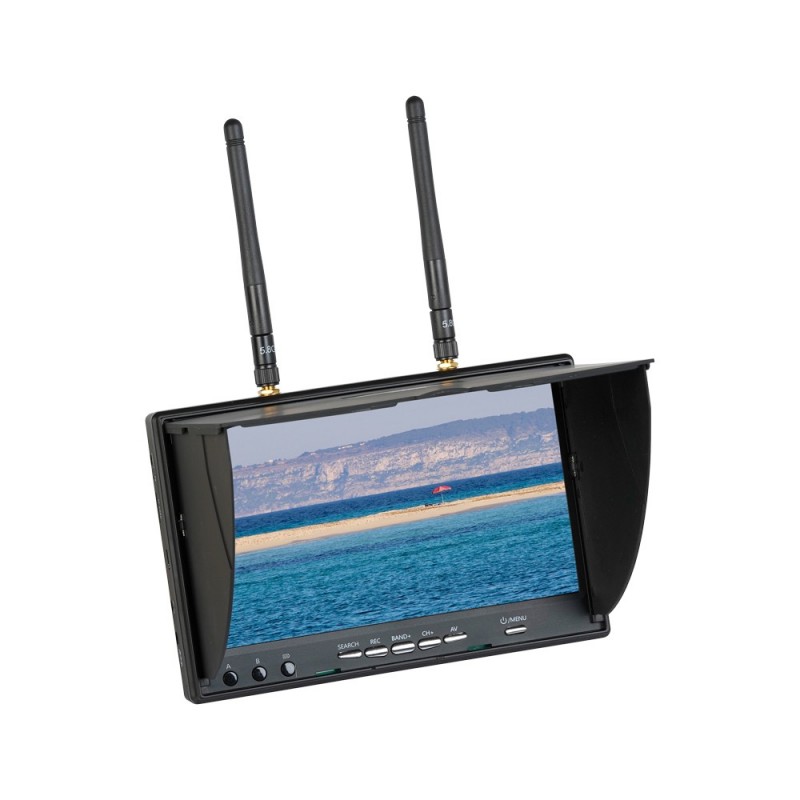

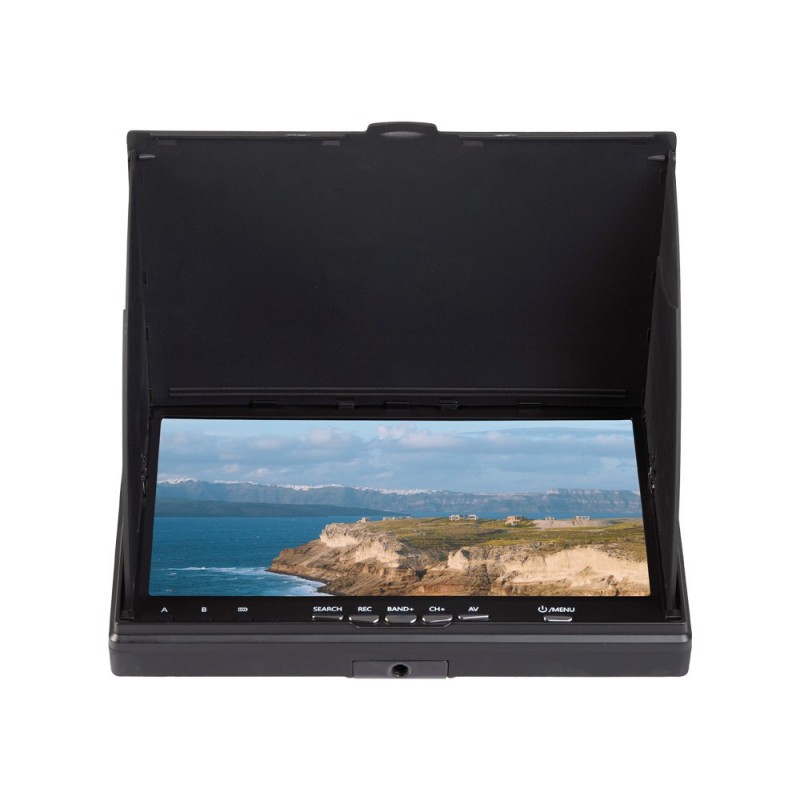

Foxeer LCD5802D 7" FPV Monitor — 5.8G 40CH Raceband with DVR

Introducing the compact and professional Foxeer LCD5802D 7" FPV monitor, designed for drone pilots and enthusiasts who require a clear image, reliable signal reception, and the ability to record flights thanks to its built-in DVR. This monitor combines high brightness and convenient dimensions for use both in the field and in ground installations.

Key advantages at a glance: a large 7" display with 800×480 resolution provides good detail; high brightness of 600 cd/m2 — comfortable viewing in direct sunlight; built-in DVR for recording video directly from the monitor; support for 40 Raceband channels at 5.8 GHz and the ability to connect external antennas via the RPSMA connector.

Device specifications:

• Resolution: 800×480
• Brightness: 600 cd/m2
• Viewing Angle: 140° horizontal / 120° vertical
• Channels: 40CH (Raceband)
• Reception Frequency: 5.8G
• Receiver Sensitivity: -90 dBm
• Antenna Type: RPSMA male
• Battery: 2000 mAh, 7.4V
• Operating Voltage: DC 7~16V
• Power Consumption: max 650 mA at 12V
• Battery Charging Current: max 850 mA at 12V
• Operating Temperature: -10°C ~ +65°C
• Housing Size: 180 mm × 120 mm × 50 mm (sun visor height: 28 mm)

The monitor supports 40 Raceband channels at 5.8 GHz, allowing for flexible channel selection and minimizing interference from other transmitters. A sensitive receiver with a -90 dBm parameter enhances reception stability even in challenging conditions, and the RPSMA connector allows for connecting more powerful or directional external antennas to increase range and signal quality.

DVR and recording: The built-in DVR records live video, which is a convenient solution for analyzing the flight path after a flight, creating content, or documenting competitions. The combination of a 7-inch screen with high contrast makes viewing clear even in bright sunlight, especially when paired with the 28 mm high sun visor.

Power and battery: The device operates from a wide voltage range of DC 7–16V, consumes a maximum of 650 mA at 12V, and the included 2000 mAh (7.4V) battery charges with a maximum current of 850 mA at 12V for quick power recovery. This flexibility allows for using various power sources during flights and training.

Package contents:

• 1× Foxeer LCD5802D 7" monitor
• 2× 5.8G antenna
• 2× AV cable
• 1× charger

Manufacturer: China

The housing dimensions of 180×120×50 mm make the monitor compact and convenient for installation in ground structures or use in the field. The 28 mm high sun visor improves screen visibility in bright light. The Foxeer LCD5802D is an excellent choice for those looking for a reliable 7-inch FPV monitor with high brightness, 40 Raceband channel support, built-in DVR, and the ability to connect external RPSMA antennas. Product category: Drones and Quadcopters > Drone Accessories.
