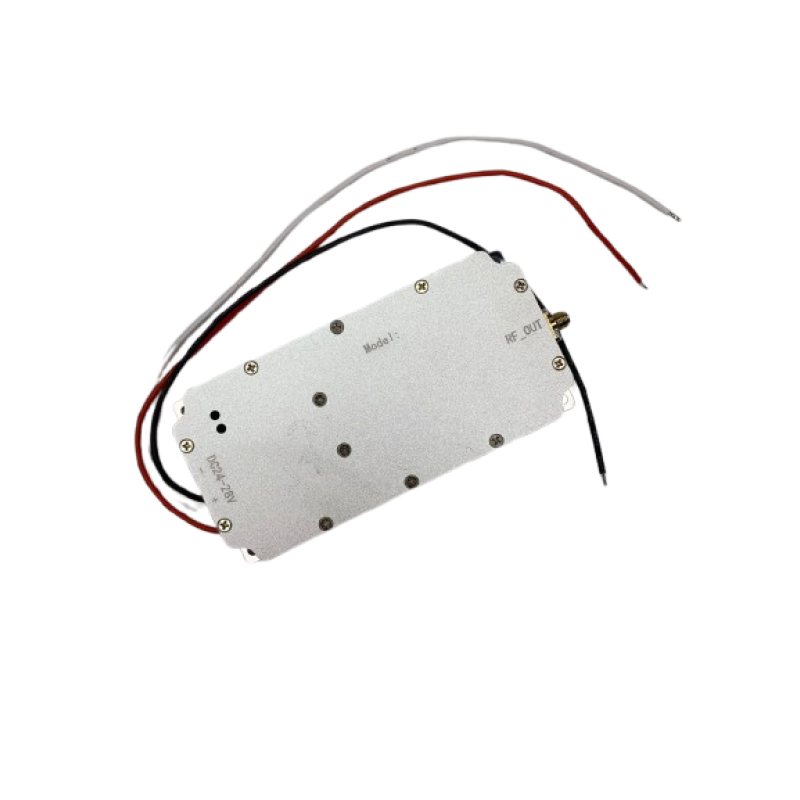

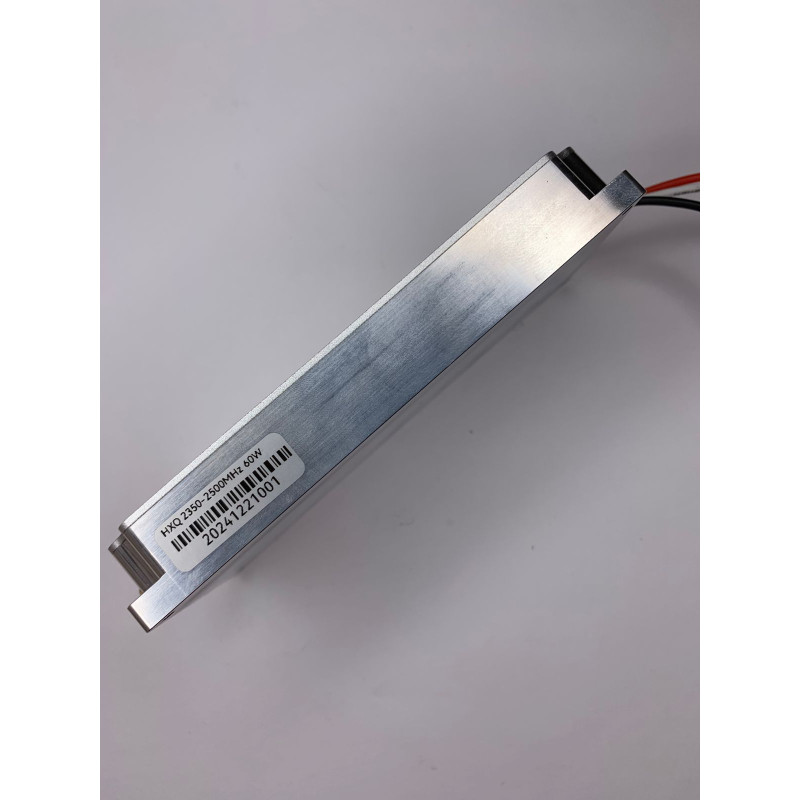

GAN 2350-2500Mhz 60W Module — High-Power Amplifier for EW
The GAN 2350-2500MHz 60W module from BlueBird is a specialized component for electronic warfare (EW) systems, communications, and radio frequency emission. The device is built on advanced GaN (Gallium Nitride) technology and provides stable output power across a wide frequency range, making it an ideal choice for integration into modular solutions and complex EW systems. This product belongs to the category EW > EW Components > Modules.
Description and Application
This amplifier is used for signal suppression, creating targeted interference, amplifying the signal part of transmitters, and test benches. Thanks to its compact form factor, the module is easily integrated into existing designs, and its high efficiency reduces thermal load, which extends system life and increases reliability during prolonged operation under load.
Technical Specifications
Module technical parameters
| Parameter | Value |
|---|---|
| Frequency Range | 2350-2500MHz |
| Output Power | 60W |
| Technology | GaN (Gallium Nitride) |
| Supply Voltage | 28V |
| Efficiency | High (reduced heat dissipation) |
| Dimensions | Compact form factor for integration into EW systems |
| Cooling | Passive or active (depending on design) |
Module Advantages
- High output power of 60W for effective suppression and interference generation
- Wide operating range of 2350-2500MHz for versatile application
- Modern GaN technology providing increased efficiency and less heat dissipation
- Compact form factor for convenient integration into EW modules and systems
- Suitable for operation under high loads and prolonged operating modes
Compatibility and Integration
The module is designed for integration into various EW architectures and communication platforms. It is recommended to use a cooling system appropriate for the operating mode: passive cooling for moderate loads or active cooling for prolonged modes at maximum power. High efficiency reduces the need for bulky radiators, simplifying integration into compact assemblies.
Manufacturer: BlueBird. Category: EW > EW Components > Modules.
This GAN 2350-2500MHz 60W module is a reliable solution for engineers and designers working with EW systems and specialized radio frequency applications where high power, stability, and efficiency are required.
