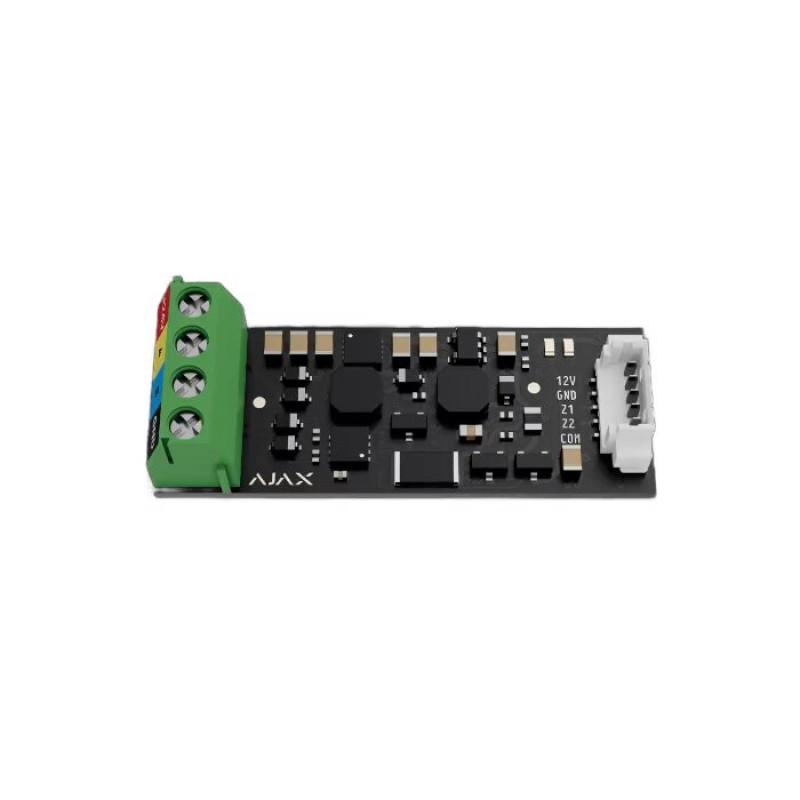

Transmitter Fibra has two main functions:

• It allows integrating a third-party device into the Ajax system, expanding its capabilities.
• The module can be used to connect a specific device not yet in the Ajax portfolio.

Transmitter Fibra is easy to integrate with any third-party device. The module supports all connection types, including 3EOL, and has numerous event types for the connected device. Transmitter Fibra can be configured remotely. The module regularly reports its status to the hub.

After integrating a third-party device via Transmitter Fibra, it can be controlled and configured remotely. PROs can manage settings and create scenarios; end-users receive push notifications and can control the security system in the app. This will expand the functionality of existing or new third-party devices that need to be integrated into the Ajax system. These devices will benefit from the best Ajax user experience.
Roller shutter motion sensors, IR sensors, domestic gas sensors, thermostats, liquid level sensors, and other devices can expand Ajax's application areas. Connect them to the hub via Transmitter Fibra and manage a comprehensive solution in the Ajax app.
In addition, alarms or other events from connected devices can be used as triggers to launch automation scenarios. Scenarios can enhance security or automate routine actions.

A third-party keypad or other access control devices can be connected to the Ajax system. This opens up virtually unlimited possibilities for system integration, modernization, and control. For example, with a third-party device, the user can manage the security of the entire facility, Night Mode, or even individual groups.

EOL connection can be used to block security system control if a third-party device's tamper is triggered. Only a verified user with appropriate permissions can unlock control. This makes system sabotage virtually impossible.

Transmitter Fibra can work with most third-party devices. Thanks to the module's compact size, it can be easily fitted into the device's casing. Transmitter Fibra supports NC, NO, EOL, 2EOL, and 3EOL connection types. It works with pulse and bistable devices. It has a function for selecting the normal contact state and supports numerous event types for the connected device. The module has two inputs (Z1 and Z2), allowing one device to be connected using the AATT scheme or two devices simultaneously. Transmitter Fibra can also provide 12V power for the connected device, which is standard for most solutions on the market.
