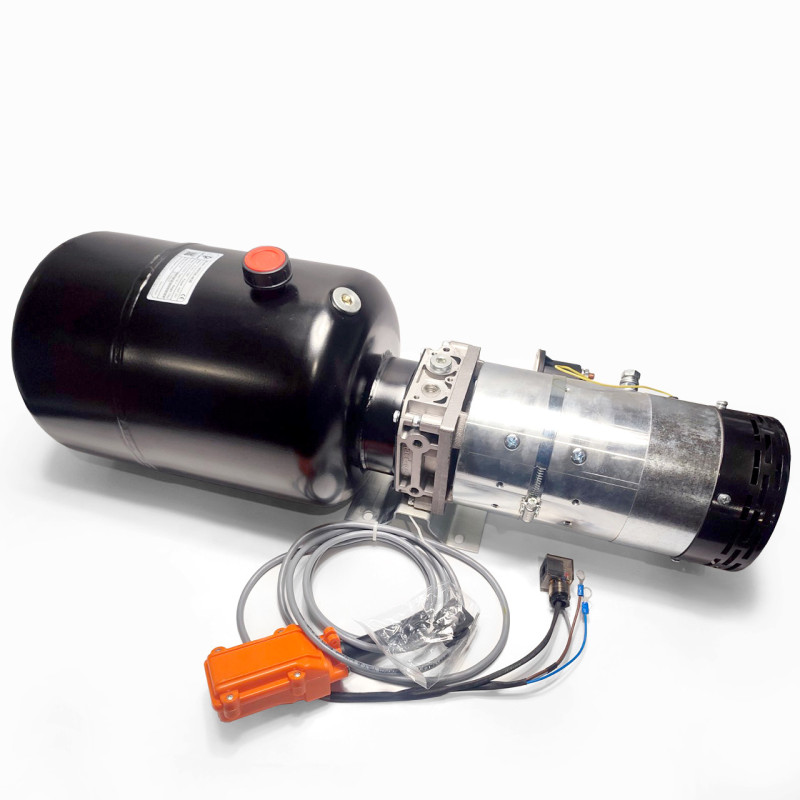

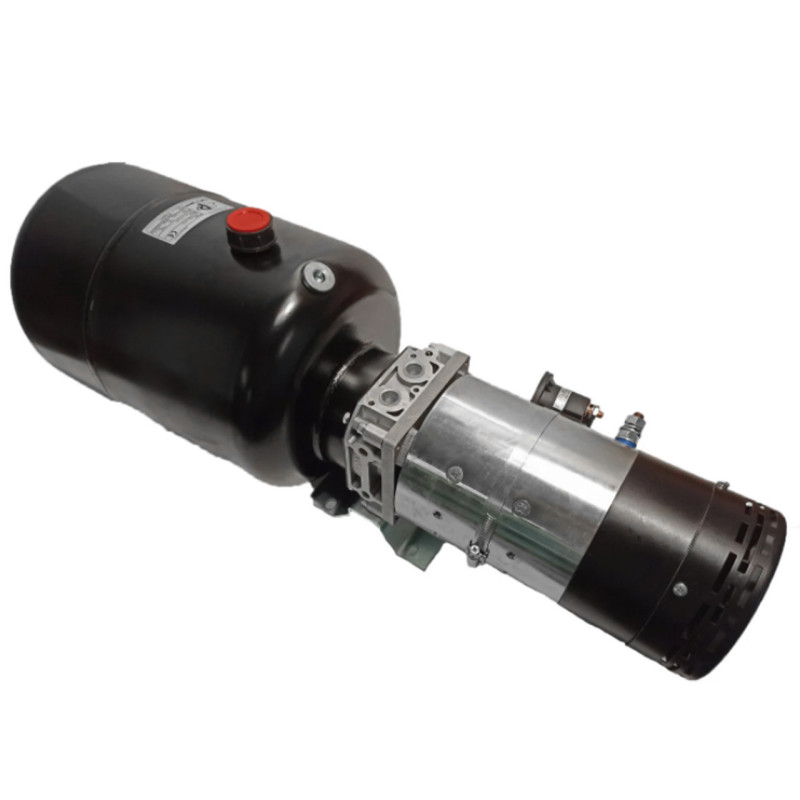

Mini Hydraulic Power Unit for Body Lift HYDRO-PACK HPP/D5-6097 (24V, 4.5 kW, 15 L Tank)
The HYDRO-PACK HPP/D5-6097 mini hydraulic power unit is a compact and reliable solution for lifting dump truck bodies or other lifting mechanisms. The device is designed specifically for operation in vehicle hydraulic systems and meets the requirements for body lifting where stable force and high reliability are needed. Manufacturer: Hydro-pack. Category: Tractors, Motorcycles, ATVs, Boats (Vehicle) > Hydraulic Systems > Hydraulic Power Units.

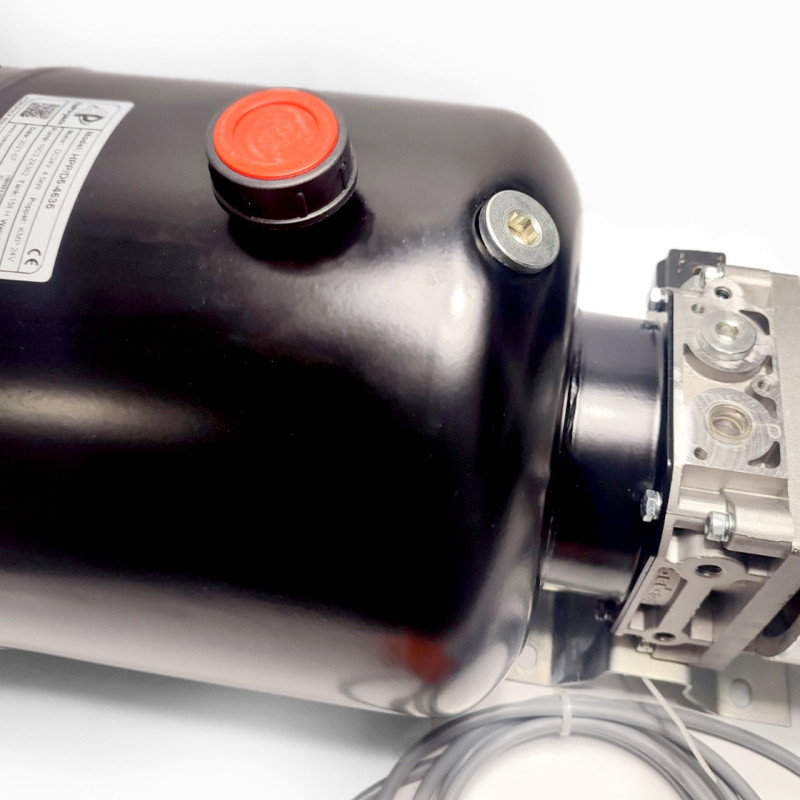

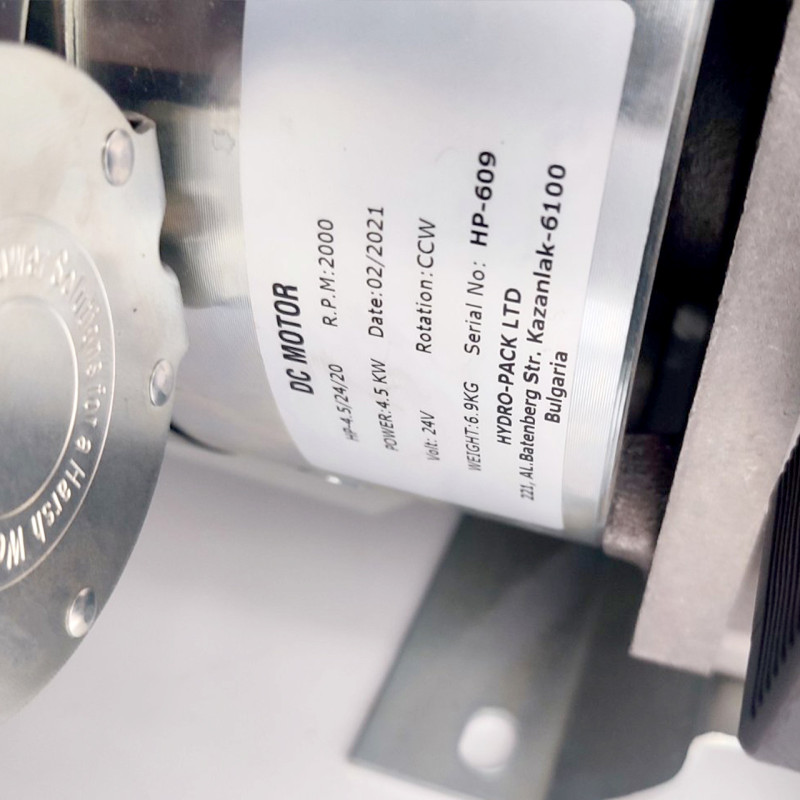

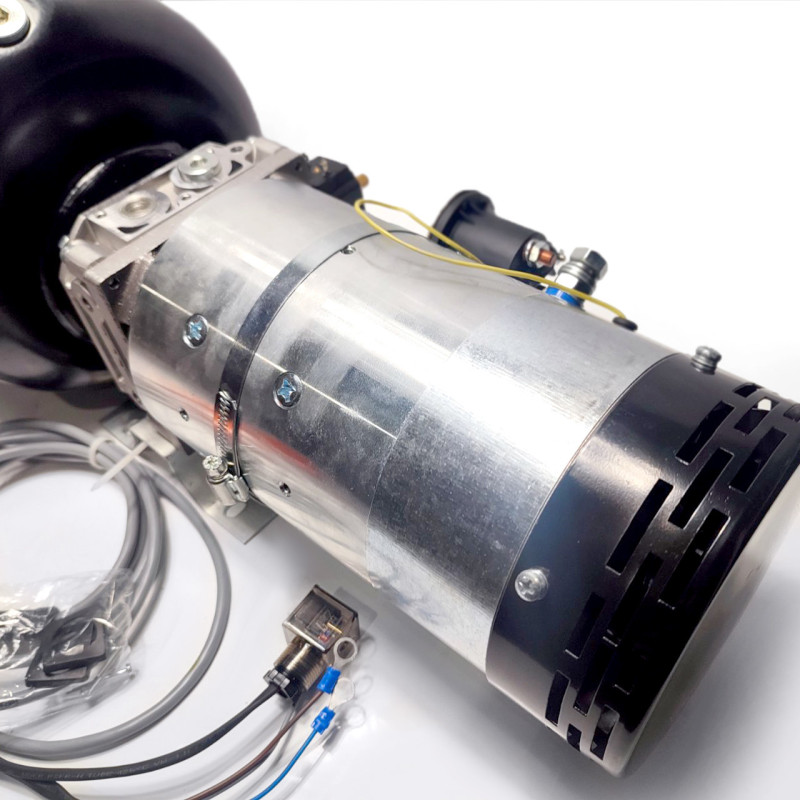

This mini hydraulic power unit is equipped with a powerful 4.5 kW electric motor, operating on a 24 V DC power source. Thanks to the motor's rotational speed of 2000 rpm and a pump displacement of 3.2 cm3/rev, efficient oil delivery is ensured during lifting. The maximum operating pressure of the system reaches 230 bar, guaranteeing the necessary force to lift and hold the body in the working position. The oil tank has a volume of 15 L, made of steel in a cylindrical shape for increased strength and durability. The device is designed for horizontal installation.
Key advantages and purpose:
- Designed for lifting vehicle bodies and other load-bearing mechanisms;
- 24 V DC power supply — compatibility with onboard electrical systems of equipment;
- 4.5 kW motor power for stable operation under load;
- Maximum pressure up to 230 bar — high hydraulic system performance;
- 15 L cylindrical steel tank — reliable resistance to the working environment;
- Horizontal installation for easy mounting on chassis or frame.
Technical Specifications of HPP/D5-6097 Hydraulic Power Unit:
| Electric motor power | 4.5 kW |
| Voltage | 24 V DC |
| Rotational speed | 2000 rpm |
| Pump displacement | 3.2 cm3/rev |
| Maximum pressure | 230 bar |
| Oil tank volume | 15 L |
| Tank type | Cylindrical |
| Tank material | Steel |
| Installation | Horizontal |
Components and Parts List:
| No. | Part Name | Quantity |
|---|---|---|
| 1 | MBWP-10 | 1 |
| 2 | DC-connection | 1 |
| 3 | Return plastic | 1 |
| 4 | Connecting plate | 1 |
| 5 | PRV | 1 |
| 6 | AB-1/2" | 1 |
| 7 | 10C3.2X302 | 1 |
| 8 | P-NC-MO-24 | 1 |
| 11 | Filter | 1 |
| 13 | SP-45 | 1 |
| 14 | STT24V150 | 1 |
| 15 | DC24E-4.5-2000 | 1 |
| 17 | TP15YD | 1 |
The HYDRO-PACK HPP/D5-6097 is an optimal choice for those seeking a compact yet powerful hydraulic power unit for body lifting. It combines high performance, a robust steel tank design, and easy horizontal mounting. Thanks to its 24V power supply and 4.5 kW motor, the unit is compatible with most mobile platforms requiring an autonomous hydraulic system. For compatibility with specific vehicles or operating conditions, please contact a technical consultant.
