Mini Hydraulic Power Unit HYDRO-PACK HPP/D-0660 (24V, 2.2 kW, 12 L Tank)
The HYDRO-PACK HPP/D-0660 mini hydraulic power unit is designed for reliable operation with vehicle body lifting. This compact hydraulic unit from the Hydro-pack brand is optimal for use in the category Tractors, Motorcycles, ATVs, Boats (Vehicle) > Hydraulic Systems > Hydraulic Power Units. The unit is equipped with a 2.2 kW electric motor, powered by a 24V DC onboard network, providing a rotation speed of 2500 rpm and a maximum operating pressure of up to 140 bar. The pump of the power unit has a displacement of 3.2 cm3/rev, ensuring stable oil supply during body lifting. The 12 L oil tank is made of steel in a cylindrical shape, and the design allows for horizontal mounting.
Package Contents:
- No control panel included.
- Space available for installing a normally closed valve.

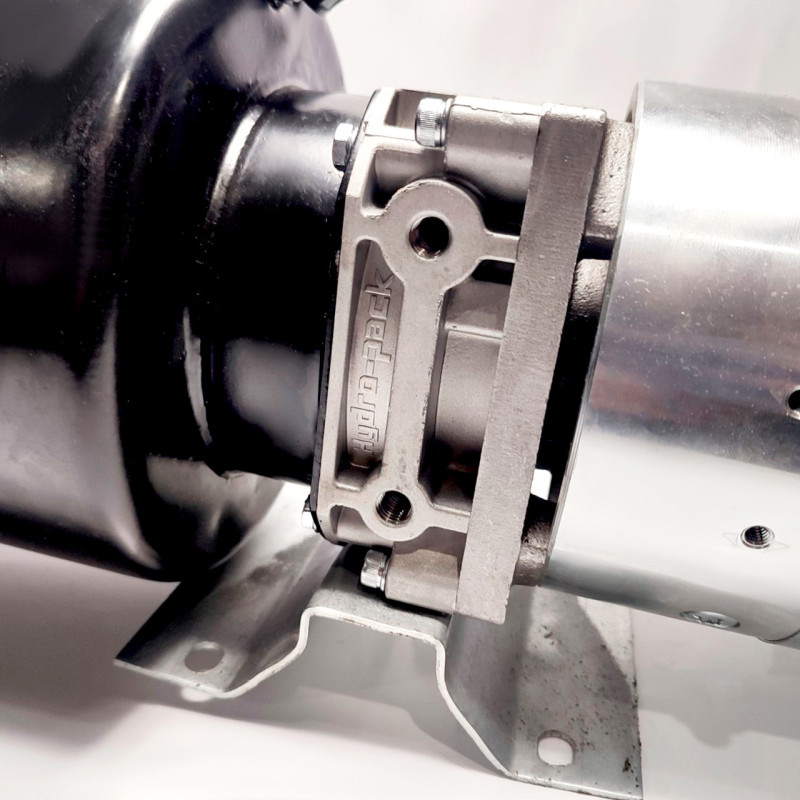

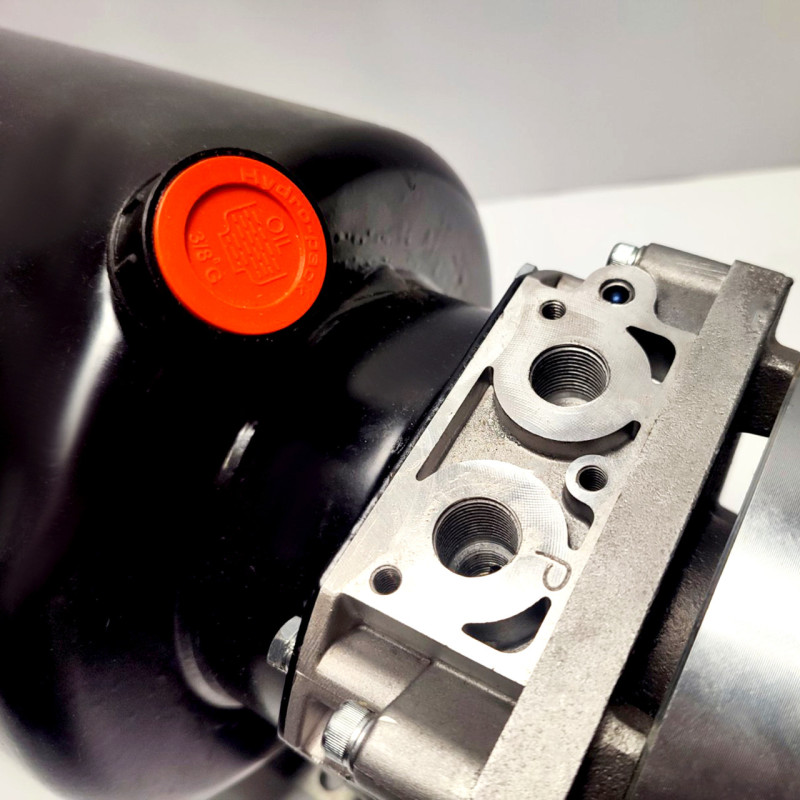

- A regulating valve is installed on the manifold.

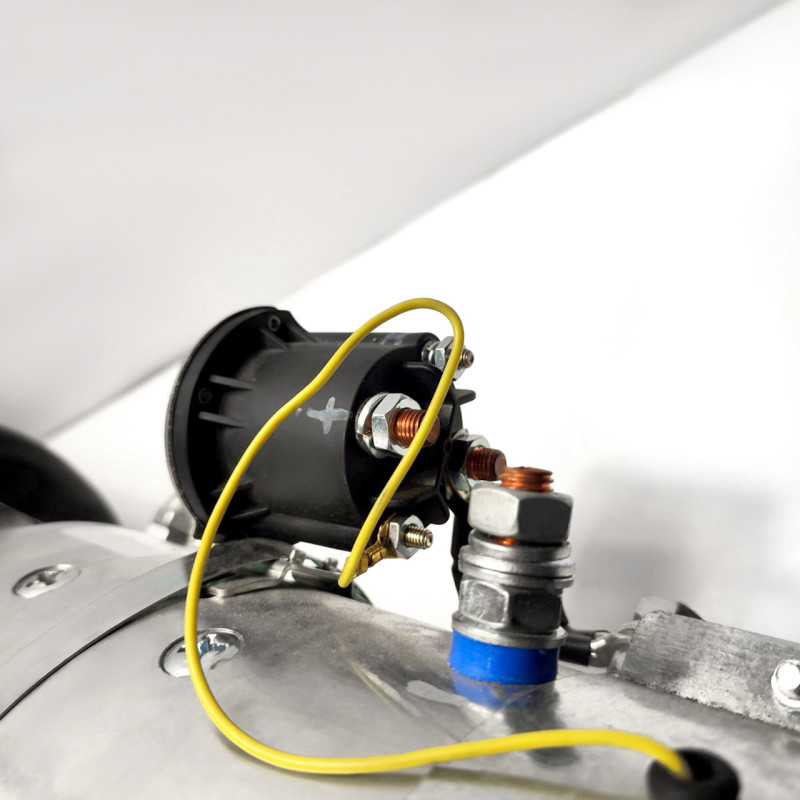

- A 24V relay is installed on the motor.
Technical Specifications of the Hydraulic Power Unit:
| Electric Motor Power | 2.2 kW |
| Voltage | 24 V DC |
| Rotation Speed | 2500 rpm |
| Pump Displacement | 3.2 cm3/rev |
| Maximum Pressure | 140 bar |
| Oil Tank Volume | 12 L |
| Tank Type | Cylindrical |
| Tank Material | Steel |
| Installation | Horizontal |
The HYDRO-PACK HPP/D-0660 mini hydraulic power unit features easy installation and reliable components: a powerful 2.2 kW motor and a 24V relay ensure stable operation in field conditions, while the possibility of installing a normally closed valve and the presence of a regulating valve on the manifold allow for precise adjustment of the hydraulic system for specific tasks. The 12-liter cylindrical steel tank provides the necessary oil reserve and durability. The device is installed horizontally, which is important to consider when planning space for mounting. This hydraulic power unit is ideal for lifting bodies in trucks and specialized vehicles, as well as in mobile platforms where compactness and high reliability of the hydraulic system are required.
