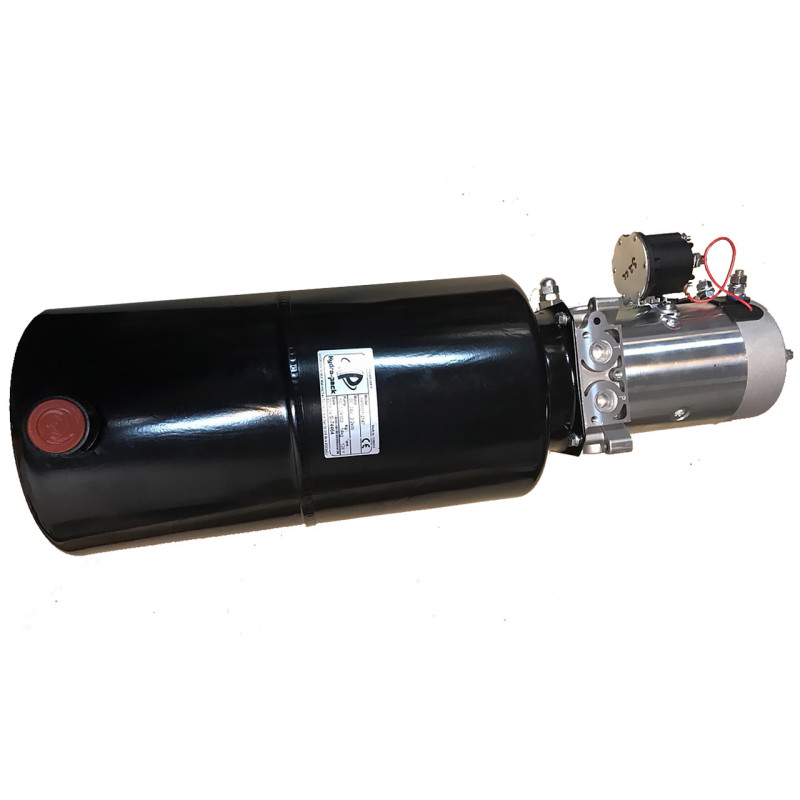

Mini Power Unit for Double-Acting Cylinders HYDRO-PACK (12V, 1.6 kW, with 10L Tank)
The Hydro-Pack HHP/D1-2065 mini power unit is a versatile aggregate for driving double-acting hydraulic cylinders in mobile machinery and special equipment. From the manufacturer Hydro-pack, this device is designed for reliable operation at 12V DC and is ideal for applications requiring a compact yet powerful hydraulic system. The product belongs to the category: Tractors, Motorcycles, ATVs, Boats (Vehicle) > Hydraulic Systems > Power Units.
The main operational characteristics of the power unit ensure stable drive performance: the electric motor with a power of 1.6 kW develops a rotation speed of 2500 rpm, the pump has a displacement of 2.7 cm3/rev, and the maximum operating pressure is 120 bar. The oil tank is made of steel, cylindrical in shape, with a volume of 10 L, allowing for long periods of operation without additional refueling. The power unit is designed for horizontal installation.
Technical Specifications:
| Parameter | Value |
| Electric motor power | 1.6 kW |
| Voltage | 12V DC |
| Rotation speed | 2500 rpm |
| Pump displacement | 2.7 cm3/rev |
| Maximum pressure | 120 bar |
| Oil tank volume | 10 L |
| Tank type | Cylindrical |
| Tank material | Steel |
| Installation | Horizontal |
The power unit is suitable for applications where compact dimensions, low power consumption, and high reliability are important. Thanks to its nominal power and pump displacement, it provides sufficient performance for most double-acting cylinders in agricultural and municipal machinery, while the steel tank enhances the durability of the structure.
Delivery Set (Parts List):
| Part No. | Part Name | Quantity |
|---|---|---|
| 1 | MBWOP-10 | 1 |
| 4 | Connecting plate | 1 |
| 8 | Relief valve | 1 |
| 9 | 10C2.7X302 | 1 |
| 10 | DC12-1.6-2500 | 1 |
| 11 | Filter and filter pipe | 1 |
| 13 | TP10Y | 1 |
Advantages of this model:
- Compactness and mobility for use in mobile machinery;
- Reliable 1.6 kW electric motor at 12V DC;
- Sufficient pump displacement of 2.7 cm3/rev and maximum pressure of 120 bar;
- Durable 10-liter steel cylindrical tank;
- Simple horizontal installation and maintenance.
If you need a powerful and compact power unit for double-acting cylinders from a trusted manufacturer Hydro-pack, the HHP/D1-2065 model will be an excellent choice for agricultural machinery, municipal equipment, and other mobile applications where reliability and durability of the hydraulic system are important.
