Mini Power Unit for Any Hydraulic Cylinder HYDRO-PACK HPP/D5-0243 (12V, 3.0 kW, with 15L Tank)

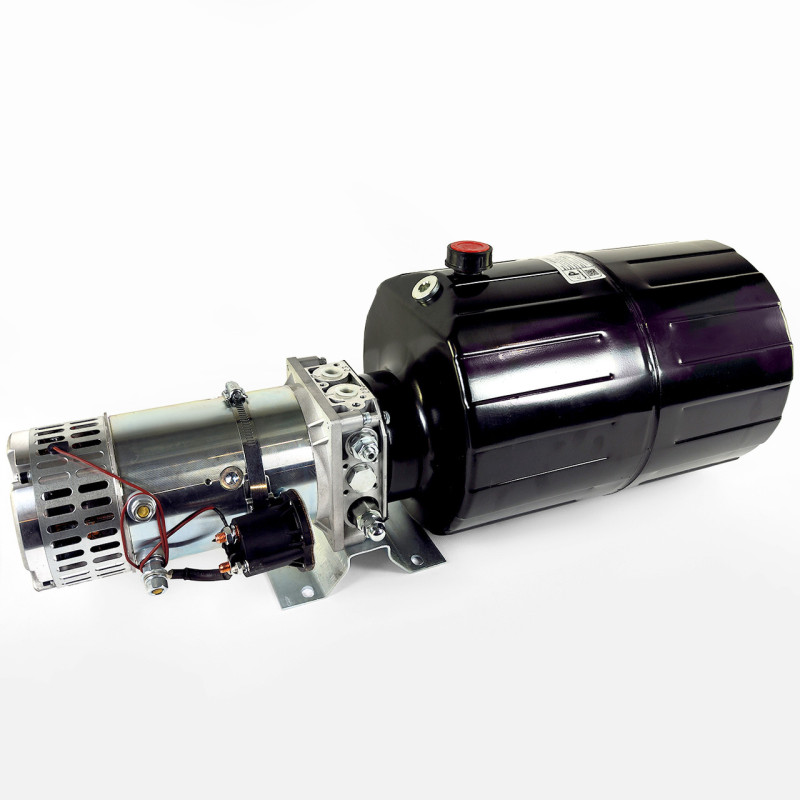

The HYDRO-PACK HPP/D5-0243 mini power unit is a compact and reliable solution for driving hydraulic cylinders of various purposes. The device is manufactured by the Hydro-pack brand and is designed for operation in systems requiring autonomous 12V DC power. This model is equipped with a powerful 3.0 kW electric motor, ensuring stable operation at a rotation speed of 3500 rpm and allowing for an operating pressure of up to 115 bar. The pump has a displacement of 3.7 cm3/rev, providing optimal fluid flow for most typical hydraulic cylinders.
The 15L oil tank is made of steel and has a cylindrical shape, which increases structural strength and simplifies installation. The unit is designed for horizontal installation, provides convenient access to service elements, and has a well-thought-out configuration for quick connection.
Technical Specifications
| Electric Motor Power | 3.0 kW |
| Voltage | 12 V DC |
| Rotation Speed | 3500 rpm |
| Pump Displacement | 3.7 cm3/rev |
| Maximum Pressure | 115 bar |
| Oil Tank Volume | 15 L |
| Tank Type | Cylindrical |
| Tank Material | Steel |
| Installation | Horizontal |
This power unit is ideal for mobile and stationary hydraulic systems in agricultural machinery, construction equipment, repair crews, and other applications where an autonomous 12V high-pressure hydraulic system is required. The reliable DC12MY-3-3500 motor guarantees a long service life with proper maintenance. The design provides for oil filtration and ease of component replacement.
Components and Spare Parts
| Part No. | Part Name | Quantity |
|---|---|---|
| 1 | MBWP-10 | 1 |
| 2 | DC Coupling | 1 |
| 3 | Return Plastic | 1 |
| 4 | Connecting Plate | 1 |
| 7 | Filter | 1 |
| 8 | AB-1/2" | 1 |
| 9 | 10C3.7X302 | 1 |
| 10 | DC12MY-3-3500 | 1 |
| 11 | STT12V150 | 1 |
| 12 | SP-45 | 1 |
| 13 | TP15YD | 1 |
| 14 | BP-1_2 | 1 |
| 15 | BP-3_4 UNF (Poppet Plug) | 1 |
| 16 | BP-FC (Speed Control Plug) | 1 |
Brand: Hydro-pack. Product Category: Tractors, Motorcycles, ATVs, Boats (Vehicle) > Hydraulic Systems > Power Units. Model HPP/D5-0243 is compatible with most hydraulic cylinders and allows for quick creation of a reliable 12V hydraulic system. Before operation, we recommend reviewing the instructions and observing safety rules when working with hydraulic systems.
