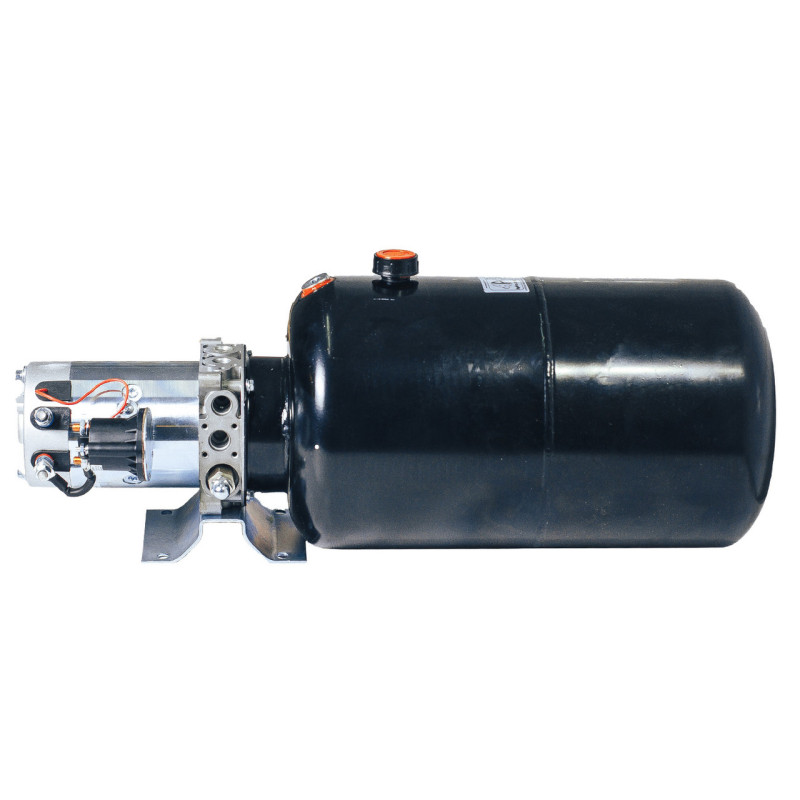

Mini Power Unit Hydro-Pack 24V-3.0kW 3.2CM³ 20L for any Hydraulic Cylinder
The Hydro-pack HPP/D5-1156 mini power unit is designed for use with various hydraulic cylinders and to provide a reliable hydraulic drive system on transport and specialized machinery. Brand: Hydro-pack. Product category: Tractors, Motorcycles, ATVs, Boats (Vehicle) > Hydraulic Systems > Power Units. This compact power unit features an electric motor with a power output of 3.0 kW at a voltage of 24 V DC, making it optimal for autonomous and mobile applications where a low-voltage power system is available.
The device is equipped with a pump with a displacement of 3.2 cm3/rev, which, at a rotation speed of 3500 rpm, ensures stable flow and smooth operation of hydraulic cylinders. The maximum operating pressure of the unit is 135 bar, allowing for a wide range of lifting and pressure operations. The 20 L oil tank is made of steel in a cylindrical shape and is designed for horizontal installation, which facilitates mounting and maintenance.
Features and Benefits
The Hydro-Pack HPP/D5-1156 mini power unit is distinguished by its compact size, reliable design, and well-thought-out component base. Key advantages:
- Powerful and reliable 3.0 kW electric motor for efficient operation at 24 V DC.
- High operating pressure up to 135 bar for complex hydraulic tasks.
- Pump with a displacement of 3.2 cm3/rev ensures precise control of oil flow.
- 20 L cylindrical steel tank provides working fluid reserve and resistance to mechanical loads.
- Horizontal installation facilitates mounting in confined spaces of equipment.
Technical Specifications:
| Electric motor power | 3.0 kW |
| Voltage | 24 V DC |
| Rotation speed | 3500 rpm |
| Pump displacement | 3.2 cm3/rev |
| Maximum pressure | 135 bar |
| Oil tank volume | 20 L |
| Tank type | Cylindrical |
| Tank material | Steel |
| Installation | Horizontal |
The Hydro-pack HPP/D5-1156 model is ideal for use in agricultural machinery, special platforms, lifting mechanisms, and mobile hydraulic systems where a compact power unit with high performance is required. The horizontal layout and cylindrical steel tank increase durability and protect the components from external influences.
| Part Number | Part Name | Quantity |
|---|---|---|
| 1 | MBWP-10 (hinges) | 1 |
| 2 | DC Coupling | 1 |
| 3 | Plastic Return Element | 1 |
| 4 | Connecting Plate | 1 |
| 5 | Filter | 1 |
| 6 | AB-1/2'' | 1 |
| 7 | 10C3.2X302 | 1 |
| 8 | DC24MY-3-3500 | 1 |
| 9 | STT24V150 | 1 |
| 10 | SP-45 | 1 |
| 11 | TP15YD | 1 |
| 12 | BP-1/2 | 1 |
| 13 | BP-3/4 UNF (valve plug) | 1 |
| 14 | BP-FC (speed adjustment plug) | 1 |
The delivery set includes all listed parts, ensuring easy installation and quick replacement of worn elements. If you need a compact yet powerful power unit with simple mounting and reliable operation in mobile hydraulic systems, the Hydro-pack HPP/D5-1156 will be an excellent choice.
