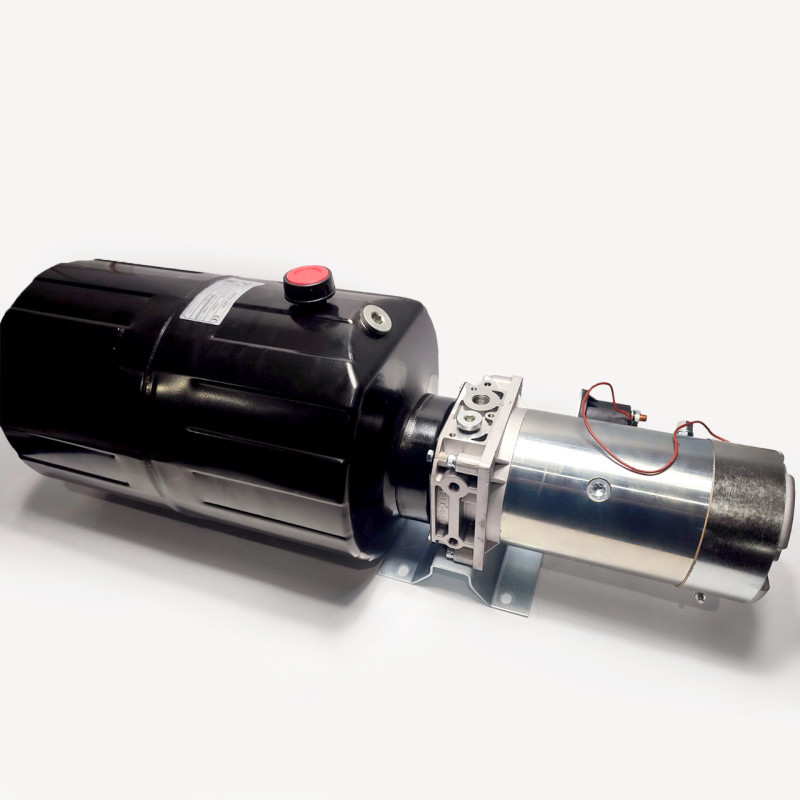

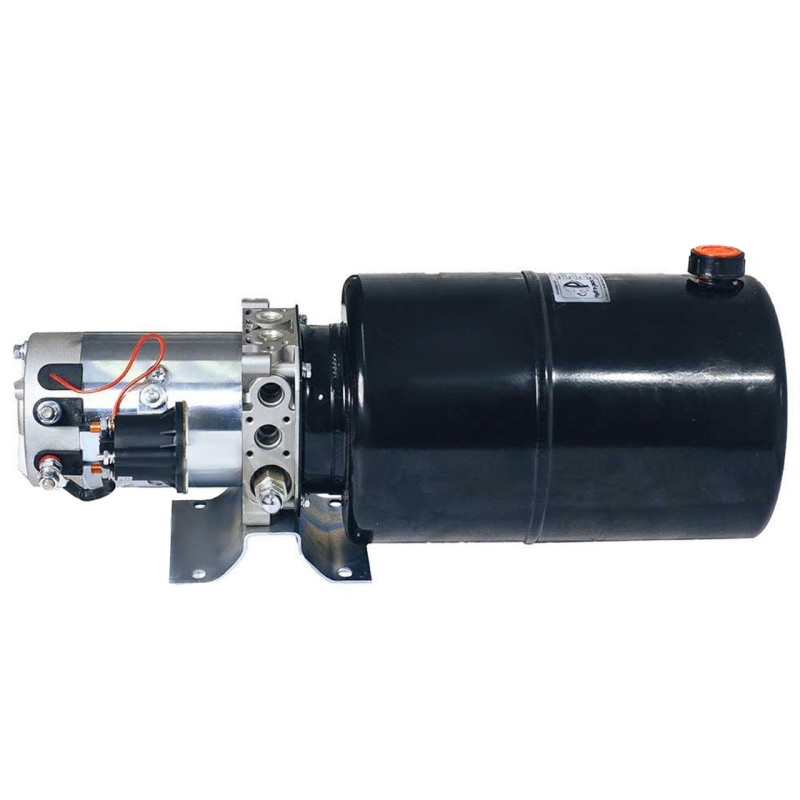

Mini Power Unit for Any Hydraulic Cylinder HYDRO-PACK (24 V, 3.0 kW, with 18 L Tank)

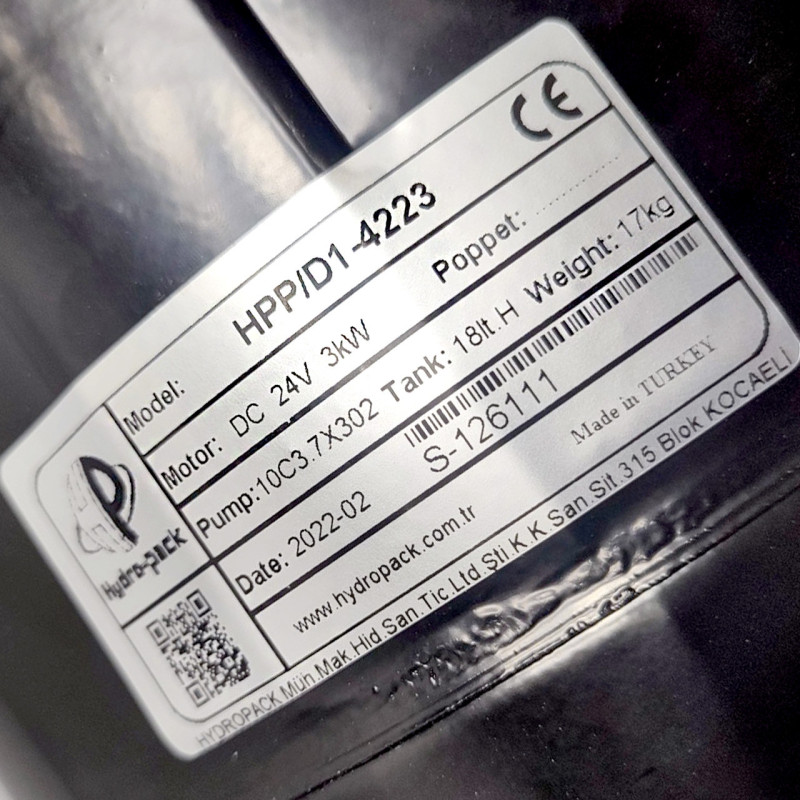

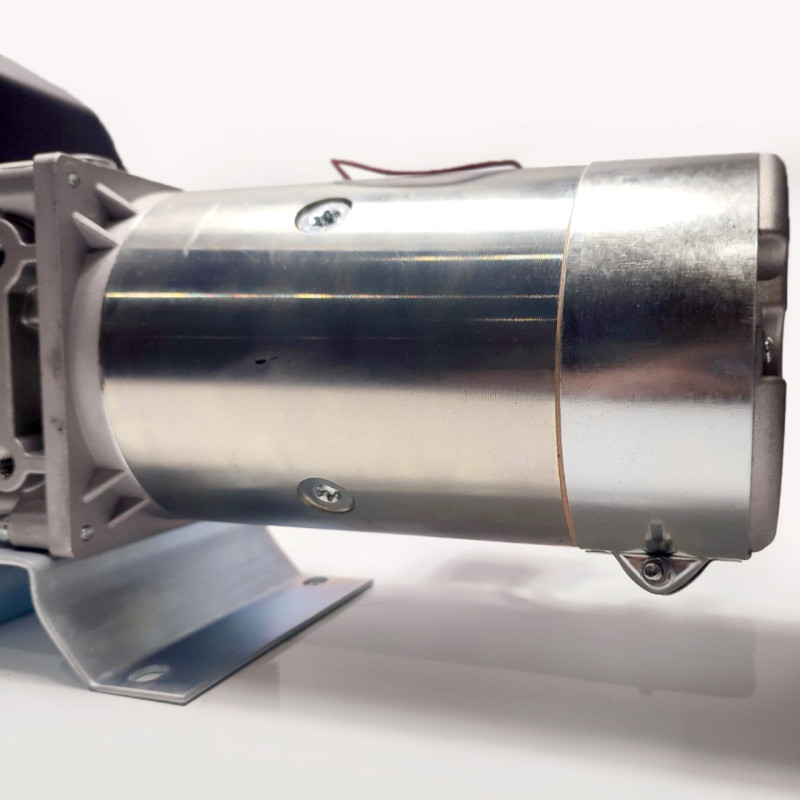

The Hydro-pack mini power unit, model HPP/D1-4223, is designed for use with various hydraulic cylinders and provides a powerful and reliable hydraulic boosting system for tractors, motorcycles, ATVs, boats, and other equipment. This product from the Hydro-pack brand is equipped with an electric motor with a power of 3.0 kW and operates from a DC power source with a voltage of 24 V DC. The maximum rotation speed is 3500 rpm, and the maximum operating pressure is up to 110 bar. The pump has a displacement of 3.7 cm3/rev, which ensures a stable oil flow under load.
The oil tank is made of steel, has a cylindrical shape, and a volume of 18 L. The power unit's design allows for horizontal installation, simplifying mounting and integration into various types of equipment. The overall configuration and technical solutions make this mini power unit a versatile solution for hydraulic systems in the category: Tractors, Motorcycles, ATVs, Boats (Vehicle) > Hydraulic Systems > Power Units.
Technical Specifications
| Electric motor power | 3.0 kW |
| Voltage | 24 V DC |
| Rotation speed | 3500 rpm |
| Pump displacement | 3.7 cm3/rev |
| Maximum pressure | 110 bar |
| Oil tank volume | 18 L |
| Tank type | Cylindrical |
| Tank material | Steel |

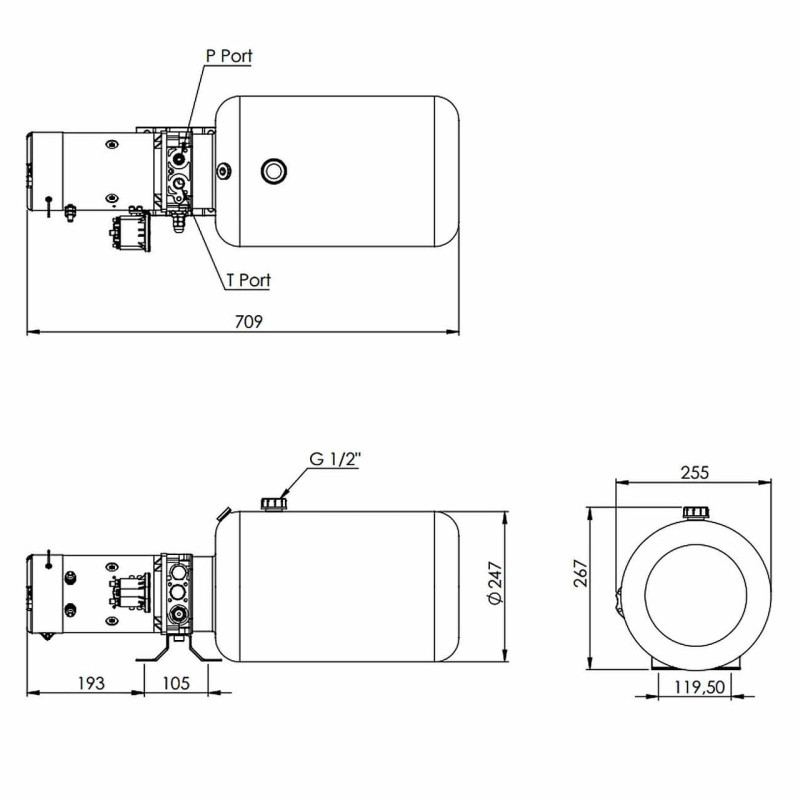

| Installation | Horizontal |
The mini power unit comes with the components and parts necessary for quick installation and operation. Below is a list of components included in the device.

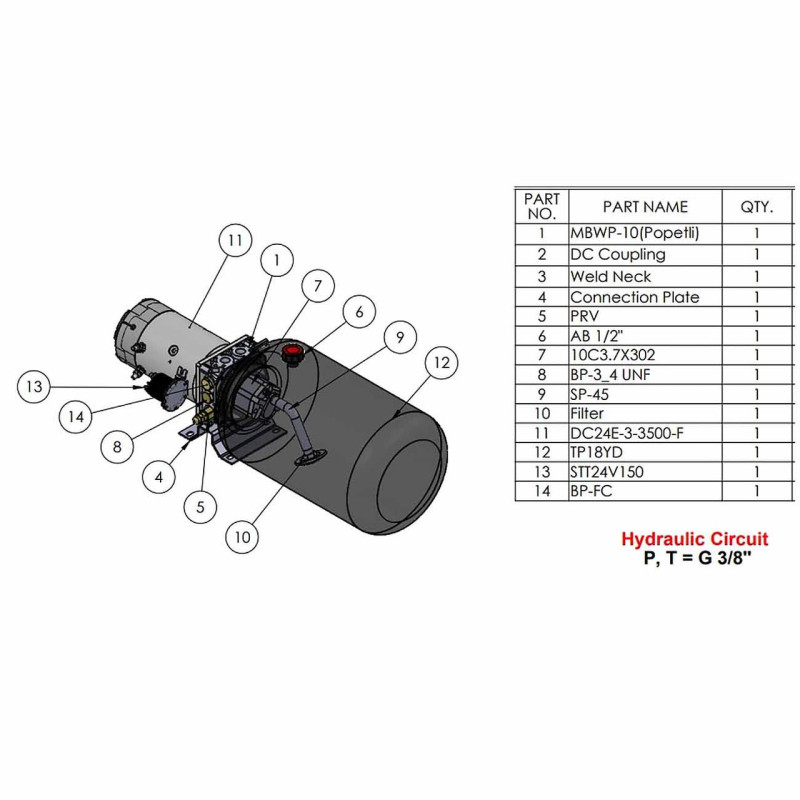

| Part No. | Part Name | Quantity |
|---|---|---|
| 1 | MBWP-10 (hinges) | 1 |
| 2 | DC coupling | 1 |
| 3 | Welding neck | 1 |
| 4 | Connecting plate | 1 |

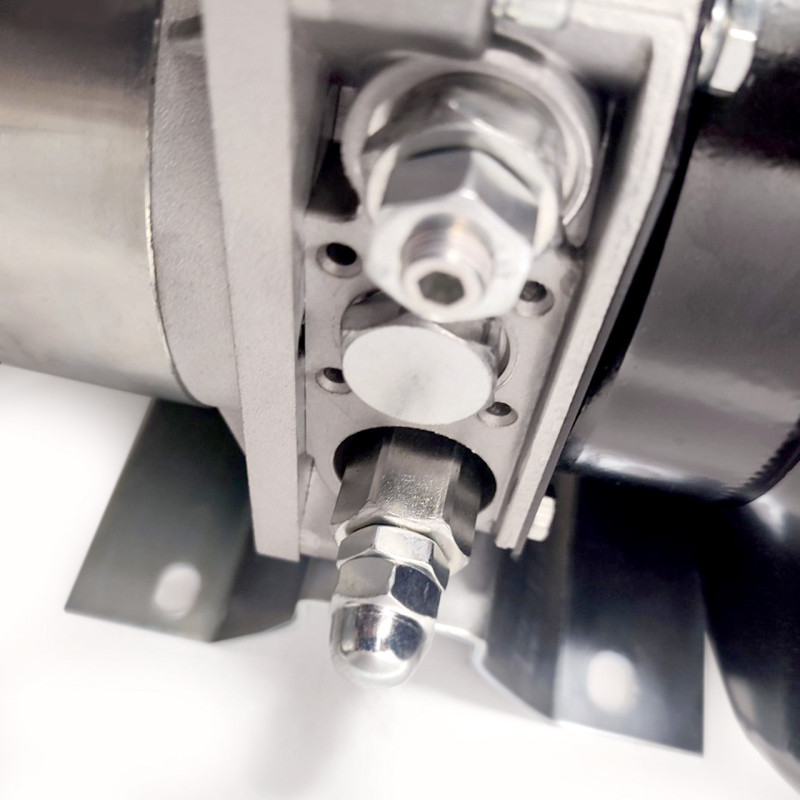

| 5 | Pressure relief valve (PRV) | 1 |
| 6 | AB 1/2" | 1 |
| 7 | 10C3.7X302 | 1 |
| 8 | BP-3/4 UNF | 1 |
| 9 | SP-45 | 1 |
| 10 | Filter | 1 |
| 11 | DC24E-3-3500-F | 1 |
| 12 | TP18YD | 1 |

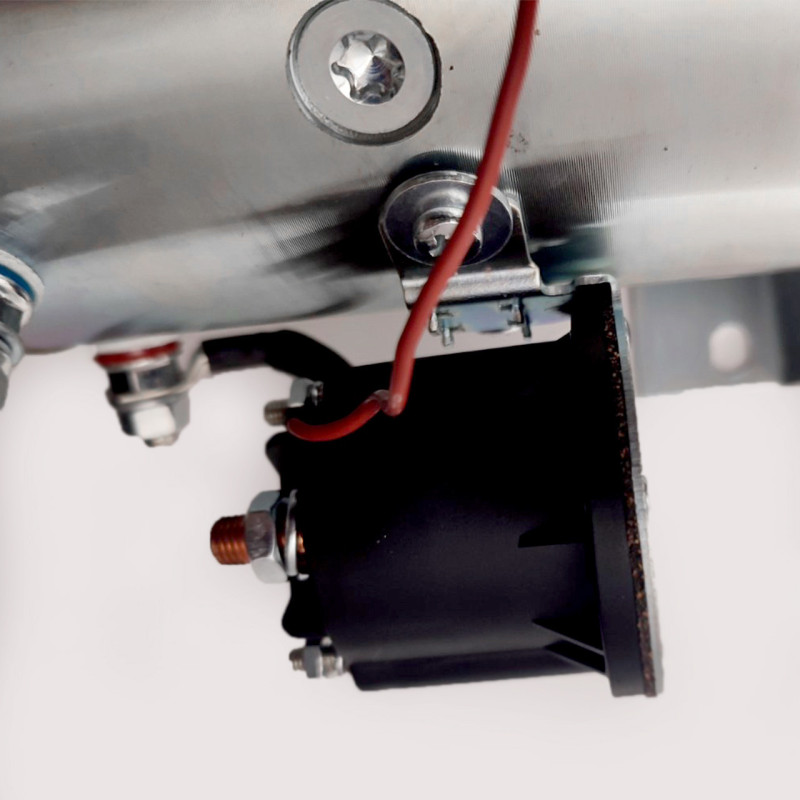

| 13 | STT24V150 | 1 |
| 14 | BP-FC | 1 |
The power unit is ideal for applications requiring mobility, reliability, and low power consumption at high operating pressure. The steel tank construction ensures durability, while the cylindrical shape and horizontal placement facilitate easy installation and maintenance. The HPP/D1-4223 model from Hydro-pack is an optimal choice for upgrading hydraulic systems of various units.
Other products in this category can be found here Power Units
