Mini Power Unit HYDRO-PACK HPPD5-1170 (12V, 0.8 kW, 2 L Tank)

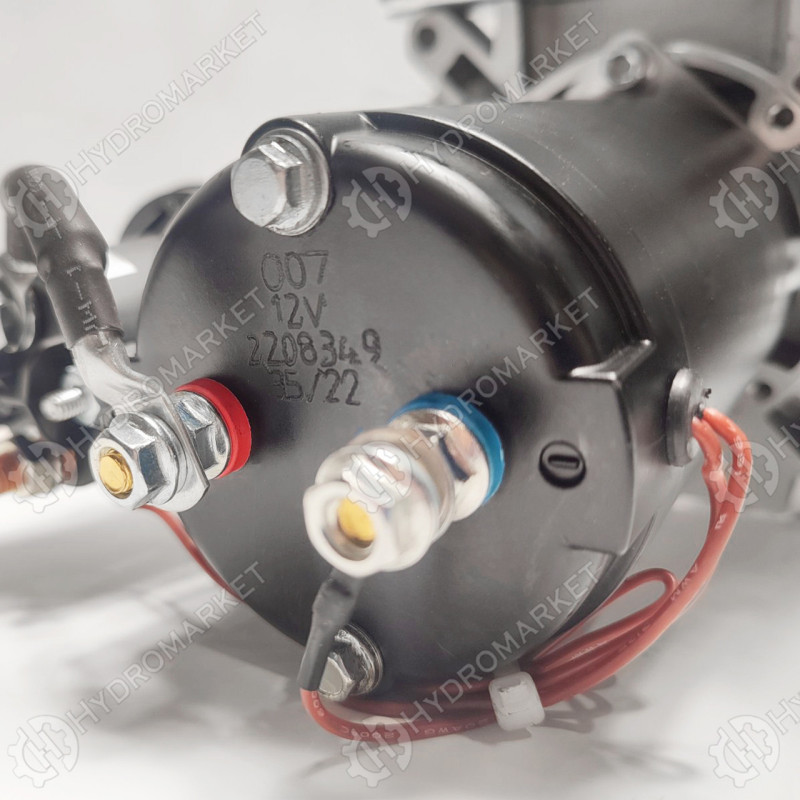

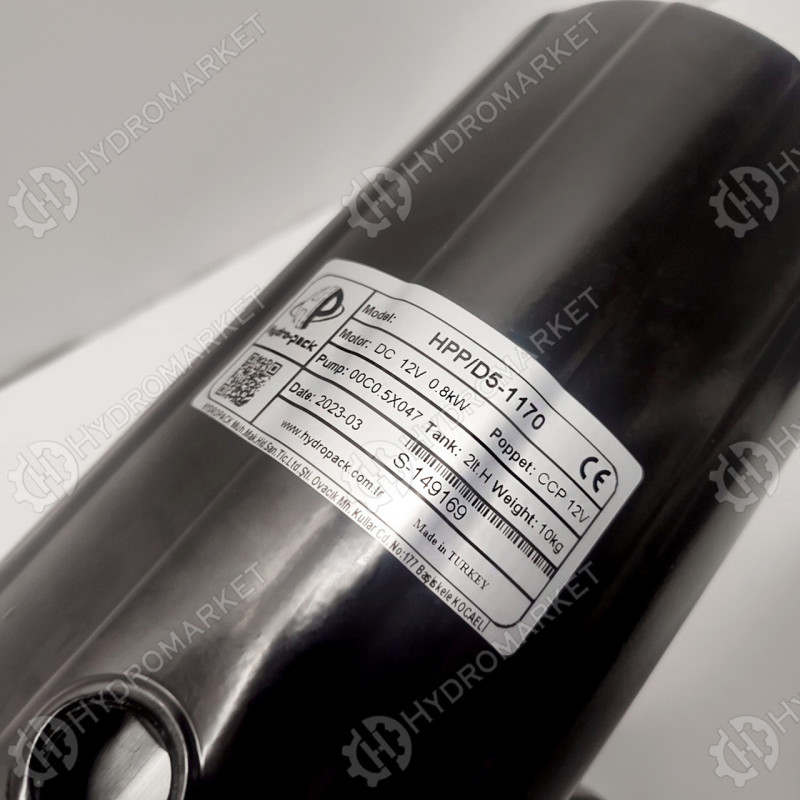

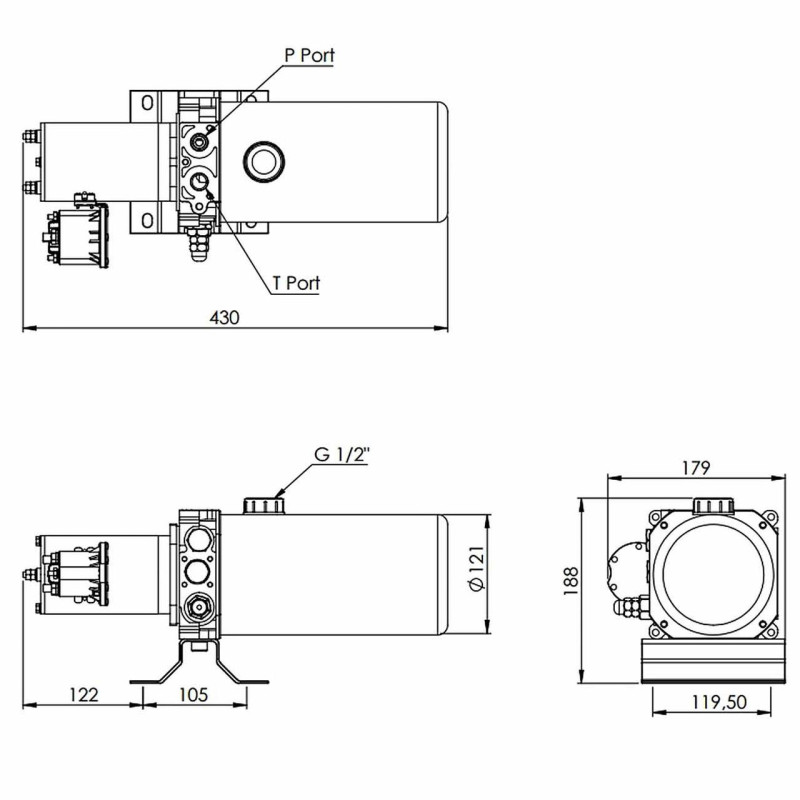

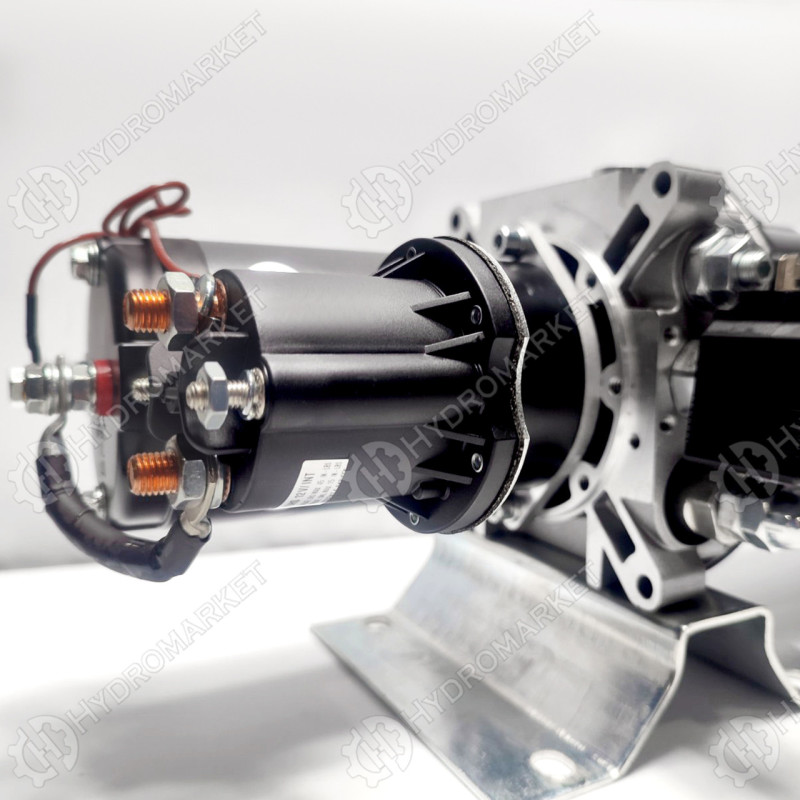

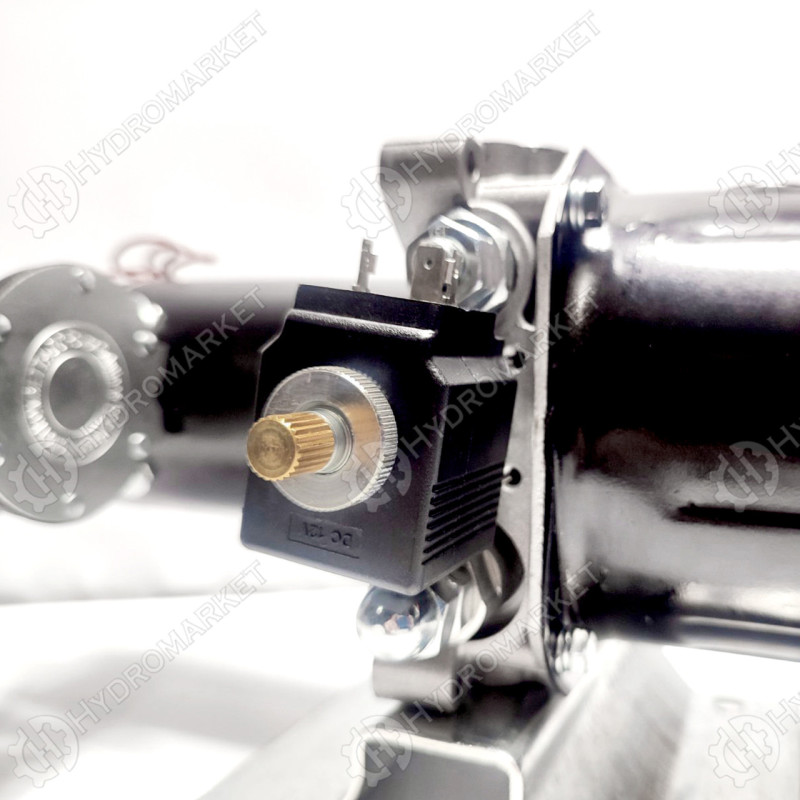

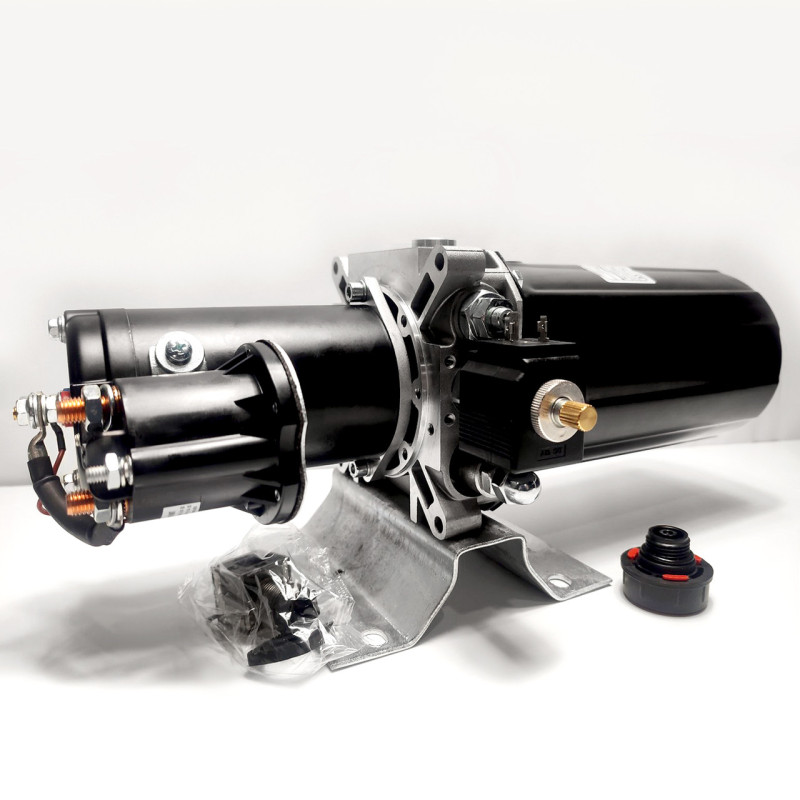

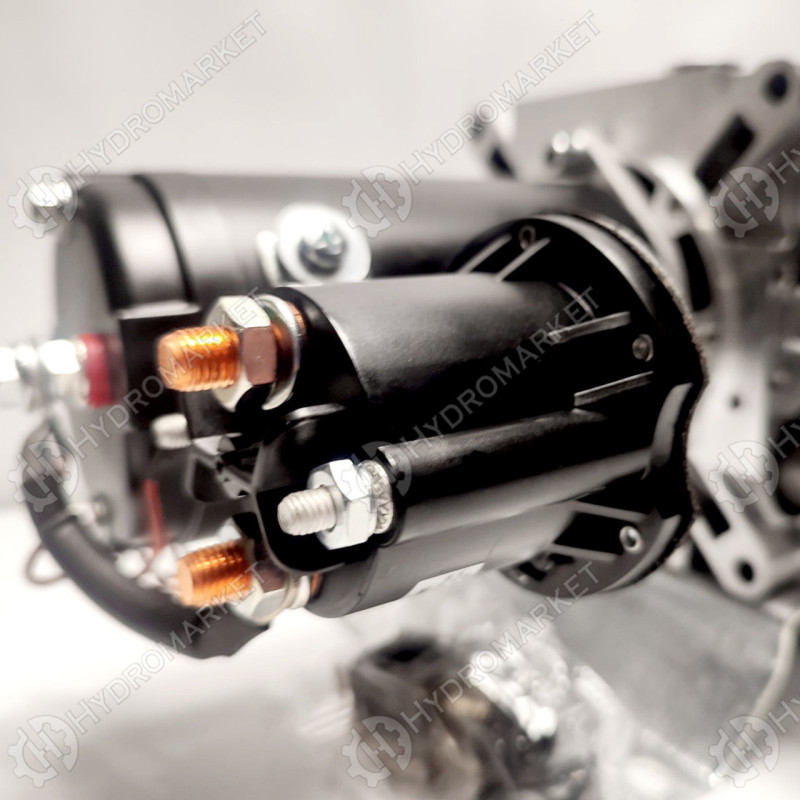

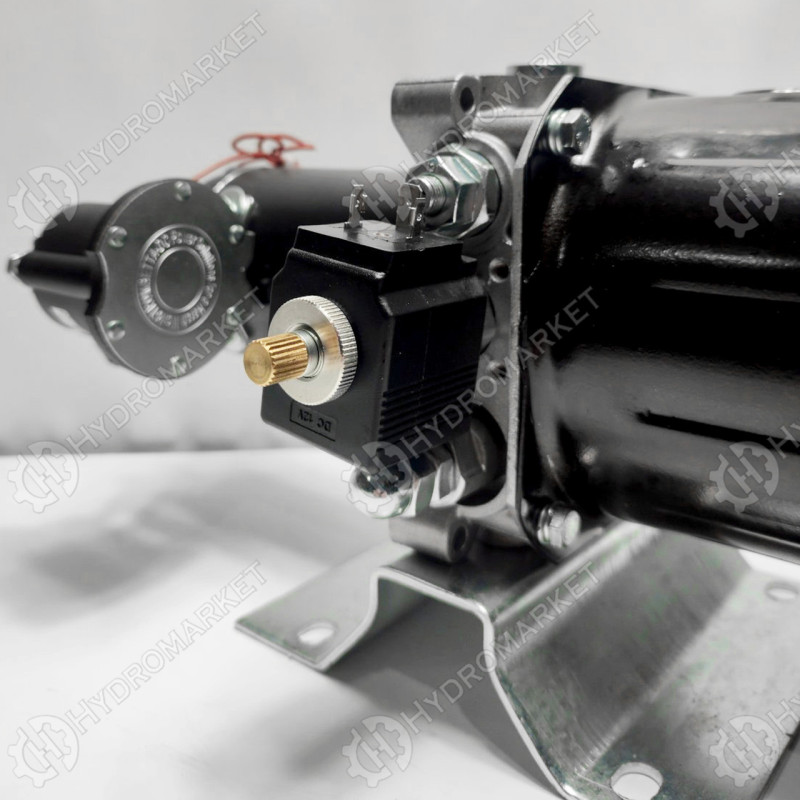

The HYDRO-PACK HPPD5-1170 model from the Hydro-pack brand is a compact and reliable mini power unit for hydraulic systems in tractors, motorcycles, ATVs, and boats. The device is designed for electro-hydraulic drives and ensures stable equipment operation thanks to a powerful 0.8 kW electric motor at 12 V DC. The pump has a displacement of 0.5 cm3/rev, allowing for precise and efficient oil delivery control. The maximum operating pressure of the unit is 200 bar, and the design with a 2 L steel cylindrical tank ensures long-term operation and reliable component protection. The unit is mounted horizontally, making it convenient for installation in various types of machinery.
Key Features
| Electric Motor Power | 0.8 kW |
| Voltage | 12 V DC |
| Rotation Speed | 3500 rpm |
| Pump Displacement | 0.5 cm3/rev |
| Maximum Pressure | 200 bar |
| Oil Tank Volume | 2 L |
| Tank Type | Cylindrical |
| Tank Material | Steel |
| Installation | Horizontal |
The HYDRO-PACK HPPD5-1170 is ideal for applications requiring a compact power unit with high pressure and stable oil delivery: lifting mechanisms, small and medium-sized hydraulic cylinders, and control systems for working units. The 2-liter steel cylindrical tank provides sufficient working fluid capacity while maintaining the overall dimensions of the unit. Horizontal installation simplifies mounting and integration into existing assemblies.
Configuration and Parts List
| No. | Part Name | Quantity |
|---|---|---|
| 1 | MBWP-10 (Hinges) | 1 |
| 2 | Mini DC Connector | 1 |
| 3 | Return Plastic | 1 |
| 4 | Connecting Plate | 1 |
| 5 | PRV (Pressure Relief Valve) | 1 |
| 6 | AB 1/2" | 1 |
| 7 | 00C0.5X047 | 1 |
| 8 | P-NC-12-MO | 1 |
| 9 | HP-SFCV (VTH200) | 1 |
| 10 | SP-90-1 | 1 |
| 11 | Filter | 1 |
| 12 | DC12V-0.8-3500 | 1 |
| 13 | TV02Y | 1 |
| 14 | STT12V150 | 1 |
Brand: Hydro-pack. Product Type: Tractors, Motorcycles, ATVs, Boats (Vehicle) > Hydraulic Systems > Power Units. The HYDRO-PACK HPPD5-1170 mini power unit combines compact dimensions, ease of installation and operation, and technical parameters that meet the requirements of most small and medium-power hydraulic systems. This is a reliable solution for those who need efficient 12V electro-hydraulics with an operating pressure up to 200 bar.
