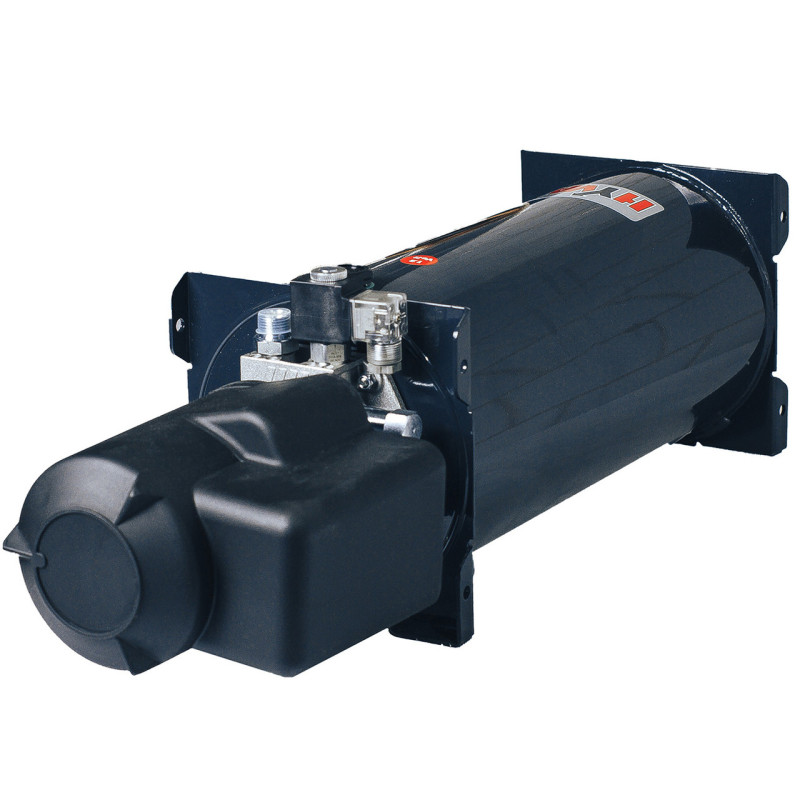

Hyva 14553001 Power Pack for Body Lift (12V, 2.0 kW, with 15L Tank)

The HYVA 12V-2.0kW 3.1CM³ 15L power pack is designed for small dump trucks, semi-trailers, and trailers operating on a 12V onboard power supply. Model 14553001 from the Hyva brand combines compactness and high performance: a 2.0 kW electric motor ensures stable hydraulic operation, and a pump with a displacement of 3.1 cm³/rev guarantees smooth body lifting and lowering. This is a ready-made solution for those who need a reliable and durable power pack for body lifting.

The power pack includes an electric lift limiter (knock-off), a normally closed valve, and a protective cover on the motor, ensuring protection and safe operation. The Hyva 14553001 is optimized for quick installation and compatibility with a wide range of hydraulic cylinders and mounts available on the market.

Model 14553001 Specifications

• Voltage: 12 V
• Rated Power: 2000 W (2.0 kW)
• Pump Displacement: 3.1 cm³/rev
• Tank Volume: 15 liters
• Maximum Pressure: 140 bar
• Current at Max. Pressure: 290 A
• Flow at 100 bar: 6.5 l/min
• P Connection: 1/2" BSPOT
• T Connection: 3/8" G

Advantages of Hyva Power Packs

• High wear resistance even in the harshest operating conditions.
• Robust construction, resistance to overloads and long duty cycles.
• Optimal weight while maintaining necessary rigidity and reliability.
• High lifting speed and short unloading time, increasing equipment productivity.
• Interchangeability with many mounts and components available on the market, simplifying service and upgrades.

Areas of Application: small dump trucks, semi-trailers, trailers, commercial and agricultural vehicles where 12V body lifting is required. The solution is suitable for equipment requiring a reliable, fast, and safe hydraulic system for body lifting and lowering.

Configuration and Safety: an electric lift limiter (knock-off) controls the final lift position, a normally closed valve ensures pressure retention when the engine is off, and a protective motor cover prevents damage and contamination.

Dimensions (mm): A - 720 mm, B - 452 mm, C - 472 mm, D - 490 mm

The Hyva 14553001 model combines the professional reliability of the Hyva brand with the technical parameters necessary for efficient operation of body lift hydraulic cylinders. If you need a power pack for quick installation and stable operation under intensive use conditions, this model is an excellent choice.
