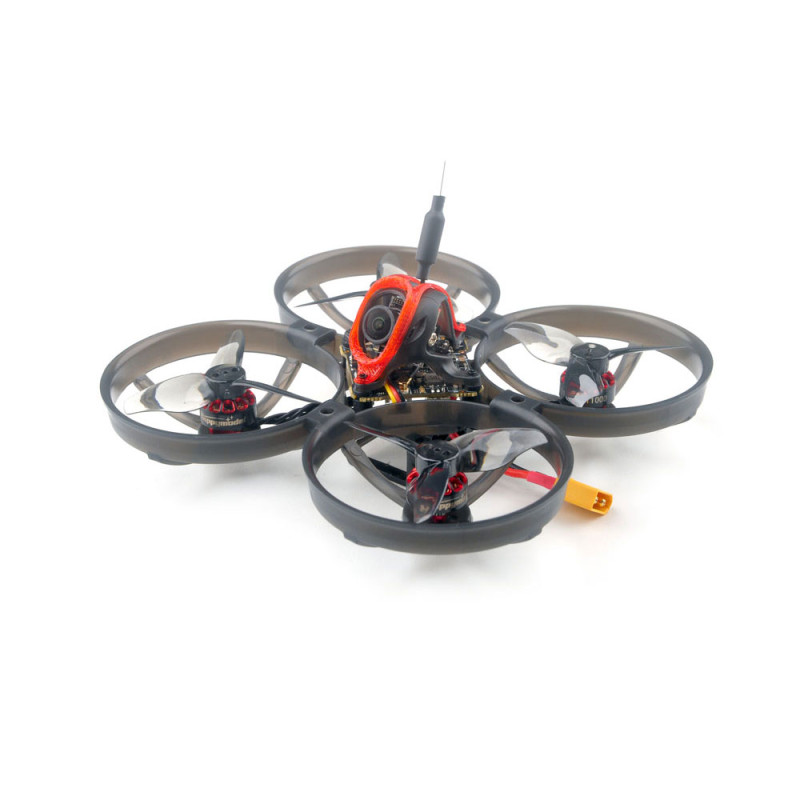

Happymodel Mobula8 PNP Quadcopter

The Happymodel Mobula8 PNP from Readytosky is a compact 85mm micro FPV quadcopter designed for fast and smooth flight both indoors and outdoors. The Mobula8 comes with powerful EX1103 KV11000 brushless motors and Gemfan Hurricane 2023 three-blade propellers, providing excellent thrust and control. This quadcopter combines lightweight and durable 85mm frame construction, measuring 120x120x50mm and weighing 43g, making it an ideal choice for pilots who value maneuverability and flight stability.

Brand: Readytosky
Category: Drones & Quadcopters > Quadcopters

Features:

• VTX power up to 400mW
• EX1103 KV110000 motors
• CaddxFPV Ant FPV camera
• Smooth and powerful flight
• Compatible with 1S-2S Lipo/LIHV battery
• Recommended battery 2S 450mAh/550mAh/650mAh (not included)

Please note: the motor description also includes EX1103 KV11000, so both variants are retained in the text for completeness.

Specifications:

• Model: Mobula8 1-2S 85mm Micro FPV
• Frame: 85mm
• Size: 120x120x50mm
• Weight: 43g
• Receiver: PNP (no onboard receiver)

Motors:

• Type: EX1103 KV11000
• Configuration: 9N12P
• Stator diameter: 11mm
• Stator length: 3mm
• Shaft diameter: Φ1.5mm
• Motor dimensions (diameter*length): Φ13.5mm*15.5mm
• Weight: 3.8g
• Number of cells (Lipo): 1-2S

Propellers:

• Weight: 0.88g
• Material: PC
• Pitch: 2.3 inches
• Propeller diameter: 52.17mm
• Center thickness: 5mm
• Center hole diameter: 1.5mm

Camera:

• Image sensor: 1/3″ CMOS sensor
• Horizontal resolution: 1200 TVL
• TV system: NTSC or PAL
• Image: 16:9 or 4:3
• Synchronization: Internal
• Electronic shutter: PAL: 1/50~100,000; NTSC: 1/60~100,000
• Signal-to-noise ratio: >52dB (AGC OFF)
• Video output: CVBS
• Lens: 1.8mm
• Minimum illumination: 0.001Lux@F1.2
• Automatic gain control: YES
• WDR: Global WDR
• DNR: 3D DNR
• Dimensions: 14*14mm (with bracket up to 19*19mm)
• Wide power input: 3.7-18V DC
• Weight: 2g

Package contents:

• Mobula8 Quadcopter
• EX1103 KV11000 Brushless Motors - 4 pcs
• Gemfan Hurricane 2023 Three-blade Propellers (4cw+4ccw)
• Caddx ANT 1200TVL Camera
• 14x14mm Camera Canopy
• Screwdriver

The Mobula8 PNP is an excellent choice for FPV enthusiasts looking for a ready-to-configure PNP device with a high-quality Caddx camera and powerful EX1103 motors. Thanks to its light weight and compact dimensions, the quadcopter is easy to maneuver and allows for fast flight trajectories with high precision. Recommended 2S 450/550/650 mAh batteries will provide an optimal balance between weight and flight autonomy.
