Quadcopter Drone DJI MATRICE 30T
Brand: DJI | Category: Drones & Quadcopters > FPV Drones
Product Description

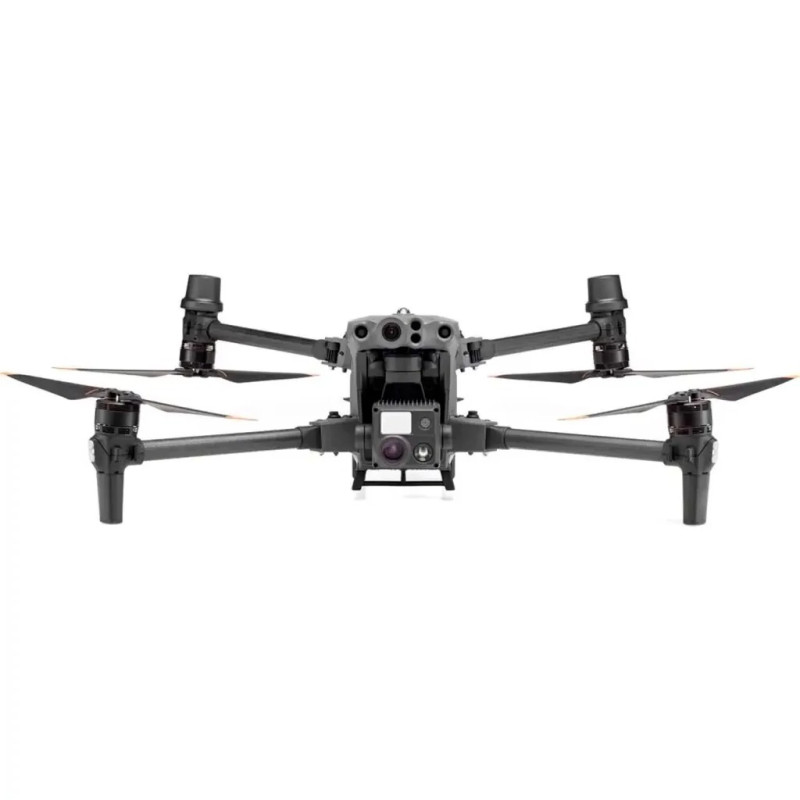

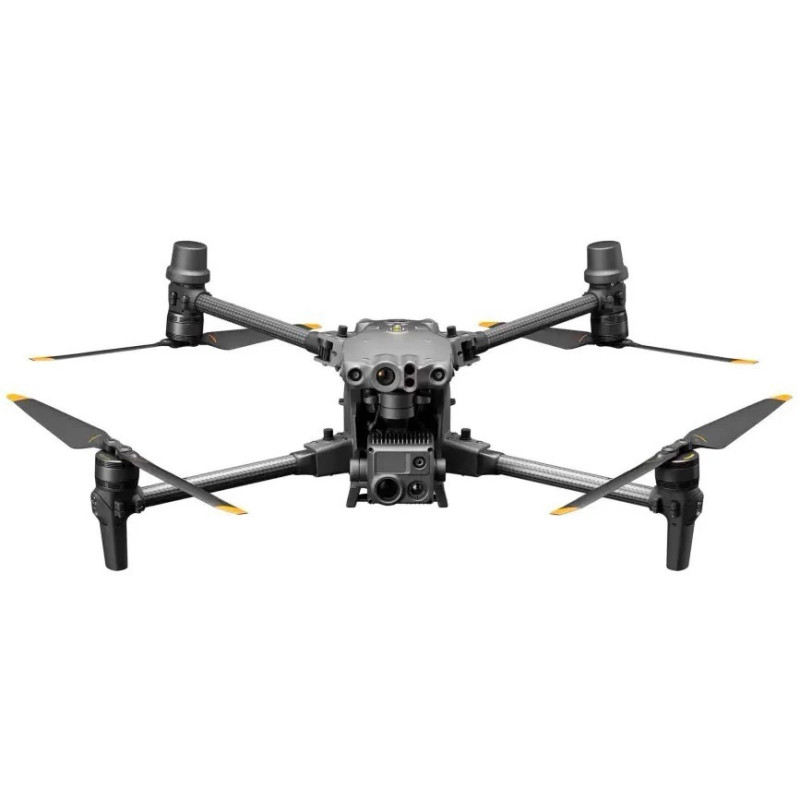

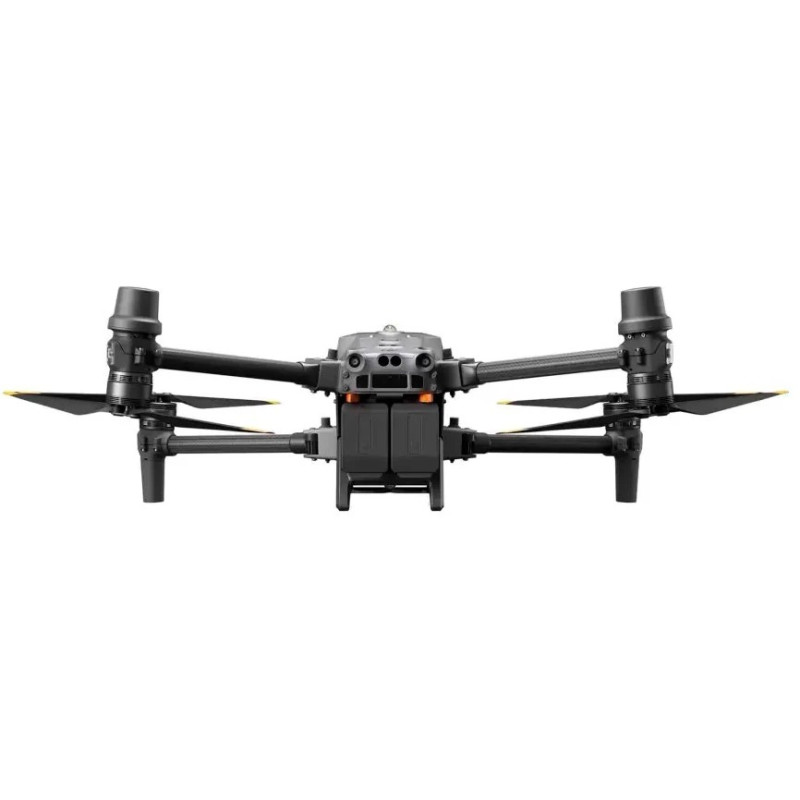

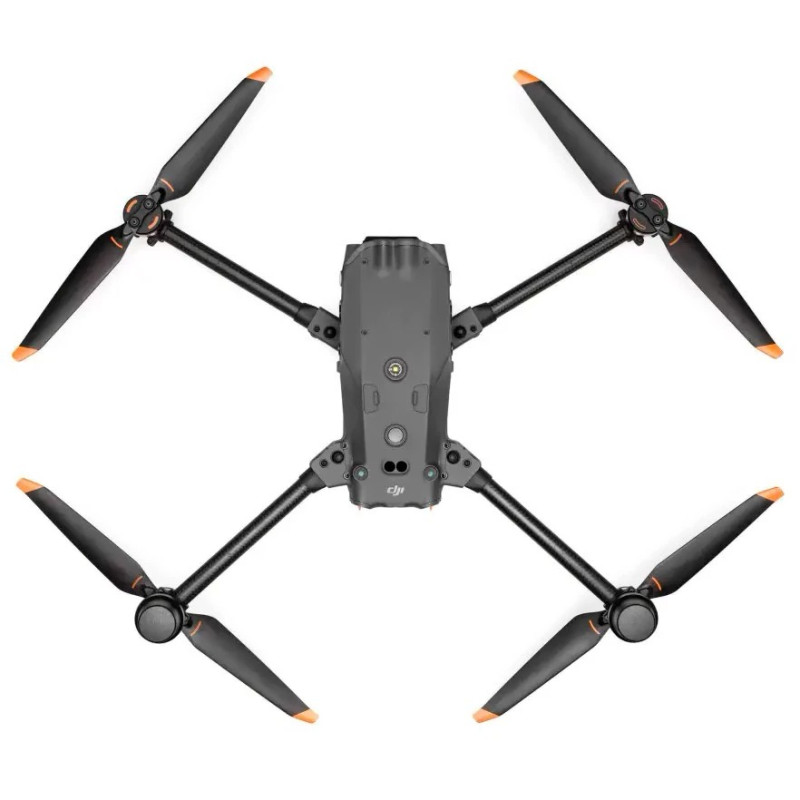

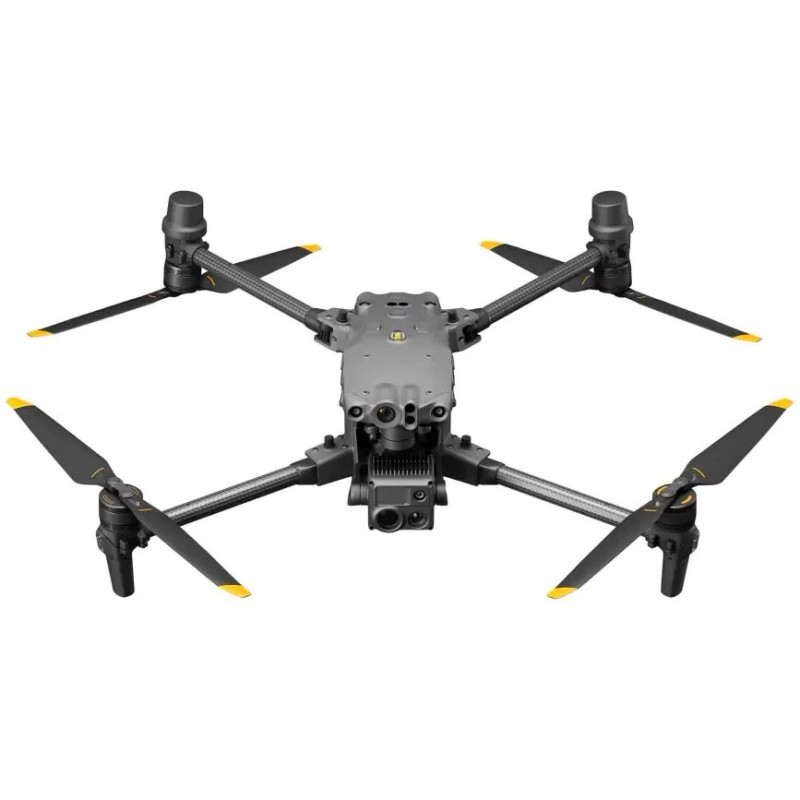

The DJI MATRICE 30T is a professional commercial quadcopter that combines enhanced reliability, portability, and a wide range of sensors for complex missions: inspections, rescue operations, infrastructure monitoring, and search and rescue tasks. The device is designed for operation in harsh conditions, ensuring precise data transmission, long-duration flights, and rapid deployment at the operation site.
Key Flight Characteristics
- Max Flight Time: 41 min.
- Wind Resistance: 12 m/s.
- Service Area: 7000 m.
- Max Speed: 23 m/s.
The balance between power and compactness allows for maximum efficiency in field operations.
Environmental Adaptability and Reliability
The M30T has an IP55 rating, ensuring operation in adverse weather conditions, while an operating temperature range of -20°C to 50°C provides stability in cold and heat. Controllers and instruments have an IP54 protection level.
Flight Safety and Redundancy Systems
The platform is equipped with dual-vision and ToF sensors on six sides for reliable obstacle detection. An integrated ADS-B receiver warns of approaching manned aircraft. Advanced redundancy and backup systems allow critical missions to be performed even in unusual situations.
Data Transmission and Communication
Four integrated antennas support OcuSync 3 Enterprise technology, which provides triple-channel 1080p video transmission and seamless switching between streams. For operation in complex or remote conditions, the DJI Cellular Module – an optional 4G module for stable video transmission – can be connected.
Portability and Design

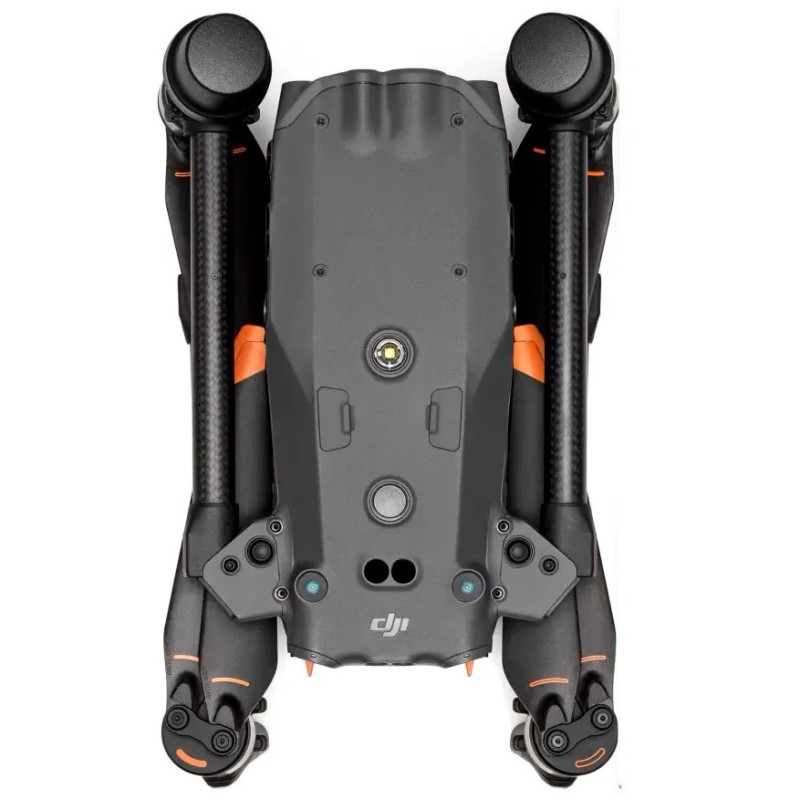

The M30T's foldable, compact design makes the drone easy to transport and quick to deploy at the operation site.
Cameras and Sensors (Full Payload)
Wide-Angle Camera
- Equivalent Focal Length: 24 mm, DFOV: 84°.
- 12 MP 1/2" CMOS Sensor.
- Video Resolution: 4K/30 fps.
Zoom Camera
- 48 MP 1/2" CMOS Sensor.
- 5x-16x Optical Zoom.
- 200x Max. Hybrid Zoom.
- Photo Resolution: 8K.
- Video Resolution: 4K/30 fps.
Thermal Imager
- Equivalent Focal Length: 40 mm.
- Resolution: 640×512.
- Frame Rate: 30 fps.
- Measurement Accuracy: ±2°C or ±2%.
Laser Rangefinder
Range: 3 m - 1200 m.
Accuracy: ±(0.2m + D×0.15%).
Modern algorithms for combining data from the laser rangefinder and cameras instantly determine the coordinates of an object in the field of view, increasing measurement accuracy during inspections and rescue operations.
Image Quality and Low-Light Performance
The FPV camera is optimized for low-light conditions, allowing clear visibility of the ground and horizon even at night. Smart Low-Light Photo technology provides bright and clear images in dim light. The RGB panorama reproduces color data from above, while the infrared camera detects high-resolution hot spots and thermal signatures.
Control and Software

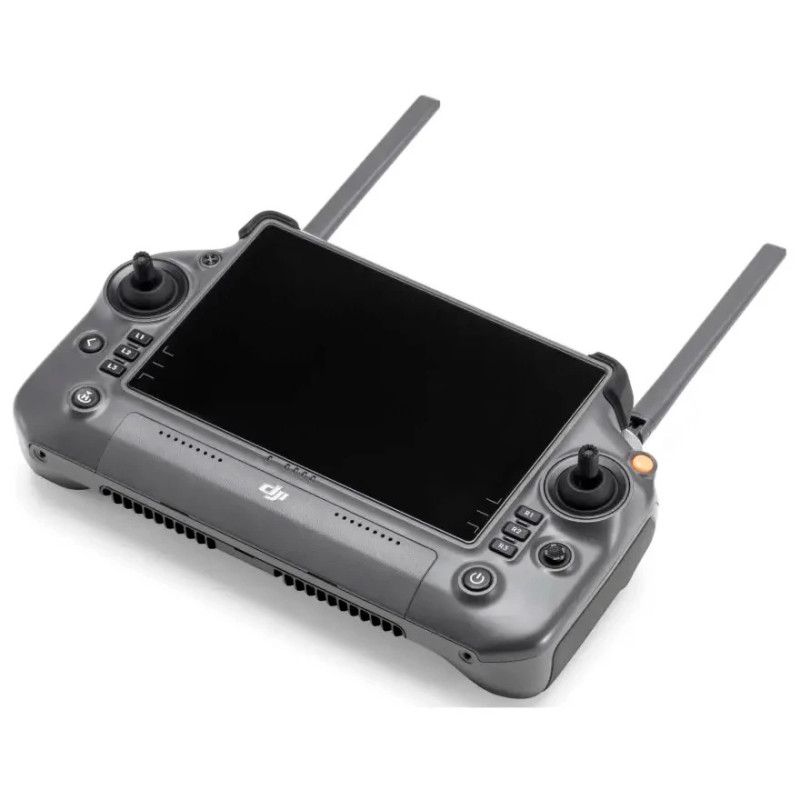

The 7-inch widescreen DJI RC Plus remote controller with dual control mode is designed for enterprise users. The updated DJI Pilot 2 provides an optimized interface for enhanced flight efficiency and safety: one-tap payload control, display of flight details, navigation information, home point, PinPoints, and nearby obstacles. A comprehensive pre-flight checklist and alerts for changing conditions are available.
Power and Battery Life
The internal and external battery configuration, combined with the DJI BS30 Battery Station, provides up to 6 hours of system battery life and supports hot-swapping batteries for continuous operation during a shift. For a single flight, the maximum time is up to 41 minutes, depending on conditions.

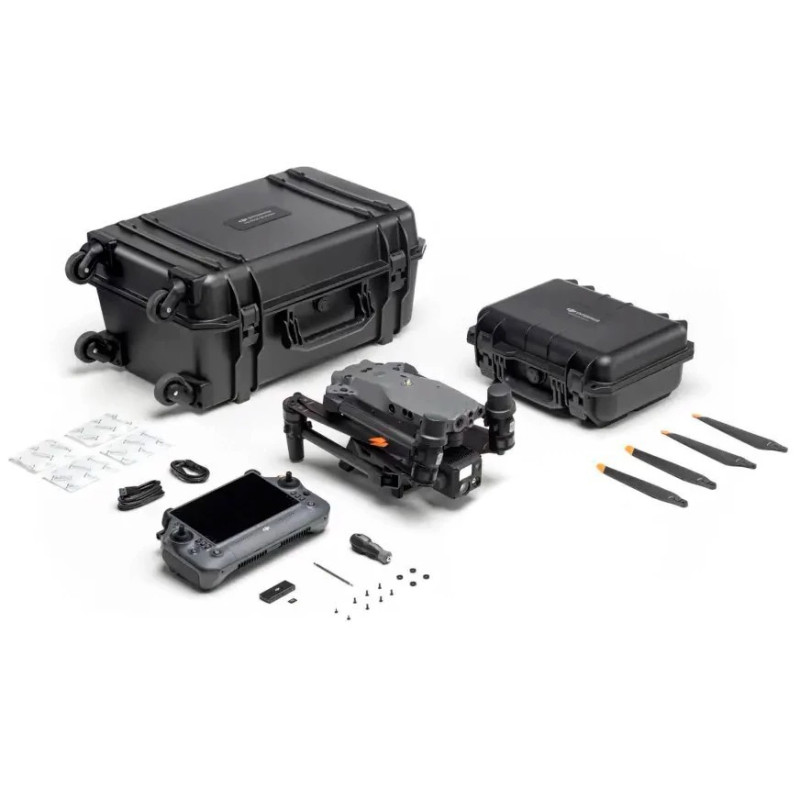

Package Contents
- Drone - 1 pc;
- DJI RC Plus Remote Controller - 1 pc;
- Propellers 1671 CW (pair) - 1 pc;
- Propellers 1671 CCW (pair) - 1 pc;
- USB-C Cable - 1 pc;
- USB-C to USB-C Cable - 1 pc;
- Hard Case - 1 pc;
- Screws and Tools (set) - 1 pc;
- DJI BS30 Battery Station - 1 pc;
- Manual - 2 pcs;
*Batteries (TB30) are not included in the basic package and can be purchased separately.
The DJI MATRICE 30T is a comprehensive solution for professionals who require reliability, high measurement accuracy, and powerful imaging capabilities in one portable package. The DJI brand guarantees innovation and support, and the full suite of sensors, cameras, and communication modules makes the M30T a versatile tool for various applications.
