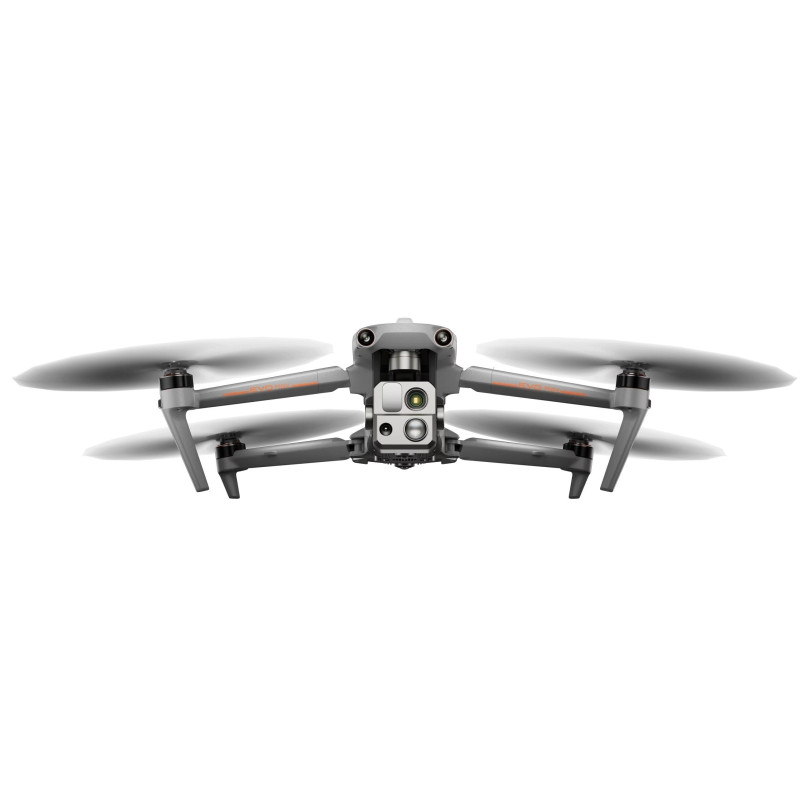

Quadcopter Autel EVO MAX 4T (102002241) (ATL-MaX-4T)

Autel EVO Max 4T — a professional quadcopter with a thermal imager, optical zoom, and laser rangefinder, designed for reconnaissance, inspections, and operation in challenging conditions. This portable and protected drone combines binocular optical sensors with millimeter-wave radar, eliminating blind spots and allowing detection of objects as small as 0.5 inches even in rain or low-light conditions.

Obstacle Avoidance System and EW Resistance

The EVO Max 4T is equipped with an Autonomy Engine that analyzes the environment and builds real-time 3D flight paths for reliable obstacle avoidance. The drone features GPS anti-spoofing, EMI, and RFI countermeasures, enabling confident flight near power lines, critical infrastructure, and in complex areas. Advanced sensors allow navigation inside fortified structures or without GPS.

Cameras and Sensors

The multi-sensor unit with a three-axis mechanical gimbal (-90° to +30°) includes: an 8K zoom camera with 10x optical and 160x digital zoom (hybrid mode provides detail up to ~2 km), a wide-angle 50 MP camera based on a 1/1.28" CMOS with an 85° field of view and f/1.9 aperture with Moonlight Algorithm 2.0 for improved low-light imaging, a 640×512 pixel thermal imaging camera with 16x digital zoom and a temperature range from -20° to 550°, and a laser rangefinder with a range of 5–1200 m and accuracy up to 1 m. Supports 8000×6000 photos and 7680×4320 (8K) video; 4K video at 30 fps, maximum ISO up to 64000.

Flight Characteristics

Maximum ascent altitude: 7000 m. Flight time: up to 42 minutes (depending on mode — approximately 38–42 min). Battery: 4S 8070 mAh battery (1 pc. included). Maximum horizontal speed — up to 82.8 km/h (the description also mentions 82.3 km/h). The drone can withstand takeoff/landing in crosswinds up to 12 m/s and is stated to be adapted for flights at wind speeds up to 27.8 m/s; the table shows a max. permissible wind speed of 43.2 km/h. Ascent speed 28.8 km/h, descent speed 21.6 km/h. Maximum remote control range: 8000–20000 m.

Communications and A-Mesh

A-Mesh 1.0 allows multiple drones to self-organize, act as relays, and enable BVLOS flights with extended coverage. The system automatically saves critical information and reallocates roles if one device fails.

Remote Controller and Software

Smart Controller V3: 7.9" 2048×1536 screen with 2000 nits brightness, HDMI support, built-in memory, long battery life, and compatibility with the Live Deck 2 accessory for streaming to multiple devices. The Autel Enterprise app provides tools for corporate missions, automatic routes based on 3D maps, saving flight parameters, and re-executing fully automatic missions.

Automatic Missions and Multi-Screen

Built-in auto missions include altitude change monitoring, KML import, advanced routes, angled auto-capture (5 passes), spiral auto-flight, vertical missions, and corridor monitoring of roads and rivers. Multi-projection allows simultaneous display of zoom, thermal image, and map; the AR Scene function overlays information about ADS-B aircraft and waypoints.

Targeting and Safety

Intelligent recognition algorithms (AI) allow identification of heat sources, people, and vehicles, performing tracking and evidence collection for law enforcement or rescue operations. The auto-return (RTH) function activates upon loss of connection or low battery and can be forcibly activated; return is performed at an altitude of up to 500 m with an error of less than 30 cm regardless of satellite connection availability.

Body, Dimensions, Power, and Package Contents

Drone weight: 1.6 kg. Dimensions: length 66 cm, width 57.6 cm, height 14.9 cm. Frame material: plastic. Foldable body. Payload capacity: 0.399 kg. Motor type: brushless. Stabilization and gyroscope: yes. Memory card support: microSD; internal memory 8 GB. Remote controller powered by a 5800 mAh battery. Included: spare control sticks (pair), power cable, 32 GB memory card, case, remote controller (1 pc.), strap, spare propellers — 6 pcs., docking station/charger — yes, batteries — 1 pc.

This model is classified for video recording and professional inspections, offering services for 3D scene collection, public safety monitoring, and industrial control. The Autel EVO Max 4T combines powerful hardware and software solutions for complex aerial missions.
