Additionally required coaxial horizontal flue 7738112495

Description

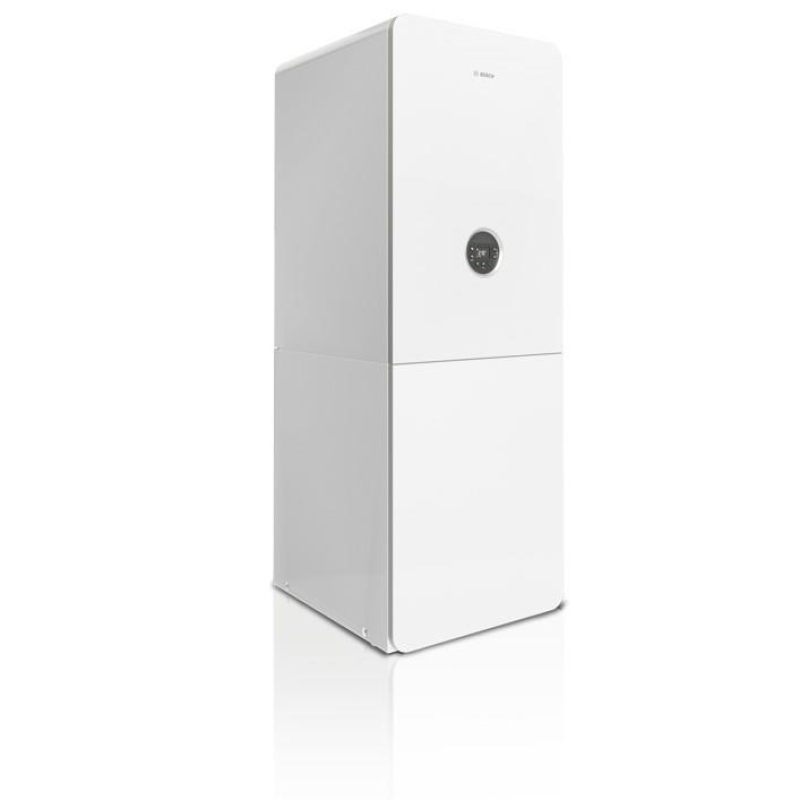

Model GC5300i WM 24/120 23 with integrated coil storage tank - for facilities with high water hardness

Compact gas condensing boiler for heating and hot water supply

Space-saving due to modular design

Compatible with EasyControl when connecting a wireless module

Gas valve with wide modulation range 1:10 (hot water preparation)

Modular design for convenient and quick connection

Integrated hot water tank for maximum hot water comfort

Technical equipment

Heat exchanger made of Al-Mg-Si alloy with large heat exchange area

Layered heat distribution during hot water preparation.

Connector for K20 RF radio module

HMI300 control panel for easy setup and operation

High-efficiency circulation pump for heating and hot water preparation

Integrated 3-way valve

Manual air vent

Safety valve

Temperature limiter protecting the heat exchanger from overheating

EMS Bus connection

With integrated coil storage tank - for facilities with high water hardness

Specifications

Energy efficiency class in heating mode: A

Energy efficiency class in DHW mode: A

Nominal heating output: 3.1-30 kW

Nominal DHW output: 30 kW

Nominal heating load: 24.5 kW

Operating temperature range in heating mode: 30-82 °С

Expansion tank volume: 12 L

Nominal DHW load: 24.5 kW

Water temperature in DHW circuit: 40-60 °C

Maximum DHW flow rate: 22.9 L/min

Maximum permissible pressure in DHW circuit: 10 bar

Maximum permissible heating system pressure: 3 bar

Natural gas consumption at maximum power: 3.2 m3/h

LPG consumption at maximum power: 2.3 kg/h

Flue gas temperature at boiler outlet: 78 °С

Flue pipe diameter: 60100 mm, 8080 mm, 80125 mm

Overall dimensions of the appliance: 1531x600x669 mm

Weight with packaging: 125.5 kg

Country of manufacture: Germany

Warranty: 24 months
