Vehicle Access Control and Management Kit for 2 Cameras

The GreenVision video surveillance kit for vehicle access control and management with 2 cameras is used at sites where control, analysis, and ensuring the safety of vehicle movement are important.

Industrial Enterprise:

• Ensuring control of vehicle entry and exit to the factory or warehouse territory.
• Monitoring and regulating access for trucks and suppliers to the site.

Shopping Malls and Stores:

• Managing parking spaces for customers and employees.
• Ensuring security in loading and unloading areas for goods.

Business Centers and Office Buildings:

• Restricting access to parking and underground garages for employees and visitors.
• Controlling entry to the office complex territory.

Residential Complexes and Cottage Villages:

• Ensuring secure access for residents and their guests to the territory.
• Monitoring parking spaces and preventing unauthorized parking.

Advantages and Functionality of the Video Surveillance Kit for Vehicle Access Control and Management:

• Built-in software integrated into the IP camera, ensuring mobility of system installation and configuration.
• The IP camera's web interface provides convenient access to system settings and management via standard web browsers.
• The IP camera's relay outputs allow direct control of gates or barriers from the access control system. Control options include opening and closing gates in response to license plate recognition.
• The built-in SD card slot provides local storage of recorded information. This ensures reliable data backup and provides access to it even in case of loss of connection with the central server.
• The system operates on the PoE principle, allowing power connection and image reception from the surveillance camera via a single network cable line. This simplifies installation and saves resources, as no additional power sources are required.
• Ability to send notifications in case of unauthorized access or other events.

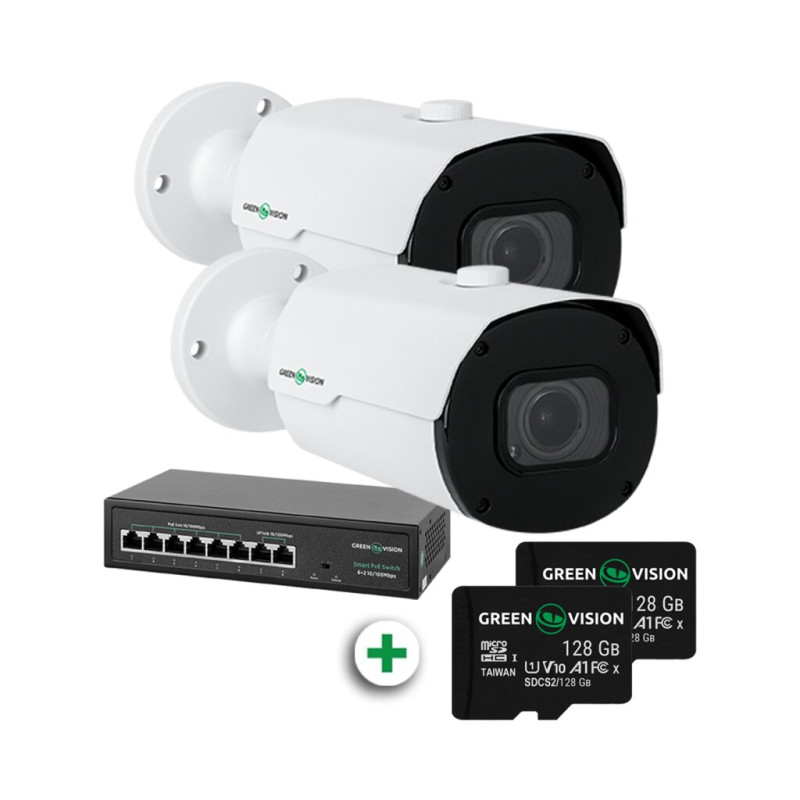

The video surveillance system for parking lots, checkpoints, HOAs, service stations, and other facilities with vehicle monitoring function includes:

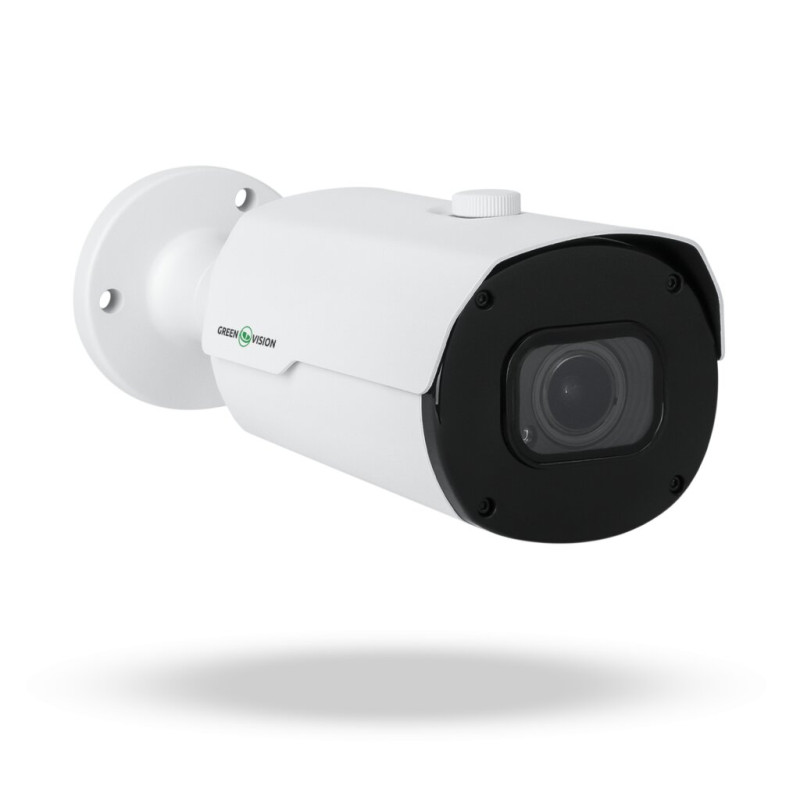

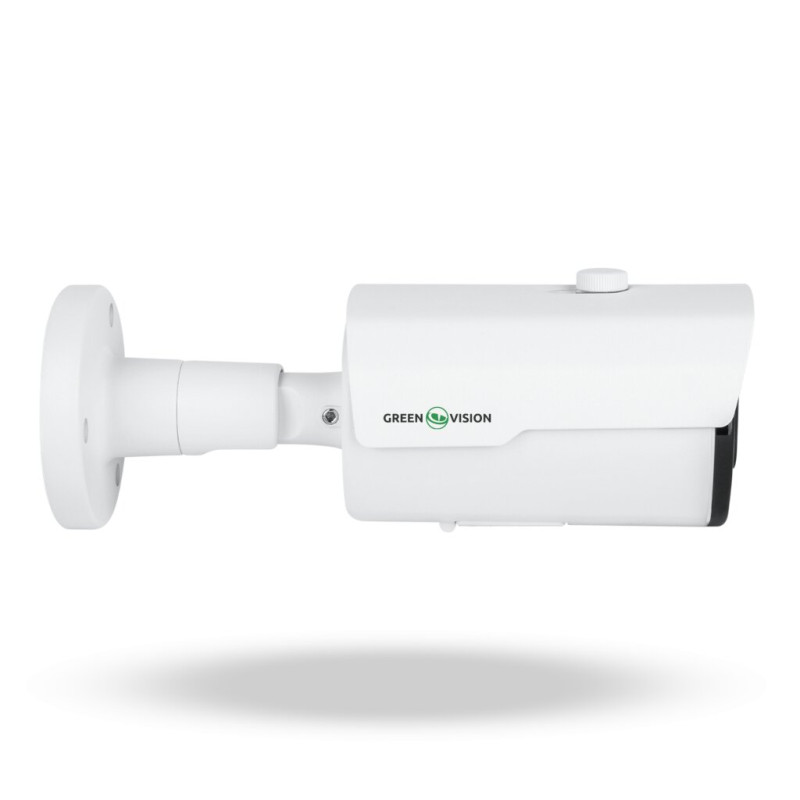

Outdoor IP video surveillance camera GV-173-IP-IF-COS50-30 VMA (Ultra AI) - 2 units.

• Image resolution (2592x1944, 3072x1728);
• Adjustable (motorized) lens with 13.5 - 2.7 mm focal length;
• Camera light sensitivity – 0.003 Lux. Built-in infrared illumination range – 45 meters;
• Housing type – bullet.

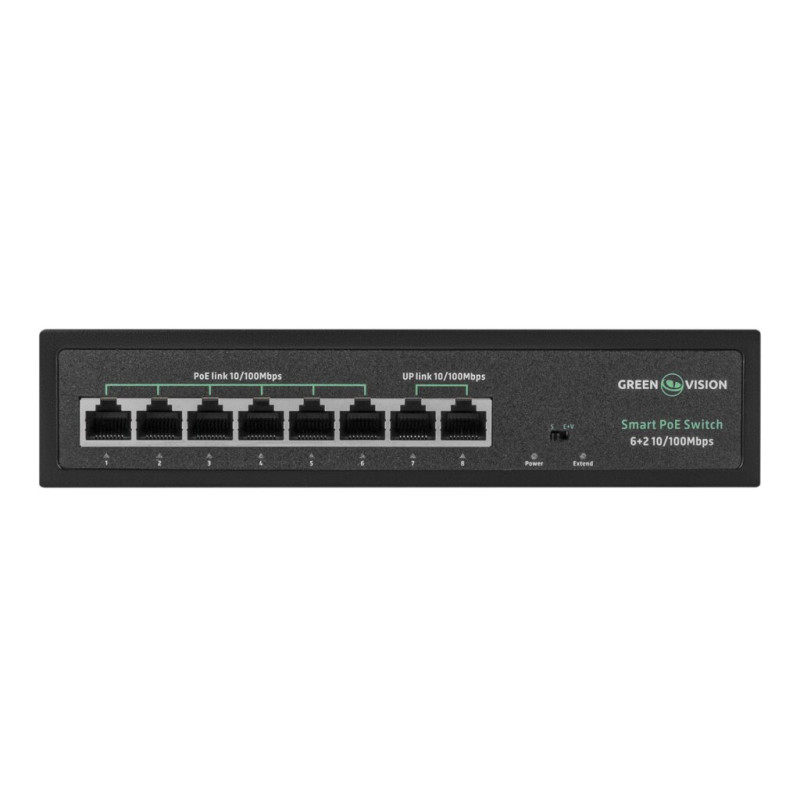

Network POE switch GV-015-D-06+2P - 1 unit.

• LAN: 10/100Mpbs
• Input voltage: AC100-240V; 50/60HZ
• Additionally: IEEE 802.3, IEEE802.3u, 802.3x, 802.3af/at
• Operating temperature: -10 ~ 55°C
• Housing material: metal

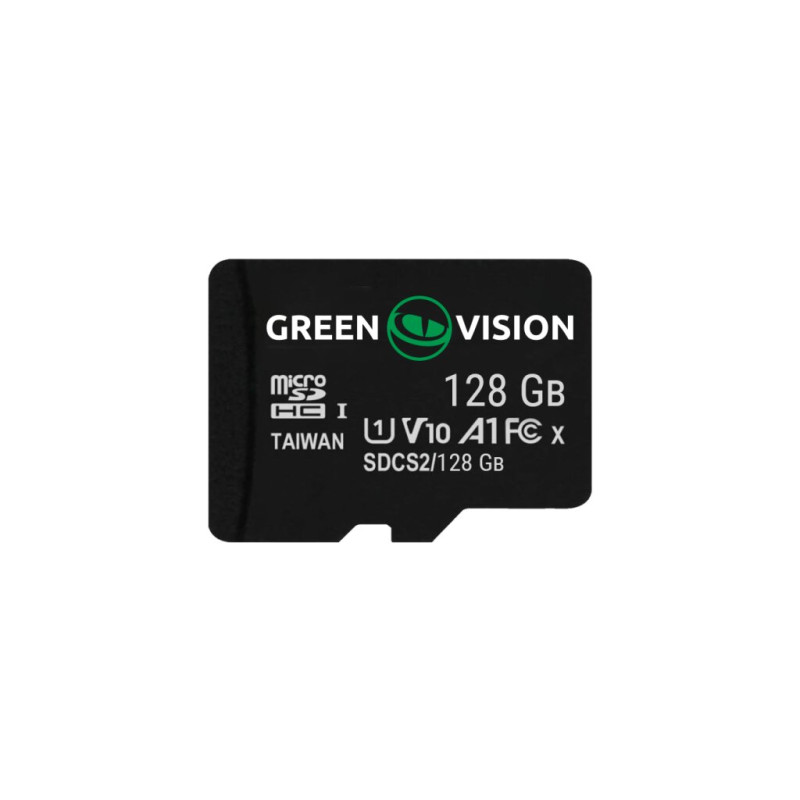

GreenVision micro SDHC memory card - 2 units.

• Memory capacity: 128 GB
• Speed class: 10 UHS UHS-I U3
• Max. read speed: 80 MB/s
• Max. write speed: 60 MB/s
