Sonicmodell AR Wing 900 RC Aircraft Kit

Brand: SonicModell; Category: Drones & Quadcopters > RC Aircraft; Product Type: Drones, EW, Drone Detectors, Components > Drones & Quadcopters > RC Aircraft.

Model Description

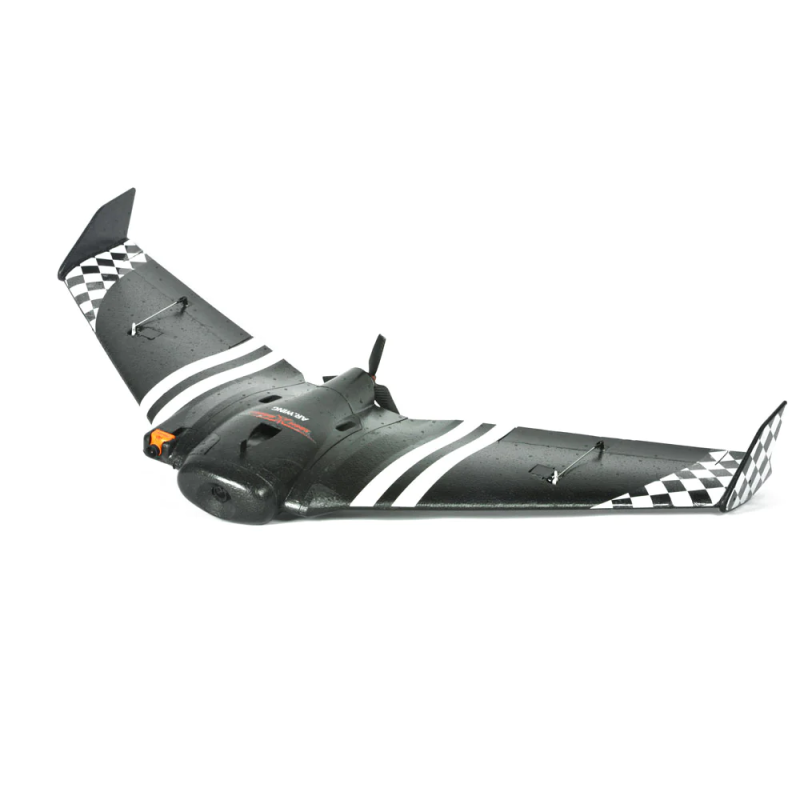

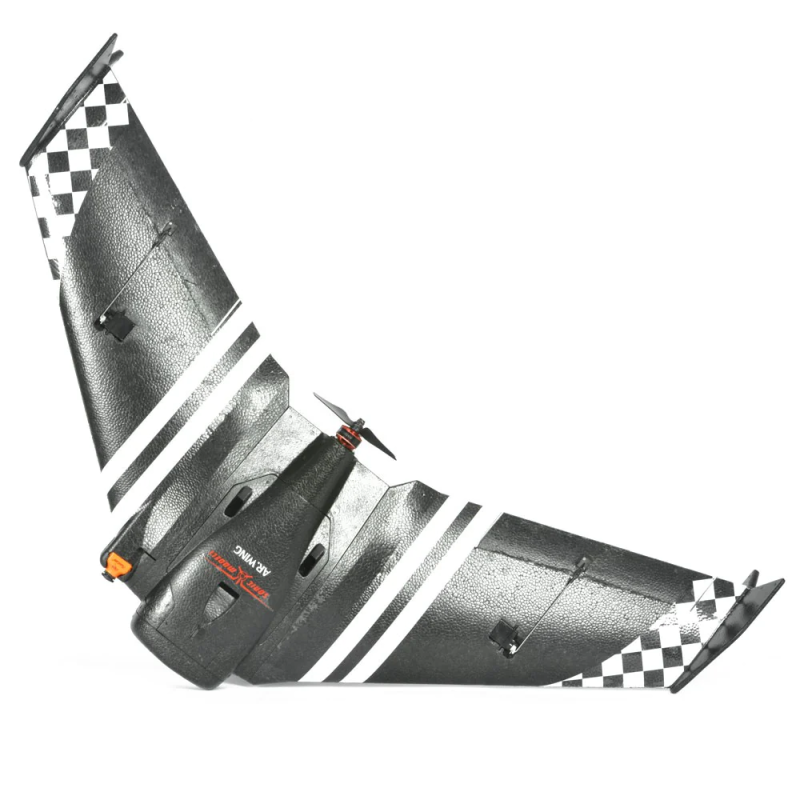

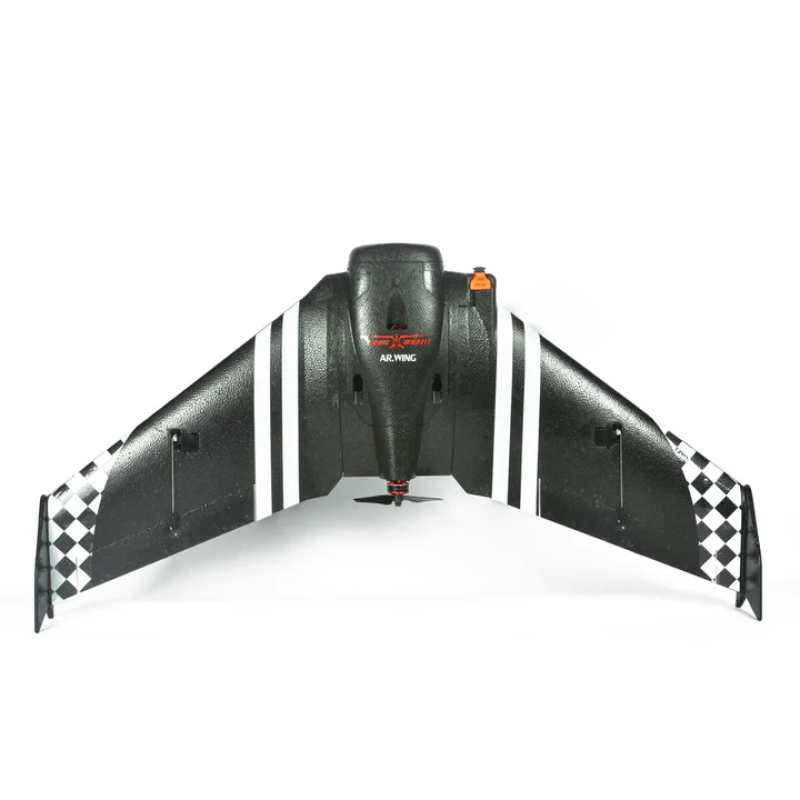

The SonicModell AR V2 900mm flying wing is an advanced RC aircraft for FPV flights, combining lightness, enhanced durability, and ease of use. The fuselage is made of high-strength black EPP foam, further reinforced with carbon tubes and a carbon spar for increased impact resistance and longevity. A spacious compartment for FPV equipment and numerous camera mounting options allow the wing to be adapted for various tasks: agile FPV sports flights, long-range autonomous routes, or monitoring missions.

Configuration Options

PNP (Plug-N-Play): The model comes with basic electrical equipment (e.g., servos, motor, ESC). For full flight capability, the user needs to purchase a battery and receiver separately and use their own transmitter (radio remote control). The PNP kit does not include a flight controller, navigation modules (GNSS), FPV camera, video transmitter (VTX), telemetry, or other additional equipment — these components are selected individually according to the model's intended use.

KIT (assembly kit): Includes only the structural part — fuselage and airframe elements without any electronics or power equipment. This is an optimal choice for those who want to fully customize the model: independently select and install the motor, ESC, servos, flight controller, power system, cameras, and other peripherals.

Key Advantages

• High Flyability: Lightweight, flexible, and impact-resistant black EPP wing for agile FPV flights.

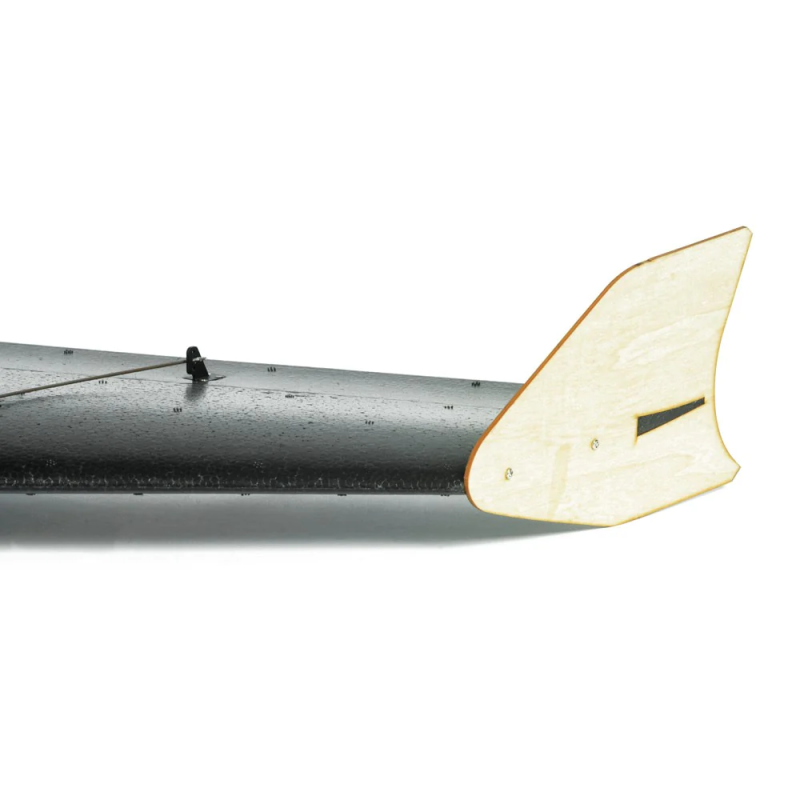

• Easy Assembly: Detachable main wing and wingtip design ensures simple assembly and convenient transport.
• Flight Characteristics: Stable flight characteristics at speeds up to 80 km/h and more.

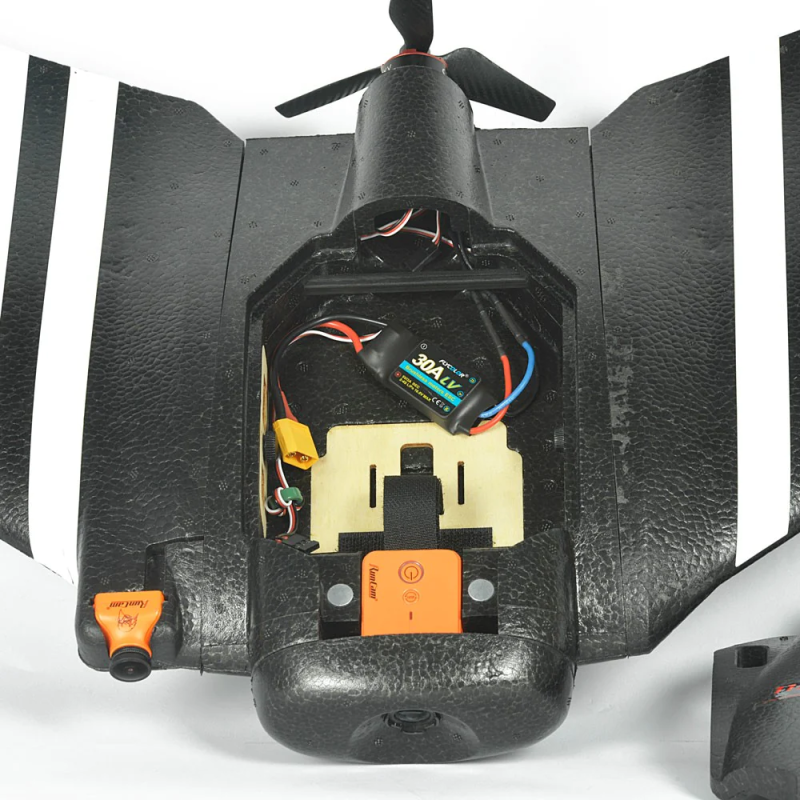

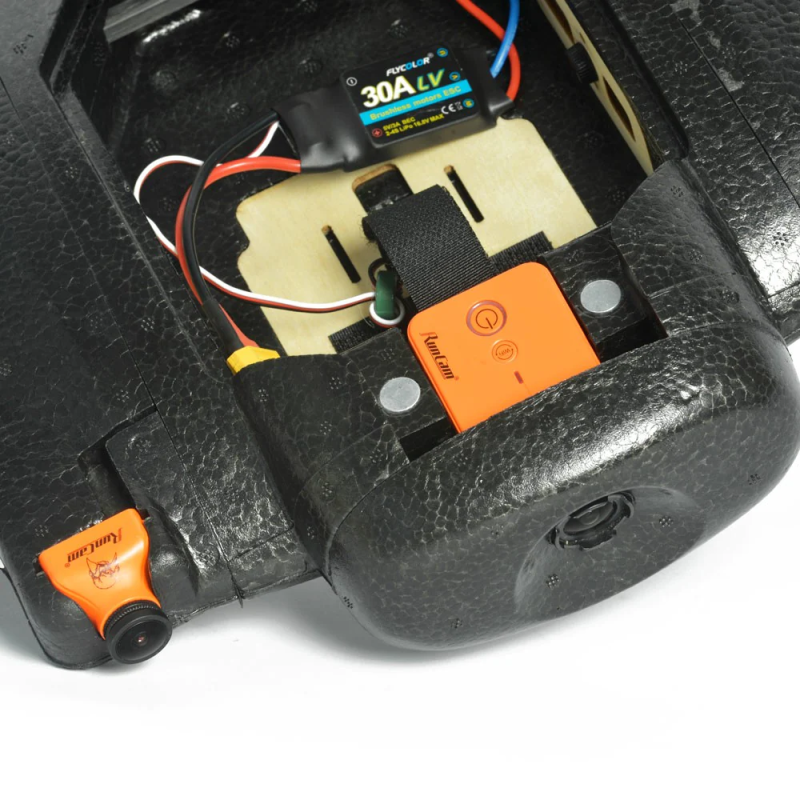

• Multifunctionality: Carbon spar, FPV equipment bay, and numerous camera mounting options for various mission types.

Technical Specifications

• Wingspan: 900 mm
• Length: 482 mm
• Flight Speed: 10 – 80+ km/h

Included in PNP Version

• 1 x SonicModell AR V2 900mm Wing (KIT)
• 1 x Brushless Motor 2206 2300KV
• 1 x Flycolor 30A ESC with 5V BEC
• 2 x 9G Servos
• 1 x 50×30 3-blade Propeller

Recommended Additional Components

• Receiver: 2.4G 6CH
• Battery: 3S 2200mAh 25C LiPo
• HD Cameras: GoPro H3/H4/Session, Runcam 2/3 HD
• Propellers: 6–8 inches

This model is suitable for pilots who value structural reliability and the ability to personalize equipment. The choice between KIT and PNP determines the degree of readiness of the RC aircraft for flight: KIT offers complete freedom in component selection and configuration for specific tasks, while PNP allows for quick preparation of the wing for operation, leaving the option to supplement it with the necessary electronics and FPV system.

Other technical details: black EPP fuselage, reinforced with carbon tubes and spar, spacious equipment bay, intended use — FPV, sports flights, monitoring, and autonomous missions. Brand: SonicModell.
