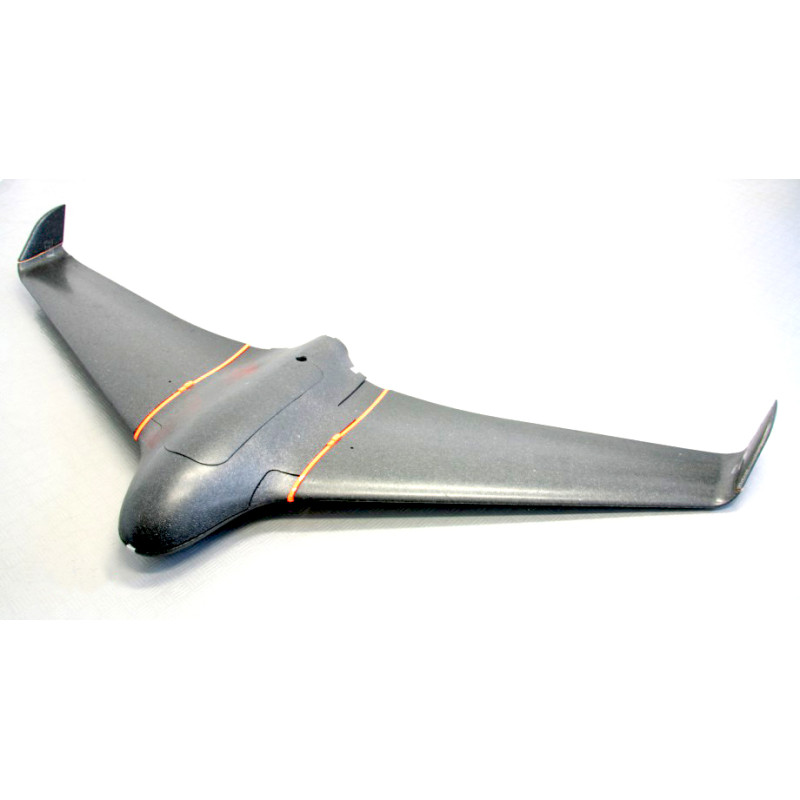

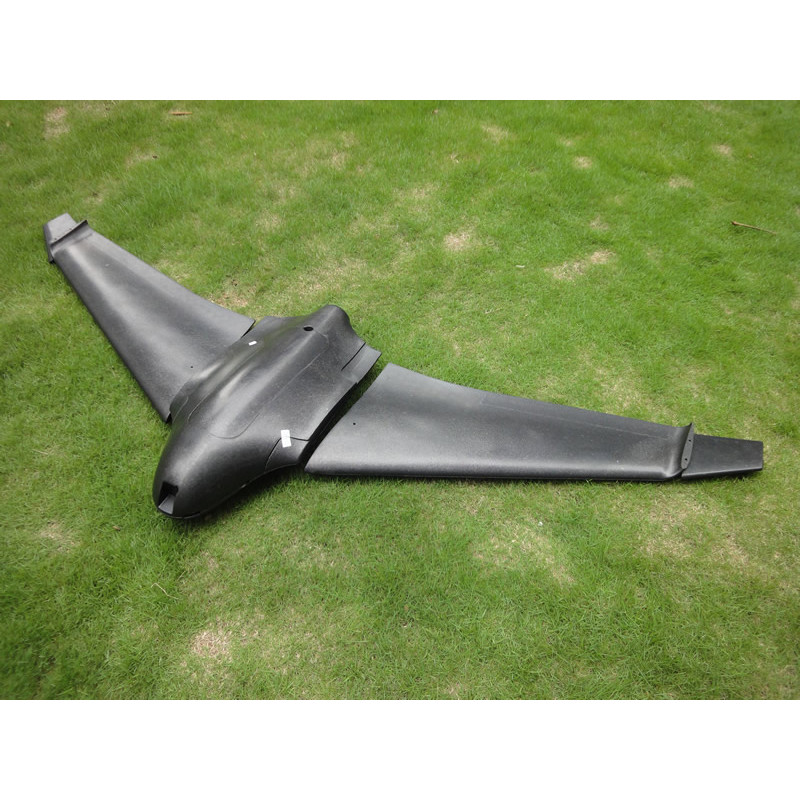

Skywalker X8 Aircraft Model Assembly Kit

Name: Skywalker X8 Aircraft Model Assembly Kit. Manufacturer: Skywalker. Category: Drones & Quadcopters > Aircraft Models. This SEO description contains all important information about both Skywalker X8 configurations — KIT (assembly kit) and PNP (Plug-N-Play), technical parameters, component recommendations, and model advantages.

Kit Overview: KIT and PNP

The PNP (Plug-N-Play) version comes with basic electronics: a brushless motor, electronic speed controller (ESC), and servos. It lacks a radio transmitter and receiver, flight controller, GNSS modules, FPV camera, video transmitter (VTX), and telemetry, so after adding a battery and receiver, the model can be quickly prepared for flight. The KIT version includes only structural elements: fuselage, wings, airframe components, and carbon parts — without any electronics or power equipment, providing complete freedom to customize the configuration for specific tasks.

Skywalker X8 Advantages

• Large wingspan — approximately 2122 mm — for long and extended flights.
• Internal compartments for batteries, cameras, and other equipment.
• Built-in mounts for a forward-facing camera (e.g., GoPro) — ideal for FPV and aerial photography.
• Special grip for hand launch — no runway required.
• Manual or autonomous control capability when adding a flight controller with autopilot.
• Good stability and reliability in flight due to advanced aerodynamics and lightweight materials.
• Quick and convenient assembly, easy access to electronics compartments, carbon wing spar for increased strength.

Specifications and Technical Parameters

• Type: Radio-controlled flying wing aircraft.
• Manufacturer: Skywalker.
• Model: FPV Flying Wing (Skywalker X8).
• Class: FPV (First-Person View).
• Material: EPO (Expanded Polyolefin).
• Motor Type: Electric motor.
• Recommended Propeller: 12x8′ or 12x6′.
• Recommended Motor: 4250 KV500 or 5010 KV810.
• Recommended Servos: 17 g.
• Recommended ESC: 60–100 A.
• Recommended Battery: 22.2 V (6S) 5000–6500 mAh, 30C, 1 pc.
• Wingspan: 2122 mm.
• Fuselage Length: 790 mm.
• Flight Weight: 2500–3000 g.
• Number of Channels: 3.
• Landing Gear: Absent.
• Flight Time: Approximately 15–25 minutes depending on configuration.
• Battery Charging Time: Approximately 75 minutes.

Package Contents

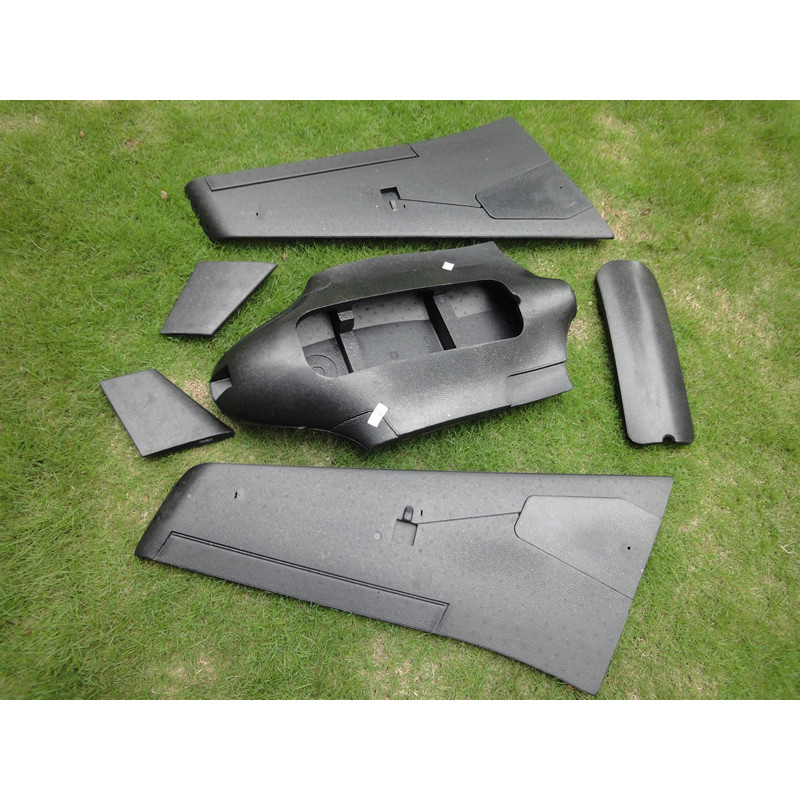

KIT (Assembly Kit):

• Flying wing — 1 pc.
• Carbon components — 1 set.

PNP (Ready Electronics, excluding radio):

• Flying wing — 1 pc.
• Carbon components — 1 set.
• Brushless motor — 1 pc.
• Servos — 2 pcs.
• Electronic Speed Controller (ESC) — 1 pc.
• Propeller — 1 pc.

What Else is Needed for Flight

• 22.2 V (6S) Battery — 1 pc.
• Remote control with a minimum of 4 channels and a compatible receiver — 1 pc.
• FPV equipment set (FPV camera, VTX, antennas, goggles or monitor) — if needed.

The Skywalker X8 is suitable for FPV flights, aerial photography, mapping, surveillance, and other missions where flight range, stability, and customization are important. The choice between KIT and PNP depends on your skills and goals: KIT provides full control over the configuration, while PNP reduces preparation time for flight. The model combines lightweight materials, thoughtful aerodynamics, and camera mounts, making it convenient for both amateur and semi-professional tasks.

Additional information: internal compartments for equipment, carbon wing spar, special grip for hand launch, and the ability to install an autopilot and telemetry modules make this model a versatile platform for various applications.
