Product Code: 2573-
In Stock
19 620 грн.
Buy this product in 1 click:
Main specifications
Jamming range: Up to 200 m
Device type: Trench EW Jammer
Device type: Trench & Vehicle EW Jammer
Total system power: 50 W
Power per channel: 50 W
All specifications
We will deliver this product:
Payment
Description

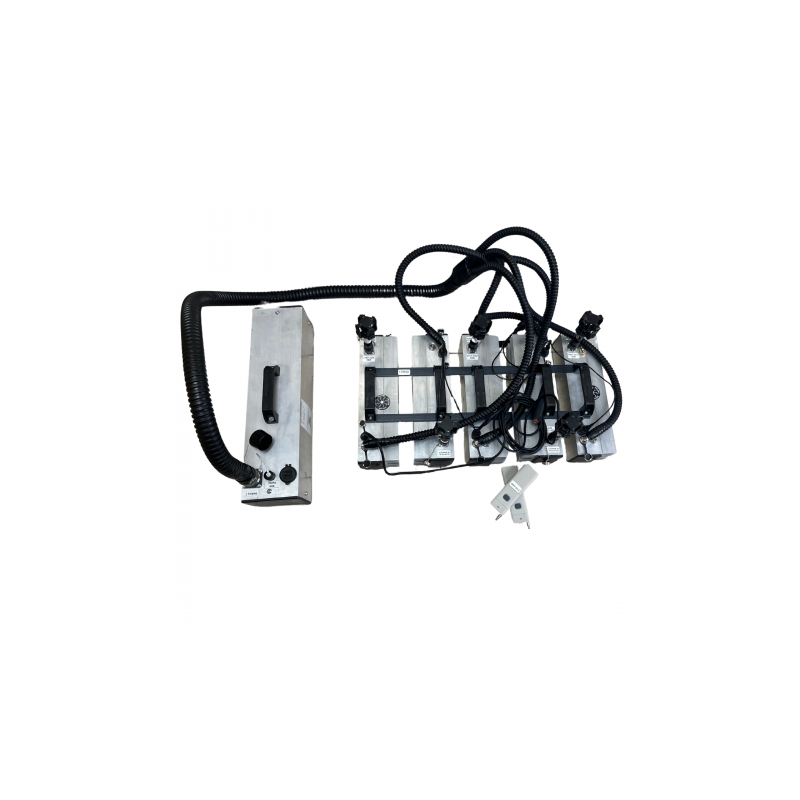

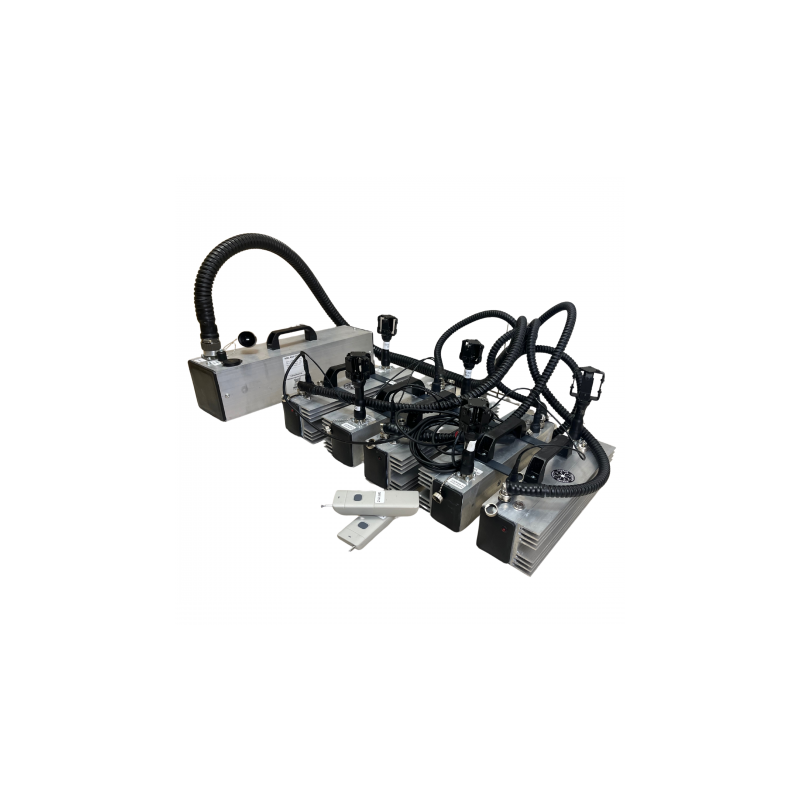

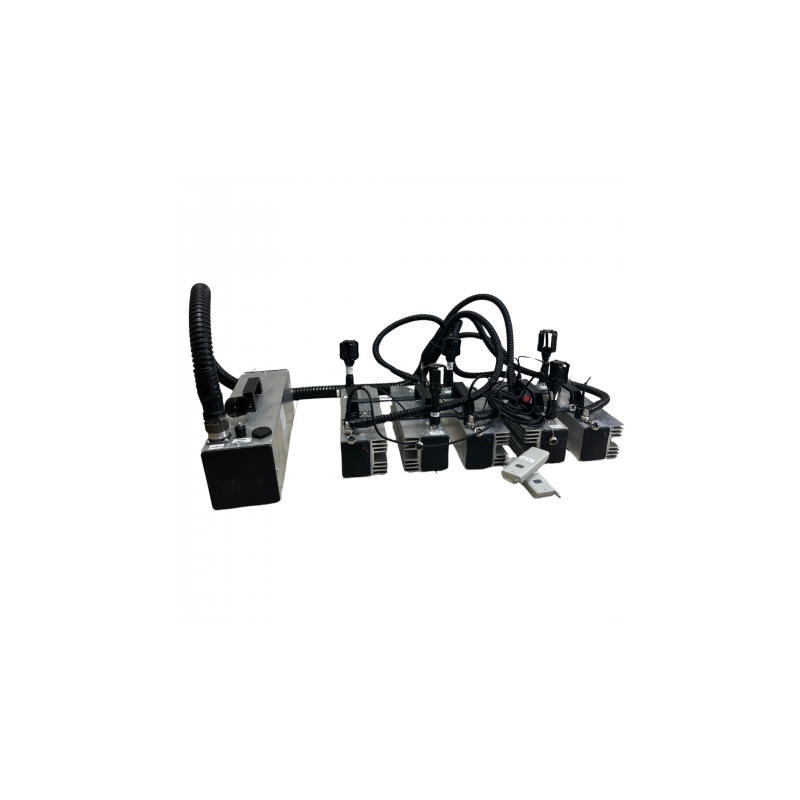

Module 2000-2115 50W — EW Jammer "Pysets"

Manufacturer: ZAVADA. Type: EW Jammers (Trench EW Jammers). This 2000-2115 50W module is designed for reliable suppression of UAV control and communication channels and perimeter protection against remote control. The design combines high power, modularity, and ease of use in field conditions.

Specifications

  • Power: 50 W per band (50W power modules).
  • Suppression Radius: effective suppression within a radius of up to 200 m when the distance to the drone operator is 3.9 km.
  • Antenna: dome-shaped protection due to proprietary quadrifilar antennas — QUADRIFILAR 2.0 GHz, providing directional coverage.
  • Modularity: quick replacement of a damaged module or addition of a new one to expand functionality.
  • Cooling: reliable passive cooling, designed for field operation without additional maintenance.

Package Contents

  • EW Jammer "Pysets" (module 2000-2115 50W).

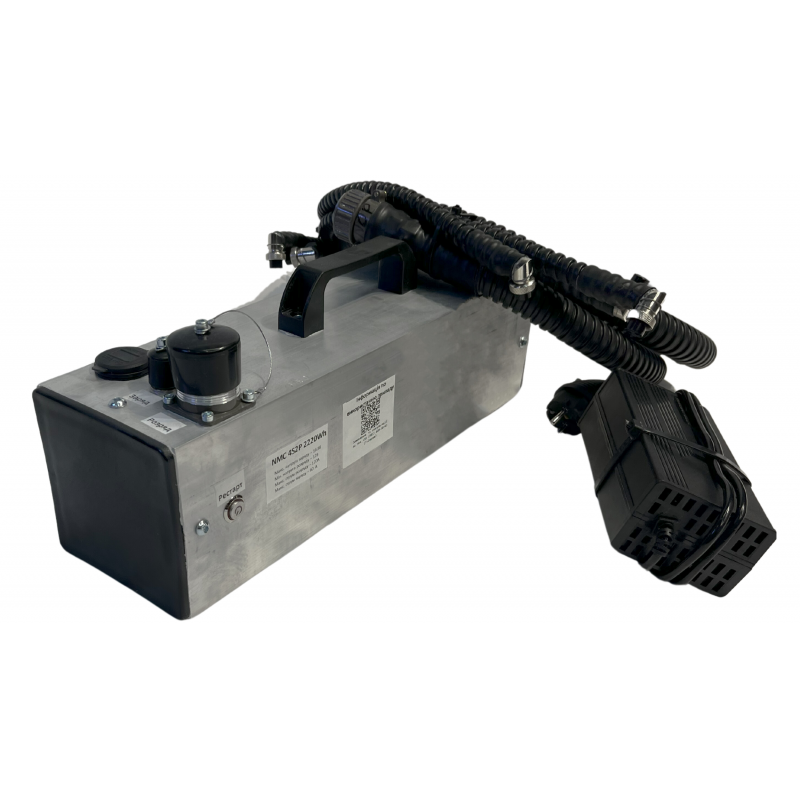

  • 2220 Wh battery (optional).
  • External buttons: 2 pcs.
  • Remote controls: 2 pcs.

Warranty

The warranty period is 6 months. Mechanical damage and powering on the device without an antenna are not covered by the warranty.

Additional Options and Accessories

  • Manufacture of adapters and extension cables: antenna extension cables, adapters for powering from other batteries, car terminal adapters, car cigarette lighter chargers.
  • Car mount for vehicle installation.
  • Car charger and fast charger for batteries.
  • External battery adapter (for terminals) for prolonged field operation.
  • Uninterruptible power supply unit from ECOFLOW to ensure reliable power in field conditions.

The EW system "Pysets" 2000-2115 50W in combination with the QUADRIFILAR 2.0 GHz antenna is an optimal solution for electronic warfare tasks requiring directional and reliable suppression of UAV control channels. It is recommended to use only complete or compatible antennas, and to observe electrical safety and technical operation rules.

Other products in this category here Trench EW Jammers

Specifications
Jamming range Up to 200 m
Frequency range 2000–2115 MHz
Trench EW Jammer
Device type Trench EW Jammer, Trench & Vehicle EW Jammer
Total system power 50 W
Power per channel 50 W
Suppression Frequencies 2.0 GHz
Antenna type Quadrifilar
Effective jamming range up to 200 m
Power Supply 12–24 V
Power source Battery
Cooling type Passive
Mounting Type Trench, Portable
Operating time 40–140 min
