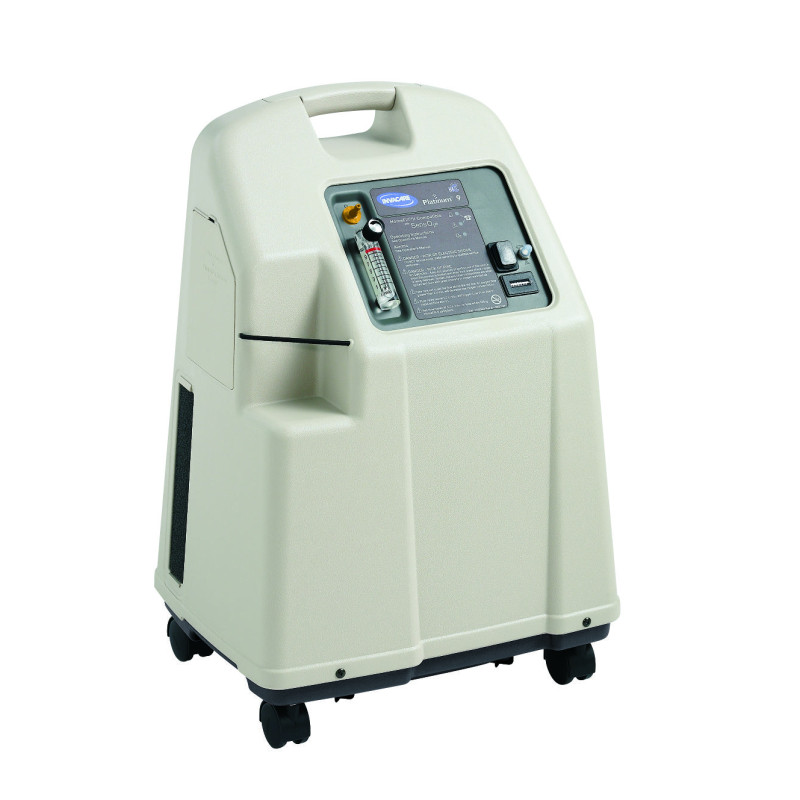

Invacare Platinum 9 Oxygen Concentrator

Manufacturer: Invacare
Product Category: Tactical Medicine > Rehabilitation and Recovery from Injuries > Rehabilitation Products

The Invacare Platinum 9 is a reliable and economical oxygen concentrator with a capacity of 9 L/min, designed for long-term and comfortable oxygen therapy at home and in medical facilities. The device provides pure medical oxygen from atmospheric air with low operating noise, making it an optimal choice for patients requiring daily or long-term oxygen replacement therapy.

Operating Principle

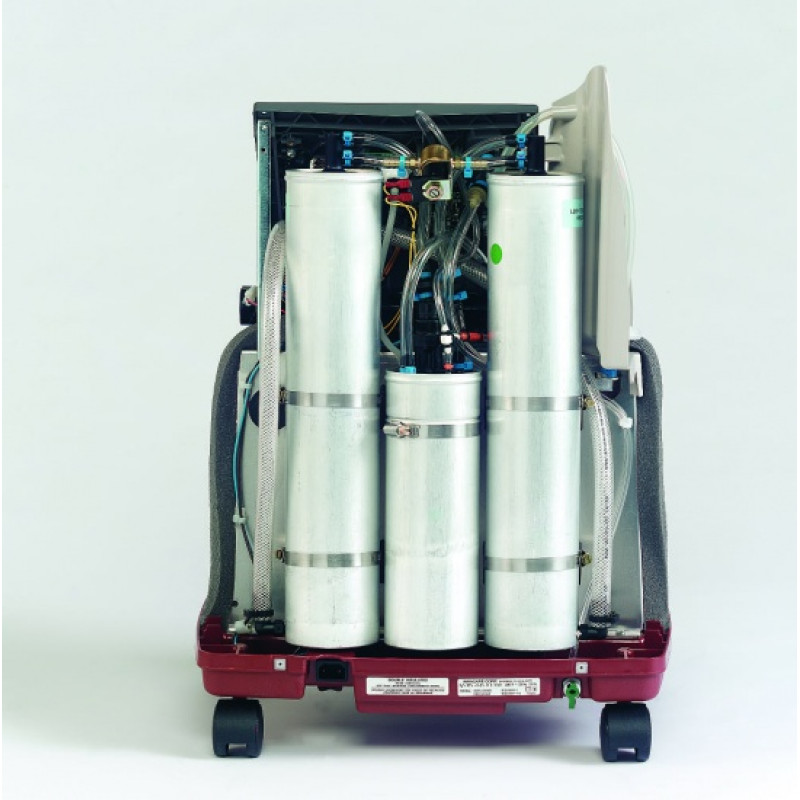

The device operates using molecular gas separation technology with adsorption: atmospheric air is filtered and passed under pressure through molecular sieve adsorbents that selectively absorb nitrogen and impurities. At the outlet, the device delivers oxygen with a concentration of 87–95.6%, which accumulates in the oxygen reservoir and is supplied to the patient via a nasal cannula.

Purpose and Application Area

The Platinum 9 is recommended for the treatment and rehabilitation of patients with respiratory dysfunction both in clinical settings and at home. The device effectively compensates for oxygen deficiency, prevents the development of hypoxia, and improves overall quality of life. The model is suitable for long-term oxygen therapy (e.g., 15 hours per day) and for providing emergency medical care.

Invacare Check O2 Analyzer

The Invacare Check O2 analyzer, a universal measuring instrument that monitors key operating parameters of the concentrator, can be used as part of the kit or as an additional device. The instrument measures oxygen concentration, flow rate, and pressure at the patient's outlet. The Invacare Check O2 does not require routine calibration and does not have a replaceable fuel cell, thus combining three analyzer functions in one device.

Key Features and Benefits

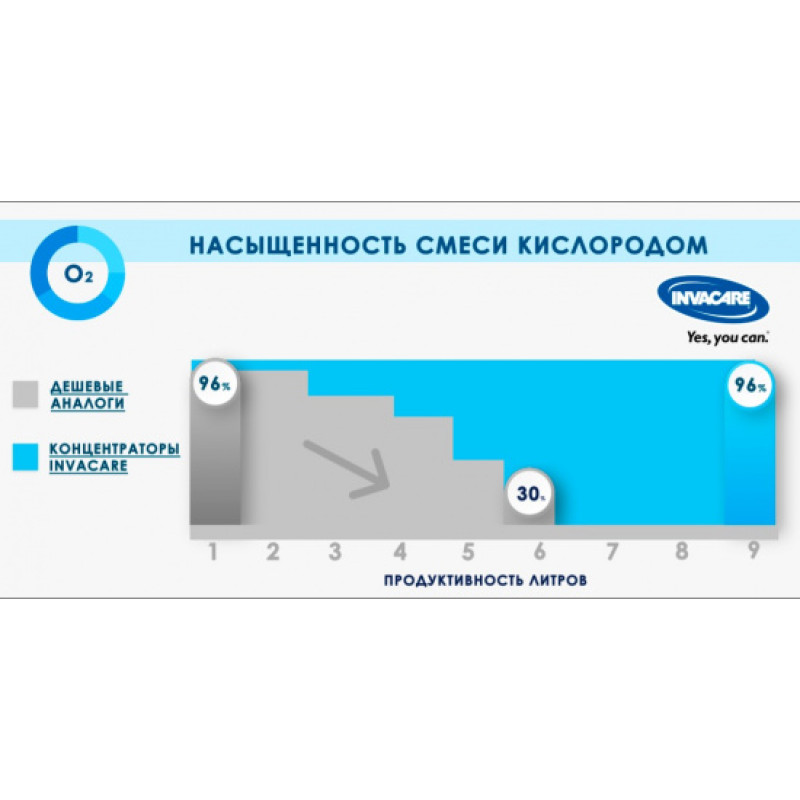

• Oxygen concentration in the final product: 87–95.6% at a flow rate of 0.5–9 L/min.
• The compressor is designed for long-term operation — it can operate for up to 5 years or 40,000 hours without the need for major overhaul.
• Impact-resistant casing made of fire-resistant materials ensures increased safety and durability.
• Built-in automatic protection system: alarm and compressor shutdown in case of excessively low or high pressure, overheating, power outage, or overvoltage in the network; low oxygen level alarm is present.
• The humidification system integrated into the device prevents mucous membranes from drying out during prolonged procedures.
• A non-deforming nasal cannula 2.1 m long allows the patient to move freely during oxygen therapy.
• Manual flow rate adjustment allows for individualized oxygen delivery according to the patient's needs.
• Continuous operation time: from 30 minutes to 24 hours depending on the mode of use.
• The hour meter displays the total operating time of the device, facilitating maintenance planning.

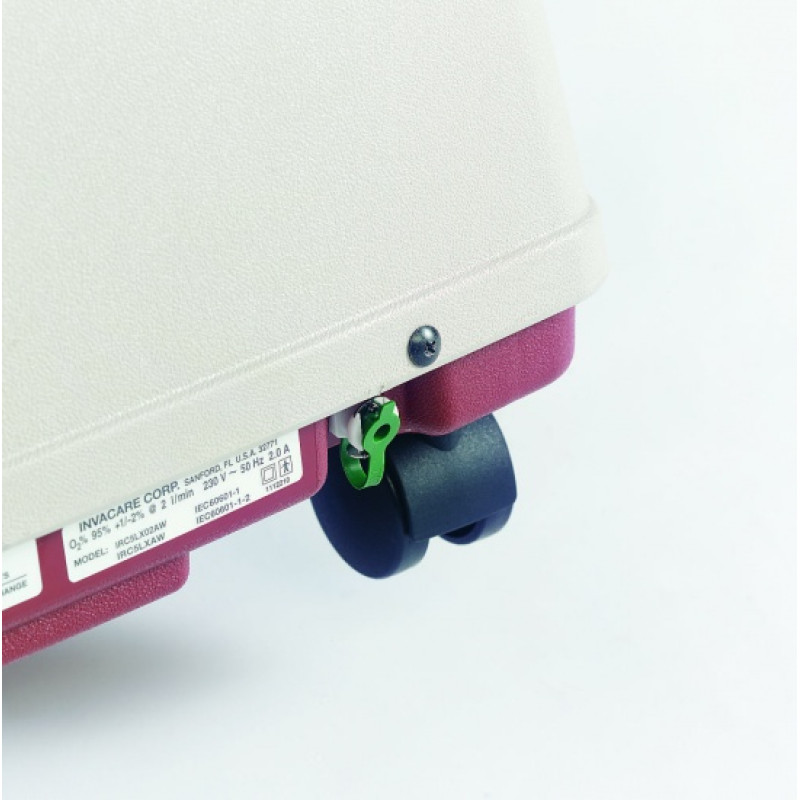

• High mobility: the device is equipped with wheels and a convenient handle for moving between rooms.

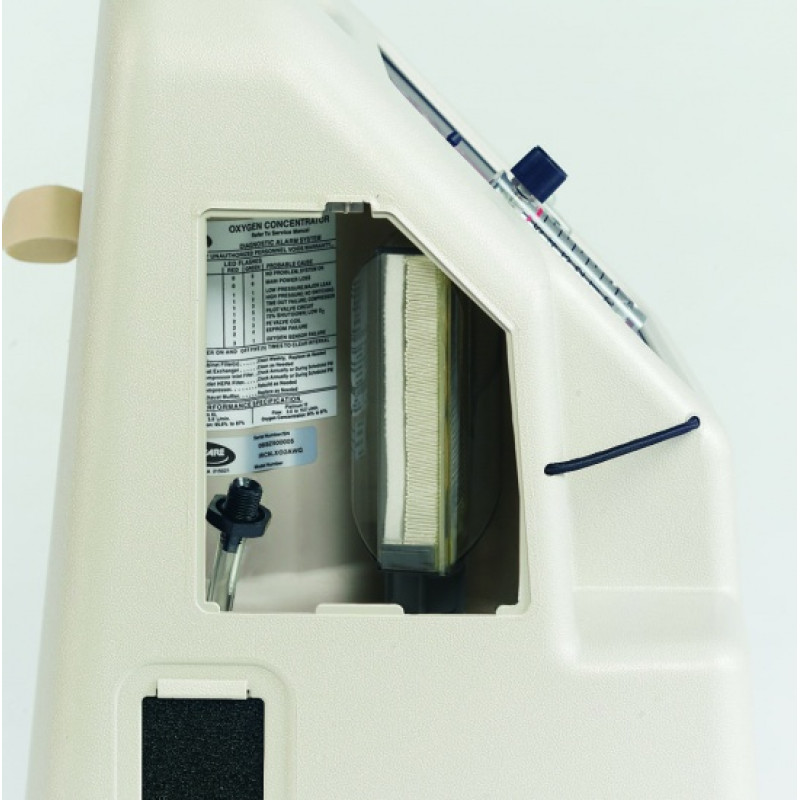

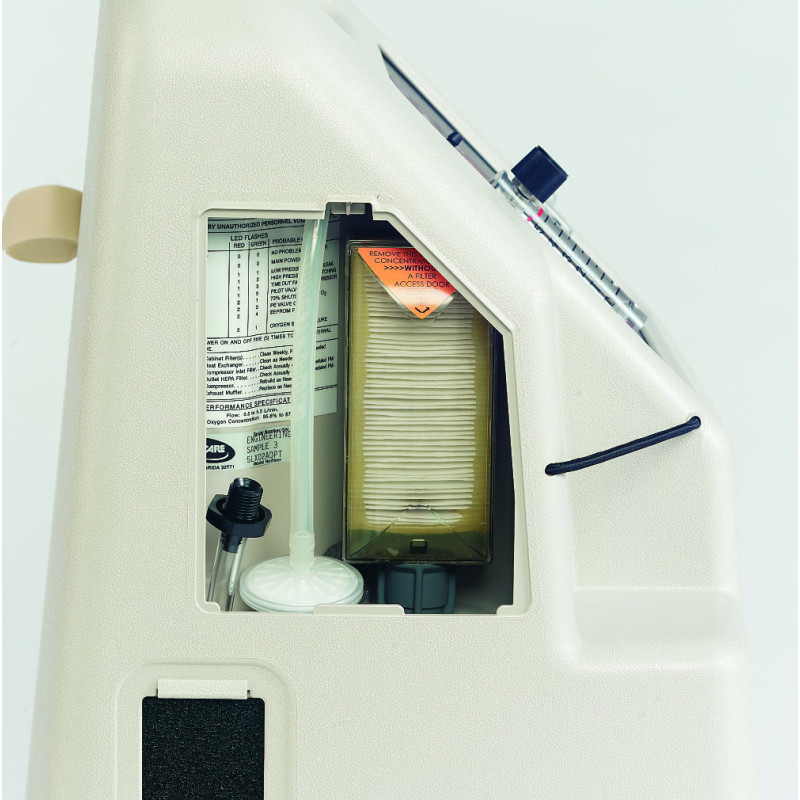

• Maintenance is recommended once a year; during service, fine and coarse filters are replaced, which can be replaced independently.
• Possibility of additional equipment: the concentrator can be equipped with an Invacare HomeFill II station for filling portable cylinders and mobile oxygen use.
• Power consumption: no more than 460 Watts.
• Low operating noise level: 46 dB, which contributes to comfortable use in homes and medical premises.

Emergency Protection Systems

• Automatic device shutdown in case of overvoltage or protective current shutdown.
• Compressor shutdown in case of overheating to prevent damage.
• Alarm and compressor shutdown in case of excessive or reduced system pressure.
• Alarm for low oxygen flow rate.
• Signal for power outage in the electrical network.

The Invacare Platinum 9 combines high performance, ease of maintenance, and advanced safety systems, making it an attractive choice for patients and medical institutions requiring a reliable oxygen source for daily or long-term therapy.
