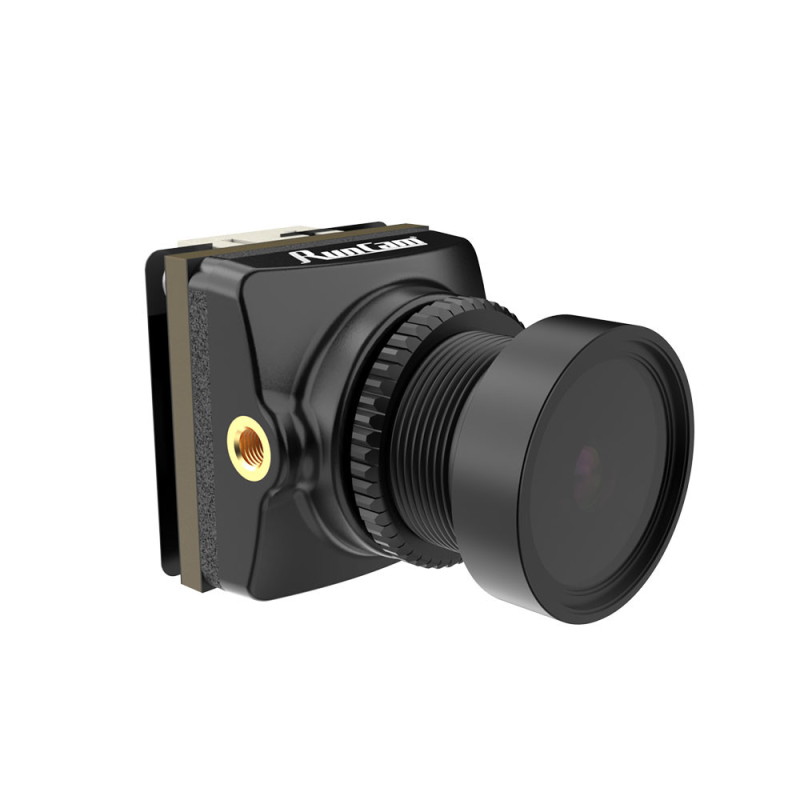

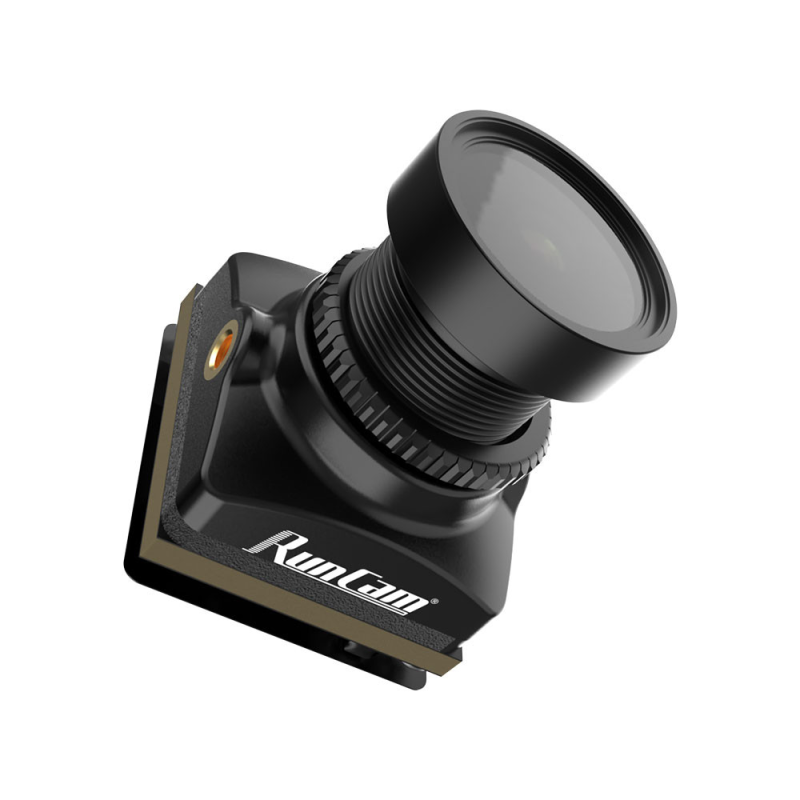

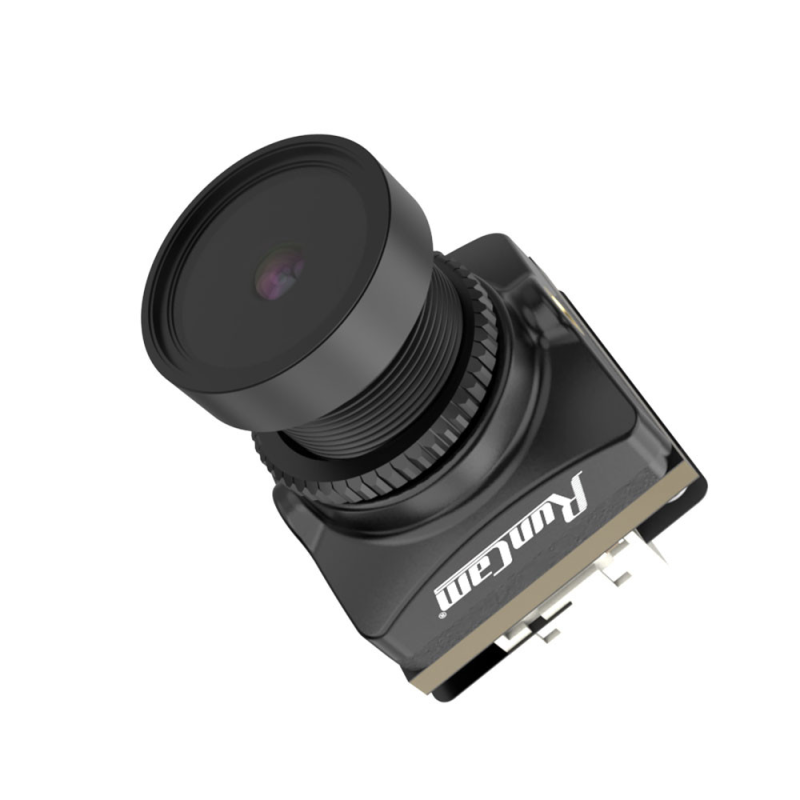

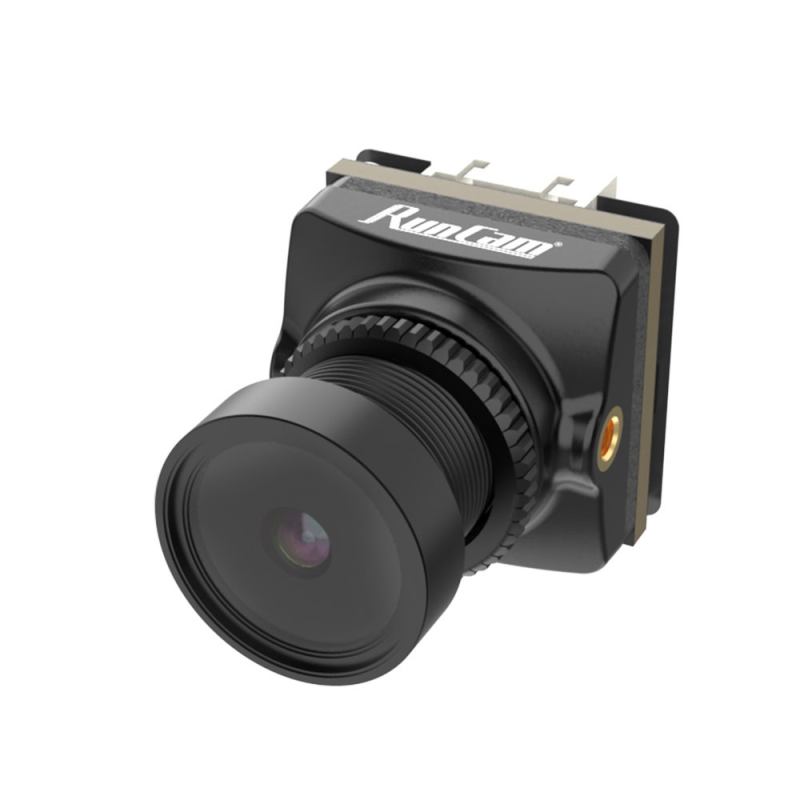

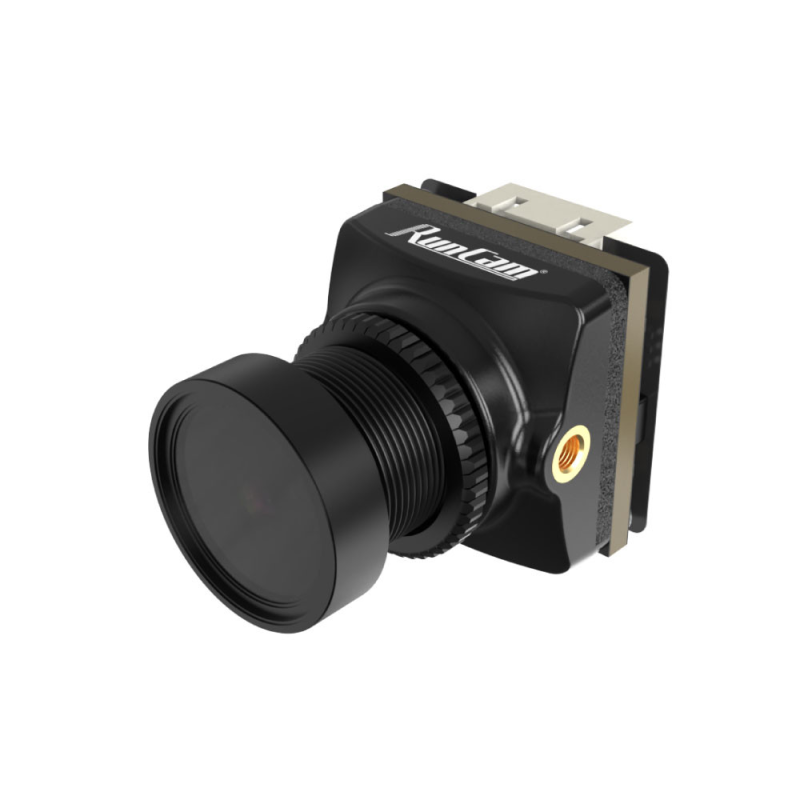

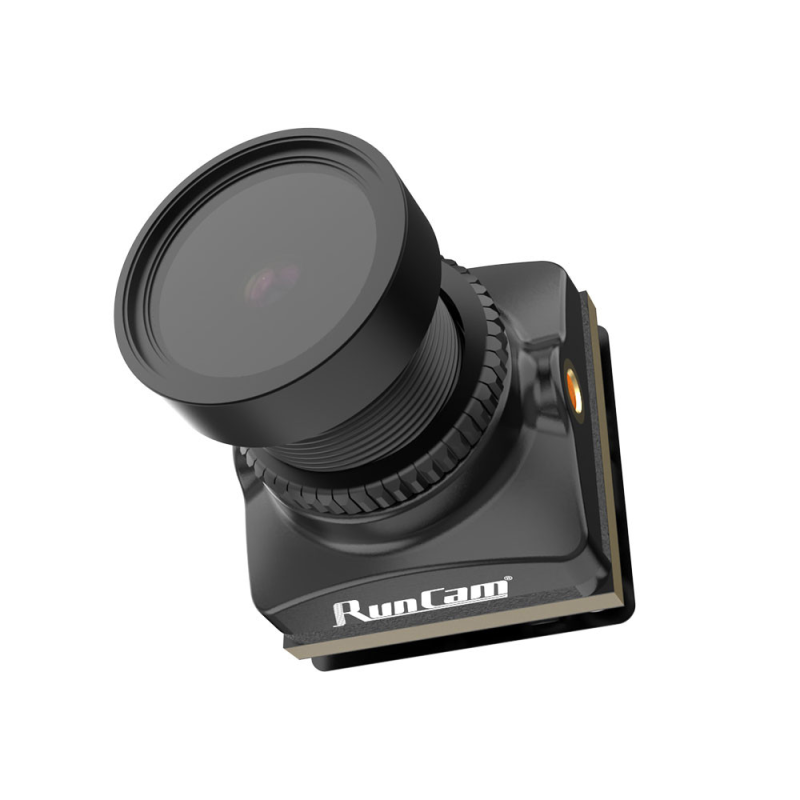

RunCam Phoenix 2 Pro Camera — Overview

RunCam Phoenix 2 Pro from the RunCam brand — a professional drone camera designed for high-quality low-light imaging. This model combines a modern 1/2.8″ Starlight COMS sensor and a high horizontal resolution of 1500TVL, ensuring a clear and detailed image during flight. The camera supports both NTSC and PAL signals, making it easy to integrate into systems in different regions.

The RunCam Phoenix 2 Pro has a wide field of view, allowing it to capture a larger area during shooting: a diagonal angle of 128°, horizontal 97°, and vertical 72°. Thanks to the built-in WDR mode (Global WDR), the image maintains quality in both bright and shadowed areas. There is an option to switch Day/Night modes — color and black-and-white, which improves visibility in various lighting conditions.

The camera is powered by DC 5-36V, making it compatible with typical onboard drone power sources. Current consumption is 220mA at 5V and 120mA at 12V, ensuring efficient operation without excessive load on the onboard electronics. The body is made of lightweight and durable ABS plastic, the camera weighs only 7.5 g, and its compact dimensions of 19mm x 19mm x 27mm allow it to be installed even on small quadcopters.

Technical Specifications

• Model: RunCam Phoenix 2 Pro
• Brand: RunCam
• Product Type: Drone Camera
• Image Sensor: 1/2.8″ Starlight COMS
• Horizontal Resolution: 1500TVL
• Field of View (FOV):
  • Diagonal: 128°
  • Horizontal: 97°
  • Vertical: 72°
• Screen Format: 4:3, 16:9
• Signal System: NTSC/PAL
• Shutter: Rolling Shutter
• Sensitivity: 15000mV/Lux•sec
• WDR: Global WDR
• Day/Night: Color/B&W
• Menu Control: Cable Control
• Power Supply: DC 5-36V
• Power Consumption: 220mA@5V, 120mA@12V
• Housing Material: ABS
• Weight: 7.5 g
• Dimensions: 19mm x 19mm x 27mm

This camera is ideal for pilots looking for a reliable, compact module with excellent performance in low light and challenging lighting conditions. The RunCam Phoenix 2 Pro will be a good choice for racing drones, freestyle, and other applications where high image quality is required with minimal weight and power consumption.
